Product description

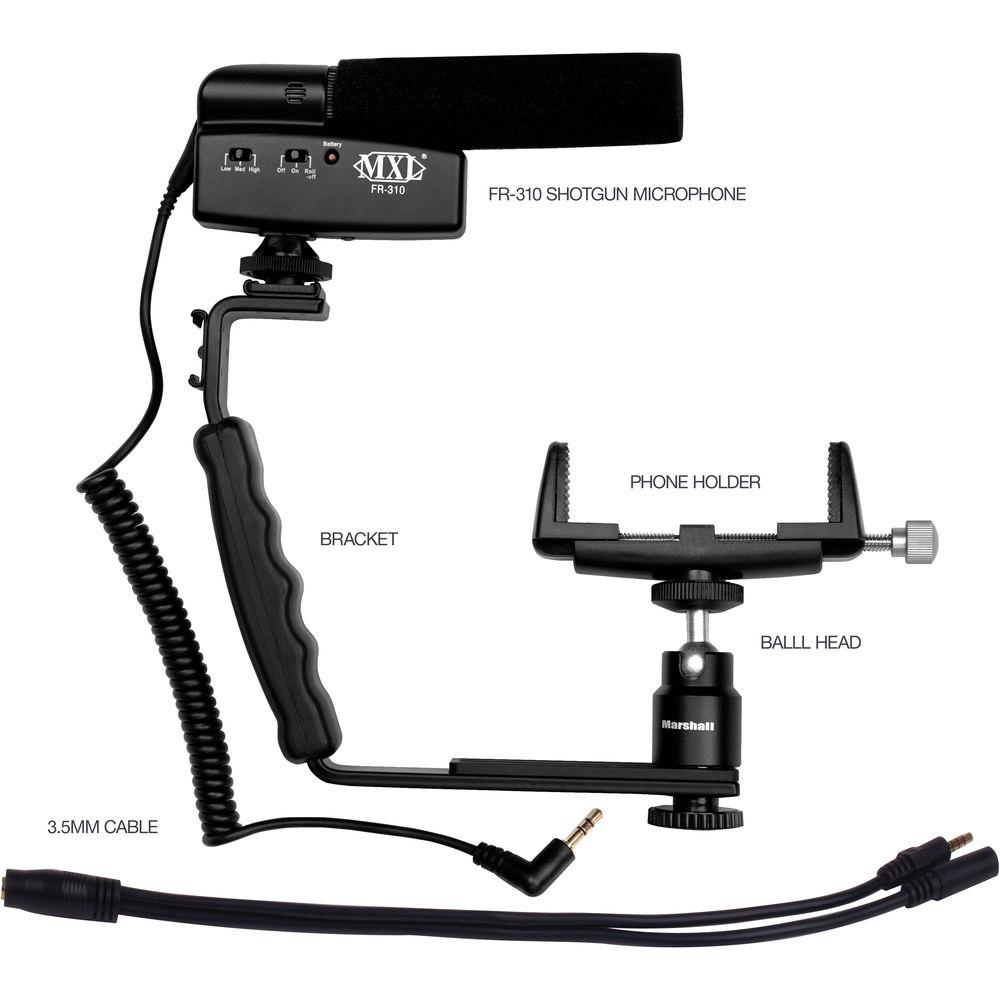

• FR-310 Hot Shoe Shotgun Microphone The FR-310 Hot Shoe Shotgun Microphone from MXL is a mono video microphone for mounting on a camcorder or DSLR via the hot shoe. As is typical of these types of microphones, sounds from the sides and rear are rejected in favor of sounds that are in front of the camera. The result is a more focused sound.

  Three gain settings help adjust the level of sound capture whether from a close-up or long shot, while a bass roll-off switch cuts low-frequency noise. Additionally, the integrated windscreen helps block wind noise. The microphone functions using a single AAA battery.
  • Three-position gain switch
  • Bass roll-off (high-pass filter)
  • Standard hot shoe mount
  • Up to 500 hours per AAA battery
  • Integrated foam windscreen
  • Includes Aluminum flight case

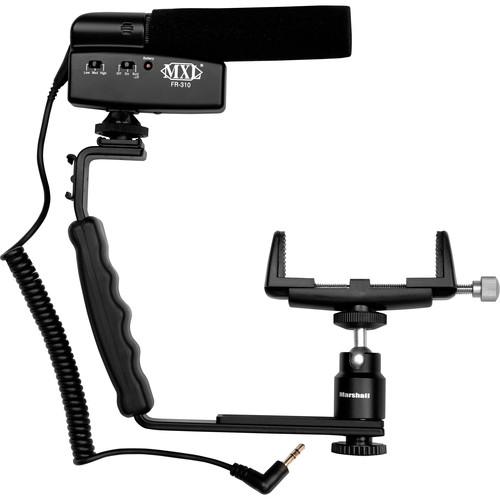

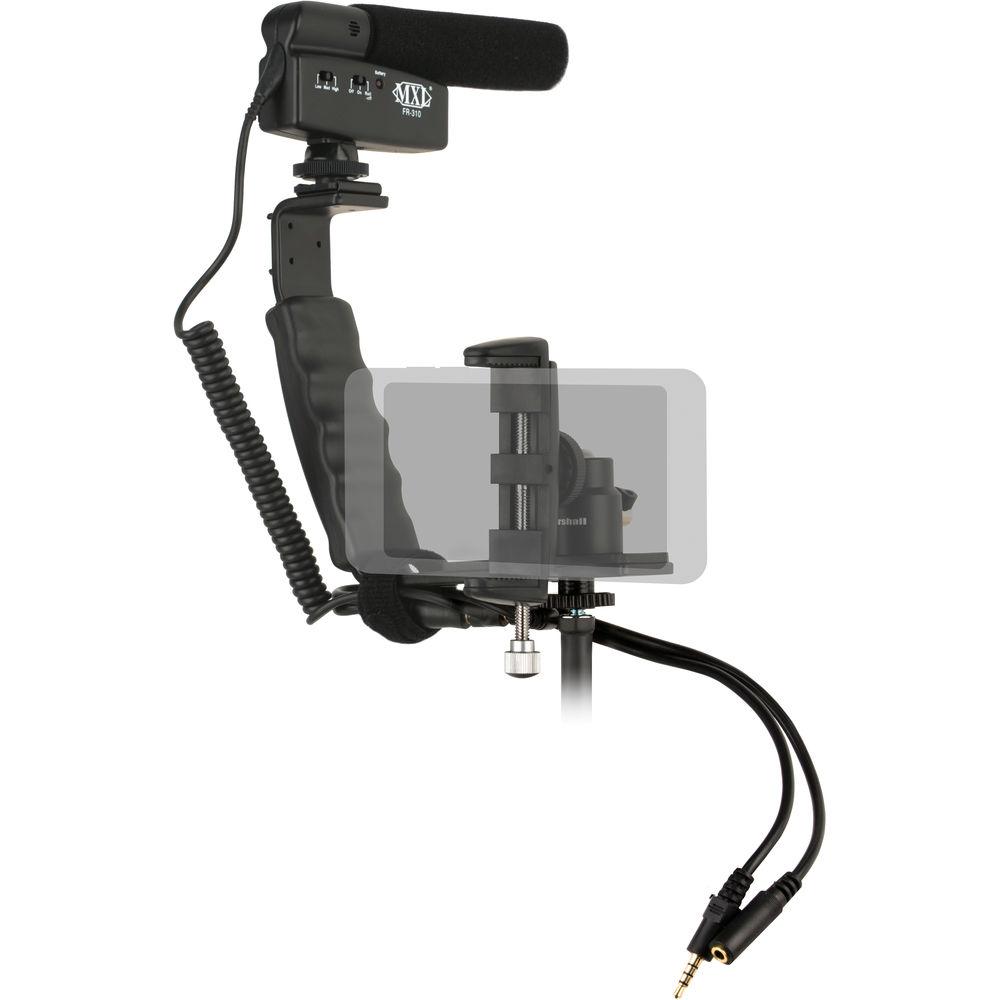

• Mobile Media Camera Mount Kit Stabilize your mobile phone or DSLR camera for shooting video and add helpful accessories with the Mobile Media Camera Mount Kit from MXL. The kit consists of a bracket with two cold shoe mounts, a fully adjustable mobile phone holder, and a swivel ball head. The ergonomically molded bracket allows you to comfortably hold your device without blocking its lens or sensors. It also adds stability by reducing camera shake so you can securely and smoothly pan, tilt, and track. This kit can be mounted to a tripod or stabilizing rig for added support and functionality.

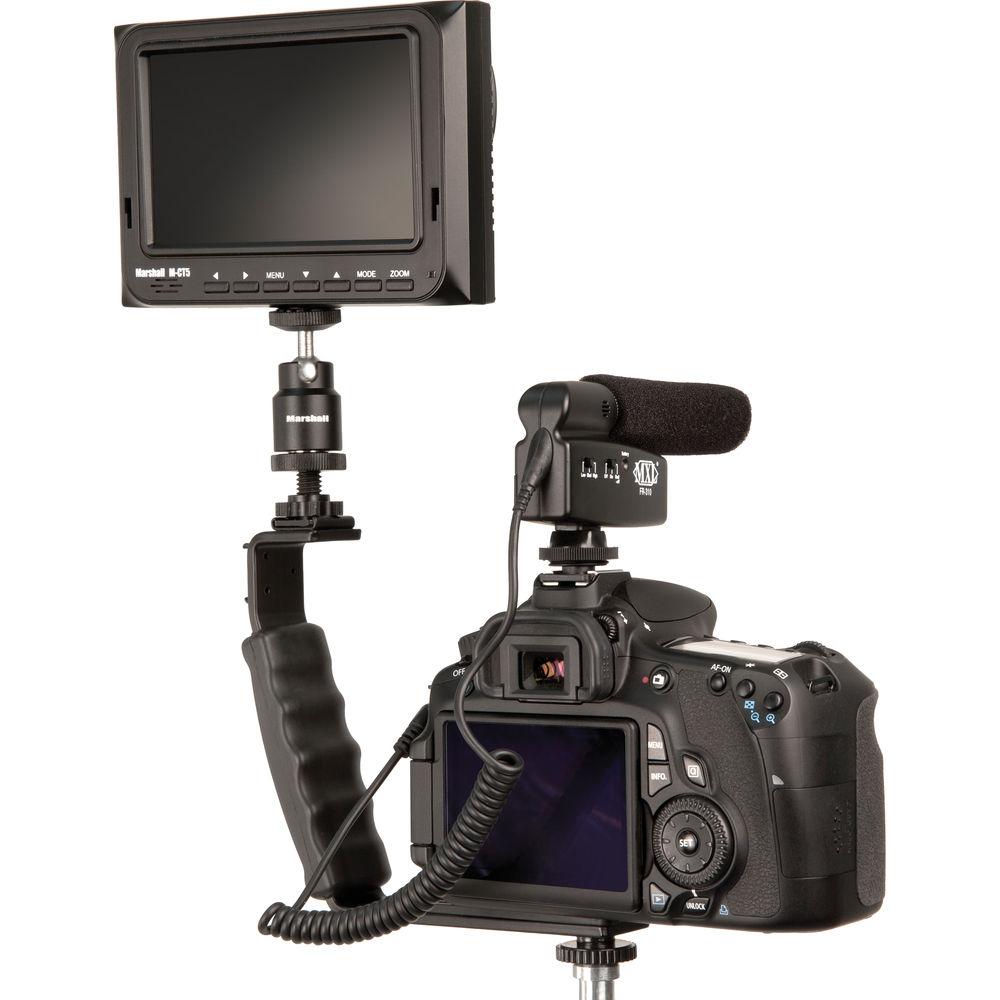

  Build a more complete video rig by adding lights, microphones, and other accessories to the dual cold shoes. Components that require independent movement, like camera-top monitors, can be mounted to the included swivel ball head via a 1/4"-20 screw. The mobile phone holder adjusts to accommodate smartphones 1.5 - 2.75" wide as well as most cameras, including DSLR cameras. UPC: 801813167085

• AAA Battery

• Case

• Limited 1-Year Warranty

• Ball Head

• Bracket

• 1-year Limited Warranty

Also Includes

• 3.5 mm Audio Mic - Headphone Adapter Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FR-310 Hot Shoe Shotgun Microphone

  Transducer	Electret Condenser
  Diaphragm	0.39" / 10.0 mm
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Impedance	250 Ohms
  Low-Cut Filter	6 dB/Octave @ 150 Hz

  Output Connectors	1 x 1/8" (3.5 mm) TRS
  Battery Type	1 x AAA
  Length	5.31" / 135 mm
  Diameter	2.48" / 63 mm
  Weight	4.80 oz / 136 g

  Box Dimensions (LxWxH)	7.2 x 6.1 x 2.4"

• Mobile Media Camera Mount Kit

  Compatibility	Smartphones 1.5" to 2.75" (3.8 to 7.0 cm) wide, cameras with 1/4"-20 screw connections
  Dimensions	8.0 x 4.0 x 1.0" (20.3 x 10.2 x 2.5 cm)
  Weight	1.0 lb (0.5 kg)

  Box Dimensions (LxWxH)	8.8 x 7.3 x 2.2"
