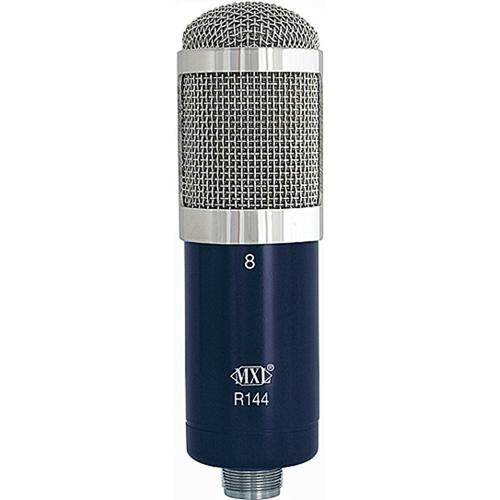

User Manual for MXL R144 Studio Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the MXL R144 Studio Ribbon Microphone
- Product category: Ribbon Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Ribbon Microphones
|
User manual for the MXL R144 Studio Ribbon Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description The R144 from MXL is a figure-8 ribbon microphone designed for recording vocals and instruments in commercial and project studios. Its figure-8 polar pattern allows pickup of sounds from the front and back of the mic, while maximizing sound rejection from both sides. This provides a directional focus in front of the microphone, and allows room reflections behind the mic to be captured. Its 20 Hz - 17 kHz frequency response features a slight boost in the upper and lower midrange frequencies. This makes it well-suited for vocals, horns, electric guitars, bass, strings, and drum rooms, which often benefit from softened highs and thickened mids. The aluminum ribbon element, 1.8 microns thick and 47mm long, handles up to 130 dB SPL without distortion.The supplied shockmount decouples the mic from a stand, reducing the pickup of rumble. The provided aluminum flight case ensures the mic's safety during storage or transport. -
- Dynamic ribbon mic does not require phantom power
- Figure-8 polar pattern captures more room sound than cardioid mics do
- Aluminum ribbon element is 1.8 microns thick and 47mm long
- 20 Hz – 17 kHz frequency response for mellow high frequencies
- High maximum SPL allows safe use on loud sources, such as electric guitars and horns
- Includes shockmount for reduced transfer of rumble and unwanted vibration through the mic stand
- Aluminum flight case for safe transport and storage
- Microfiber cleaning cloth included
UPC: 801813136227 In the Box MXL R144 Studio Ribbon Microphone MXL-06 Shockmount for MXL-R144 Microphone (Black) Microfiber Cleaning Cloth Aluminum Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL R144 Studio Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL R144 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Ribbon | | Diaphragm | 1.85" / 47 mm | | Tube | No | | Polar Pattern | Figure-8 | | Frequency Range | 20 Hz to 17 kHz | | Maximum SPL | Figure 8: 130 dB SPL | | Pad | None | | Impedance | Figure 8: 250 Ohms | | Load Impedance | 1500 Ohms | | Sensitivity | Figure 8: -56 dB | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.73" / 171 mm | | Diameter | 1.85" / 47 mm | | Weight | 14.11 oz / 400 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.8 x 7.6 x 3.5" |
