User Manual for MXL V67G HE Heritage Edition Solid-State Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL V67G HE Heritage Edition Solid-State
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
 |
User manual for the MXL V67G HE Heritage Edition Solid-State contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

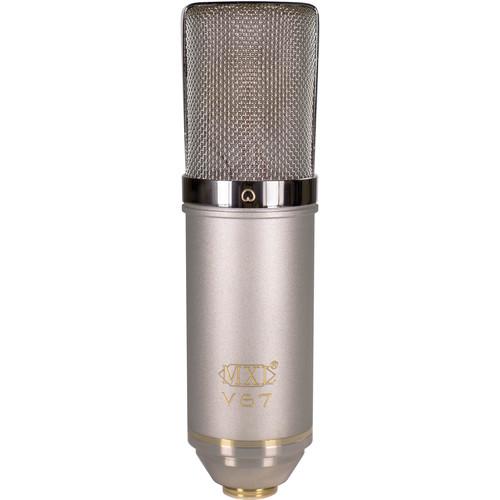

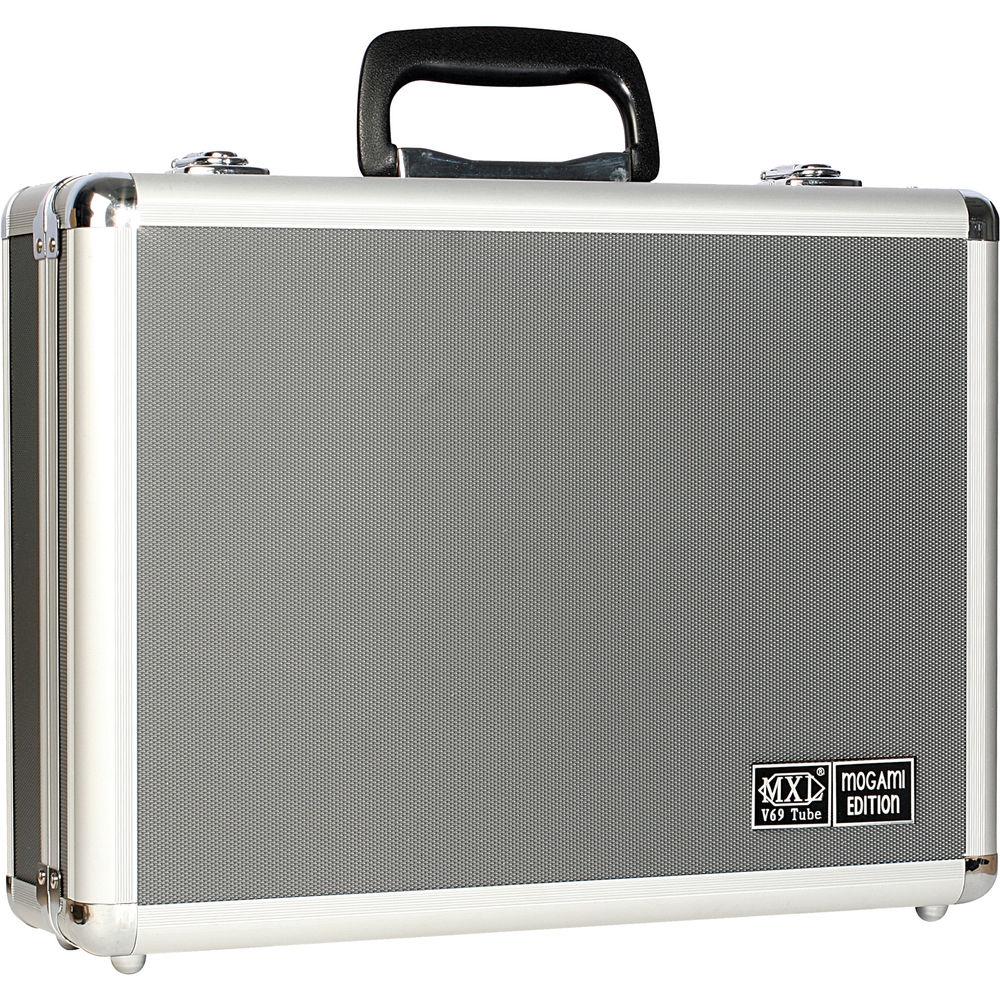

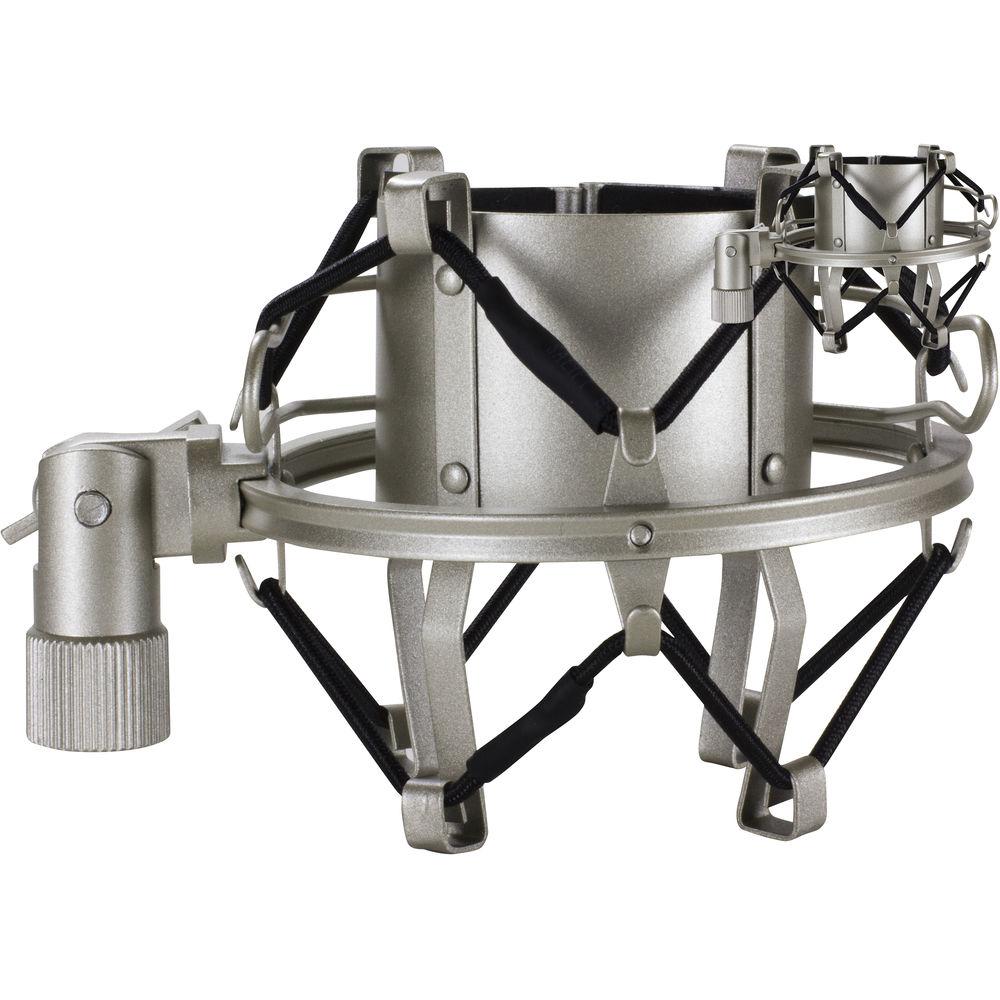

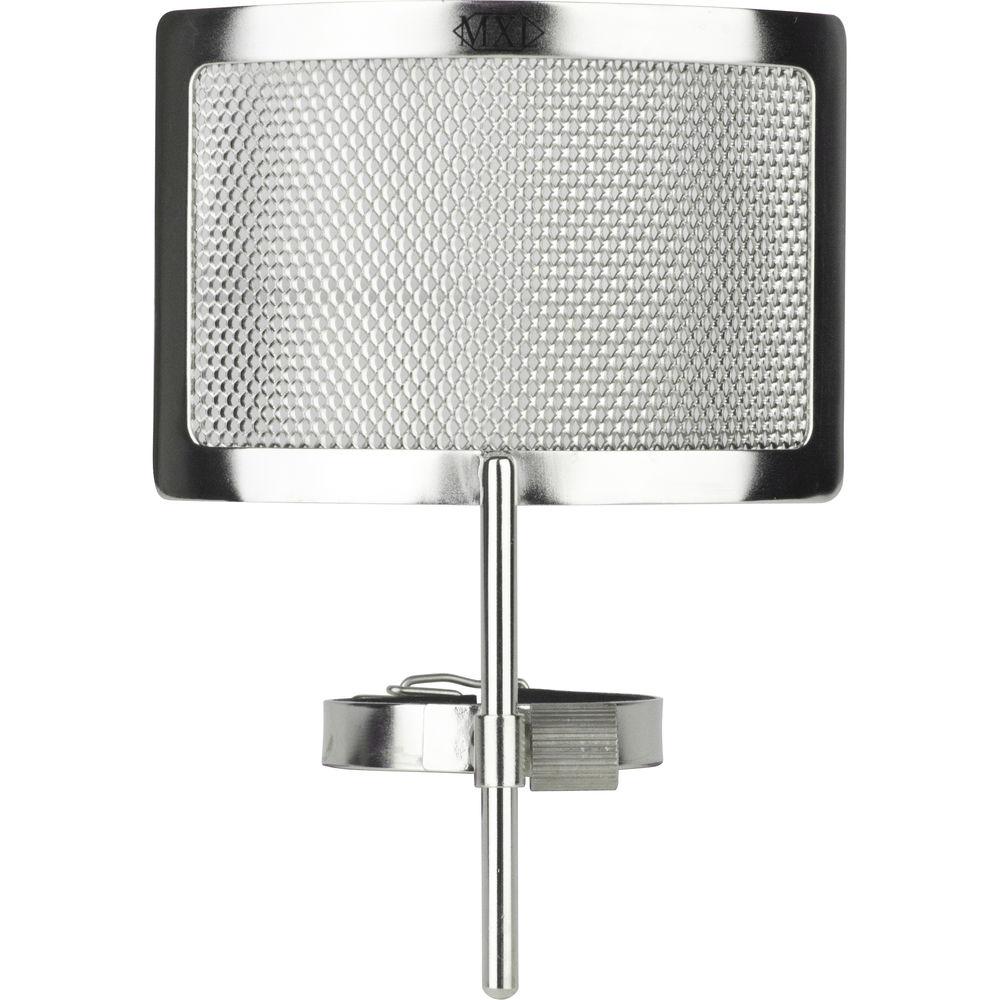

Product description The V67G HE from MXL is a cardioid, large-diaphragm condenser microphone designed for recording vocals in commercial and project studios. Compared to the original V67G, the HE (Heritage Edition) features a different finish and a variety of accessories.The V67G HE utilizes the same transformer-coupled output and solid-state, Class-A FET circuitry as the original V67G. Its cardioid polar pattern maximizes sound rejection from the rear of the mic, providing a directional focus that reduces room reflections in the recording. Its 30 Hz - 20 kHz frequency response ensures full-range transduction of vocals in a variety of genres and styles. It features a 32mm capsule with a 6-micron, gold-sputtered diaphragm, and can handle a high maximum SPL of 130 dB. Phantom-power compliance and an XLR output make it ready for use in the studio.The supplied shockmount decouples the mic from a stand, reducing the pickup of rumble. Also, included with the V67G HE is a metal mesh pop filter, ideal for minimizing plosives during vocal recording sessions. The provided aluminum flight case ensures the mic's safety during storage or transport. -
- Solid-state, phantom-powered condenser microphone
- Class-A FET circuitry
- Cardioid polar pattern
- 6-micron, gold-sputtered diaphragm
- Large 32mm capsule
- 30 Hz - 20 kHz frequency response
- 130 dB maximum SPL
- Includes shockmount and metal mesh pop filter
- Aluminum flight case
- Microfiber cleaning cloth included
UPC: 801813177909 In the Box MXL V67G HE Heritage Edition Solid-State Condenser Microphone MXL-57-Silver High-Isolation Microphone Shock Mount (Silver) PF-004-SS Metal Mesh Pop Filter for Genesis Microphones (Chrome) Microfiber Cleaning Cloth Aluminum Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL V67G HE Heritage Edition Solid-State Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL V67G HE Specs | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 74 dB A-Weighted | | Equivalent Noise Level | Cardioid: 20 dB A-Weighted | | Maximum SPL | Cardioid: 130 dB SPL | | Pad | None | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: 15 mV/Pa | | Low-Cut Filter | None | | | | Operating Current Consumption | 3 mA | | Length | 7.24" / 184 mm | | Diameter | 1.85" / 47 mm | | Weight | 1.3 lb / 590 g | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.7 x 9.5 x 4.1" |
