User Manual for MXL V67GS Microphone Kit with Extended Accessory Set Click to enlarge the picture
Contents of the user manual for the MXL V67GS Microphone Kit with Extended
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
 |
User manual for the MXL V67GS Microphone Kit with Extended contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description Styled in green, gold, and with other flourishes that lend style to your environs, the MXL V67GS Microphone Kit gives you several items that work together in the service of recording vocals and instruments in a studio context. At the center of this bundle is the V67GS, a large-capsule condenser microphone that combines Class-A FET circuitry and a transformer-coupled output to deliver an open, pure sound.
As with its sibling, the V67G, this microphone offers an overall frequency response of 30 Hz to 20 kHz. This model adds to the existing specifications with a roll-off filter for attenuating frequencies below 150 Hz (suitable for eliminating low-end rumble), and a 6 dB pad.

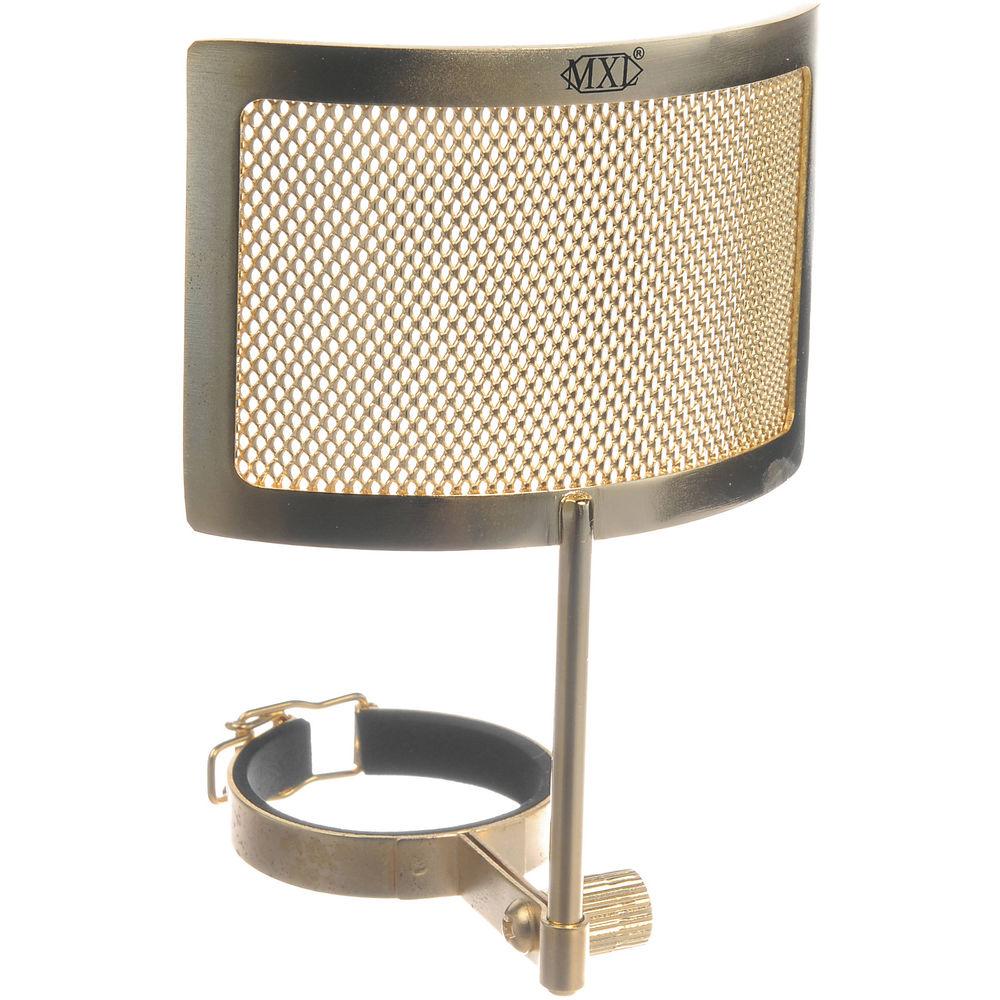

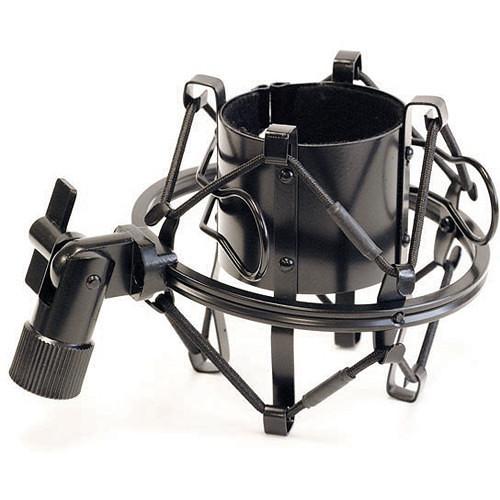

Included in this bundle are an MXL-57 shockmount and an MXL-PF-005-G pop filter, styled in gold. Two 25' microphone cables are also provided. UPC: 801813177343 In the Box MXL V67GS Microphone Kit with Extended Accessory Set MXL V67GS Microphone PF-005-G Metal Mesh Pop Filter (Gold) bvdaqcswfquruzzvud MXL-57 High-Isolation Microphone Shock Mount (Black) Sound Runner Microphone Cable (25') Marshall M25 Microphone Cable (25') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL V67GS Microphone Kit with Extended Accessory Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL V67MD1 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -6 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 22 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 150 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V ± 4 V | | Length | 7.24" / 184 mm | | Diameter | 1.85" / 47 mm | | Weight | 1.3 lb / 0.59 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 14.2 x 13.8 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
