User Manual for MXL V69M HE Heritage Edition Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL V69M HE Heritage Edition Tube
- Product category: Tube Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Tube Microphones
 |
User manual for the MXL V69M HE Heritage Edition Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

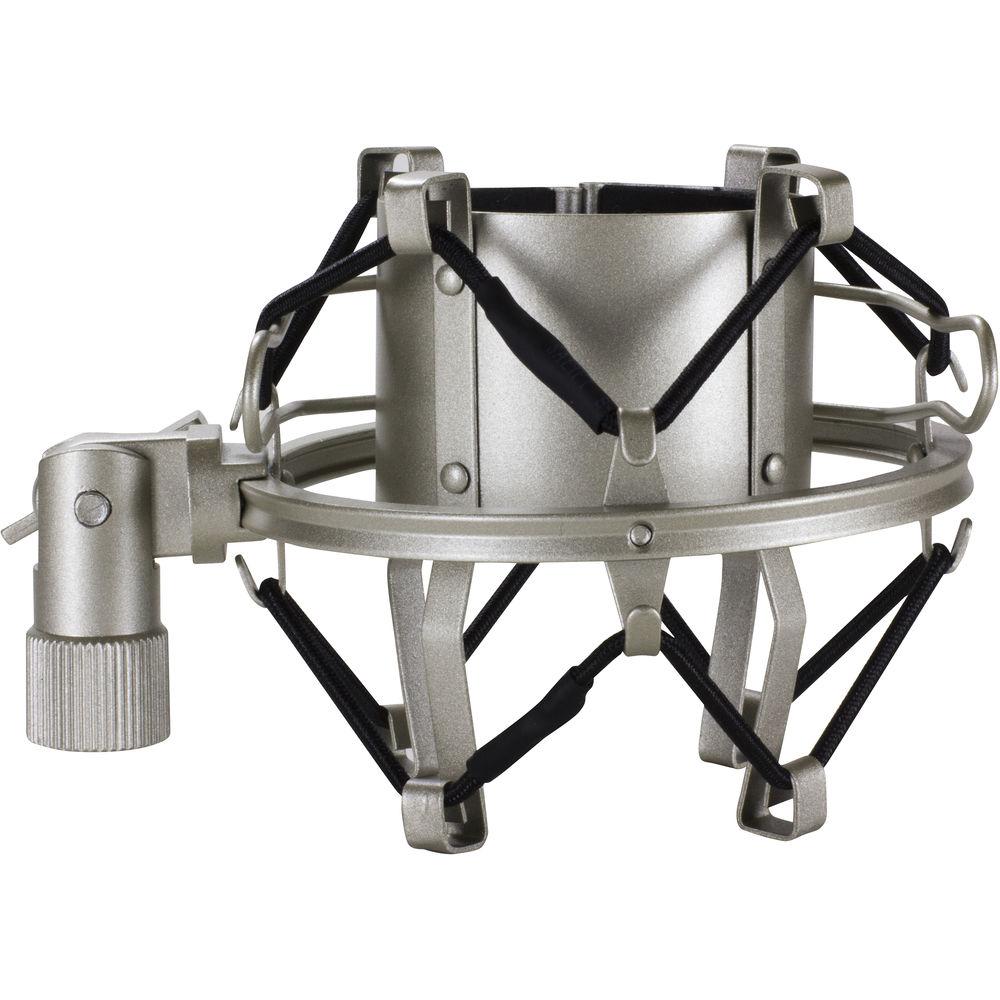

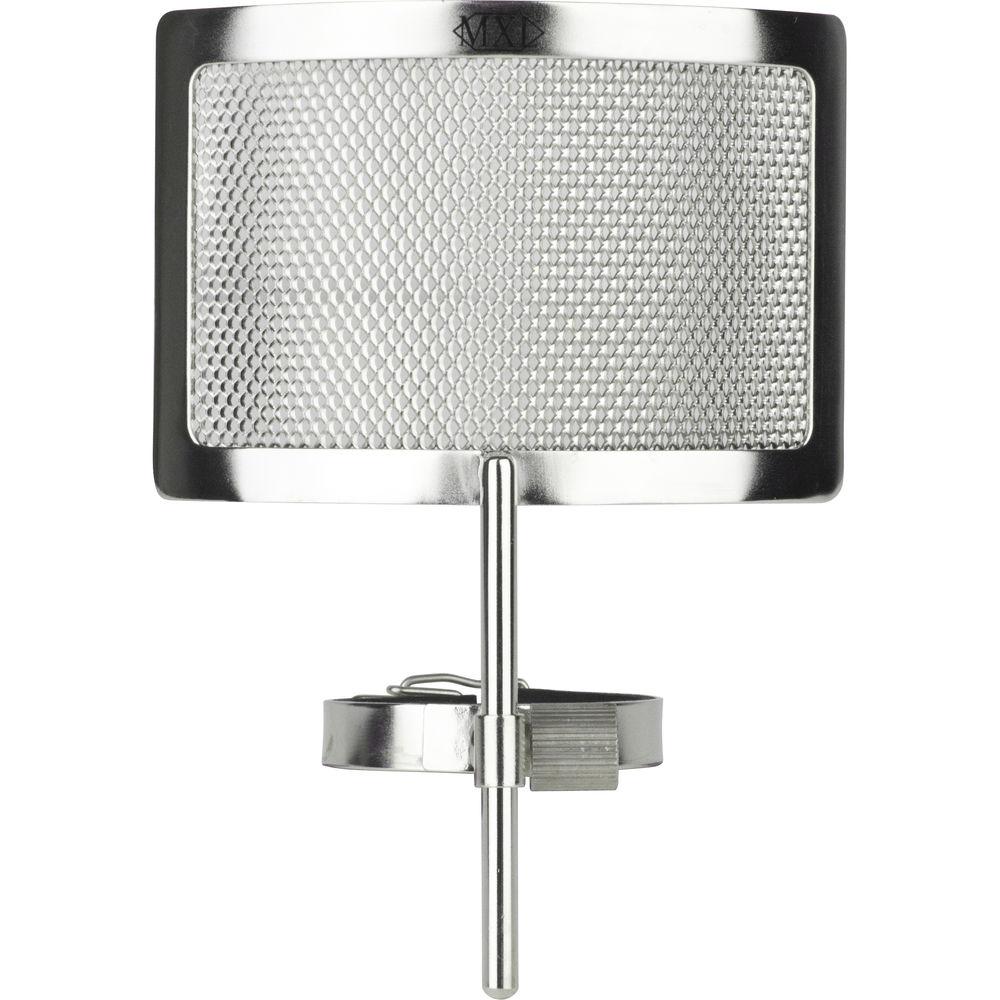

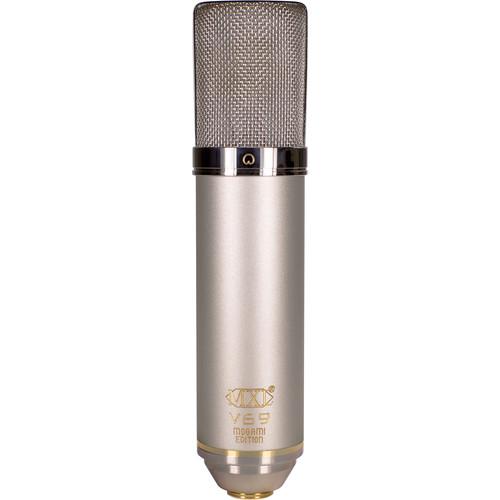

Product description The V69M HE from MXL is a cardioid, large-diaphragm tube condenser microphone designed for recording vocals in commercial and project studios. Its internal wiring and cables are high-quality Mogami. The HE (Heritage Edition) version of the V69M features a silver frost finish and a variety of accessories.The V69M HE utilizes the same transformerless design and 12AT7 dual-triode tube as the original V69M. Its cardioid polar pattern maximizes sound rejection from the rear of the mic, providing a directional focus that reduces room reflections in the recording. Its 20 Hz - 18 kHz frequency response has a presence boost centered at 10 kHz, optimized to yield crisp, full-range tone for vocals in a variety of genres and styles. It features a 32mm capsule with a 6-micron, gold-sputtered diaphragm, and can handle a high maximum SPL of 140 dB at 0.5% THD.The supplied shockmount decouples the mic from a stand, reducing the pickup of rumble. Included with the V69M HE is a metal mesh pop filter, ideal for minimizing plosives during vocal recording sessions. The provided aluminum flight case ensures the mic's safety during storage or transport. -
- Large-diaphragm tube condenser microphone for studio use
- 12AT7 dual-triode tube
- Cardioid polar pattern
- 6-micron, gold-sputtered diaphragm
- Large 32mm capsule
- 20 Hz - 18 kHz frequency response with presence boost centered at 10 kHz
- 140 dB maximum SPL at 0.5% THD

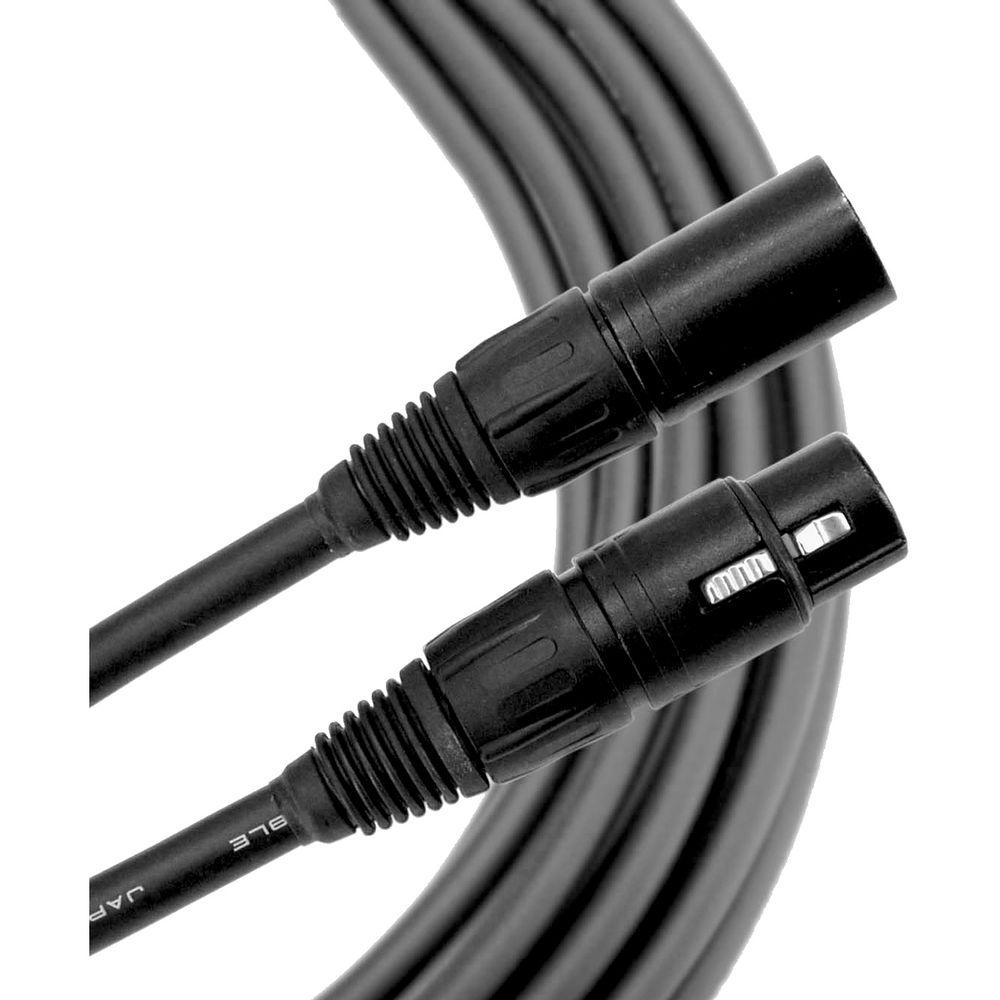

- High-quality Mogami cables included
- Includes shockmount and metal mesh pop filter

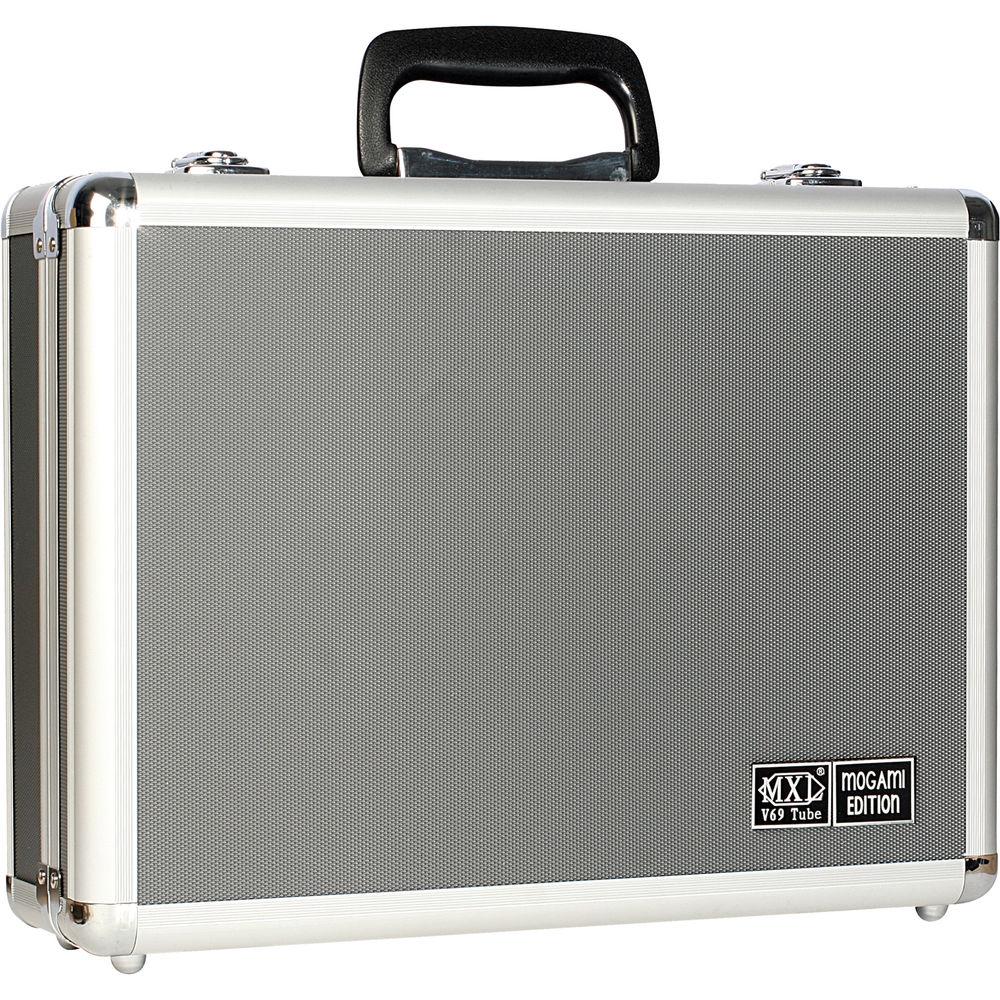

- Aluminum flight case
- Microfiber cleaning cloth included

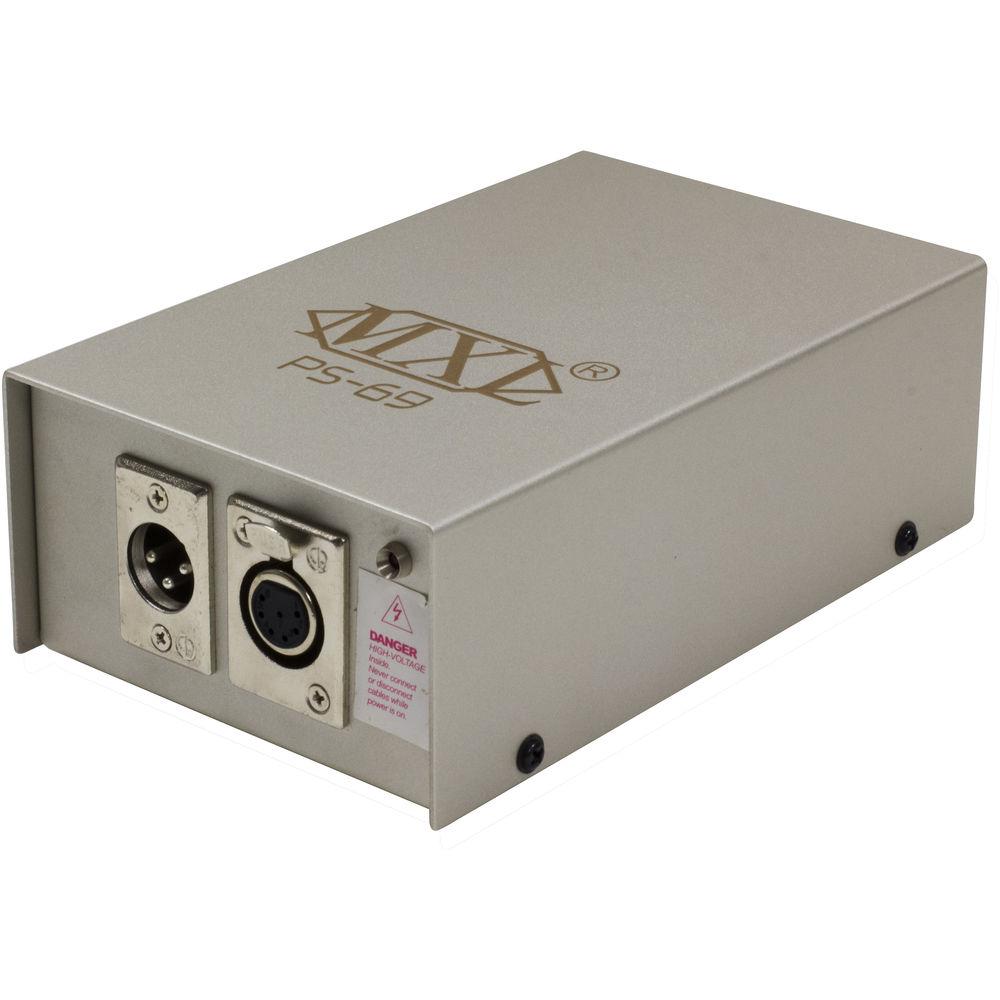

UPC: 801813177886 In the Box MXL V69M HE Heritage Edition Tube Condenser Microphone Shockmount Pop Filter MXL PS-69-HE Power Supply Mogami 7-Pin XLR Cable (15') Mogami 3-Pin XLR Cable (15') Microfiber Cleaning Cloth Aluminum Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL V69M HE Heritage Edition Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL V69M HE Specs | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | Cardioid: 72 dB A-Weighted | | Equivalent Noise Level | Cardioid: 22 dB A-Weighted | | Maximum SPL | Cardioid: 140 dB SPL | | Pad | None | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: 22 mV/Pa | | Low-Cut Filter | None | | | | Cable Length | 15' / 4.57 m | | Length | 8.58" / 218 mm | | Diameter | 1.85" / 47 mm | | Weight | 17.58 oz / 498.5 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
