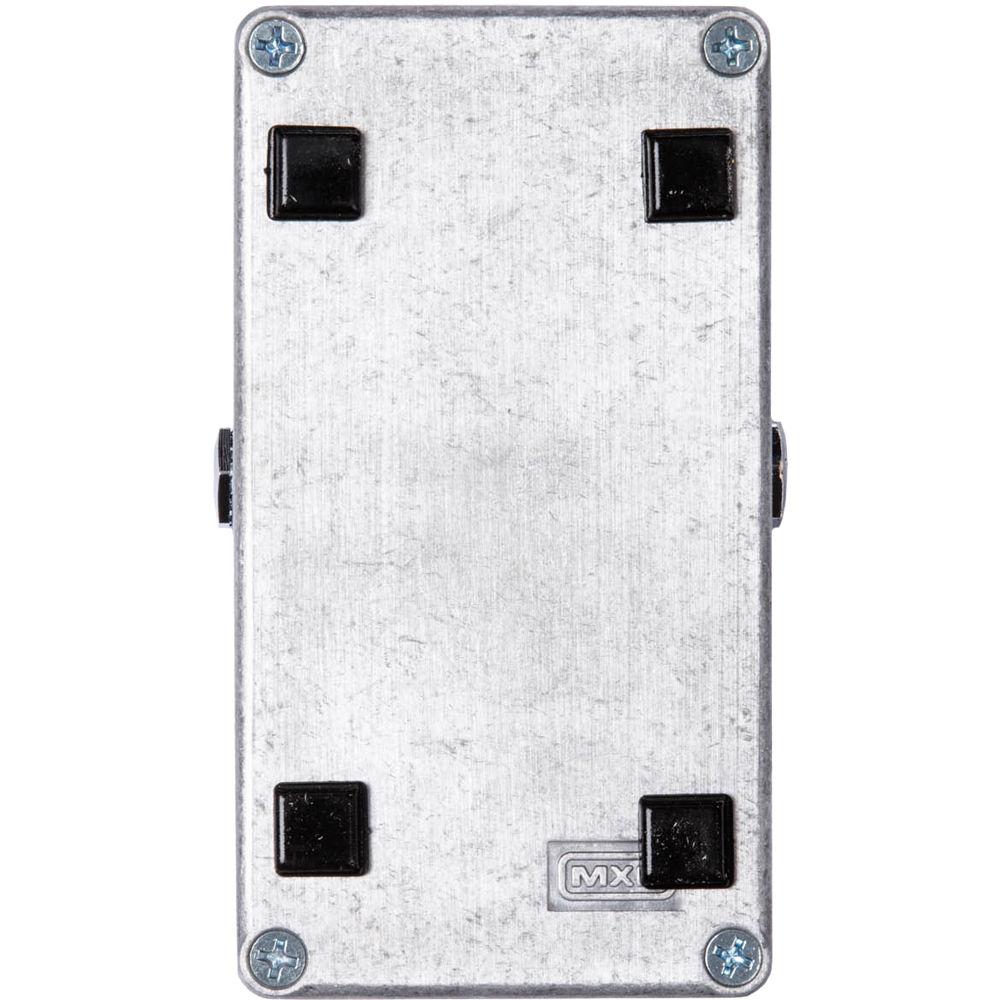

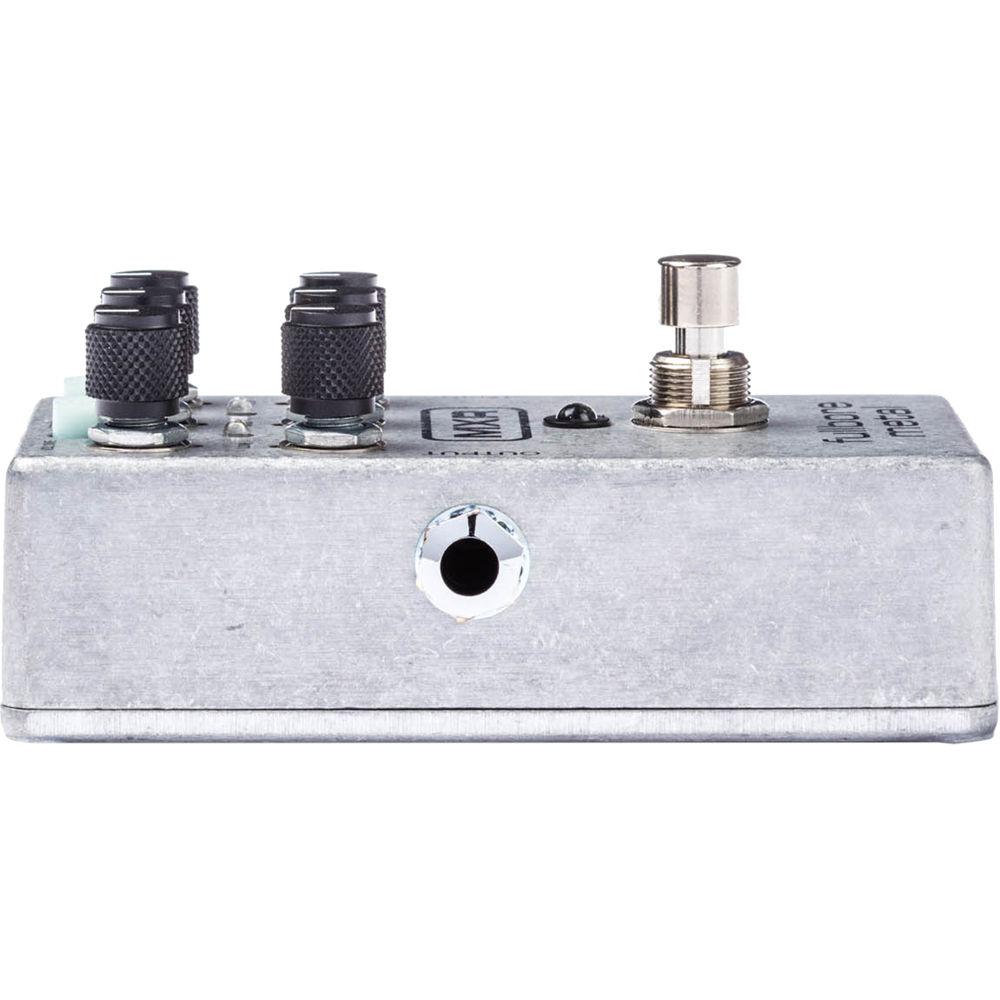

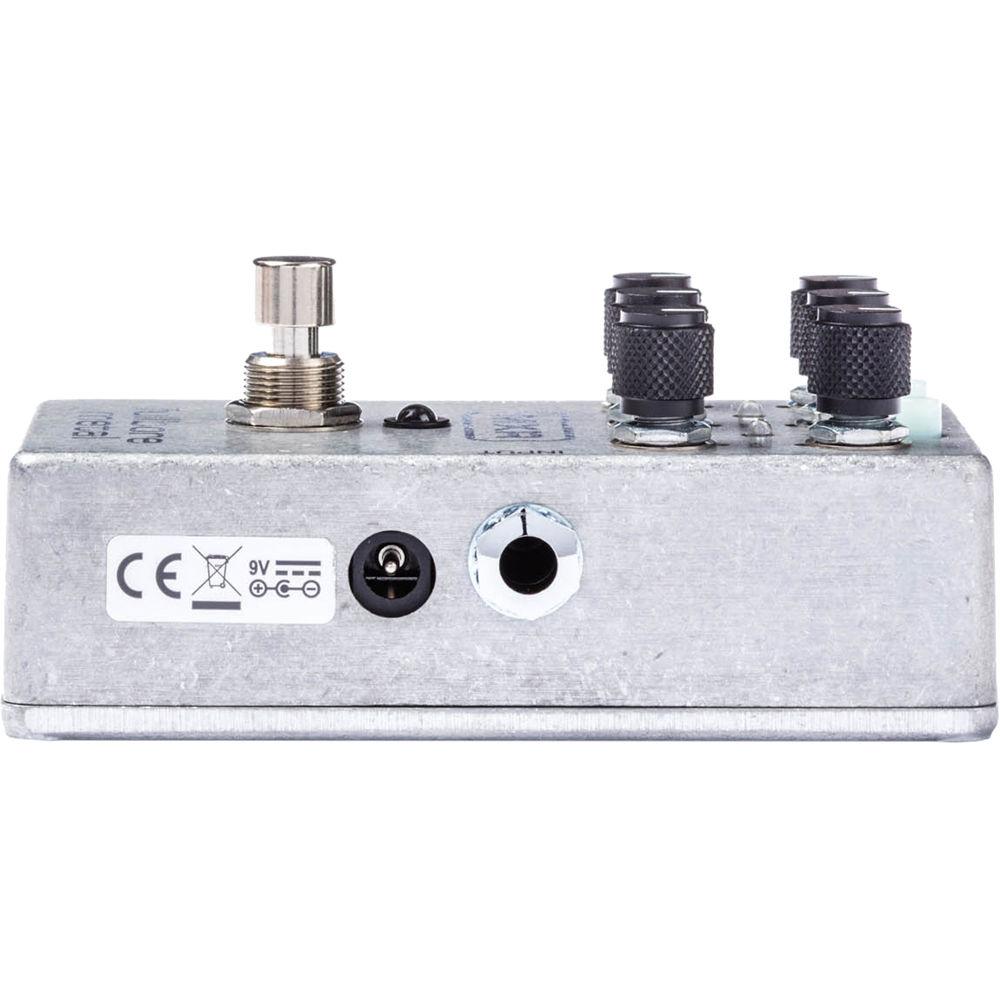

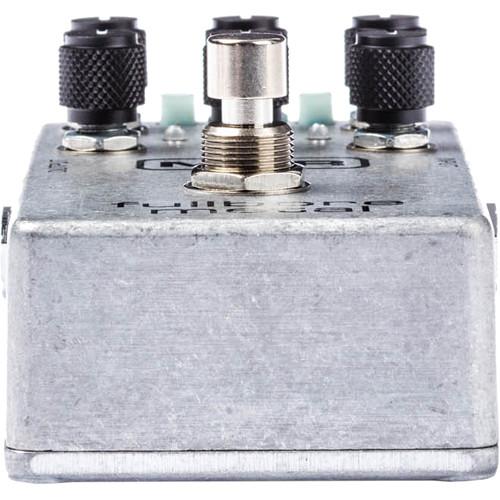

User Manual for MXR M116 Fullbore Metal Pedal Click to enlarge the picture
Contents of the user manual for the MXR M116 Fullbore Metal Pedal
- Product category: Effects Pedals MXR
- Brand: MXR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXR Effects Pedals
|
User manual for the MXR M116 Fullbore Metal Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXR product will considerably shorten its lifespan!
|
Product description The M116 Fullbore Metal Pedal from MXR was designed to unleash the most devastating contemporary metal guitar tones with lethal amounts of high gain. A built-in switchable noise gate limits the noise associated with extreme gain levels, and a 3-band EQ with sweepable midrange provides more tone control. A footswitch toggles the effect in and out of bypass, and when the effect is on, a red LED directly above the switch is illuminated. The Fullbore Metal includes six control knobs to shape your sound: Volume adjusts the overall effect volume, Freq selects the midrange frequency (200 Hz to 5 kHz) to be altered by the Mid control, Low adjusts the amount of low end, High sets the amount of high end, and Gain regulates the amount of distortion. In addition, a Scoop button boosts the highs and lows, and a Gate button activates the noise gate. A dedicated red LED indicates when the Scoop button is engaged, and a green LED lights up when the Gate is activated. An adjustable Noise Gate Trigger located inside the pedal can be used to set the noise gate's sensitivity. The pedal is powered by a single 9V battery or an AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick power supply (sold separately). UPC: 710137042964 In the Box MXR M116 Fullbore Metal Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXR M116 Fullbore Metal Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXR M116 Specs Input | 1/4" (6.3 mm) jack | Output | 1/4" (6.3 mm) jack | Input Impedance | >450 kOhms | Output Impedance | <10 kOhms | Noise Floor | Gate Off: -70 dBV Gate On: -85 dBV All controls at mid position, A-weighted | Frequency Response | Gate Open: 0 dB, 20 Hz to 20 kHz Gate Closed: -20 dB at 500 Hz, -25 dB at 20 kHz | Tone Controls | Low: ±9 dB at 100 Hz Mid: ±16 dB at 200 Hz to 5 kHz High: ±12 dB shelf at 1.5 kHz | Bypass | True Hardwire | Current Draw | 18 mA | Power Requirement | 9 VDC | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Package Weight | 0.95 lb | Box Dimensions (LxWxH) | 5.6 x 4.6 x 2.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
