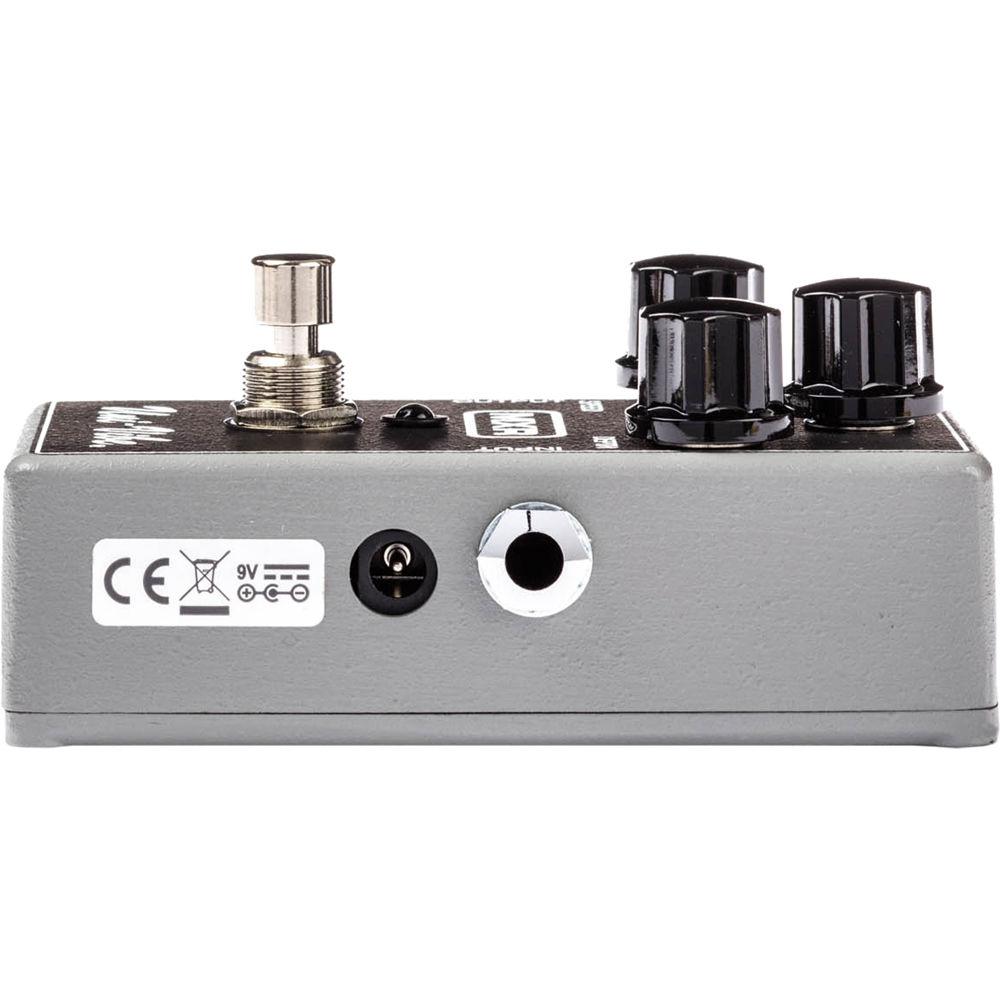

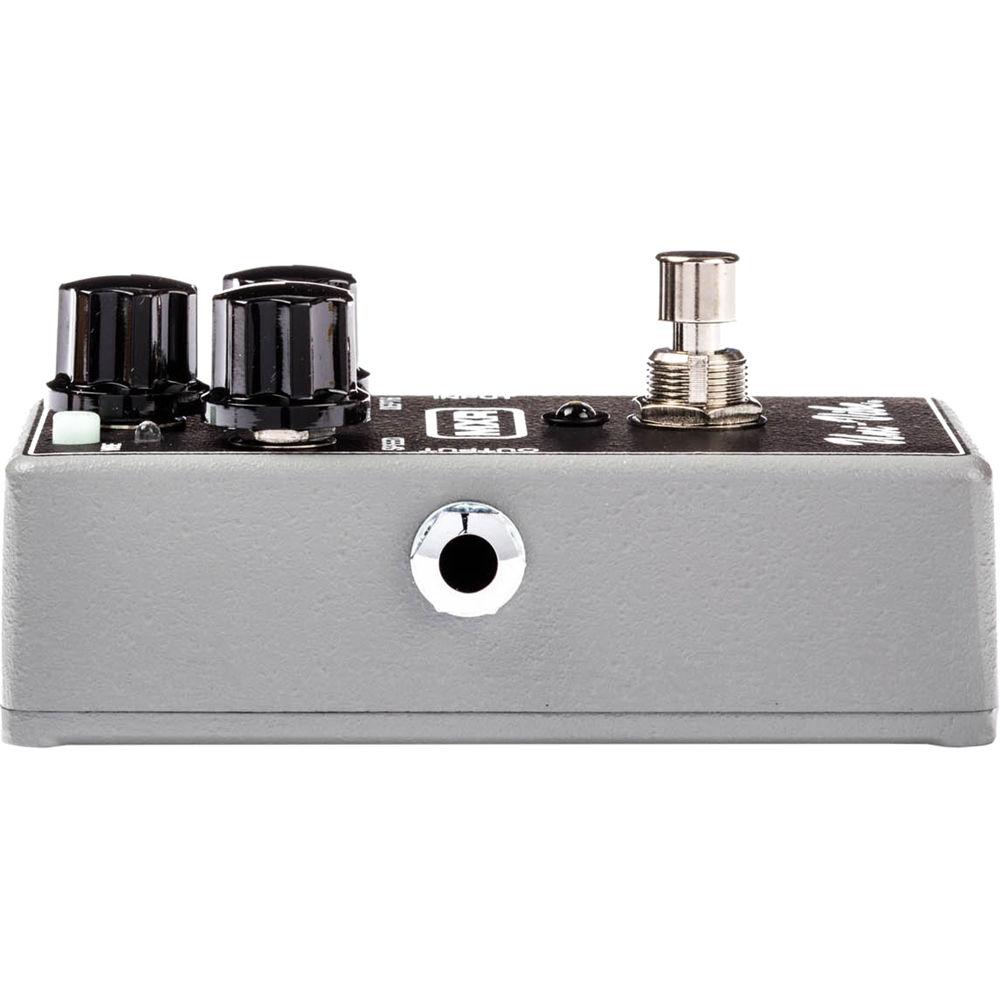

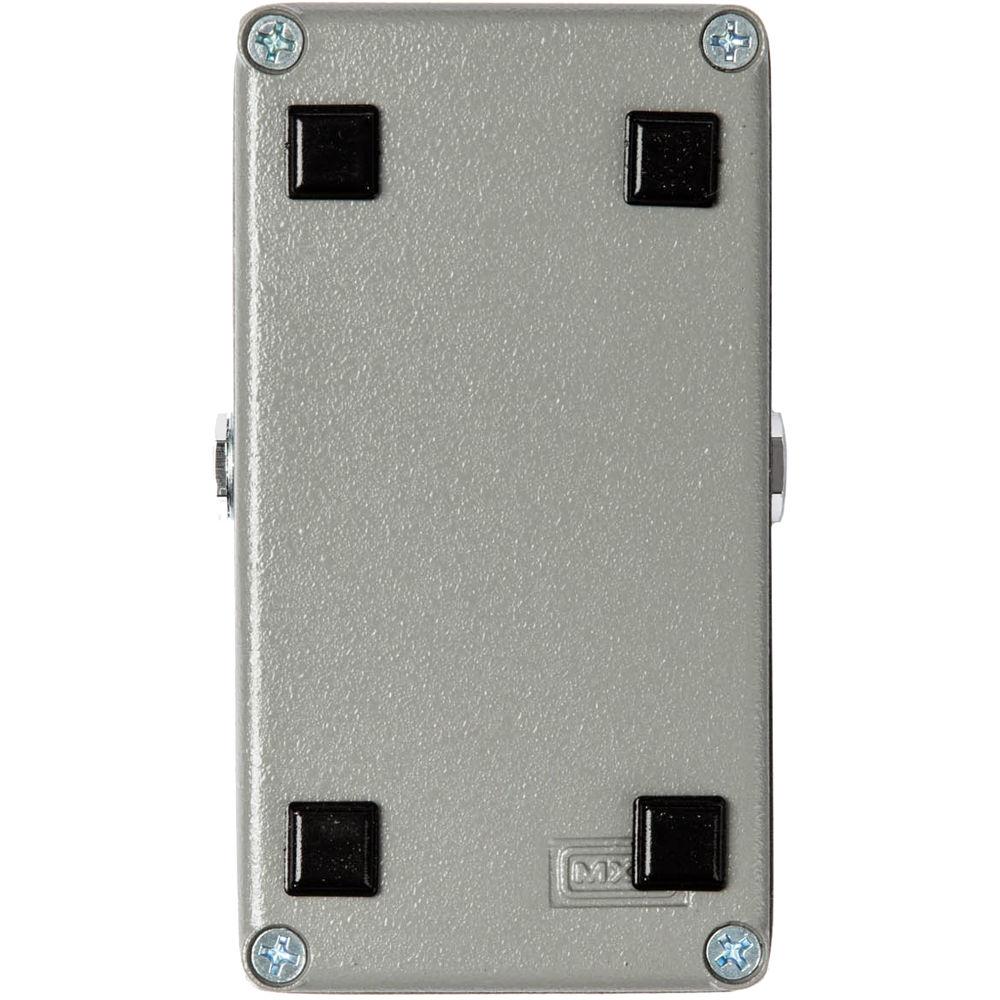

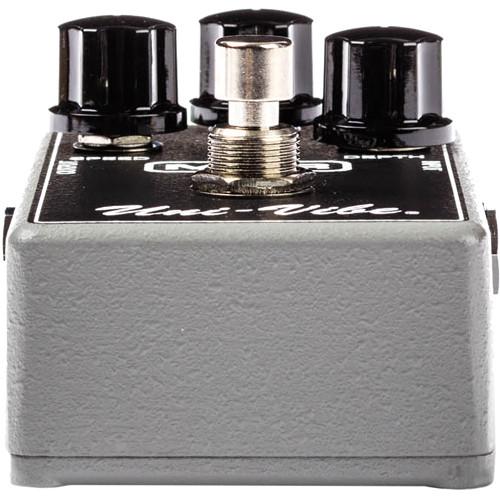

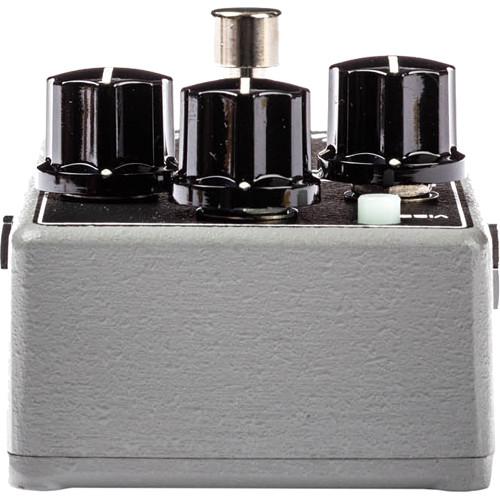

User Manual for MXR M68 Uni-Vibe Chorus Vibrato Pedal Click to enlarge the picture
Contents of the user manual for the MXR M68 Uni-Vibe Chorus Vibrato Pedal
- Product category: Effects Pedals MXR
- Brand: MXR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXR Effects Pedals
 |
User manual for the MXR M68 Uni-Vibe Chorus Vibrato Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXR product will considerably shorten its lifespan!
|
Product description The M68 Uni-Vibe Chorus/Vibrato from MXR is a remastered version of the original iconic pedal from the late '60s that was made popular by artists such as Jimi Hendrix, David Gilmour, and Robin Trower, with updated features for modern players. Retaining the same classic tones and textures, the new MXR Uni-Vibe is housed in the same compact box as a Phase 90 pedal, so it is considerably smaller and lighter than the original, making it easier to fit on your pedalboard. Additionally, this updated version includes true bypass switching. The Uni-Vibe has a simple three-knob interface to dial in potent sounds that satisfy your taste. The Speed knob controls the sweep rate of effect, the Level knob adjusts the overall volume of the effect, and the Depth knob controls the intensity of the effect. A Vibe button toggles between Chorus mode (which is the default setting - dry signal mixed with pitch-shifted signal) and Vibrato mode (pitch-shifted signal only - indicated by a red LED). A footswitch toggles the effect on and bypass/off, and a white LED illuminates when the effect is on. The Uni-Vibe can be powered by a single 9V battery or a 9 VDC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick power supply (sold separately). UPC: 710137072275 In the Box MXR M68 Uni-Vibe Chorus/Vibrato Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXR M68 Uni-Vibe Chorus Vibrato Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXR M68 Specs | Input | 1/4" (6.3 mm) jack | | Output | 1/4" (6.3 mm) jack | | Input Impedance | 1 MOhms | | Output Impedance | 5 kOhms | | Maximum Input | 0 dBV | | Maximum Output | 8 dBV | | Noise Floor | -94 dBV A-weighted with all controls at mid position | | Speed Control | 0.5 to 10.5 Hz | | Bypass | True hardwire | | Current Draw | 5 mA | | Power Supply | 9 VDC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 2.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
