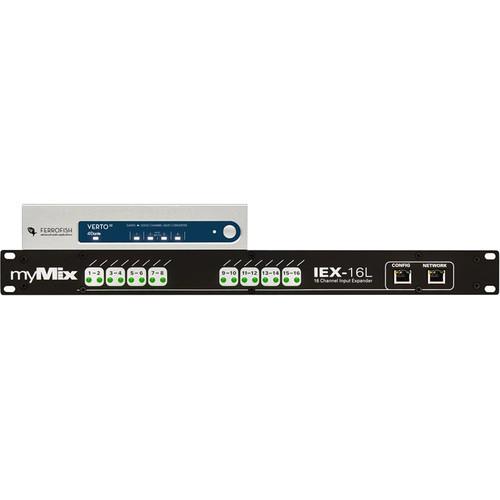

Product description The myMix Dante-16V32 is an ADAT/Dante to myMix interface system designed to add 16 digital inputs at 24-bit / 48 kHz resolution to your existing myMix setup. It includes one myMix IEX-16L-A 16-channel input expander, a Ferrofish Verto32 32-channel ADAT/Dante format converter, and their external power supplies. Connect your sources to the Verto32's TOSLINK ADAT inputs and Dante ports, then hook up its ADAT outputs to the optical inputs of the IEX-16L-A input expander. The input expander integrates to your myMix network via a front-panel RJ45 port. Expand this myMix interface system to 32 channels by adding another IEX-16L-A input expander (available separately). - Verto32 32-Channel ADAT/Dante Format Converter The Ferrofish Verto32 is a 32-channel ADAT/Dante format converter offering a compact solution for interfacing ADAT-capable gear into your Dante audio network. Ideal for broadcast, television, and live stage applications, it converts ADAT signals to Dante format, and Dante channels to ADAT streams. The Verto32 has four TOSLINK optical ADAT inputs and outputs, and two RJ45 Dante ports, allowing easy hookup to your existing equipment. It supports sample rates up to 96 kHz, and accommodates up to 32 channels of digital I/O. Use the BNC word clock jacks for proper synchronization with other digital devices such as a master clock or A/D-D/A converter. Remote control of the Verto32 is possible using MIDI messages via the MIDI input or Dante network. Front-panel LEDs indicate the status of power, Dante connection, and ADAT sync. Power the half-width 1 RU Verto32 via the included 12V power supply.
- Compact enclosure occupies 1 RU height and half-rack width
- Converts ADAT digital input signals to Dante network output
- Converts audio channels from your Dante network to ADAT digital outputs
- BNC word clock I/O for synchronization with external devices
- Remotely controllable using MIDI messages via MIDI input or Dante network
- Front-panel indicators for power, Dante, and ADAT status
- Fanless, low heat-generating design
- IEX-16L-A 16-Channel Input Expander for myMix Systems The myMix IEX-16L-A 16-Channel Input Expander comes with two DB25 connectors and allows connection of up to 16 balanced line-level signals that can be fed from devices such as mixing consoles or external microphone pre-amps. The IEX16L-A comes with two 8-channel ADAT inputs that can be activated individually. This allows usage of 16 line level sources or 8 line level sources and 8 ADAT inputs, or 16 ADAT inputs on a single IEX-16L-A expander.
Multiple IEX-16L expanders can be used in a myMix network. The IEX-16L-A can be configured using any myMix device on the network or the optional myMix CONTROL software, including input channel naming and stereo linking. The configuration is stored automatically in the IEX-16L-A. The optional myMix CONTROL software allows uploading/downloading of complete settings for the IEX-16L-A expander. The expander can be locked by connecting a myMix to the CONFIG port, or via the myMix CONTROL. The CONFIG ports provide all the data but no audio. It can also be used to connect the myMix CONTROL network interface (myMIx PLUG). - 16 balanced line level inputs on two DB25 connectors
- Comes with 2 x 8-channel optical ADAT Interfaces
- Adds 16 audio channels to the myMix System in a 1U, 19" package
- Independent audio channel selection on every myMix unit
- Convenient signal feed from a mixing console, external microphone pre-amps or digital interfaces
- Individual digital gain adjustment (0, +6, or +12 dB) per input channel
- Can be combined with other myMix input and output devices
- Can be configured from any myMix in the network or through myMix CONTROL software (optional)
- Works with 100Mb/s fast Ethernet switches
- Allows use of multiple IEX-16L-A with unlimited audio channels over the network
- Remote configuration with optional myMix CONTROL software (web browser based)
In the Box Bundle Items Verto32 32-Channel ADAT/Dante Format Converter sctecqezuufdawuxyvcddzeva - Locking Plate and Mounting Accessories for ADAT Cables
IEX-16L-A 16-Channel Input Expander for myMix Systems sctecqezuufdawuxyvcddzeva - Power Supply with Power Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix Dante-16V32 ADAT Dante to myMix Interface System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Verto32 32-Channel ADAT/Dante Format Converter
| Inputs | 4 x TOSLINK optical (ADAT) | | Outputs | 4 x TOSLINK optical (ADAT) | | Ethernet | 2 x RJ45 Gigabit Ethernet (PRI/SEC Dante) | | MIDI | 1 x DIN 5-pin MIDI input
1 x DIN 5-pin MIDI output | | Word Clock | 1 x BNC input
1 x BNC output | | Termination | 75-Ohm word clock termination (on by default) | | Sample Rates | 44.1 to 96 kHz | | Channel Count | I/O at 48 kHz: 32
I/O at 96 kHz: 16 | | Fuse | Self-resetting internal polyfuse | | Power Consumption | 14.4 VA (1.2 A at 12 V) | | Power Requirement | 12 V power supply (included) | | Temperature Range | 41 to 113°F / 5 to 45°C | | Humidity | < 75% (non-condensing) | | Dimensions (W x H x D) | 8.7 x 1.8 x 3.5" / 22.0 x 4.5 x 9.0 cm | | Weight | 2 lb / 0.9 kg | - IEX-16L-A 16-Channel Input Expander for myMix Systems
| Inputs | 16 Analog line level
ADAT: 2 x 8 channels | | Impedance | 20 Ω, balanced (input) | | Level | + 20 dBu (maximum input) | | Sampling Rate | 44.1/48 kHz | | Gain Adjustment Range | 0, +6, +12 dB (input) | | Frequency Response | >104 dB | | THD + N | <0.022% | | Network Type | 100 Mb/s fast Ethernet | | Cabling Type | CAT5/CAT5e | | Network Connections | 2 RJ45, (1 network, 1 myMix) | | Network Switch | Unmanaged 100BASE-TX, full-duplex for 16 channel maximum
For >16 Channel: Managed 100BASE-TX, IGMP snooping (v2) | | Audio Channel Limit | 2 x Maximum of multicast groups handled by the switch (on network) | | Conversion | AD/DA: 24-bit, 48 kHz | | Connectors | Input: 2 x DB25, 2 x TOSLINK | | Dimensions (W x H x D) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
