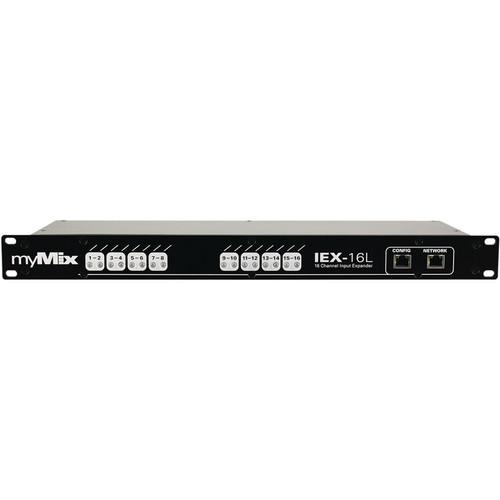

User Manual for myMix IEX-16L 16-Channel Input Expander Click to enlarge the picture
Contents of the user manual for the myMix IEX-16L 16-Channel Input Expander
- Product category: Accessories myMix
- Brand: myMix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for myMix Accessories
|
User manual for the myMix IEX-16L 16-Channel Input Expander contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any myMix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official myMix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a myMix product will considerably shorten its lifespan!
|
Product description The myMix IEX-16L 16-Channel Input Expander is designed to provide an additional 16 channels of analog audio into a myMix system. It has dual DB25 connectors for signal from a mixing console, mic preamps, or digital interfaces. The IEX-16L features three levels of digital gain control per channel, allowing you to set the input at 0dB, +6dB, or +12dB. The unit is configurable with any myMix device or through a PC with the myMix CONTROL software.
Multiple IEX-16Ls can be connected to add as many channels of audio as needed into your myMix system. It connects to multiple myMix devices through an optional 100MBps Ethernet switch. In the Box myMix IEX-16L 16-Channel Input Expander Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix IEX-16L 16-Channel Input Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmyMix IEX-16L Specs | Inputs | 2x 8-Channel DB-25 Line Level Connectors | | Input Impedance | 20 kΩ, balanced | | Maximum Input Level | + 20 dBu | | Input Gain Adjustment | 0 dB, +6 dB, + 12dB (Digital) | | Frequency Response | 20 Hz to 20 kHz (-1 dB) | | Signal to Noise Ratio | > 104 dB | | Total Harmonic Distortion/Noise | < 0.022 % | | Network Type | 100 MBps Fast Ethernet | | Network Cable Type | CAT5/CAT5e | | Network Connection | 1x Network RJ45
1x myMix RJ45 | | Network Switch | Unmanaged 100BASE-TX, Full-Duplex (for 16 Channels) | | Audio Channel Limit | 2x Maximum of Multicast Groups Handled by the Switch | | AD/DA Conversion | 24-Bit/48kHz | | Dimensions (WxHxD) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
