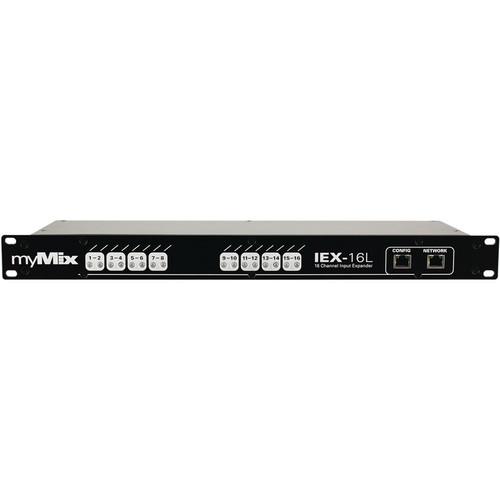

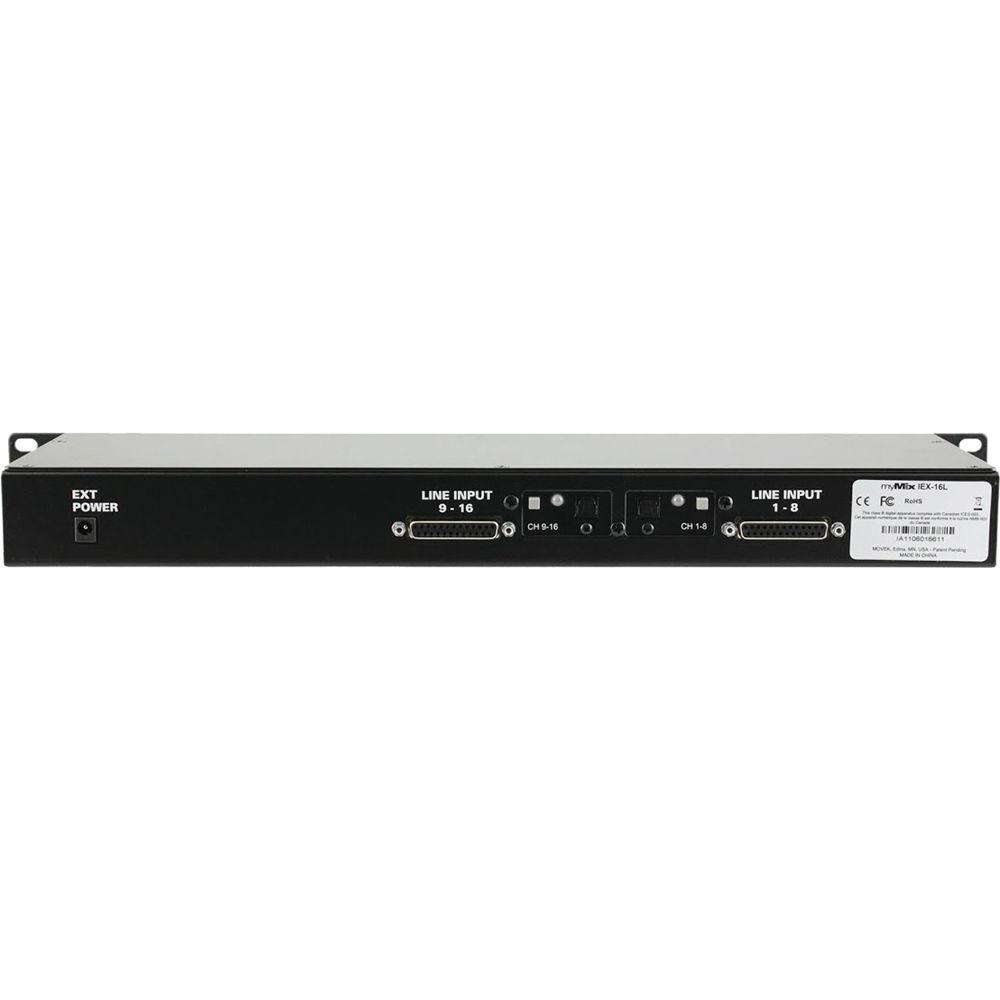

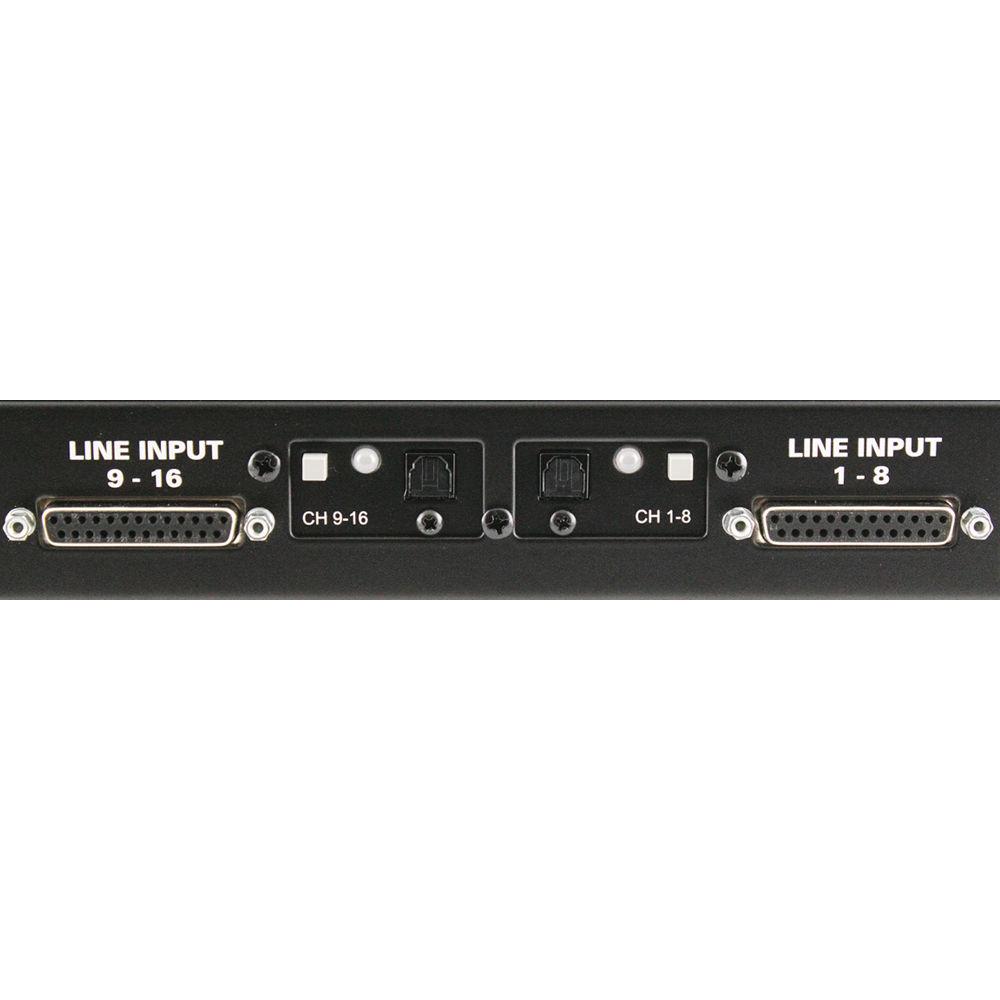

Product description The myMix IEX-16L-A 16-Channel Input Expander comes with two DB25 connectors and allows connection of up to 16 balanced line-level signals that can be fed from devices such as mixing consoles or external microphone pre-amps. The IEX16L-A comes with two 8-channel ADAT inputs that can be activated individually. This allows usage of 16 line level sources or 8 line level sources and 8 ADAT inputs, or 16 ADAT inputs on a single IEX-16L-A expander.
Multiple IEX-16L expanders can be used in a myMix network. The IEX-16L-A can be configured using any myMix device on the network or the optional myMix CONTROL software, including input channel naming and stereo linking. The configuration is stored automatically in the IEX-16L-A. The optional myMix CONTROL software allows uploading/downloading of complete settings for the IEX-16L-A expander. The expander can be locked by connecting a myMix to the CONFIG port, or via the myMix CONTROL. The CONFIG ports provide all the data but no audio. It can also be used to connect the myMix CONTROL network interface (myMIx PLUG). - 16 balanced line level inputs on two DB25 connectors
- Comes with 2 x 8-channel optical ADAT Interfaces
- Adds 16 audio channels to the myMix System in a 1U, 19" package
- Independent audio channel selection on every myMix unit
- Convenient signal feed from a mixing console, external microphone pre-amps or digital interfaces
- Individual digital gain adjustment (0, +6, or +12 dB) per input channel
- Can be combined with other myMix input and output devices
- Can be configured from any myMix in the network or through myMix CONTROL software (optional)
- Works with 100Mb/s fast Ethernet switches
- Allows use of multiple IEX-16L-A with unlimited audio channels over the network
- Remote configuration with optional myMix CONTROL software (web browser based)
In the Box myMix IEX-16L-A 16-Channel Input Expander for myMix Systems Power Supply with Power Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix IEX-16L-A 16-Channel Input Expander for myMix Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmyMix IEX-16L-A Specs | Inputs | 16 Analog line level
ADAT: 2 x 8 channels | | Impedance | 20 Ω, balanced (input) | | Level | + 20 dBu (maximum input) | | Sampling Rate | 44.1/48 kHz | | Gain Adjustment Range | 0, +6, +12 dB (input) | | Frequency Response | >104 dB | | THD + N | <0.022% | | Network Type | 100 Mb/s fast Ethernet | | Cabling Type | CAT5/CAT5e | | Network Connections | 2 RJ45, (1 network, 1 myMix) | | Network Switch | Unmanaged 100BASE-TX, full-duplex for 16 channel maximum
For >16 Channel: Managed 100BASE-TX, IGMP snooping (v2) | | Audio Channel Limit | 2 x Maximum of multicast groups handled by the switch (on network) | | Conversion | AD/DA: 24-bit, 48 kHz | | Connectors | Input: 2 x DB25, 2 x TOSLINK | | Dimensions (W x H x D) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
