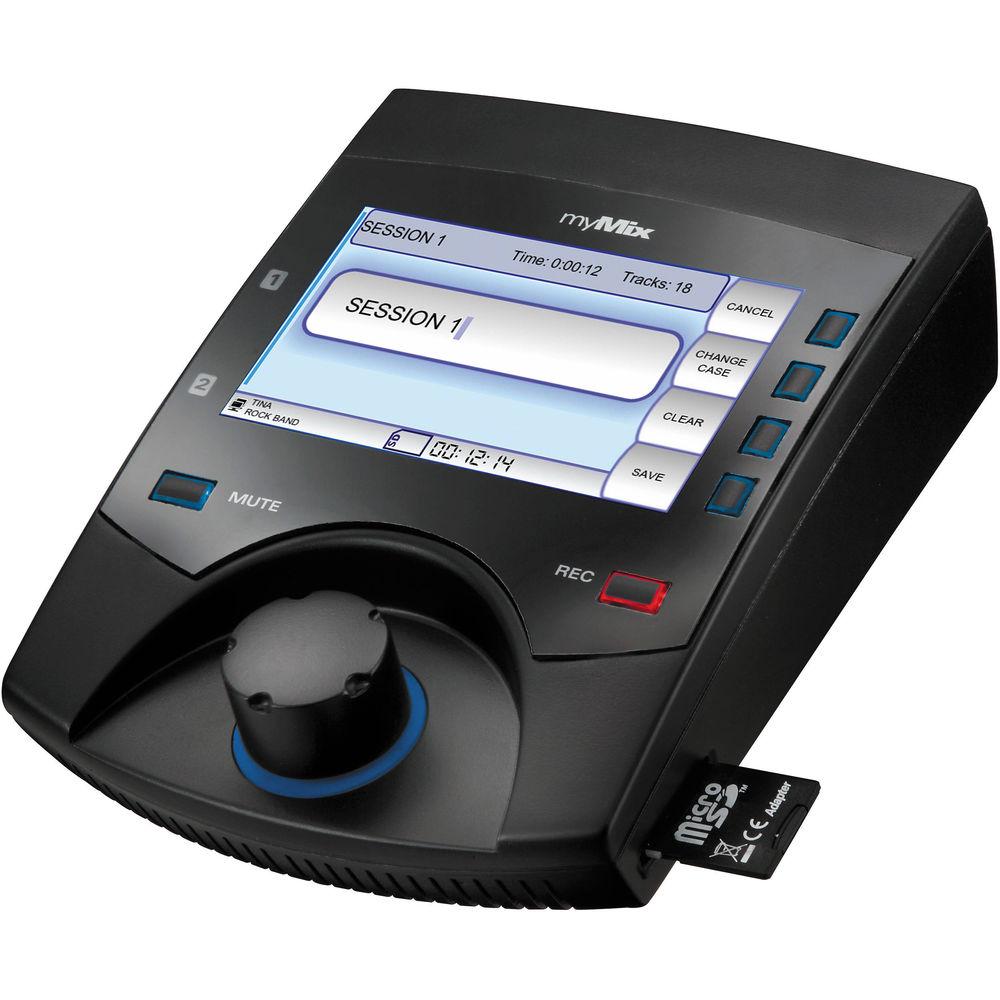

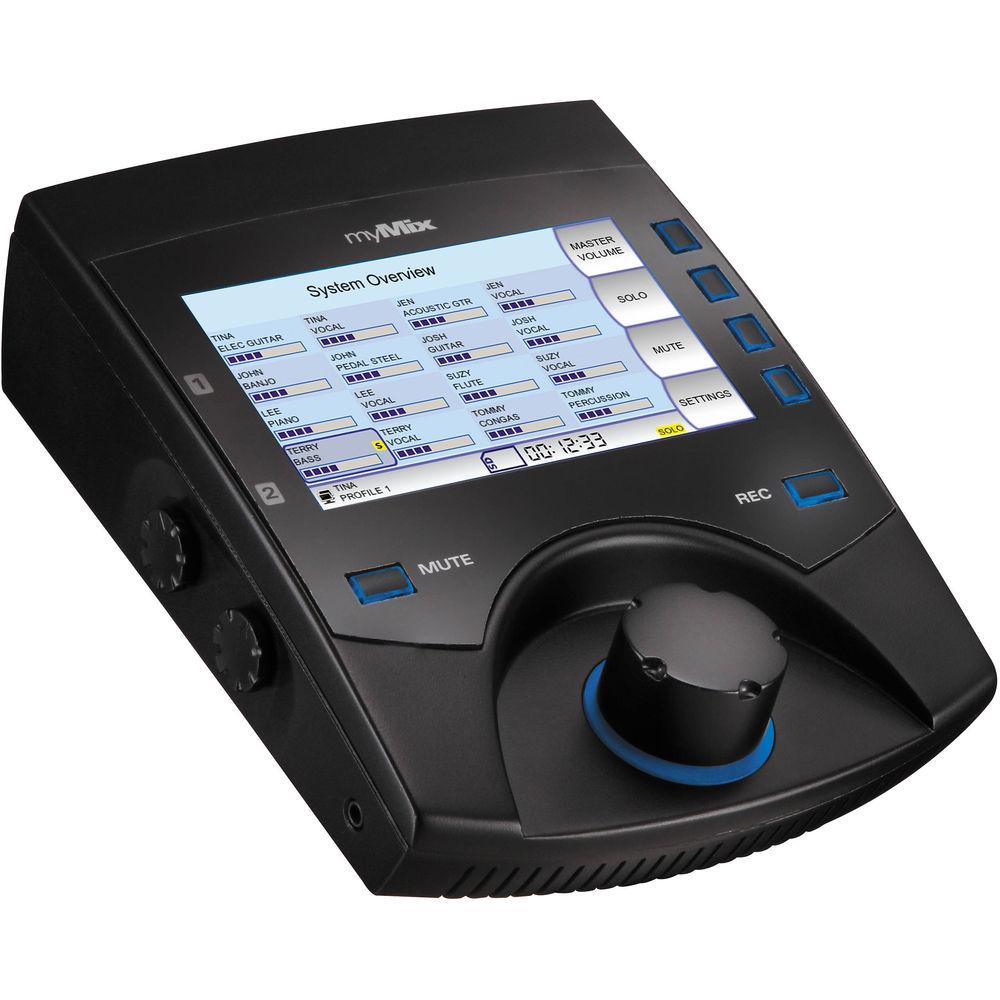

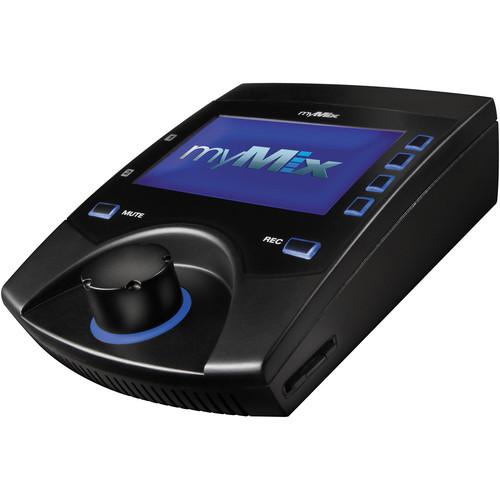

Product description The myMix myMix II is a personal monitor mixer and multi-track recorder offering easy operability and 24-bit / 48 kHz, studio-quality audio for vocalists and musicians in clubs, concert venues, and radio stations. Create a stereo mix sourced from up to 16 channels, and record the individual channels plus the stereo mix to an SD/SDHC card (available separately). Its RJ45 port allows connectivity to a second myMix II mixer for standalone operation, or to an Ethernet switch for a networked setup with three or more myMix IIs. In addition to accepting sources from a network, the myMix II features two local inputs, each utilizing an XLR-1/4" combo jack that accommodates mic- or line-level signals and passes phantom power. Outputs include two 1/4" main left and right channels, and a 3.5mm stereo headphone jack. Efficiently sculpt your mix using per-channel volume, tone, pan, solo, and mute controls. Add reverb or delay by sending any channel to one of the seven built-in adjustable effects. A 4-band parametric equalizer enables the frequency balance of the master output to be tailored to your preference. 20 profiles are provided for simple saving and recalling of all mix settings. - 24-bit / 48 kHz personal monitor mixer and multi-track recorder
- Works standalone or connected to an Ethernet switch
- Select 16 sources from all available audio channels (up to 500) in the network and create an individual stereo mix for headphones, in-ear monitors, or powered speakers
- Record 16 individual tracks and a stereo mix to an SD/SDHC card (available separately)
- Intuitive user interface with meaningful channel names
- Per-channel volume, tone, effect send, pan, solo, and mute

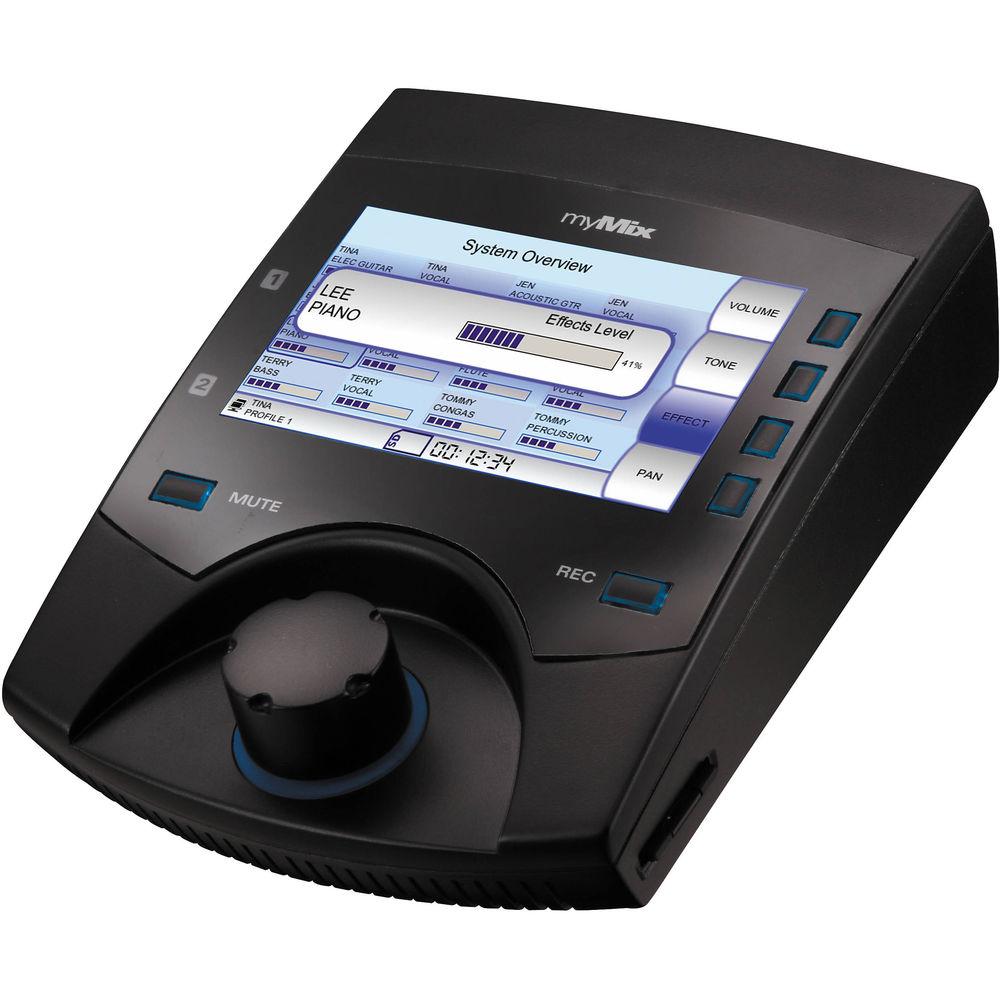

- Seven integrated stereo effects
- 4-band parametric master EQ
- Automatic saving of all mix changes to any of 20 profiles

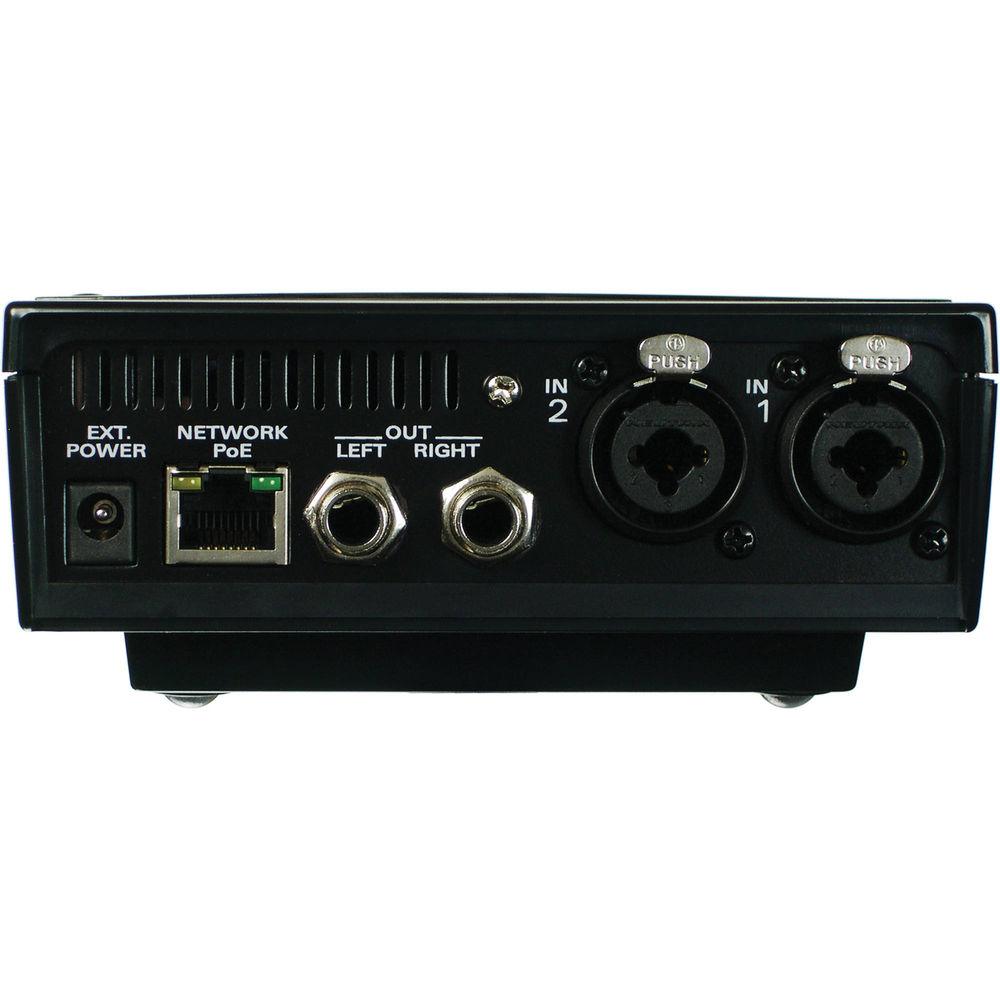

- Two XLR-1/4" combo mic/line inputs with phantom power
- 1/4" TRS stereo line outputs and 3.5mm headphone output
- Use "Send Mix to Network" to listen to other network devices or create submixes

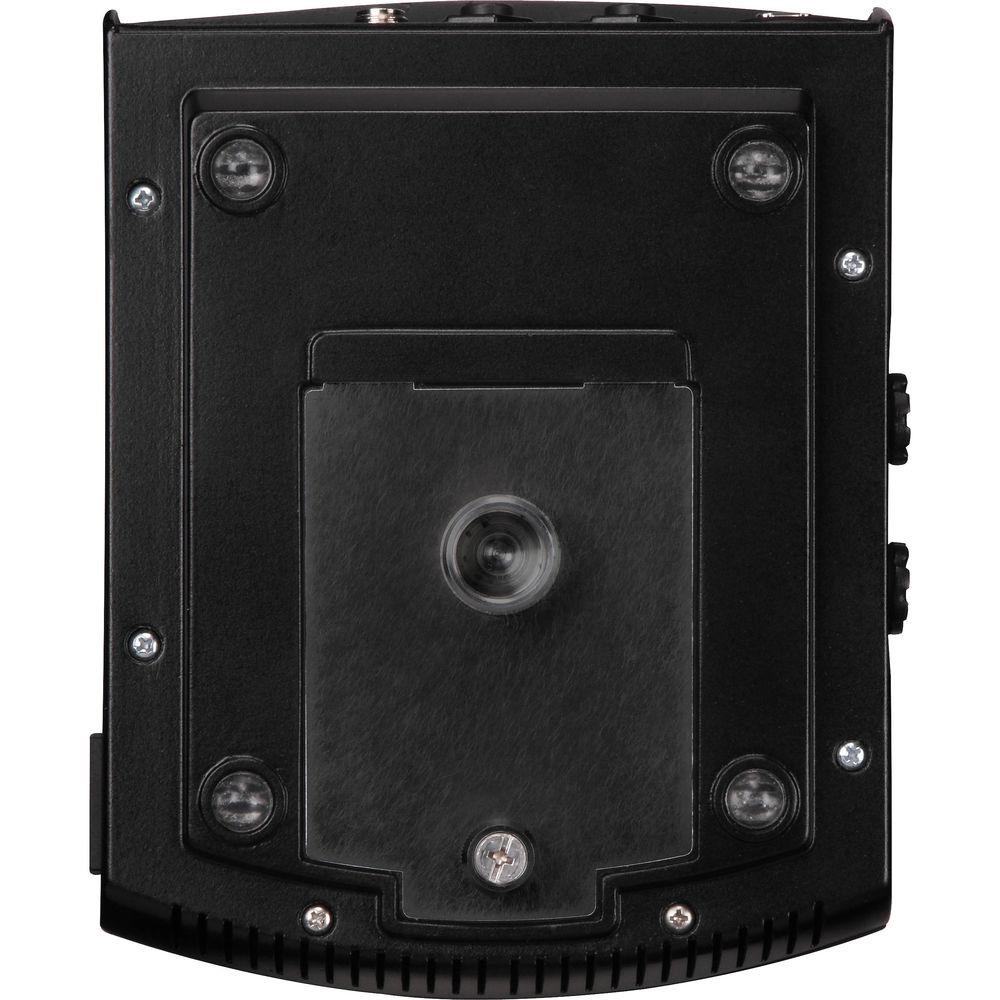

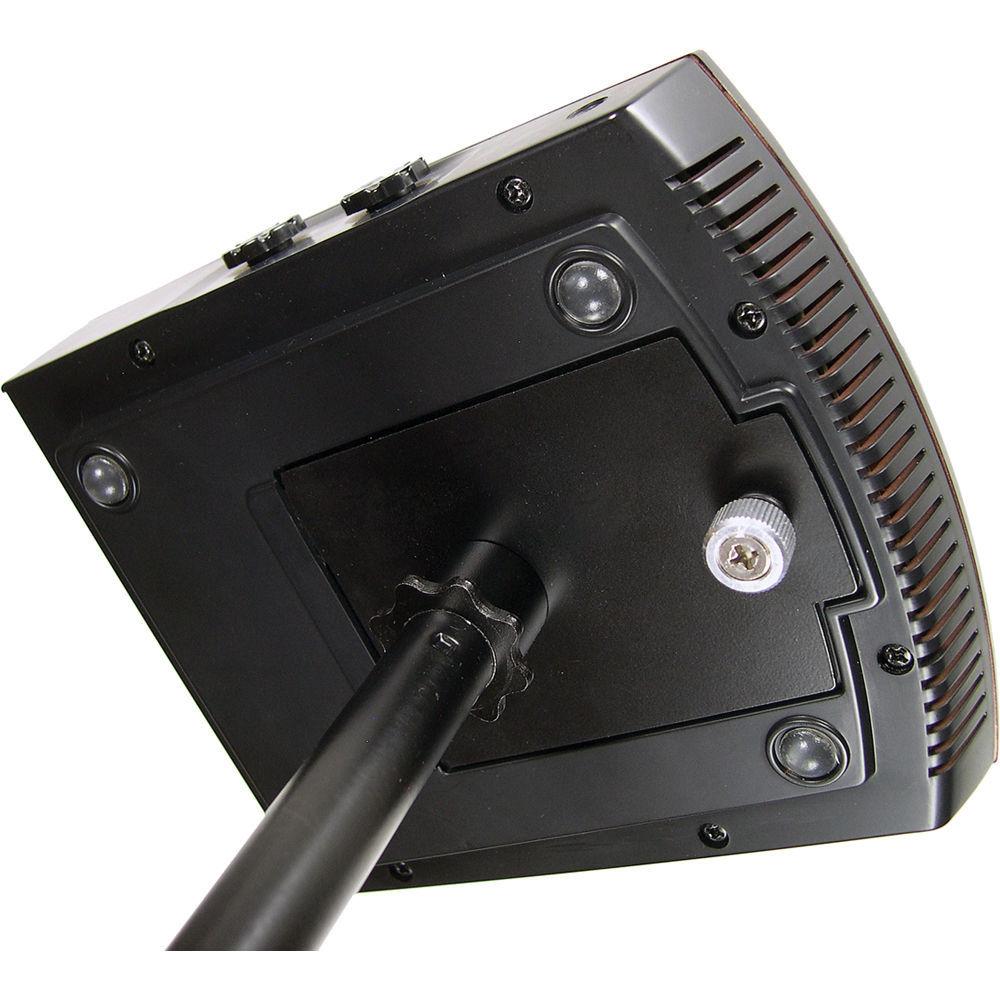

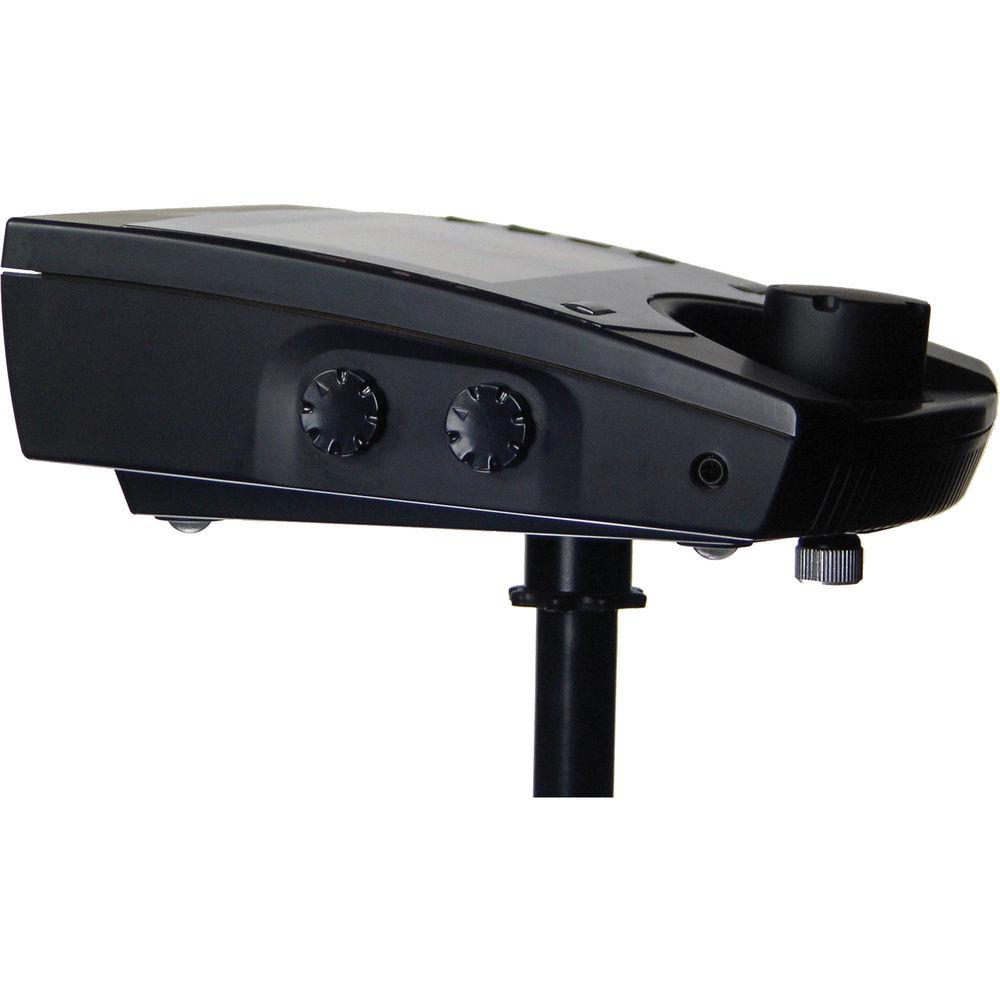

- Includes mic stand adapter and external power supply
In the Box myMix II Personal Monitor Mixer and Multi-Track Recorder AC Power Supply Microphone Stand Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix II Personal Monitor Mixer and Multi-Track Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmyMix MYMIX II Specs | Inputs | 2 x XLR-1/4" TRS Combo Microphone/Line Inputs (Balanced) | | Outputs | 1 x 1/4" TRS Female Line Output (Balanced)
1 x 1/8" / 3.5 mm TRS Headphone Output (Unbalanced) | | Media Card Slots | 1 x SD/SDHC | | Network Connection | 1 x RJ45 | | Network Type | Fast Ethernet 100 Mb/s | | Recommended Cable | Cat5 | | Network Latency | < 2 ms | | Bit Depth | 24-Bit | | Sample Rate | 48 kHz | | File Type | WAV | | Input Gain | Microphone: +4 to +60 dB
Line: -16 to +40 dB | | Maximum Input Level | Microphone: +14 dBu
Line: +34 dBu | | Input Impedance | Microphone: 2 kOhms
Line: 20 kOhms | | Maximum Output Level | Line: +21 dBu | | Output Impedance | Line: 75 Ohms
Headphone: 16 Ohms | | Frequency Response | 20 Hz to 20 kHz (+0 dB, -1 dB) | | Signal-to-Noise Ratio (SNR) | > 104 dB | | THD + N | < 0.022% (Microphone Input to Line Output) | | Crosstalk | < -80 dB | | Mute | > 100 dB | | Power Requirement | 24 V, 12 W Power Supply or 15W via PoE | | Dimensions (W x H x D) | 5.3 x 6.7 x 2.4" / 13.4 x 17.1 x 6.0 cm | | Weight | 1.1 lb / 0.5 kg |
