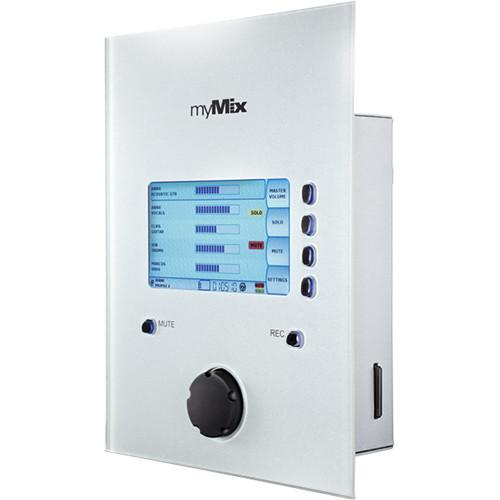

User Manual for myMix Install Networked Personal Mixer and Multi-Track Recorder Click to enlarge the picture
Contents of the user manual for the myMix Install Networked Personal Mixer and
- Product category: Networked Audio Systems Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Networked Audio Systems
|
User manual for the myMix Install Networked Personal Mixer and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The myMix Install Networked Personal Mixer and Multi-Track Recorder from myMix is an audio mixing system which allows each user to create a local mix, whether monitoring with headphones or driving a speaker system. It has two combination mic/line inputs, balanced stereo outputs, and a headphone jack. Additional signals can be brought into the system by other myMix devices or using the IEX-16L, 16-channel input expander (not included).
The myMix system does not require a master unit. The unit can be connected using Ethernet CAT5 cabling and a Fast Ethernet (100 Mb/s) switch. Once the unit is connected to the network, each input source such as a microphone or instrument can be available on all myMix units, allowing a user to create an individual mix without affecting others on the network. myMix can record up to 18 tracks of multi-track audio to an optional SD or SDHC card. Two tracks cover the stereo mix and up to 16 tracks are sourced directly. All audio files are recorded in 24-bit, 48 kHz time-stamped WAV files. Sessions can be played back and remixed from an SD card instead of using the network channels. The myMix Install unit can be desk mounted, or wall mounted when using the WMB01 Wall-Mount Box (sold separately). - Decentralized network design
- High quality, low latency audio over IP
- 100 Mb/s fast Ethernet with CAT5 cabling
- Two mic/line inputs & stereo mix output
- myMix CONTROL web browser for configuration
- Intuitive, patented user interface
- Connections on Euro Block
- Fully compatible with all myMix devices
In the Box myMix Install Networked Personal Mixer and Multi-Track Recorder Phoenix Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix Install Networked Personal Mixer and Multi-Track Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmyMix MYMIXINSTALL Specs | Input Impedance | 2 kOhms / 20 kOhms (microphone / line) | | Input Gain | Microphone: variable from +4 to +60 dB
Line: variable from -16 to +40 dB | | Input Level | +14 dBu / +34 dBu (microphone / line) maximum | | Frequency Response | 20 Hz to 20 kHz (+0 dB, -1 dB) | | Output Impedance | Line / Headphone Outputs: 75 ohms balanced / to drive >16 ohms | | Output Level | Line: +21 dBu maximum | | Signal to Noise Ratio | >104 dB | | THD + N | Microphone Input to Line Out: <0.022% | | Crosstalk | <-80 dB (L to R) | | Mute | >100 dB | | Network Type | Fast Ethernet 100 Mb/s | | Network Cable Type | CAT5 | | Latency | <2 ms (network) | | Conversion | 24-bit (AD/DA) | | Recording Media | SD or SDHC card | | Recording Format | WAV file, 24-bit, 48 kHz sampling rate | | Connectors | 1 x Balanced Euro Block screw, microphone input
1 x Balanced Euro Block screw, line input
1 x Balanced Euro Block screw, line output
1 x 3.5 mm stereo headphone jack, output | | LAN Port | RJ-45 | | Dimensions (W x H x D) | 6.6 x 8.5 x 2.2" (166.5 x 216.0 x 56.0 mm) | | Weight | 2.4 lb (1.1 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 8.0" |
