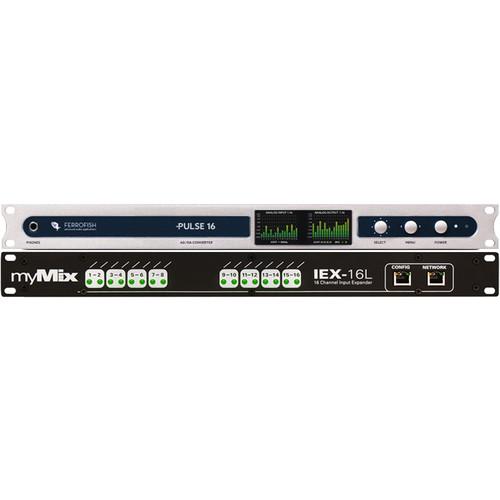

Product description The myMix MADI16-FER is a MADI to myMix interface system designed to add 16 analog or digital inputs to your existing myMix setup. It includes one myMix IEX-16L-A 16-channel input expander, a Ferrofish Pulse16 MX 16-channel AD/DA converter, and their external power supplies. Connect your sources to the Ferrofish's balanced analog, ADAT optical, and MADI optical inputs, then hook up its outputs to the DB25 or optical inputs of the IEX-16L-A input expander. The input expander integrates to your audio network via a front-panel RJ45 port. - Pulse16 MX Rackmount 16-Channel AD/DA, MADI & ADAT Converter The Ferrofish Pulse16 MX is a 1 RU rackmount 16-channel AD/DA converter offering analog, MADI, and ADAT I/O for tracking and mixing engineers in recording studios, houses of worship, broadcast trucks, and concert venues. With 24-bit / 192 kHz Cirrus Logic converters, a TCXO internal clock, and an active jitter-elimination circuit, it delivers accurate high-resolution audio. Interface a variety of equipment via the 16 balanced 1/4" TRS inputs/outputs, four ADAT optical inputs/outputs, and optical MADI I/O. The front-panel 1/4" headphone output features digitally controlled volume and an assignable mono or stereo source.BNC jacks provide wordclock I/O for proper synchronization with other digital equipment such as master clock generators, additional converters, and digital consoles. Remote control of the Pulse16 MX is possible through the MIDI 5-pin ports, which also support MIDI-over-MADI embedding and extracting. Display and modification of device settings, meters, and routing are achieved via the dual color TFT screens and three front-panel controls. The Pulse16 MX includes an external power supply and a MADI cable.
- High-resolution Cirrus Logic A/D-D/A converters operate at up to 24-bits / 192 kHz
- TCXO (temperature-compensated oscillator) internal clock and active jitter reduction provide reliable clock stability
- BNC word clock I/O for synchronization with other digital equipment
- 16 balanced analog inputs/outputs on 1/4" TRS jacks
- Optical MADI I/O allows up to 64 channels of digital input and output
- Singlemode or multimode operation via SFP module
- Four TOSLINK optical inputs/outputs for up to 32 channels of ADAT I/O
- Remote control via MIDI 5-pin I/O
- Easy setup via dual color TFT screens and front-panel knob and buttons
- Digitally adjustable input and output levels in 1 dB steps
- Convenient signal monitoring via front-panel 1/4" headphone output
- Occupies 1 RU of rack space
- IEX-16L-A 16-Channel Input Expander for myMix Systems The myMix IEX-16L-A 16-Channel Input Expander comes with two DB25 connectors and allows connection of up to 16 balanced line-level signals that can be fed from devices such as mixing consoles or external microphone pre-amps. The IEX16L-A comes with two 8-channel ADAT inputs that can be activated individually. This allows usage of 16 line level sources or 8 line level sources and 8 ADAT inputs, or 16 ADAT inputs on a single IEX-16L-A expander.
Multiple IEX-16L expanders can be used in a myMix network. The IEX-16L-A can be configured using any myMix device on the network or the optional myMix CONTROL software, including input channel naming and stereo linking. The configuration is stored automatically in the IEX-16L-A. The optional myMix CONTROL software allows uploading/downloading of complete settings for the IEX-16L-A expander. The expander can be locked by connecting a myMix to the CONFIG port, or via the myMix CONTROL. The CONFIG ports provide all the data but no audio. It can also be used to connect the myMix CONTROL network interface (myMIx PLUG). - 16 balanced line level inputs on two DB25 connectors
- Comes with 2 x 8-channel optical ADAT Interfaces
- Adds 16 audio channels to the myMix System in a 1U, 19" package
- Independent audio channel selection on every myMix unit
- Convenient signal feed from a mixing console, external microphone pre-amps or digital interfaces
- Individual digital gain adjustment (0, +6, or +12 dB) per input channel
- Can be combined with other myMix input and output devices
- Can be configured from any myMix in the network or through myMix CONTROL software (optional)
- Works with 100Mb/s fast Ethernet switches
- Allows use of multiple IEX-16L-A with unlimited audio channels over the network
- Remote configuration with optional myMix CONTROL software (web browser based)
In the Box Bundle Items Pulse16 MX Rackmount 16-Channel AD/DA, MADI & ADAT Converter azvereuyfwcfucfbbwswvtdcwz IEX-16L-A 16-Channel Input Expander for myMix Systems - Power Supply with Power Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix MADI16-FER MADI to myMix Interface System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pulse16 MX Rackmount 16-Channel AD/DA, MADI & ADAT Converter
| Inputs | 16 x 1/4" TRS (Balanced Analog)
4 x TOSLINK optical (ADAT Digital)
1 x MADI-SFP optical (MADI Digital) | | Outputs | 16 x 1/4" TRS (Balanced Analog)
1 x 1/4" TRS Stereo Headphone (Unbalanced Analog)
4 x TOSLINK optical (ADAT Digital)
1 x MADI-SFP optical (MADI Digital) | | Word Clock I/O | 1 x BNC Input (75 Ohms)
1 x BNC Output (75 Ohms) | | MIDI I/O | 1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output | | ADC | 2 x Cirrus Logic CS5368 | | DAC | 2 x Cirrus Logic CS4365 | | Sample Rates | 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192 kHz | | Latency | ADC at 48 kHz: 7.8 samples / 0.16 ms
ADC at 96 kHz: 5.4 samples / 0.06 ms
ADC at 192 kHz: 6.6 samples / 0.03 ms
DAC at 48 kHz: 12 samples / 0.25 ms
DAC at 96 kHz: 9 samples / 0.09 ms
DAC at 192 kHz: 5 samples / 0.03 ms
ADAT/MADI: 2 samples | | Gain Range | Input/Output: -8 dBu to +20 dBu (Digital, in 1 dB Steps) | | Display | 2 x Color TFT | | PLL | Digitally Controlled PLL with Active Jitter Reduction | | Output Jitter | 50 to 100 ps typical | | Internal Clock | TCXO | | Clock Accuracy | Initial Accuracy: ± 1.5 ppm
Temperature Drift: ± 2.5 ppm
Aging: ± 1 ppm | | Temperature | 41 to 113°F / 5 to 45°C | | Humidity (Non-Condensing) | <75% | | Fuse | Internal Self-Resetting Polyfuse | | Power Requirement | 15 VA typical via 12 V, 3 A External Power Supply Unit | | Dimensions (W x H x D) | 19.0 x 1.8 x 7.5" / 48.3 x 4.4 x 19.0 cm (Including Jack Protrusions) | | Weight | 4.4 lb / 2 kg | | Compliance and Standards | EMC
RoHS 2
FCC Part 15 Class B | - IEX-16L-A 16-Channel Input Expander for myMix Systems
| Inputs | 16 Analog line level
ADAT: 2 x 8 channels | | Impedance | 20 Ω, balanced (input) | | Level | + 20 dBu (maximum input) | | Sampling Rate | 44.1/48 kHz | | Gain Adjustment Range | 0, +6, +12 dB (input) | | Frequency Response | >104 dB | | THD + N | <0.022% | | Network Type | 100 Mb/s fast Ethernet | | Cabling Type | CAT5/CAT5e | | Network Connections | 2 RJ45, (1 network, 1 myMix) | | Network Switch | Unmanaged 100BASE-TX, full-duplex for 16 channel maximum
For >16 Channel: Managed 100BASE-TX, IGMP snooping (v2) | | Audio Channel Limit | 2 x Maximum of multicast groups handled by the switch (on network) | | Conversion | AD/DA: 24-bit, 48 kHz | | Connectors | Input: 2 x DB25, 2 x TOSLINK | | Dimensions (W x H x D) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
