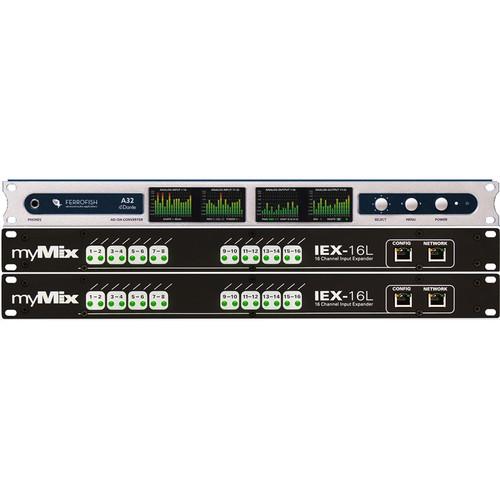

Product description The myMix MADI32-FER is a MADI to myMix interface system designed to add 32 analog or digital inputs to your existing myMix setup. It includes two myMix IEX-16L-A 16-channel input expanders, a Ferrofish A32 32-channel AD/DA converter, and their external power supplies. Connect your sources to the Ferrofish's balanced analog, ADAT optical, and MADI optical inputs, then hook up its outputs to the DB25 or optical inputs of the IEX-16L-A input expanders. Each input expander integrates to your audio network via a front-panel RJ45 port. - A32 - AD/DA Converter with ADAT and MADI Interfaces (Multi Mode) Using Cirrus Logic converters, the multi-mode Ferrofish A32 is an AD/DA converter with ADAT and MADI interfaces featuring dedicated analog input and output switches for selecting between +4 dBu, +13 dBu, and +20 dBu on each channel. The levels between can be set by the unit's SHARC DSP to accommodate a wide variety of professional and consumer equipment with optimized analog performance.The 1RU rackmountable unit includes four TFT screens for visual feedback when adjusting the interface's screens. The levels of all 64 analog channels can be clearly seen with high resolution metering. For convenience, the unit explains, via help screens, how the interface operates in five different languages.For virtually jitterless clocking of the converters, the master clock of the unit uses a temperature compensated oscillator, which can also be used with a MADI or ADAT clock source.For reliability, the unit features two power inputs as well as redundant MADI via optical and coax connections.With one touch of the encoder you can see the headphone screen where you can adjust the volume and select the source for the unit's headphone output. Up to seven mixes can be stored at a time with the option of selecting one to listen to on the headphones.The interface utilizes a fourth generation SHARC DSP, which is connected to all 258 analog and digital channels and is able to freely route, process, and mix all signals.
-
- Multi-mode configuration for stage/studio applications - industry-standard audio transmission via MADI
- In multi-mode, signals can be transmitted over distances up to 1.2 miles/2 km
- 32 x balanced analog I/O via D-Sub25 connectors, 32 to 192 kHz
- 64 x 64 MADI channels—optical and coaxial
- 32 x 32 ADAT channels—Toslink connectors
- ADAT connectors can alternately be used as an optical S/PDIF or AES/EBU interface
- Redundant MADI for backup—connect to both MADI optical and coaxial and the input automatically switches to the other source, if sync is lost
- Thermally stabilized oscillator with very low jitter and high stability
- MIDI over MADI—unit can be remote-controlled using MIDI data embedded in the same MADI cable
- Zero-latency audio transfer between MADI input and MADI output—daisy-chain multiple A32 without any added latency or delay compensation
- Cirrus Logic converters
- 400 MHz SHARC DSP processes all 258 audio channels
- SMUX up to 192 kHz
- BNC Wordclock I/O
- MIDI in/out
- Headphone/sub-mix output
- 4 x TFT screens show all analog input and output levels at the same time and allow visualization of all settings—peak and level display
- Intuitive one-knob operation and integrated help system, for ease of use
- Preset management
- Extensive routing/mixing—route internally between all I/O channels and create sub-mixes
- Individual delay-compensation of all analog outputs
UPC: 040232823121 - IEX-16L-A 16-Channel Input Expander for myMix Systems The myMix IEX-16L-A 16-Channel Input Expander comes with two DB25 connectors and allows connection of up to 16 balanced line-level signals that can be fed from devices such as mixing consoles or external microphone pre-amps. The IEX16L-A comes with two 8-channel ADAT inputs that can be activated individually. This allows usage of 16 line level sources or 8 line level sources and 8 ADAT inputs, or 16 ADAT inputs on a single IEX-16L-A expander.
Multiple IEX-16L expanders can be used in a myMix network. The IEX-16L-A can be configured using any myMix device on the network or the optional myMix CONTROL software, including input channel naming and stereo linking. The configuration is stored automatically in the IEX-16L-A. The optional myMix CONTROL software allows uploading/downloading of complete settings for the IEX-16L-A expander. The expander can be locked by connecting a myMix to the CONFIG port, or via the myMix CONTROL. The CONFIG ports provide all the data but no audio. It can also be used to connect the myMix CONTROL network interface (myMIx PLUG). - 16 balanced line level inputs on two DB25 connectors
- Comes with 2 x 8-channel optical ADAT Interfaces
- Adds 16 audio channels to the myMix System in a 1U, 19" package
- Independent audio channel selection on every myMix unit
- Convenient signal feed from a mixing console, external microphone pre-amps or digital interfaces
- Individual digital gain adjustment (0, +6, or +12 dB) per input channel
- Can be combined with other myMix input and output devices
- Can be configured from any myMix in the network or through myMix CONTROL software (optional)
- Works with 100Mb/s fast Ethernet switches
- Allows use of multiple IEX-16L-A with unlimited audio channels over the network
- Remote configuration with optional myMix CONTROL software (web browser based)
In the Box Bundle Items A32 - AD/DA Converter with ADAT and MADI Interfaces (Multi Mode) fwyvcbqxwcreyszwwffqwzzdxc 2 x IEX-16L-A 16-Channel Input Expander for myMix Systems - Power Supply with Power Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix MADI32-FER MADI to myMix Interface System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - A32 - AD/DA Converter with ADAT and MADI Interfaces (Multi Mode)
MADI I/O | Optical and coaxial interface Both interfaces work independently to achieve full 32+32 channels 64x channels at 32, 44.1, 48 kHz 32x channels at 64, 88.2, 96 kHz 32x channels at 128, 176.4, 192 kHz MIDI over MADI implemented Latency: 3 samples Automatic switching between optical/coaxial MADI, when signal is lost | ADAT I/O | 4 + 4 x optical interfaces 32 x channels at 32, 44.1, 48 kHz 16 x channels at 64, 88.2, 96 kHz Latency: 3 samples | S/PDIF | All four ADAT I/O can be reconfigured as S/PDIF Input: Sample rate converter included (SRC Performance: -128 dB) Output: Follows A32 sample frequency | Wordclock | BNC: 1 x input, 1 x output Termination: 75 Ohms, switchable for input | MIDI I/O | 2 x DIN5 jacks, for remote Conversion: MIDI to MIDI-over-MADI | A/D Converter | 4 x CS5368 (Cirrus Logic) 4 x D-Sub25/Tascam Analog Switches: +20, +13, +4 dBu Digital Gain: +20 to -8 dBu, 1 dB steps Latency: At 48 kHz: 12/fs, 0.25 ms, at 96 kHz: 9/fs, 0.09 ms,at 192 kHz: 5/fs, 0.03 ms OpAmps: RC4580, OPA1664 Level Indicator: TFT screen, 28 levels | D/A Converter | 4 x CS4365 (Cirrus Logic) 4 x D-Sub25 / Tascam Analog Switches: +20, +13, +4 dBu Digital Gain: +20 to -8 dBu, 1 dB steps Latency: At 48 kHz: 7.8/fs, 0.16 ms, at 96 kHz: 5.4/fs, 0.06 ms,at 192 kHz: 6.6/fs, 0.03 ms OpAmps: RC4580, OPA1664 Level Indicator: TFT screen, 28 levels | USB | USB 2.0 (remote, update) | Headphone | Independent stereo channel Select any mono or stereo source Select one of 5 mixes of all inputs and outputs Digital volume control | Audio Processor | Sharc DSP ADSP-21489 / 400 MHz Routing of all 128+128 channels Mixing to headphone output DSP plug-ins | PLL | Digitally controlled PLL/jitter reduction system Output Jitter: 50 ps to 100 ps typ. | Internal Clock | Temperature-compensated oscillator, with high accuracy Initial Accuracy: ±1.5 ppm Accuracy Over Temperature Range: ±2.5 ppm Accuracy Over Aging: ±1 ppm | Power Supply | 12 V, 3 A 2 x input jacks with screw lock for redundant power Voltage Supervision: On-screen warning message when PSU input fails | Compliance | CE/FCC RoHS | Dimensions | 1RU Depth: 10.6" / 27 cm (including connectors) | Weight | 9 lb / 4.1 kg | | Box Dimensions (LxWxH) | 24.3 x 14.8 x 4.1" | - IEX-16L-A 16-Channel Input Expander for myMix Systems
Inputs | 16 Analog line level ADAT: 2 x 8 channels | Impedance | 20 Ω, balanced (input) | Level | + 20 dBu (maximum input) | Sampling Rate | 44.1/48 kHz | Gain Adjustment Range | 0, +6, +12 dB (input) | Frequency Response | >104 dB | THD + N | <0.022% | Network Type | 100 Mb/s fast Ethernet | Cabling Type | CAT5/CAT5e | Network Connections | 2 RJ45, (1 network, 1 myMix) | Network Switch | Unmanaged 100BASE-TX, full-duplex for 16 channel maximum For >16 Channel: Managed 100BASE-TX, IGMP snooping (v2) | Audio Channel Limit | 2 x Maximum of multicast groups handled by the switch (on network) | Conversion | AD/DA: 24-bit, 48 kHz | Connectors | Input: 2 x DB25, 2 x TOSLINK | Dimensions (W x H x D) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | Weight | 6 lb (2.7 kg) | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
