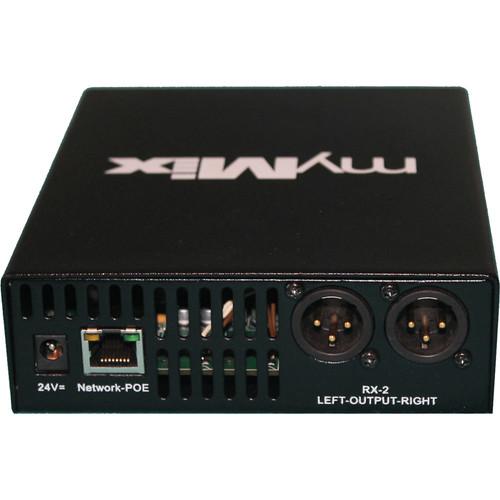

User Manual for myMix RX-2 Remote Controlled Networked Mixer for Rack Mounting Click to enlarge the picture
Contents of the user manual for the myMix RX-2 Remote Controlled Networked Mixer
- Product category: Networked Audio Systems myMix
- Brand: myMix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for myMix Networked Audio Systems
|
User manual for the myMix RX-2 Remote Controlled Networked Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any myMix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official myMix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a myMix product will considerably shorten its lifespan!
|
Product description The RX-2 Remote Controlled Networked Mixer from myMix is a 1RU rack mountable mixing unit designed to be operated by the myMix Control web browser based interface. The RX-2 comes in a solid metal housing and can select up to 16 audio channels from the network and create a stereo mix, controlling volume, pan, tone control and stereo effects per channel.
The myMix network can manage up to 500 audio channels which can consist of local inputs from myMix mixers, analog or digital inputs to IEX16 input expanders, or stereo mixes from myMix mixers. The RX-2 can transport a mix that is created on a myMix in one place via the network to another location. The RX-2 selects that mix signal and can add extra channels like talk-back or intercom from other sources; the output is then fed to a wireless transmitter for in-ear monitors. The RX-RM rack mount kit (sold separately) allows for three RX-2 devices to fit in a 1RU rack space. - Decentralized network design
- For mix outputs from myMix system (to feed wireless IEM transmitters) or internal sub-mixes
- High quality, low latency audio over IP on CAT5
- myMix CONTROL web browser for configuration
- Fully compatible with all myMix devices
In the Box myMix RX-2 Remote Controlled Networked Mixer for Rack Mounting (1RU) 24 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the myMix RX-2 Remote Controlled Networked Mixer for Rack Mounting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmyMix RX2 Specs | Impedance | 75 Ω, balanced | | Maximum Output Level | + 21 dBul | | Signal-to-Noise Ratio (SNR) | > 104 dB | | Crosstalk | < -80 dB (L-R) | | Connectors | 2 x 2-pin hot XLR | | Network Type | 100 MB/s fast Ethernet | | Network Cable Type | CAT5 with RJ-45 | | DA Conversion | 24-bit | | Sampling Rate | 48 kHz | | Housing | Metal | | Dimensions | 6.2 x 5.2 x 1.7" (15.7 x 13.2 x 4.3 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 4.0" |
