User Manual for MYT Works Medium Glide Camera Slider Click to enlarge the picture
Contents of the user manual for the MYT Works Medium Glide Camera Slider
- Product category: Camera Sliders MYT Works
- Brand: MYT Works
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MYT Works Camera Sliders
|
User manual for the MYT Works Medium Glide Camera Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MYT Works product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MYT Works user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MYT Works product will considerably shorten its lifespan!
|

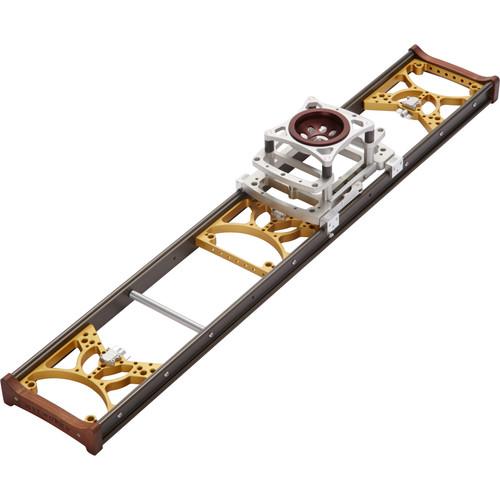

Product description MYT Works Glide Camera Sliders are designed for smooth motion and precise starts and stops. They support up to the largest cameras in various modular setups, and offer the durability to withstand extended wear and tear and extreme weather. You can safely use them in harsh environments, like dusty deserts, humid rainforests, and dry tundras. They're made in New York City and machined from industrial-grade steel and aluminum. This Medium Glide Camera Slider is 4' long and features a 100mm bowl. It has 10mm double extrusion rails with a 7" span between them and supports up to 80 lb loads.
The Medium Glide Camera Slider has golden-hued static and center static plates, two wooden end plates, stud cups for mounting 5/8" stands, locking aluminum wing nuts, a bullseye level, and a hi-hat carriage with four bearings. The mounted hi-hat can be quick-released from the slider with a patented one-latch release system, and used independently.
The slider can be used mounted on tripods and other grip alternatives (see Specifications). For accessories, various industry-standard threaded holes are scattered throughout the plates, handle bracket, and carriage to allow for numerous mounting options. Note: For transport, optional cases up to 6 ft are available from MYT Works. Sliders longer than 6 ft come in a wooden crate which you can modify with hinges/handles. You can also purchase custom cases of any length from third-party sellers like Calzone and Strut. - Key Features
-
- Simple, intuitive setup
- Hybrid sleeve and wheel bearings for naturally damped motion
- Removable hi-hat can be used alone, with optional MYT Works Rover Dolly, or skater dollies
- Quick release latch moves hi-hat to alternative setup in seconds
- Mounts on tripods and various other grip alternatives
- Different camera mounts available separately
- Rigid extruded rails eliminate need for center support
- Center-mounting and end-cap mounting capability
- Easy maintenance; rust and corrosion resistant
- Underslung capability with optional MYT Works accessories
- 10mm double extrusion rails—no center support required
- Made in New York City, USA
UPC: 739189349395 In the Box MYT Works Medium Glide Camera Slider (4' Rail Length, 100mm Bowl) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MYT Works Medium Glide Camera Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMYT Works 1030 Specs | Rail Spacing | 7" (18 cm) | | Load Capacity | 80 lb (36 kg) | | Material of Construction | Aluminum and stainless steel | | Mounting Options | Tripod, 5/8" pin (light stand, C-stand, pigeon stud), junior stand (2K), rosette legs (19 mm, speedrail), baby feet | | Accessory Mount Thread Sizes | 1/4"-20, 3/8"-16, and 1/2"-13 | | Dimensions | Glide: 48.5 x 8.8 x 3.0" (123.2 x 22.2 x 7.6 cm)
Hi-Hat: 9.5 x 6.3 x 4.5" (24.1 x 15.9 x 11.4 cm) | | Weight | Glide: 12.1 lb (5.5 kg)
Hi-Hat: 2.4 lb (1.1 kg) | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 52.5 x 13.45 x 6.5" |
