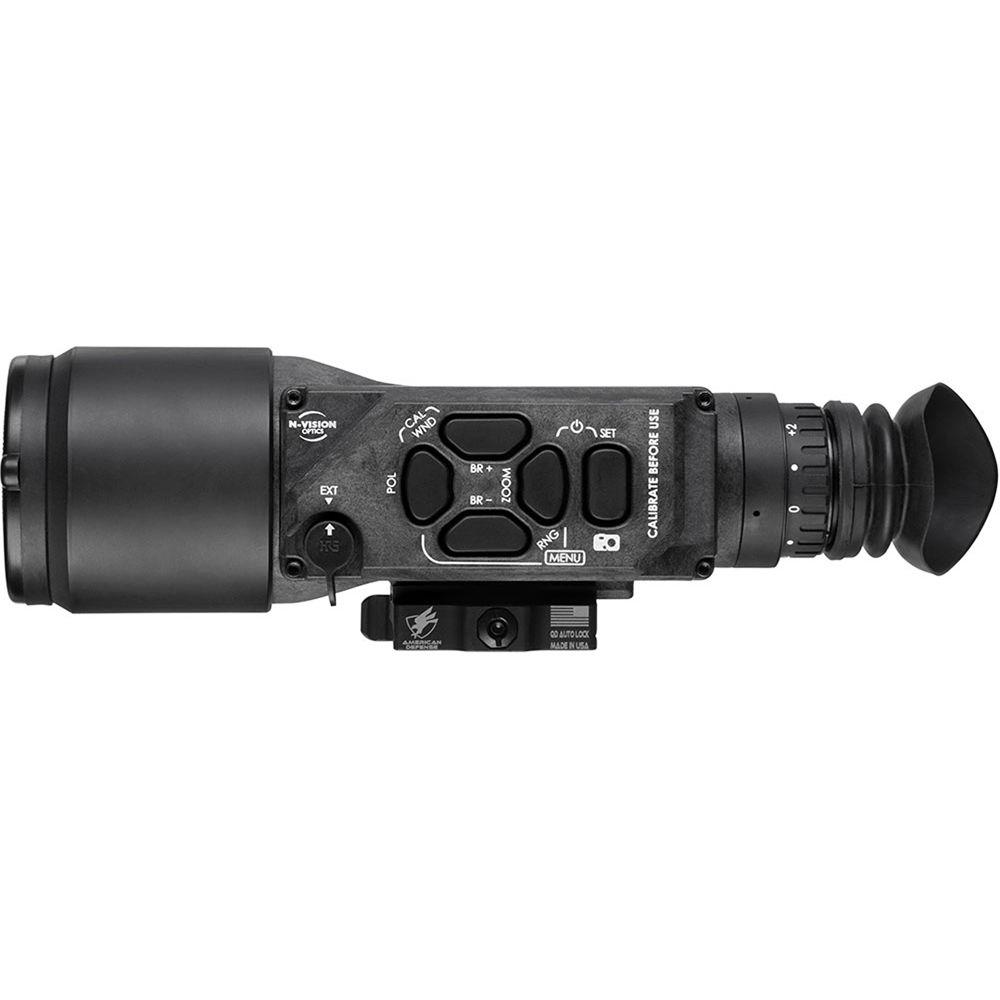

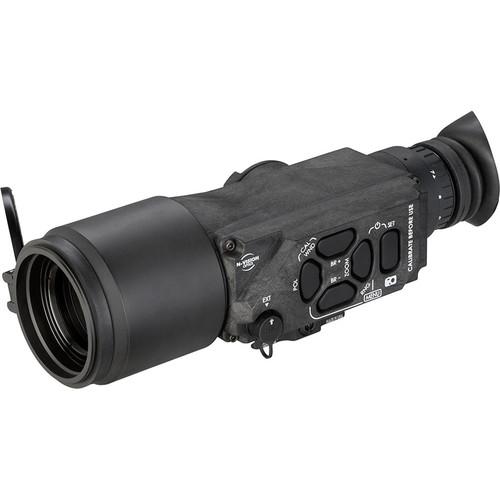

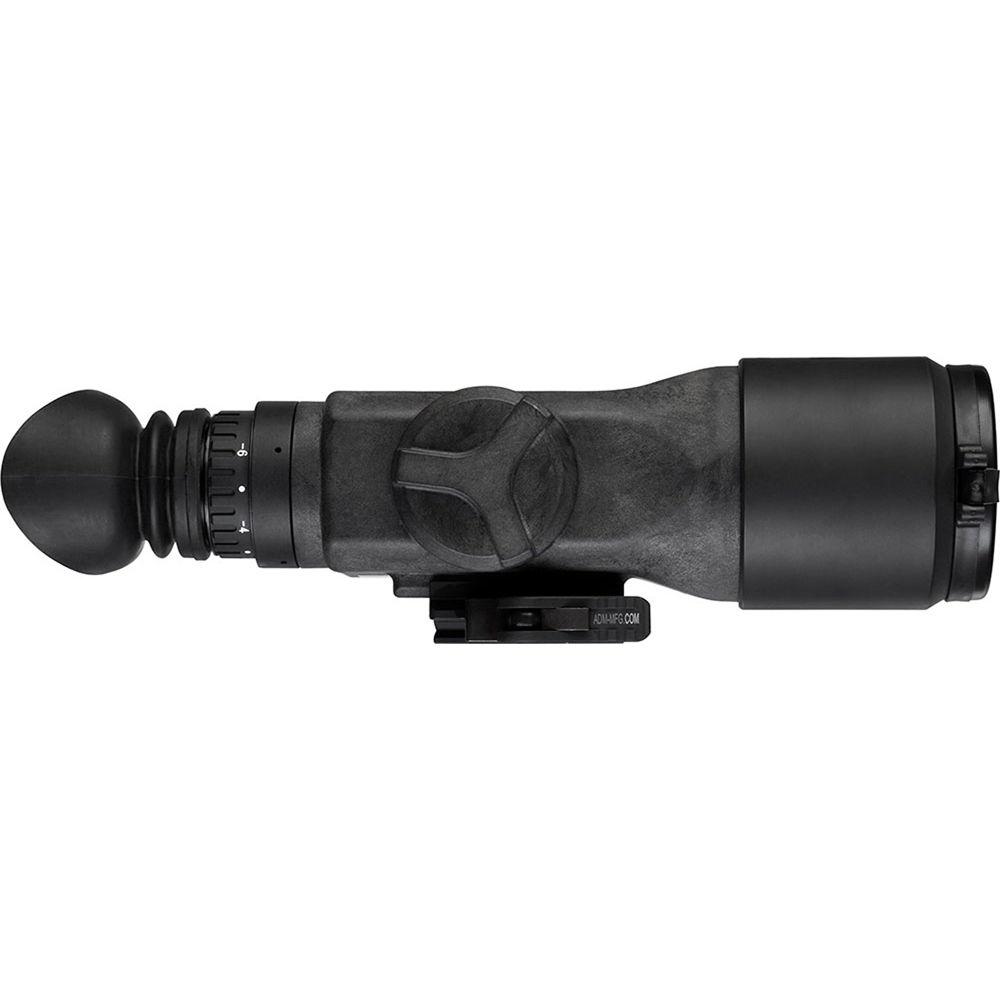

User Manual for N-Vision Optics 2-4x 640x512 Thermal Clip-On Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics 2-4x 640x512 Thermal Clip-On
- Product category: Thermal Scopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Thermal Scopes
 |
User manual for the N-Vision Optics 2-4x 640x512 Thermal Clip-On contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description Use the N-Vision 2-4x 640x512 Thermal Clip-On Sight to improve stealth of your tactical or hunting activities. This sight can be connected to your firearm via an optional Picatinny/Weaver mount in front of your day optic. It allows you to follow your targets or game and make shot placements at night or during the day and see through fog, smoke, dust, and foliage. At the core of this device is the 640x512 uncooled microbolometer detector, which captures thermal images with a 30 Hz refresh rate. After processing, the video data is delivered to an 800x600 color OLED display for viewing. The functionality of this device allow you to have white hot and black hot palettes and four digital reticle patterns.
To match the unforgiving conditions of the battlefields, the composite molded polymer housing is waterproof (IP68) and impact-resistant. For attachment to most standard firearms, the housing also provides an attachment for a Picatinny/Weaver style rail mount. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Imaging Performance
-
- 640x512 VOx Microbolometer
- Spectral response: 7.5-13.5µm
- 17µm pixel size
- 30 Hz refresh rate
- 2-4x magnification
- 50mm objective lens diameter
- Use and Handling, Display, Video & Reticle
-
- 600x800 OLED color display
- Polarity control: white hot and black hot
- Digital windage and elevation impact point correction
- Four selectable digital reticle patterns
- Internal memory storage can hold up to 400 images
- USB port for transferring digital data out
- External power port
- Construction Details
-
- Composite molded polymer
- Knurled focus wheel on front left for quick and easy adjustment
- Flip-out objective lens cover
In the Box N-Vision Optics 2-4x 640x512 Thermal Clip-On Sight (30 Hz, Matte Black) - 4 x CR-123 Batteries
- Lens Cap
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics 2-4x 640x512 Thermal Clip-On Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics TC50A Specs | Array Configuration | 640x512 VOx microbolometer | | Spectral Response | 7.5 - 13.5 μm | | Pixel Size | 17 μm | | Refresh Rate | 30 Hz | | Magnification | 2x, 4x | | Objective Diameter | 50mm | | Reticle | 4 x digital reticle patterns | | Polarity | Black hot, white hot | | Minimum Focus Distance | Fixed | | Dioptric Correction | +2 to -6 | | Display | 800x600 color OLED | | Storage Capacity | 400 images | | Ports | USB | | Power Source | 4 x CR-123 batteries
External: 12 VDC
USB port | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 159.8°F / -40 to 71°C | | Weatherproofing | IP68, waterproof | | Dimension | 9.1 x 3.22 x 3.15" / 231.0 x 82.0 x 80.0 mm | | Weight | 29.3 / 831.0 g |
