User Manual for N-Vision Optics 324 x 256 TWS-13E-H Thermal Weapon Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics 324 x 256 TWS-13E-H
- Product category: Thermal Scopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Thermal Scopes
 |
User manual for the N-Vision Optics 324 x 256 TWS-13E-H contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|

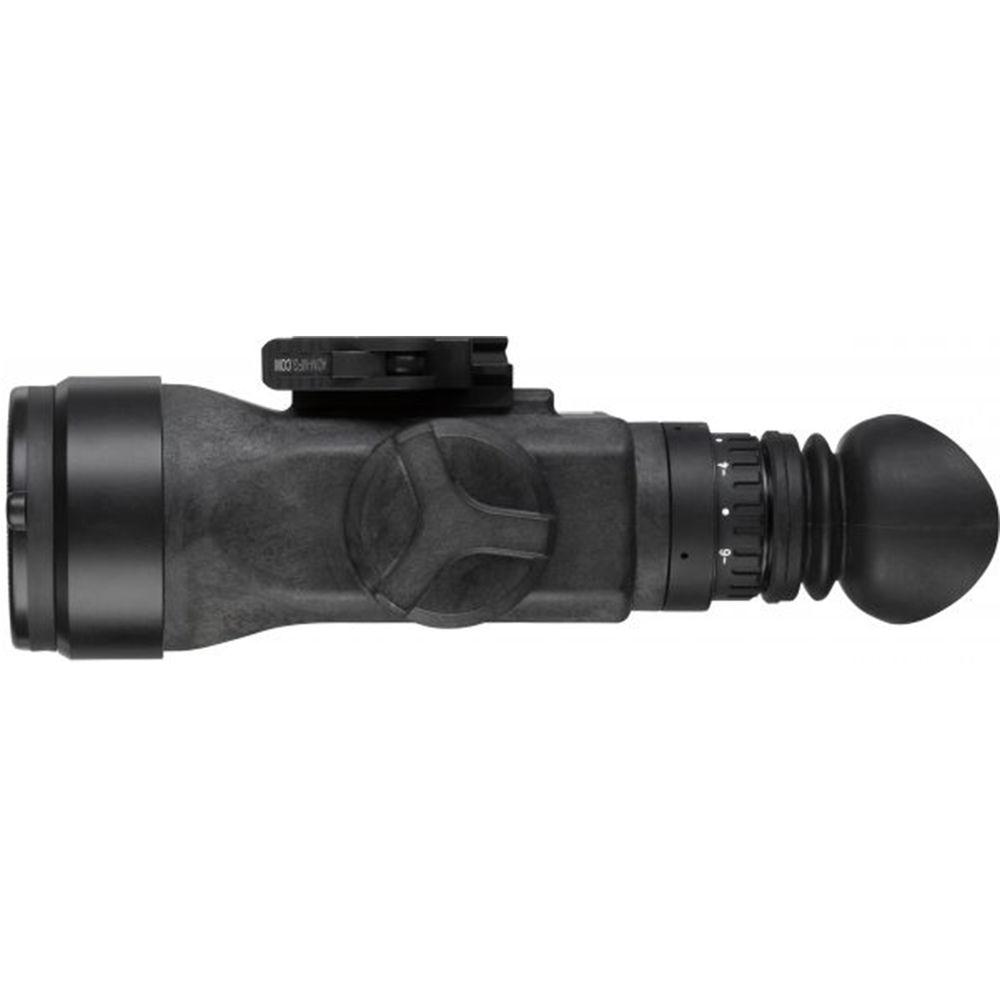

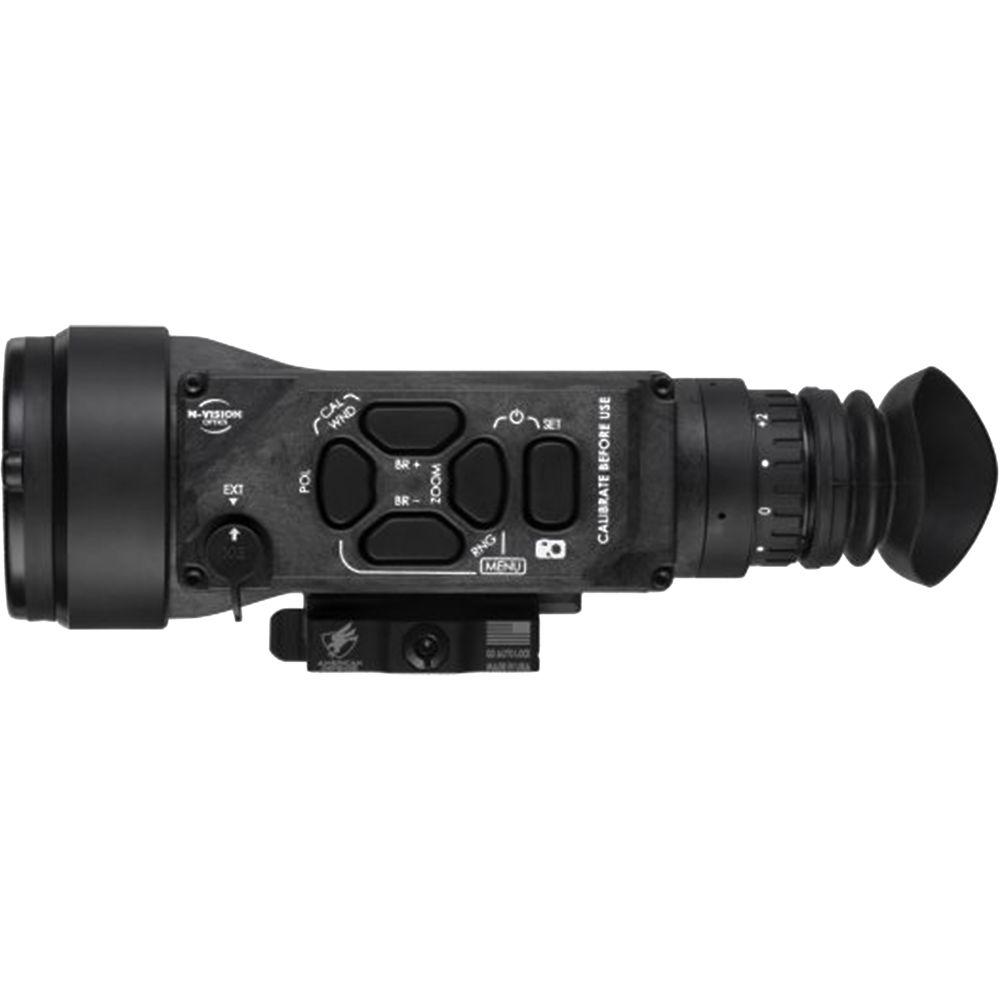

Product description The 324 x 256 TWS-13E-H Thermal Weapon Sight from N-Vision allows the operator to detect, recognize, and identify targets in all conditions, day or night. It comes with a 100mm lens and a 324 x 256 VOx thermal detector with 25µm pitch. It features a rugged and lightweight housing, which is constructed from aircraft grade 6061-T6 aluminum. The weapon sight offers easy operation with clearly marked digital controls. It includes four reticle patterns for individual weapons with corresponding zero, color, brightness, and contrast. Polarity is displayed in either white hot or black hot options to suit the tactical scenario. The weapon sight offers 2x and 4x digital zoom that magnifies the visual scene. It also allows the operator to photograph targets and save the images on the internal storage and then transfer them to a computer using a USB cable. In the Box N-Vision Optics 324 x 256 TWS-13E-H Thermal Weapon Sight (100mm Objective) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics 324 x 256 TWS-13E-H Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics TWS13E-H Specs | Detector Type | Uncooled Vanadium Oxide (VOx) microbolometer | | Spectral Response | 7.5 to 13.5 µm | | Resolution | 324 x 256 | | Pitch | 25 µm | | Frame Rate | 30 Hz | | Mount | MIL-STD-1913 Picatinny or Weaver | | Reticle | Four reticles selectable and adjustable to boresight | | Objective Lens | 100 mm f/1.2 | | Field of view (FOV) | H x V: 4.6° x 3.7° | | Digital Zoom | 2x, 4x | | Polarity | Control: Black hot/white hot | | Display Format | Standard 640 x 480 (NTSC) | | Display Type | Color OLED | | Display Resolution | 800 x 600 | | Eye Relief | 48 mm | | Diopter Adjustment | -6 to +2 diopters | | Power Source | 4 x AA battery or external 12 VDC | | Power Conversion Efficiency | Standby mode | | Storage Type | Internal | | Storage Capacity | 400 images | | Connectivity | USB | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -40 to 159.8°F (-40 to 71°C) | | Dimensions (L x W x H) | 14 x 3.5 x 4" (35.5 x 8.9 x 10 cm) without batteries and spacer | | Weight | 3.5 lb (1.6 kg) without batteries and spacer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
