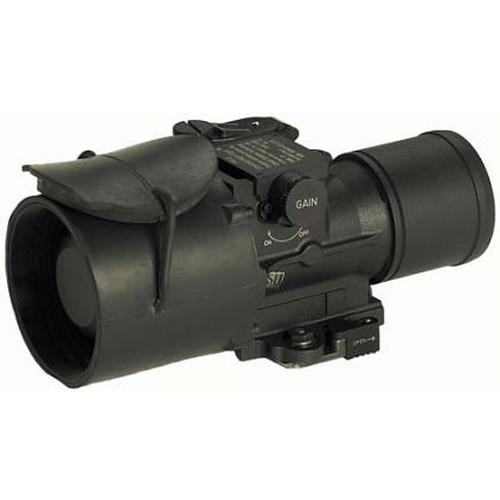

User Manual for N-Vision Optics AN PVS-22 1x 3rd Generation Universal Night Sight Clip-On Click to enlarge the picture
Contents of the user manual for the N-Vision Optics AN PVS-22 1x 3rd
- Product category: Night Vision Riflescopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Night Vision Riflescopes
|
User manual for the N-Vision Optics AN PVS-22 1x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description Optimized for assault rifles and machine guns, the AN/PVS-22 1x 3rd Generation Universal Night Sight from N-Vision Optics converts your day riflescope into a night vision device. It features a 3rd generation Pinnacle intensifier tube, manual gain, and resolution of 64 lp/mm. The 3rd generation image intensifier tube utilizes an autogated power supply that provides outstanding performance and enables operation in high-light conditions, slows-down degradation, and helps to extend the life of the device. The catadioptric optical system reduces system's weight and features a permanent boresight alignment. Designed to accommodate daytime riflescopes with magnifications of 1-12x, the lens offers a 68mm focal length and a f/1.15 F-number. The optical system also offers a 13° angular field of view and a 33' minimum focus distance. The aluminum housing is lightweight, durable, waterproof submersible to 66', and resistant to extreme temperatures. It allows mounting this clip-on in front of your riflescope on Picatinny or Weaver rails via its lockable quick release mount and offers compatibility with MIRS and S.T.O.M.P rails. - Intensifier Tube
-
- 3rd generation Pinnacle
- Autogated power supply
- Manual gain control
- Resolution of 64 lp/mm
- Optical Performance
-
- Magnification: 1x
- Accommodates 1-12x day scopes
- Catadioptric lens system: 68mm, f/1.15
- Field of view: 13°
- Close focus: 33'
- Construction Details
-
- Optimized for assault rifles and machine guns
- Compatible with MIRS and S.T.O.M.P mounts
- Withstands extreme temperatures
- Lockable Picatinny/Weaver adapter
- Tethered objective lens cover
- Waterproof, submersible to 66'
In the Box N-Vision Optics AN/PVS-22 1x 3rd Generation Universal Night Sight Clip-On - Weaver Rail Mount
- Tethered Lens Cover
- 2 x AA Batteries
- Soft Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics AN PVS-22 1x 3rd Generation Universal Night Sight Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics AN/PVS-22 Specs | Intensifier Tube | 3rd generation
64 lp/mm resolution | | Magnification | 1x | | Angle/Field of View | 13° | | Lens System | 68mm, f/1.15 | | Minimum Focus Distance | 33' (10 m) | | Battery / Runtime | 2 x AA batteries / 40 h | | Weatherproofing | Waterproof, submersible to 66' for 2 hours | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Dimensions | 7.1 x 3.1 x 3.1" (180 x 80 x 80 mm) | | Weight | 32 oz (902 g) |
