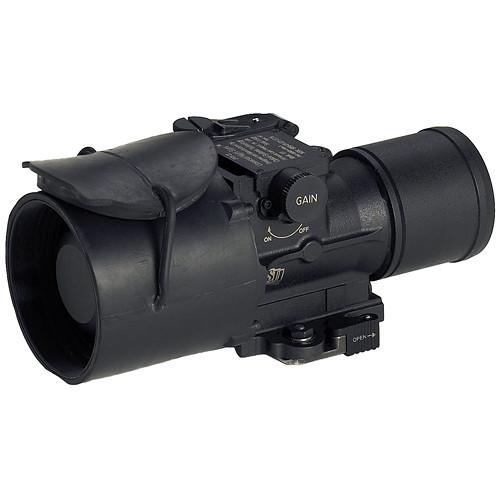

User Manual for N-Vision Optics AN PVS-22 Pinnacle Universal Night Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics AN PVS-22 Pinnacle Universal
- Product category: Day/Night Systems N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Day/Night Systems
|
User manual for the N-Vision Optics AN PVS-22 Pinnacle Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description The AN/PVS-22 Pinnacle Universal Night Sight from N-Vision is a reliable and user friendly high-resolution Clip-on Night Vision Device that mounts on any MIL-STD-1913 rail interface forward of an existing day scope. This front-mounted optic delivers high-quality intensified images directly into the focal plane of the firearm's day-time optic. The optical system of the AN/PVS-22 is parallax-free so it can be installed without needing to re-zero the scope. The day scope's reticle and variable magnification system remains unaffected; they will operate normally. This is a repeatable, reliable, and simple night vision solution that is designed without prisms or other mechanisms that can slip out of alignment. When faced with dynamic lighting conditions, the manual gain-adjustment allows fine-tuning of the sight picture to ensure a minimum of blooming or wash-out. The AN/PVS-22 simplifies the night vision weapon sight requirements while significantly enhancing the flexibility and efficiency of the firearm. The response time to any low or no-light situation will be radically reduced, and the benefit of having one sighting system that can handle nearly any situation goes without saying. The nighttime imaging performance of the AN/PVS-22 is handled by a third generation Pinnacle intensifier tube with a fast f/1.15 catadioptric lens for a brighter and sharper image in starlight. The Pinnacle tube features thin-film technology in combination with an autogated power supply. Autogating maintains the system's ability to deliver high-quality imaging while operating under dynamic lighting conditions, while the thin-film coating of the MCP significantly improves the tube's end-of-life reliability performance. The AN/PVS-22 is optimized for medium-range sniper weapons, assault rifles and machine guns including the MK11, M16, SCAR-H, M240 and 300 Win Mag. and is effective on all weapons from carbines to .50 caliber semi-automatic sniper rifles. US Government Sales Only There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and the method of calculation varies by manufacturer. The important factors to consider when evaluating any night vision device are the intensifier tube's generation, s/n ratio, level of magnification, specified resolution, along with the clarity & light transmission performance of the optical stack. All night vision devices sold by have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - 40 Hours on 2 1.5V "AA" batteries
- 68mm f/1.12 Catadioptric objective lens
- Waterproof, submersible to 66' for 2 hours
- Does not change the eye relief or zero point
- Compatible with Mil-Std 1913 Picatinny rail mounting systems
- Installed, operated, and removed without tools and without affecting boresight
- Third Generation Pinnacle intensifier tube features an autogated power-supply and thin-film technology
- Can be mounted on a spotting scope for long range observation, hand-held as a Night Observation Device (NOD), or used in other nighttime operations requiring night vision capabilities
- Accuracy of 1/2 or better
Objective Lens F Number: 1.15
Boresight Retention: Permanent
Boresight Accuracy within 1 MOA
Boresight Adjustment: None required
Dayscope Magnification: 1 to 12 Power
Boresight Repeatability within 0.5 MOA
Operating Temperature of -60 to 120°F / -51 to 49°C In the Box N-Vision Optics AN/PVS-22 Pinnacle Universal Night Sight Soft Case Weaver Rail Mount Set of Flip Up Caps 2 x 1.5V "AA" Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics AN PVS-22 Pinnacle Universal Night Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics PVS-22 Specs | Magnification | 1.0x | | Intensifier Tube | 3rd generation | | Infrared Illuminator | None | | Objective Lens Diameter | 68 mm | | Angle of View | 13° | | Field-of-View (@ 1000 Yds) | 682.5' @ 1000 yd / 226.6 m @ 1000 m | | Minimum Focus Distance | 0.4" / 10 mm | | Dioptric Correction Range | None | | Eye Relief | Not applicable | | Filter Size | None | | Impact Point Correction per Click | Not applicable | | Maximum Elevation/Windage Adjustment | Not applicable | | Weatherproofing | Waterproof, 66' for 2 hours | | Power Source | Two 1.5V "AA" Batteries / 40 hour battery life | | Dimensions | 7.0 x 3.0 x 3.0" / 17.8 x 7.6 x 7.6 cm | | Weight | 32 oz / 907.2 g |
