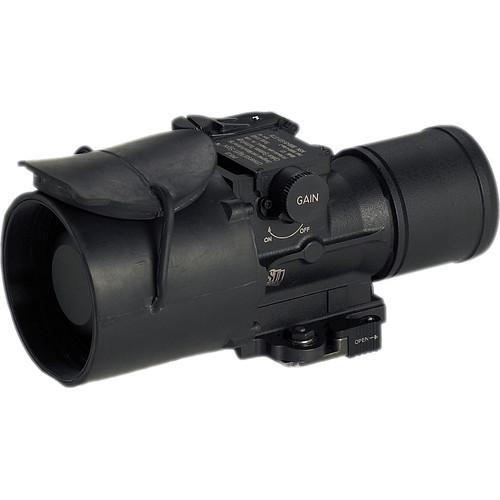

User Manual for N-Vision Optics BNS-LR Long Range Boresighted Night Sight - Standard Kit Click to enlarge the picture
Contents of the user manual for the N-Vision Optics BNS-LR Long Range Boresighted
- Product category: Day/Night Systems N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Day/Night Systems
|
User manual for the N-Vision Optics BNS-LR Long Range Boresighted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description The BNS-LR Long Range Boresighted Night Sight - Standard Kit from N-Vision Optics is provisioned with a Gen 3, auto-gated, Pinnacle image intensifier tube with variable gain control. The BNS-LR utilizes a PVS-27 night vision device (NVD). The PVS-27 is a high-resolution clip-on NVD that has been designed to mount in front of the daytime weapon sight. Since the BNS-LR, Long Range, gathers twice as much light as the PVS-22 (BNS) it can be leveraged against targets 1½ times the range of the PVS-22. A fast f/1.0 catadioptric, it utilizes permanent boresight alignment technology. Ruggedized chassis, Picatinny rail mount and rubber eyecup provide a full feature set. This optic offers universal compatibility with other daytime sights and is optimized for medium-range sniper weapons, assault rifles and machine guns. American-made Gen 3 image intensifier tubes are utilized in its construction. This is a superb night vision weapon sight that provides near daylight viewing at night. On-off-gain and focus controls have been integrated into the housing for convenient user friendly operation. The BNS-LR incorporates a Mil-Std 1913 Picatinny mounting base for easy attachment to a wide variety of weapons. Note: Note! Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARtdfazfeqzdvewxqcuefeudvaczvytt), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Optimum day-scope magnification of 3x to 20x
- Can be mounted on any weapon with an M1913 rail
- Installed, operated, and removed without tools and without affecting boresight
- Permanent boresight retention enhances repeatable performance in various lighting conditions
- Boresight characteristics offer accuracy within 1 MOA and repeatability within ½ MOA without adjustments
- Optimized for medium-range sniper weapons, assault rifles and machine guns including the MK11, M16, SCAR-H, M240 & 300 Win Mag. and is effective on all weapons from carbines to .50 caliber sniper rifles
- Third-generation, Gen 3, image intensifiers utilize a GaAs photocathode enabling greater detection distances and improving system performance under low-light conditions. A metal-oxide ion barrier on the MCP more than doubles the life of the image tube
- Auto-gated Pinnacle intensifier minimizes blooming caused by bright light exposure. The auto-gating holds back or gates the power being supplied to the system decreasing the amount of amplified light being allowed in. Preferred for tactical operations as it reduces the risk of being blinded by sudden exposure to bright light
In the Box N-Vision Optics BNS-LR Long Range Boresighted Night Sight - Standard Kit Soft Carry Case Light Shroud Weaver Rail Mount Flip-Up Lens Cap 2 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics BNS-LR Long Range Boresighted Night Sight - Standard Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics BNS-LR Specs | Intensifier Tube | Gen 3 Pinnacle | | Magnification | 1x | | Angle/Field of View | 10° - 525' @ 1000 yd / 174.3 m @ 1000 m | | Lens System | f/1.0, 92 mm | | Minimum Focus Distance | 49.2' / 15 m to ∞ | | Detection Range | Not provided by manufacturer | | Recognition Range | Not provided by manufacturer | | Battery | 2 AA | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Waterproofing | None | | Dimensions | Length: 8.7 x 4.5 x 3.75" / 22.1 x 11.4 x 9.5 cm | | Weight | 50 oz / 1.4 kg |
