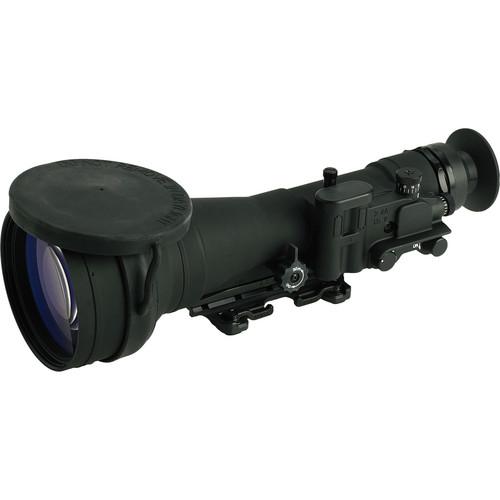

User Manual for N-Vision Optics NightHawk 6x Gated Pinnacle Night Vision Weapon Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics NightHawk 6x Gated Pinnacle
- Product category: Night Vision Riflescopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Night Vision Riflescopes
|
User manual for the N-Vision Optics NightHawk 6x Gated Pinnacle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description The NightHawk 6x Gated Pinnacle Night Vision Weapon Sight from N-Vision Optics is an accurate, image optimized, gen 3 intensifier. It has been engineered with all the third generation technical improvements, such as a GaAs photocathode and an MCP metal-oxide ion barrier and in addition is a gated Pinnacle. These features provide greater distance, less light needed, increased life of the IIT, controlled power usage and decreased risk of sudden-light blinding. Even at extreme temperatures, the NightHawk 6x guarantees repeatable boresight retention. Built tough to be able to endure automatic weapon recoil the NightHawk can be mounted on an M1913 rail. An illuminated, injected, reticle with variable intensity is integrated into the sight. Note: Note! Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARuvrbesadrdrbctafqdxbcyuseybfuaxbfwwrw), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Injected Ballistic with +/- 9 mrad adjustment
- Light weight, rugged, waterproof and operates from -65° to 127° F
- 40 hours of operation at room temperature on two user-supplied AA batteries
- Dependable boresight retention enhances repeatable control and performance in various lighting conditions
- Can be mounted on any weapon with an M1913 rail and can withstand the recoil from full automatic weapons
- Third-generation, Gen 3, image intensifiers utilize a GaAs photocathode enabling greater detection distances and improving system performance under low-light conditions. A metal-oxide ion barrier on the MCP more than doubles the life of the image tube
- Auto-gated Pinnacle intensifier minimizes blooming caused by bright light exposure. The auto-gating holds back or gates the power being supplied to the system decreasing the amount of amplified light being allowed in. Preferred for tactical operations as it reduces the risk of being blinded by sudden exposure to bright light
In the Box N-Vision Optics NightHawk 6x Gated Pinnacle Night Vision Weapon Sight Eyeguard Lens Cleaning Kit Soft Carrying Case Objective Lens Cover Standard Picatinny 1913 Rail Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics NightHawk 6x Gated Pinnacle Night Vision Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics NightHawk Specs | Intensifier Tube | Gen 3 | | Magnification | 6x | | Angle/Field of View | 5.5° | | Lens System | 100 mm | | Minimum Focus Distance | 30 m to ∞ cm | | Eye Relief | 30 mm | | Exit Pupil | 16.7 | | Dioptric Correction | +2 to -5 | | Battery / Runtime | 2 AA batteries / 40 hrs | | Operating Temperature | -65° to 127° F / -54° to 52° C | | Storage Temperature | -65° to 185° F / -54° to 85° C | | Dimensions | 14.4 x 4.5 x 4.5" / 36.8 x 11.4 x 11.4 cm | | Weight | 85 oz / 2409.7 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
