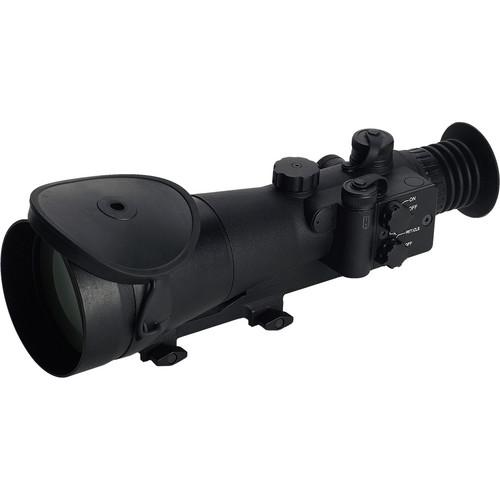

User Manual for N-Vision Optics NVWS-6x Pinnacle Night Vision Weapon Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics NVWS-6x Pinnacle Night Vision
- Product category: Night Vision Riflescopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Night Vision Riflescopes
|
User manual for the N-Vision Optics NVWS-6x Pinnacle Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|
Product description The NVWS-6x Pinnacle Night Vision Weapon Sight from N-Vision Optics is provisioned with a Gen 3, auto-gated Pinnacle image intensifier tube with 6x magnification. The NVWS has been designed to replace the daytime weapon sight during nighttime operations. Waterproof, light weight, ruggedized chassis, Picatinny rail mount, and rubber eyecup provide a feature full sight. It features an adjustable red on green Mil-Dot reticle for accurate nighttime shooting. Only American-made Gen 3 image intensifier tubes are utilized in its construction. This is a superb night vision weapon sight that provides near daylight viewing at night. All the sight controls have been integrated into the housing for convenient user friendly operation. The NVWS-6x incorporates a Mil-Std 1913 Picatinny mounting base for easy attachment to a wide variety of weapons. The NVWS-6x is the premier choice when precise target acquisition is essential. Note: Note! Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARzarewbrbbvtzwfuuxsbet), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Illuminated red/green Mil-Dot reticle
- Can be mounted on any weapon with an M1913 rail
- Lightweight, rugged, waterproof and operates from -60° to 120° F
- 25 hours of operation at room temperature on one user-supplied AA batteries or 56 hours on one included CR123 battery
- Third-generation, Gen 3, image intensifiers utilize a GaAs photocathode enabling greater detection distances and improving system performance under low-light conditions. A metal-oxide ion barrier on the MCP more than doubles the life of the image tube
- Auto-gated Pinnacle intensifier minimizes blooming caused by bright light exposure. The auto-gating holds back, or gates, the power being supplied to the system decreasing the amount of amplified light being allowed in. Preferred for tactical operations as it reduces the risk of being blinded by sudden exposure to bright light
In the Box N-Vision Optics NVWS-6x Pinnacle Night Vision Weapon Sight Soft Carry Case Picatinny Rail Mount Lens Cleaning Paper Objective Lens Cap CR123 Battery Limited 1-Year Warranty (Parts and Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics NVWS-6x Pinnacle Night Vision Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics NVWS-6 Specs | Intensifier Tube | Gen 3 Pinnacle | | Magnification | 6x | | Angle/Field of View | 6° / 315' @ 1000 yd / 104.6 m @ 1000 m° | | Lens System | 165 mm | | Minimum Focus Distance | 25 m to ∞ | | Detection Range | 766 - 984 yds / 700-900 m | | Reticle | Illuminated Mil-Dot | | Dioptric Correction | -5 to +5 | | Battery / Runtime | 1 AA / 25 hrs or CR123 / 56 hrs | | Operating Temperature | -60° to 120° F / -51° to 49° C | | Waterproofing | 3.3' / 1 m for 30 mins | | Dimensions | 13.1 x 3.8 x 3.7" / 33.2 x 9.7 x 9.5 cm | | Weight | 3.5 lb / 1.6 kg |
