User Manual for N-Vision Optics TC35 Clip-On Weapon Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics TC35 Clip-On Weapon Sight
- Product category: Thermal Scopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Thermal Scopes
|
User manual for the N-Vision Optics TC35 Clip-On Weapon Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|

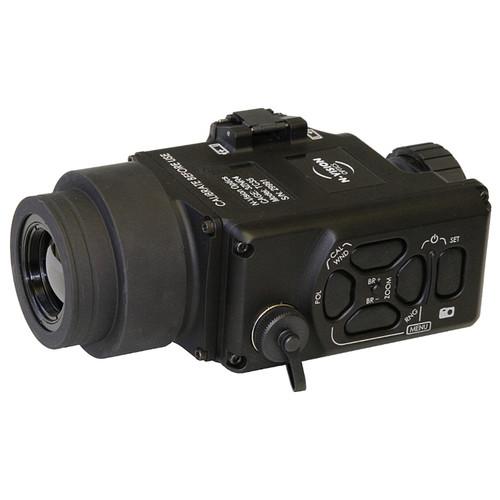

Product description Gain a tactical advantage during the day or night with the TC35 Clip-On Weapon Sight from N-Vision Optics. This clip-on attaches in front of your day riflescope and allows you to use it for detecting thermal signatures for your targets and making precise shots. Its uncooled VOx microbolometer detects long-wave infrared spectrum and allows you to see heat sources in complete darkness through fog, smoke, foliage, and dust. The sensor has resolution of 324x256, 25µm pixel pitch, and refresh rate of 30 or 60 Hz. The optical system features a 35mm f/1.2 germanium lens with 1x magnification and digital zoom up to 4x. Because this device is intended to be used as a clip-on attachment, the focus is fixed at infinity. To help you with aiming and making fast target acquisitions, it offers a four color digital reticle pattern.
The built-in OLED video display features 800x600 pixel resolution and offers White Hot and Black Hot viewing palettes. For documenting your observations, the imager is capable of storing up to 400 images and offers a USB port for connection to your PC.
To enable you to use it on any of your missions, it is designed to withstand extreme temperatures and water submersions. You can attach it to a Picatinny or Weaver style rail via a built-in mount. This clip-on sight can be powered by two CR-123 batteries, optional 12V power supply, or through a power USB port. - Imaging Performance
-
- VOx Uncooled microbolometer
- Resolution: 324x256 pixels
- Pixel pitch: 25µm
- Refresh rate: 30/60 Hz
- Optical Performance
-
- Lens system: 35mm, f/1.2
- Fixed focus at infinity
- Germanium objective lens
- Optical magnification: 1x
- Digital zoom: 2x, 4x
- Field of view: 13x10°
- +2 to -6 diopter adjustment
- Video Features
-
- 800x600 OLED color display
- Four digital reticle patterns
- White hot and black hot palettes
- Internal memory: up to 400 images
- Optional versions have extended memory
- USB output port
- Construction Details
-
- Compact aluminum housing
- Hard Type III anodized finish
- Mounts in front of day riflescope
- Waterproof, submersible, rated IP68
- Operating temperature: -40 to 122°F
- Picatinny/Weaver mount
In the Box N-Vision Optics TC35 Clip-On Weapon Sight - Carrying Case
- Hard Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics TC35 Clip-On Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics TC35 Specs | Array Configuration | 324x256 Uncooled VOx microbolometer | | Spectral Range | 7.5-13.5 µm | | Pixel Pitch | 25 µm | | Refresh Rate | 30/60 Hz | | Magnification | Optical: 1x
Digital zoom: 2x, 4x | | Lens System | Focal length: 35mm
f/1.2 | | Focus | Fixed | | Field of View | 13x10° | | Diopter Adjustment | +2 to - 6 | | Display | 800x600 color OLED display | | Power Source | 2 x CR-123 batteries
12 VDC external power supply
Power USB port | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -40 to 160°F (-40 to 71°C) | | Mount Compatibility | Picatinny or Weaver style rails | | Tripod | No | | Weatherproofing | Waterproof and submersible, rated IP68 | | Dimensions | 6.6 x 3.7 x 3.4' Size (167 x 93 x 86 mm) | | Weight | 33.2 oz (940 g) |
