User Manual for N-Vision Optics TC50 Thermal Clip-On Sight Click to enlarge the picture
Contents of the user manual for the N-Vision Optics TC50 Thermal Clip-On Sight
- Product category: Thermal Scopes N-Vision Optics
- Brand: N-Vision Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for N-Vision Optics Thermal Scopes
|
User manual for the N-Vision Optics TC50 Thermal Clip-On Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any N-Vision Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official N-Vision Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a N-Vision Optics product will considerably shorten its lifespan!
|

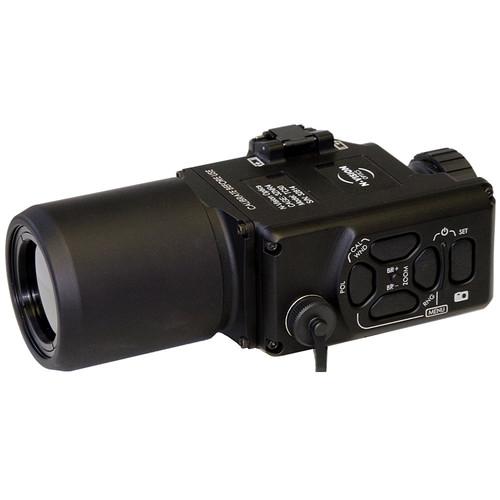

Product description The black TC50 Thermal Clip-On Sight from N-Vision attaches in front of the day scope on a MIL-STD-1913 Picatinny rail, allowing flexibility to use the sight on multiple weapons. The TC50 Sight is fully collimated to maintain boresight with the day optic, eliminating the need to re-zero when attached or detached from the weapon. This clip-on sight is easy to operate with ergonomic and clearly marked digital controls.The TC50 Sight can also be used as a stand-alone weapon scope, with four reticle patterns custom-tailored for individual weapons with corresponding zero, color, brightness, and contrast. Standard 2x and 4x digital zoom enables clear identification of targets before engaging. The TC50 Sight provides a significant advantage in detecting, observing, and engaging targets in all conditions, day or night, while giving the user a number of weapon functionalities and applications. In the Box N-Vision Optics TC50 Thermal Clip-On Sight (640 x 512, 17um) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the N-Vision Optics TC50 Thermal Clip-On Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersN-Vision Optics TC50 Specs | Detector Type | Uncooled vanadium oxide (VOx) microbolometer | | Spectral Response | 7.5 - 13.5 μm | | Resolution | Detection: 640 x 512
Display: 800 x 600 | | Detection Range | 17 μm | | Frame Rate | 30 Hz | | Mount | MIL-STD-1913 Picatinny or Weaver (standard) | | Stored Reticles | 4 x reticles selectable and adjustable to boresight | | Focus | Fixed | | Objective Lens | 50 mm f/1.2 | | Field of View (H x V) | 12° x 10° | | Digital Zoom | 2x, 4x | | Polarity | Black hot/white hot | | Display Type | Color OLED | | Diopter Adjustment | - 6 to +2 diopters | | Power Source | 2 x CR123 batteries (not included), external 12 VDC or USB | | Detection Range | Detection - Man: 1500/1700
Recognition - Man: 380/430
Identification - Man: 190/215
Detection - Vehicle: 3900/5100
Recognition - Vehicle: 1060/1320
Identification - Vehicle: 540/660 | | Storage Type | Internal, non-removable | | Storage Capacity | 400 images | | Data Access | USB | | Operating Temperature | -40 to 122°F (-40 to +50°C) | | Non-Operating Temperature | -40 to 160°F (-40 to +71°C) | | Protection Rating | IP68 | | Dimensions (L x W x H) | 7.5 x 3.9 x 3.7" (19 x 8.6 x 9.3 cm) | | Weight | 2.4 lb (1.1 kg) |
