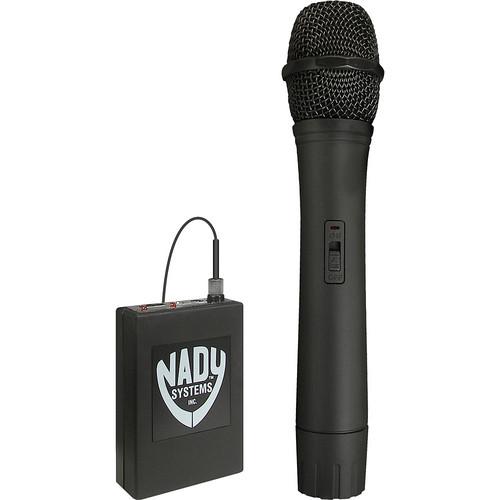

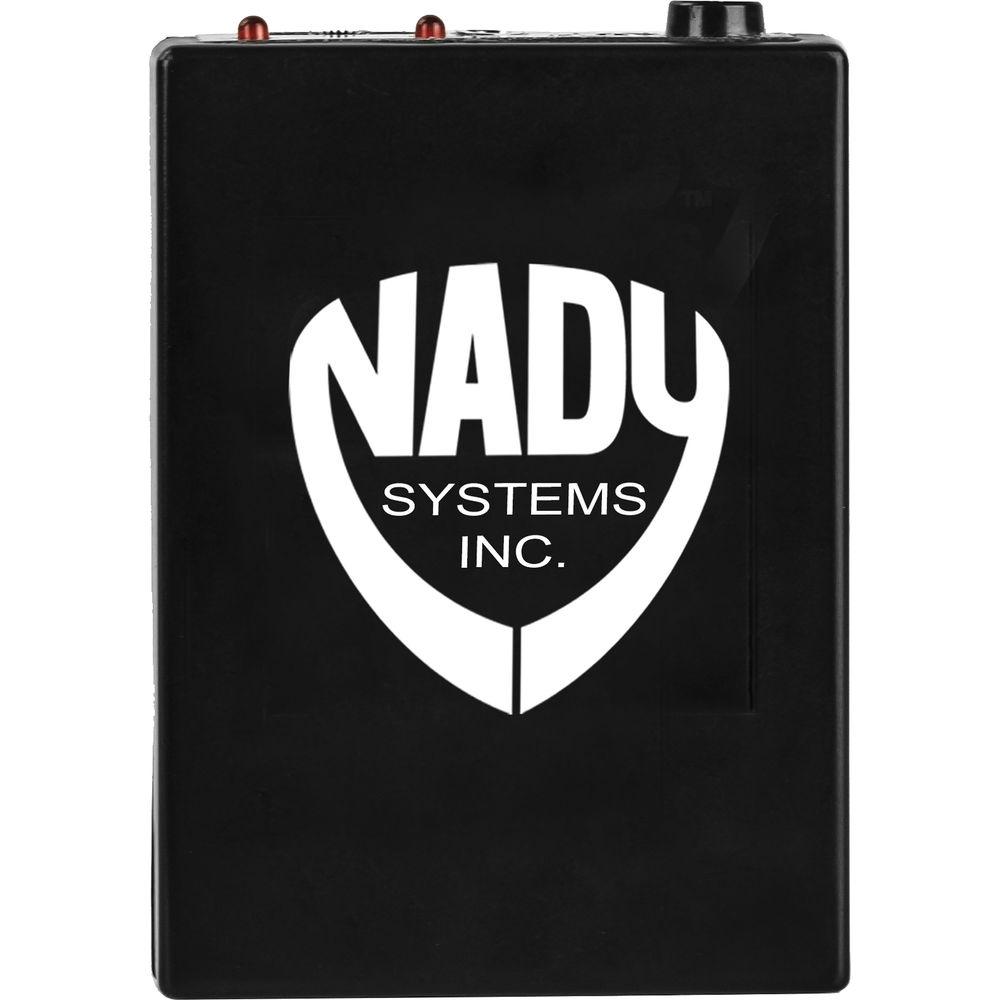

Product description The Nady 351VR VHF Wireless Handheld Microphone System is a portable system ideal for camera-mounted applications, or portable location use. The 351VR features a portable, camera-mountable receiver that may also be worn with a belt-clip. Also included is the WHT handheld microphone transmitter with DM1-10D neodymium cardioid capsule. Both the receiver and transmitter are powered with a 9V battery for up to 15 hours. - Rugged mini 351 VR receiver can be camera-mounted or worn as bodypack (with removable belt clip)
- Easy hook-up to camcorder with supplied connecting cable
- Powered by 9V alkaline battery
- 120dB dynamic range with no background hiss or overload distortion
- LED lights indicate low battery and receiver signal

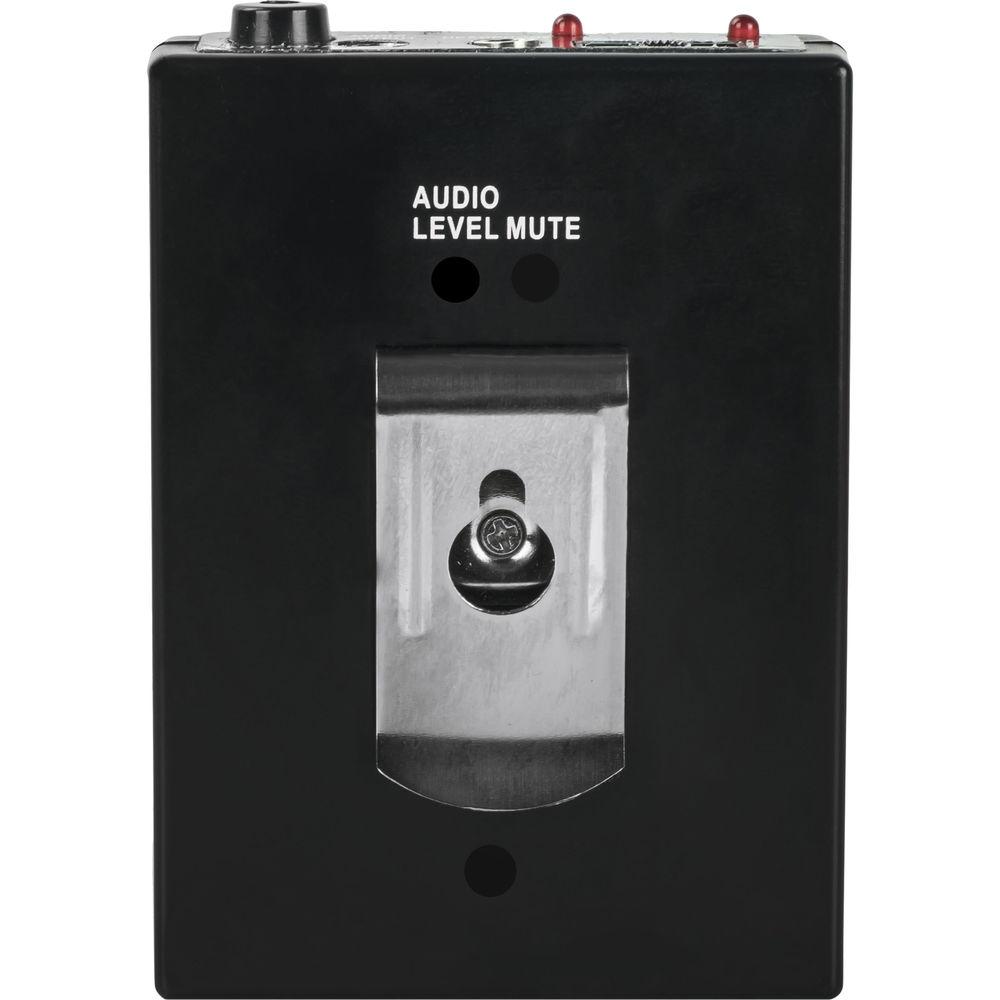

- Convenient operation with Output Level and Mute adjusts; separate 3.5mm Audio Output and monitor headphone mini jacks; headphone volume thumbwheel control with integrated unit Off/On switch

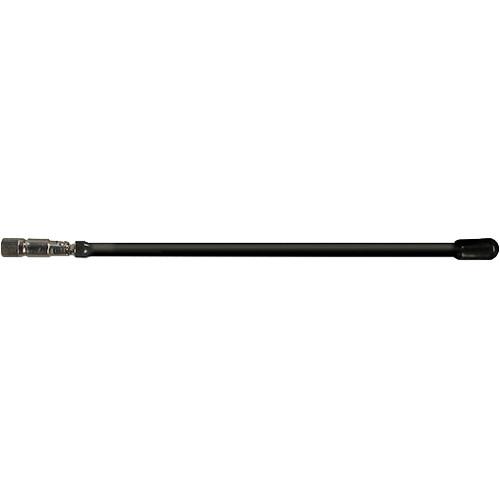

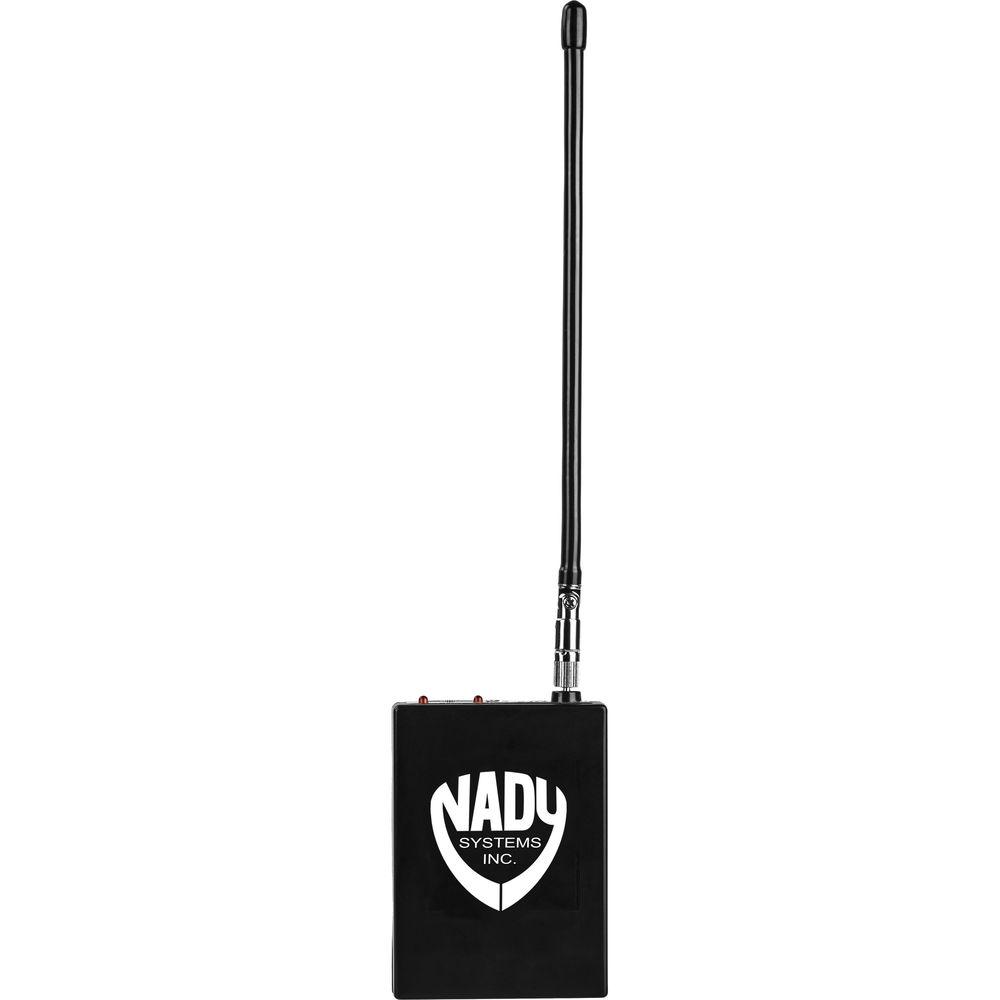

- Detachable softwire antenna extends from top of receiver (detachable "rubber ducky" antenna optional)

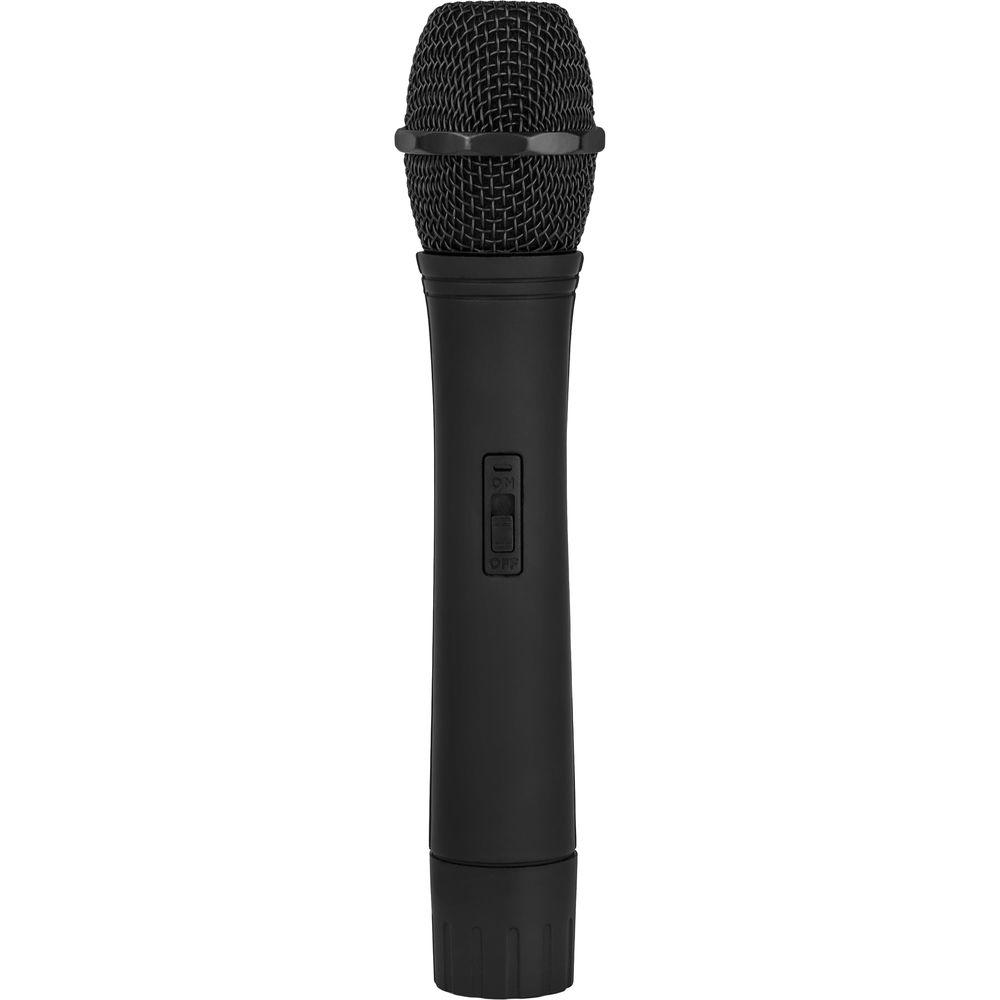

- The WHT handheld microphone transmitter is included. The WLT bodypack transmitter and lavalier/headset microphones are optional.
UPC: 634343132588 In the Box Nady 351VR VHF Wireless Handheld Microphone System 351 VR Receiver WHT Handheld Transmitter 1 Year Warranty User Manual PDF 250.5kbysyqzabdrvdfftrxyxwwtzaevyxuzeybb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 351VR VHF Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 351VR HT/O/N Specs | | | Type of System | Portable Camera Mountable Handheld | | RF Carrier Frequency Range | Choice of 6 channels between 171.905 - 215.200 MHz | | Approx. Working Range | Up to 250 feet (depending on site conditions) | | Overall Frequency Response | 25Hz - 20kHz ± 3dB | | Total Harmonic Distortion (THD) | < 0.9 % | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM, ± 15 kHz | | | | Type of Outputs | 3.5 mm mini jack; Headset output; 3.5 mm mini jack | | Power Requirements | Single 9V alkaline, internal | | Display | "TX" on; "LOW BATT": unit "ON" (single flash), Low Battery Alert (steady) | | Antenna Type | Soft-wire, detachable | | | | Type of Transmitter | Nady WHT Handheld | | Type of Microphone | DM-10D Neodymium | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | OFF/STANDBY/ON switch | | Display | Unit "ON" (single flash), Low Battery Alert (steady) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 10.7 x 7.7 x 2.7" |
