User Manual for Nady 351VR VHF Wireless Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the Nady 351VR VHF Wireless Lavalier Microphone
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady 351VR VHF Wireless Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

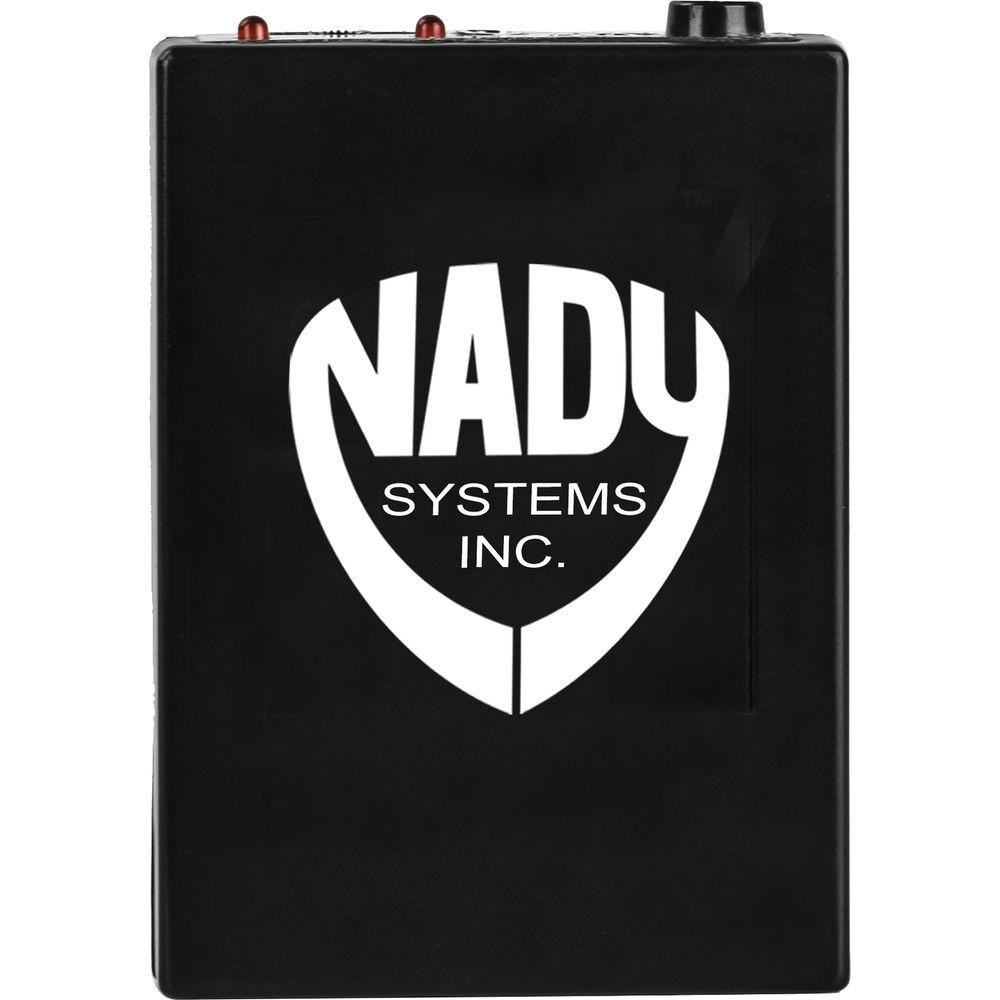

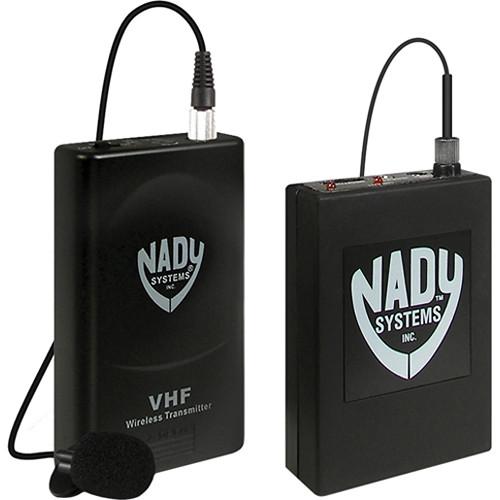

Product description The Nady 351VR VHF Wireless Lavalier Microphone System is a portable system ideal for camera-mounted applications, or portable location use. The 351VR features a portable, camera-mountable receiver that may also be worn with a belt-clip. Also included is the WLT bodypack transmitter with LM-14O omnidirectional lavalier. Both the receiver and transmitter are powered with a 9V battery for up to 15 hours. - Rugged mini 351VR receiver can be camera-mounted or worn as bodypack (with removable belt clip)
- Easy hook-up to camcorder with supplied connecting cable
- Powered by 9V alkaline battery
- 120dB dynamic range with no background hiss or overload distortion
- LED lights indicate low battery and receiver signal

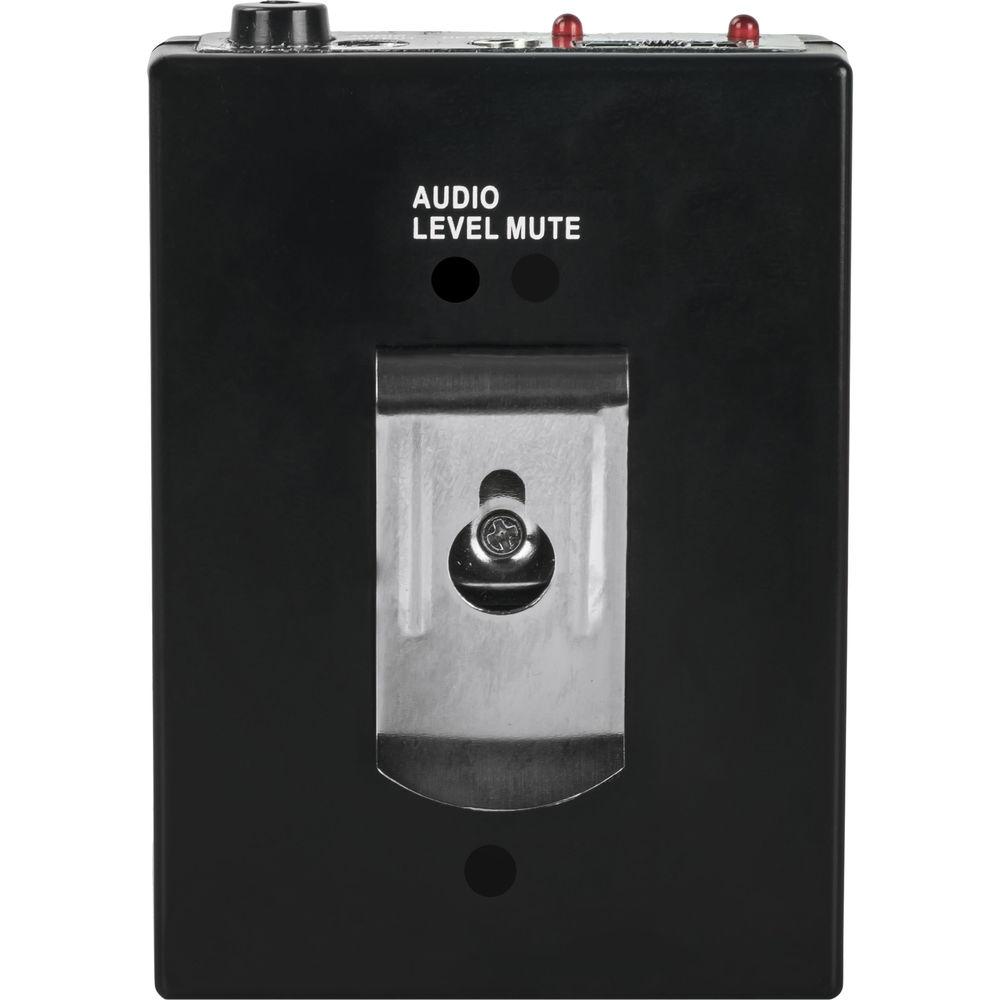

- Convenient operation with Output Level and Mute adjusts; separate 3.5mm Audio Output and monitor headphone mini jacks; headphone volume thumbwheel control with integrated unitOff/On switch

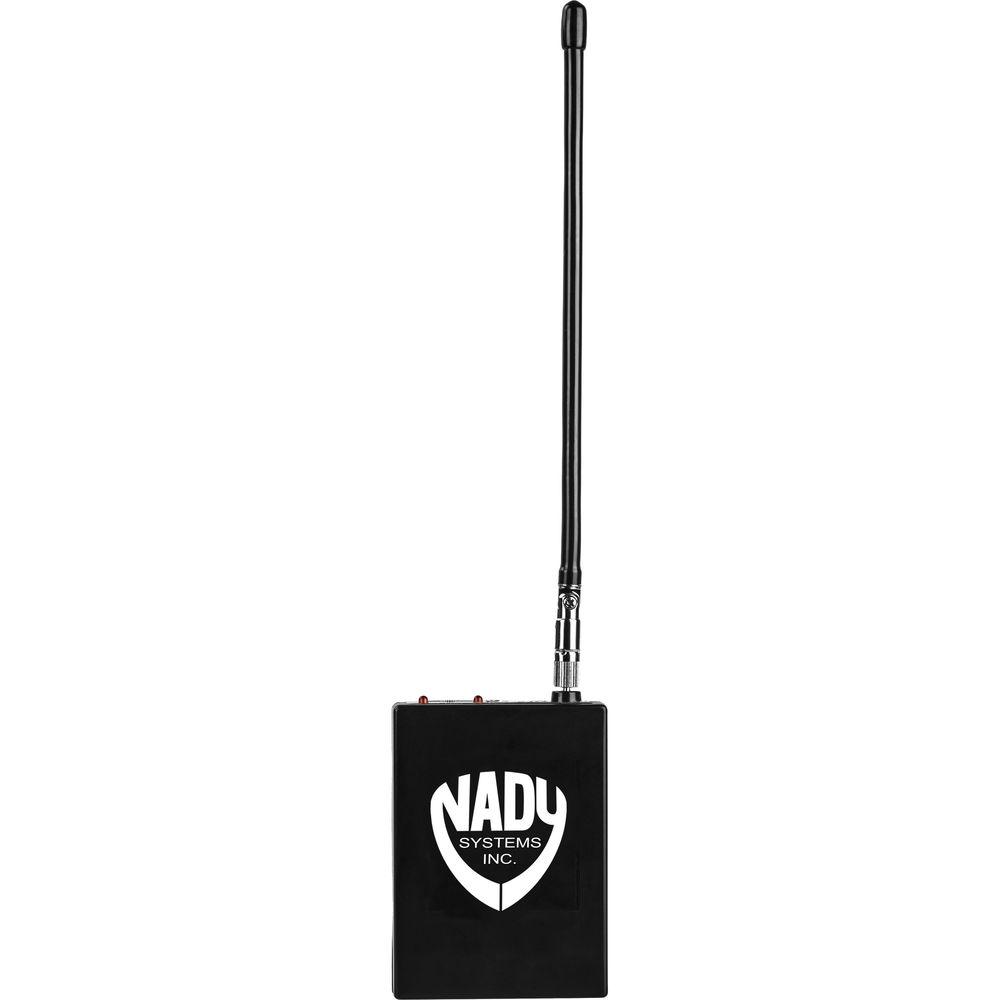

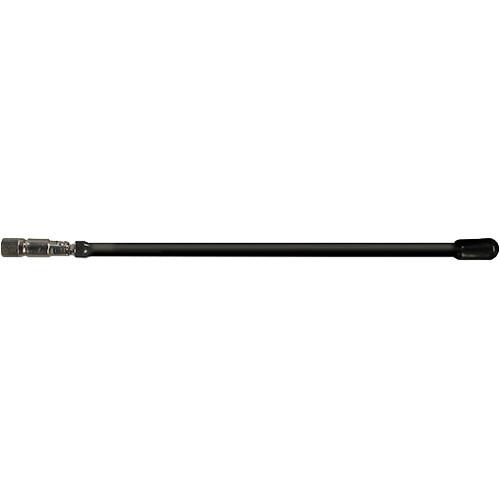

- Detachable softwire antenna extends from top of receiver (detachable "rubber ducky" antenna optional)
- The WLT bodypack transmitter and lavalier microphone is included. The WHT handheld transmitter is optional

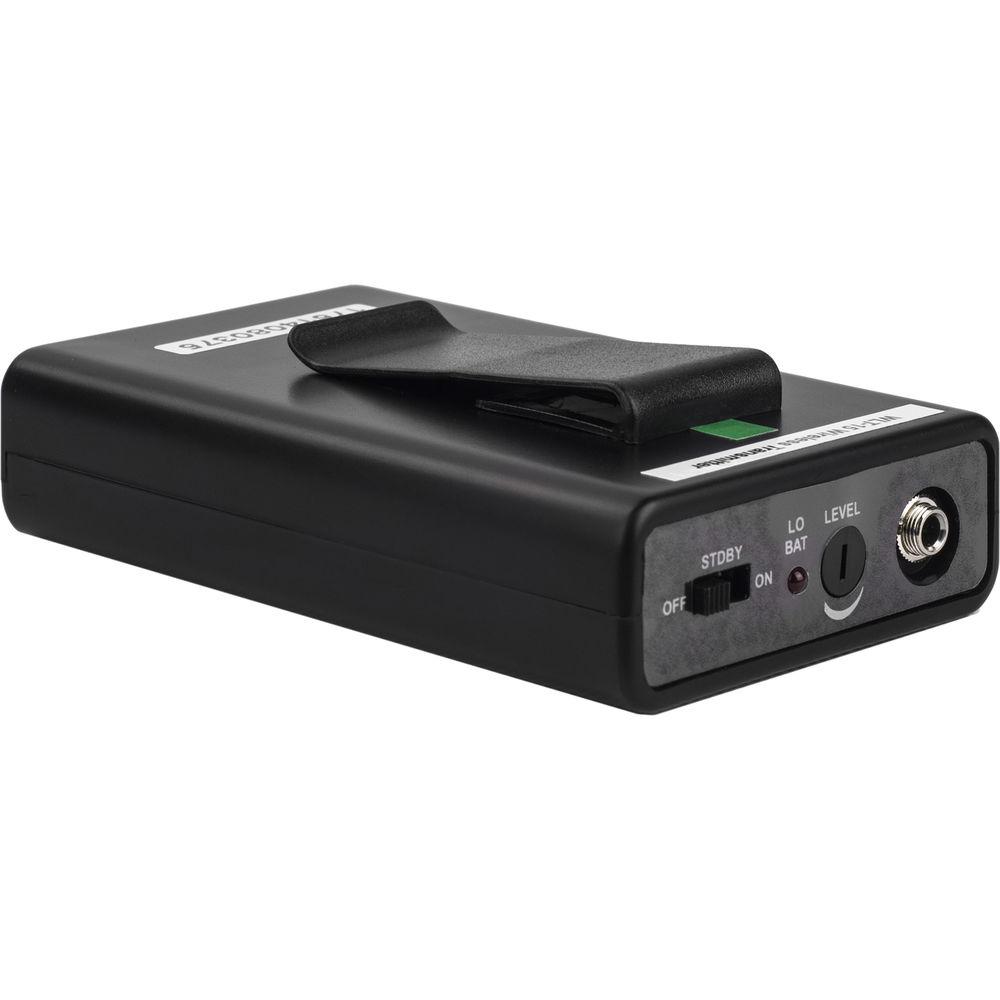

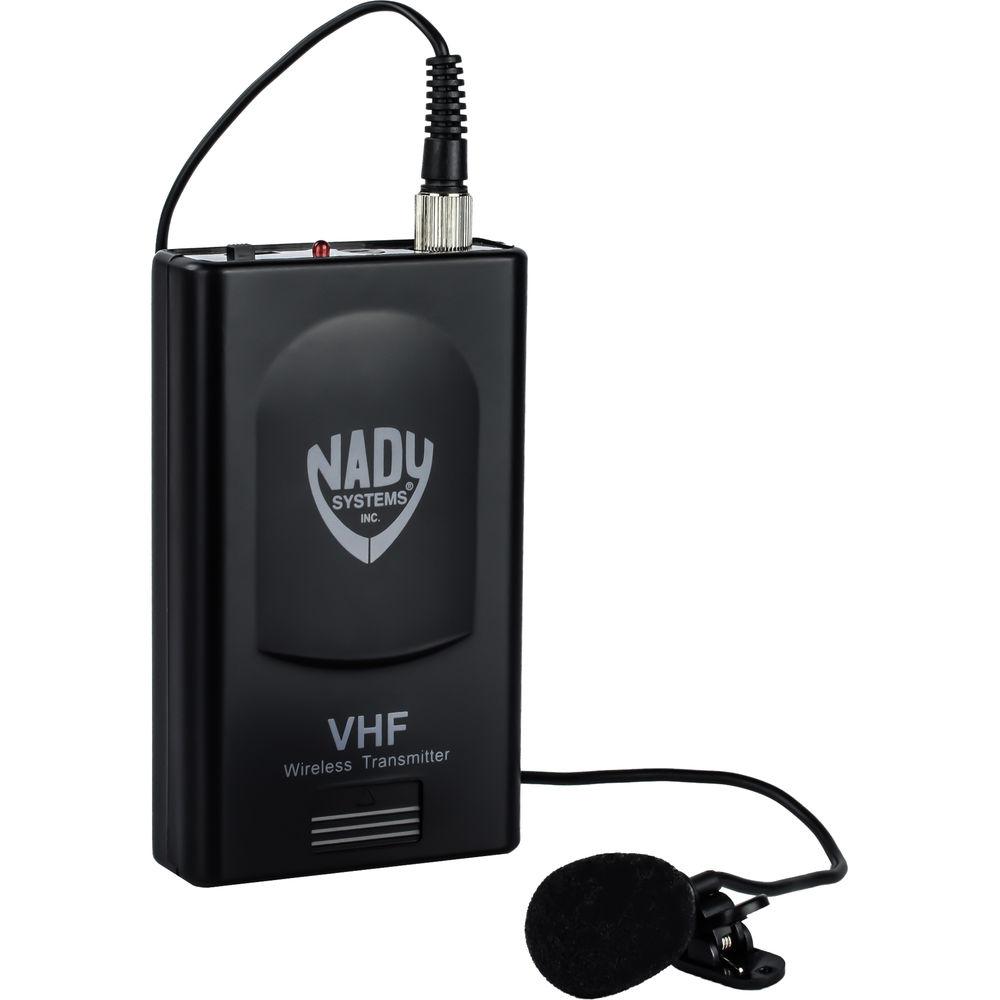

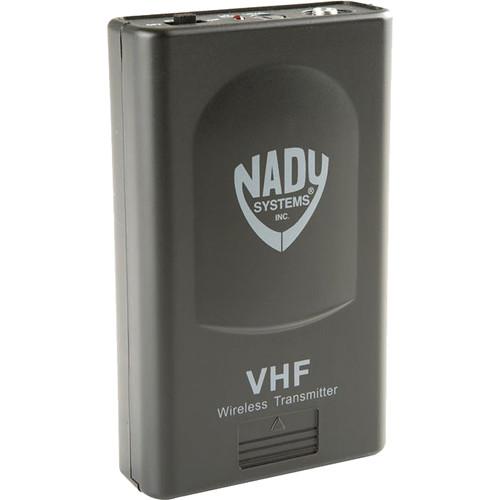

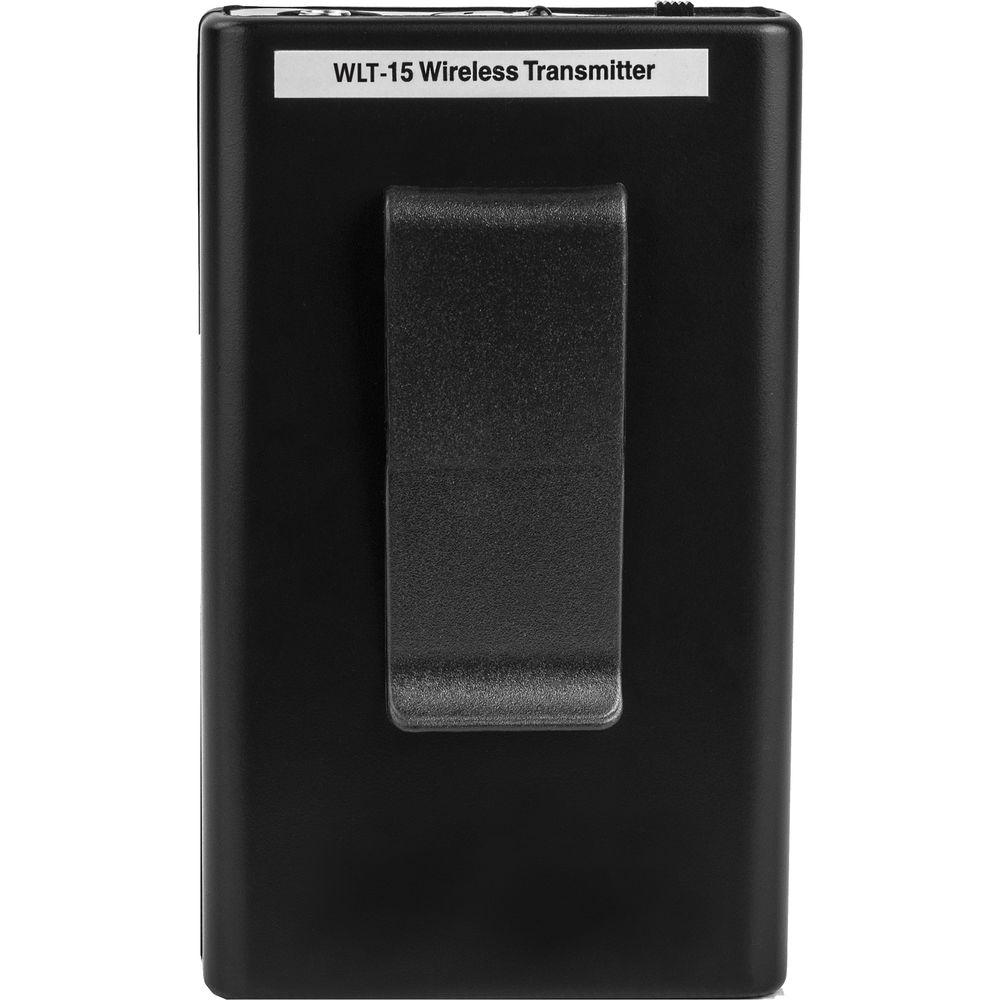

WLT Bodypack Transmitter - Choice of instrument or headworn/lavalier microphone bodypack transmitter
- Off/Standby/On switch allows convenient audio muting
- Low-battery LED indicator flashes once for unit on; lights steady for low-battery alert
- Uses one 9V alkaline battery for 15+ hours operation
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible input level adjust control for optimum sound

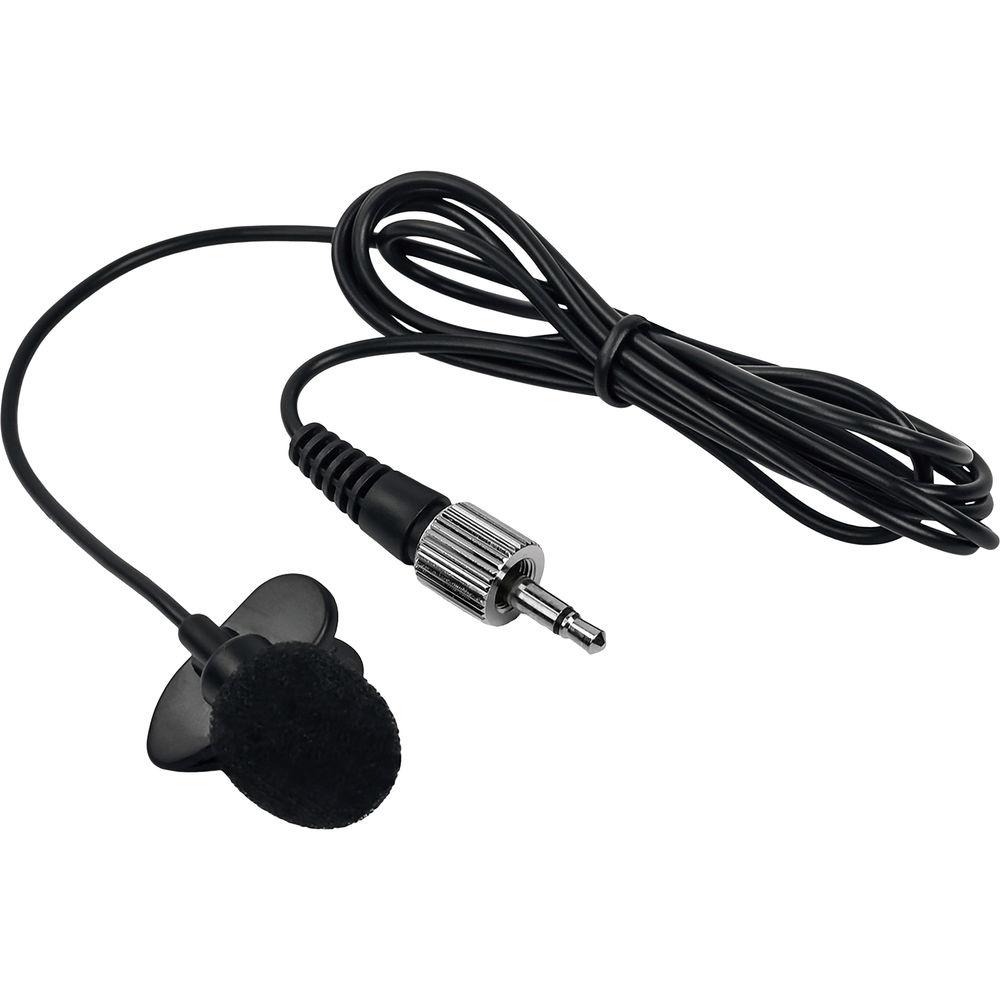

- The LM-14O omnidirectional lavalier microphone is included with this system. The Nady LM-14U unidirectional lavalier microphone or Headmic Series headworn microphones are optional
UPC: 634343103205 In the Box Nady 351VR VHF Wireless Lavalier Microphone System 351 VR Receiver WLT Bodypack Transmitter LM-14O Omnidirectional Lavalier 1 Year Warranty User Manual PDF 250.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 351VR VHF Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 351VR LT/O/F Specs | | | Type of System | Portable Camera Mountable Lavalier | | RF Carrier Frequency Range | Choice of 6 channel between 171.905 - 215.200 MHz | | Approx. Working Range | Up to 250 feet (depending on site conditions) | | Overall Frequency Response | 25Hz - 20kHz ± 3dB | | Total Harmonic Distortion (THD) | < 0.3% | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM, ± 15 kHz | | | | Type of Outputs | 3.5 mm mini jack; Headset output; 3.5 mm mini jack | | Power Requirements | Single 9V alkaline, internal | | Display | "TX" on; "LOW BATT": unit "ON" (single flash), Low Battery Alert (steady) | | Antenna Type | Soft-wire, detachable | | | | Type of Transmitter | Nady WLT Bodypack | | Type of Microphone | LM-14O Lavalier | | Polar Pattern | Omnidirectional | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | OFF/STANDBY/ON switch | | Display | Unit "ON" (single flash), Low Battery Alert (steady) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 12.0 x 7.8 x 2.6" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
