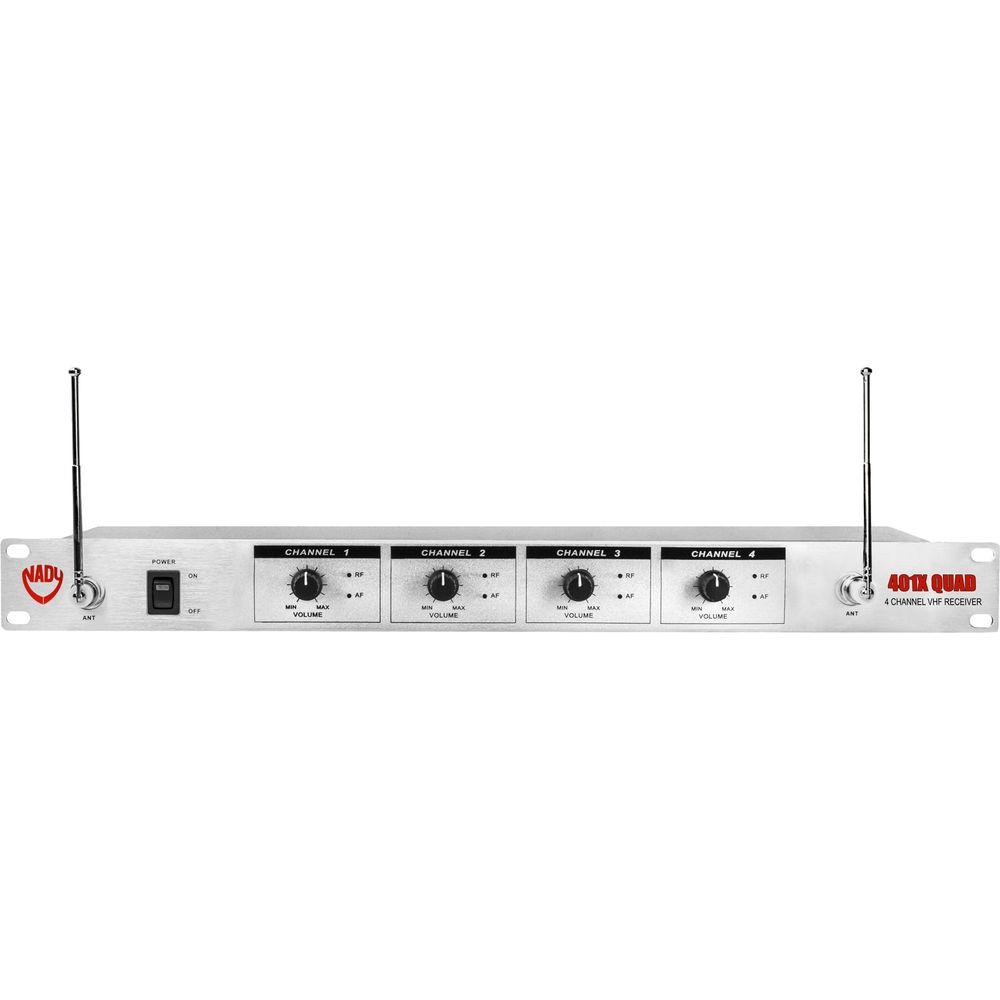

Product description The Nady 401X Quad 4-Channel VHF Wireless Microphone System is a cost effective, multi-microphone solution that supports simultaneous operation of up to 4 wireless microphones. The 401X Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. Adjust microphone level separately using the level controls on the front panel. This system includes 4 WLT bodypack transmitters with omnidirectional lavalier microphones and on/off/standby switches. The Nady 401X Quad is ideal for restaurants, bars, schools, presentations, small performances, houses-of-worship and more. - Four independent VHF receivers in one convenient, rugged, all-metal single-rack space housing
- Front dual antenna jacks for either onboard or remote antennas
- Front panel Power On/Off switch, plus Power On LED, TX On and AF signal level LED displays
- Rear panel individual XLR output jacks; volume and RF mute controls for each of the four channels; 4-channels-mixed AF out ¼" phone jack
- Noise-free transmitter On/Off operation
- High performance-unmatched transparent audio with 120 dB dynamic range and up to 250+ ft. optimum line-of-sight operation
- The system includes four WLT bodypack transmitters. Handheld and instrument transmitters are available, and any combination may be used simultaneously.
WLT Bodypack Transmitters - The WLT Bodypacks in this system feature LM-14O omnidirectional microphones. Optional unidirectional lavalier (LM-14U), and a headworn microphone are also available.
- Off/Standby/On switch allows convenient audio muting with the transmitter on
- LED status indicator flashes once for unit on, lights steady for low-battery alert

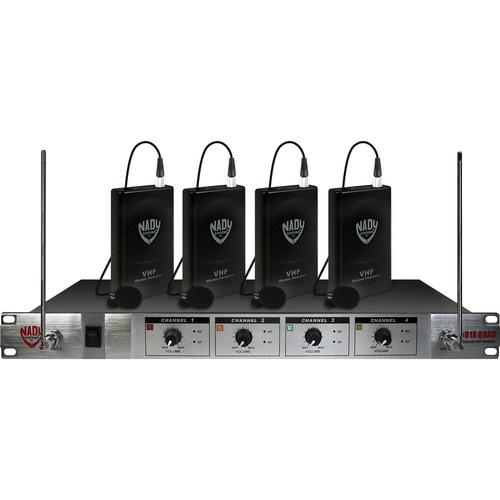

UPC: 634343260489 In the Box Nady 401X Quad 4-Channel VHF Wireless Microphone System 4 x WLT Bodypack Transmitters 4 x Omnidirectional Lavalier Microphones 401X Quad Receiver 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 401X Quad 4-Channel VHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 401XQ LT/O-A/B/D/N Specs | | | Type of System | 4-Channel VHF Bodypack | | RF Carrier Frequency Range | 170-230MHz (Factory installed Channels) | | Approx. Working Range | 250 feet typical - up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 30 - 18kHz (-3dB) | | # Of Channels | 4 Discrete
A / 171.905MHz, B / 185.150MHz, D / 209.150MHz, N / 197.150MHz | | | | Type of Receiver | 4-Channel VHF Rackmountable | | Type of Outputs | 4x XLR | | Power Requirements | 16V @ 800mA, nominal, AC/DC adapter supplied | | Display | 1 Power ON LED, 4 AF LED, 4 TX ON LED | | Mounting Options | 19" Rackmoutable | | Antenna Type | Dual female BNC connectors | | Dimensions | 1.75 x 7.5 x 16.5" (4.4 x 19 x 42cm) | | Weight | 4.5 lbs (2 kg) | | | | Type of Transmitter | WLT Bodypack | | Type of Microphone | Lavalier | | Polar Pattern | Omnidirectional | | Battery Type/Approx. Life | 9V Alkaline
Up to 20 hours | | Mute Switch | OFF/STANDBY/ON switch | | RF Output | 50mW (Max. allowed by FCC) | | Display | Unit "ON" (single flash), Low Battery Alert (steady) | | Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0cm) | | Weight | 3.6oz (101g) | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 21.0 x 12.1 x 5.0" |
