User Manual for Nady 401X Quad 4-Channel VHF Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady 401X Quad 4-Channel VHF Wireless
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady 401X Quad 4-Channel VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

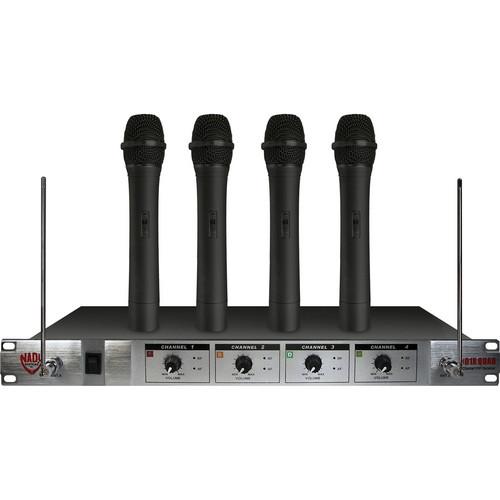

Product description The Nady 401X Quad 4-Channel VHF Wireless Microphone System is a cost effective, multi-microphone solution that supports simultaneous operation of up to 4 wireless microphones. The 401X Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. Adjust microphone level separately using the level controls on the front panel. This system includes 4 WHT neodymium, dynamic handheld transmitters with on/off/standby switches. The Nady 401X Quad is ideal for restaurants, bars, schools, presentations, small performances, houses-of-worship and more. - Four independent VHF receivers in one convenient, rugged, all-metal single-rack space housing
- Front dual antenna jacks for either onboard or remote antennas

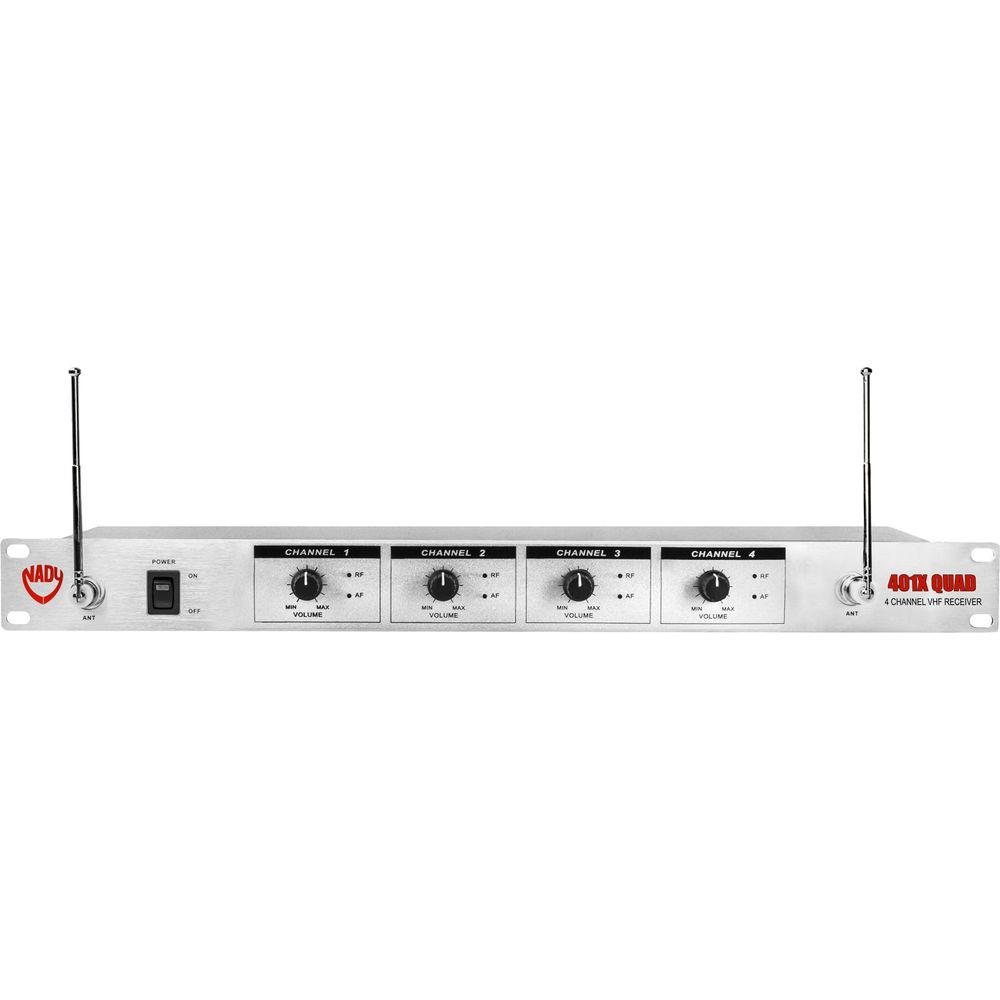

- Front panel Power On/Off switch, plus Power On LED, TX On and AF signal level LED displays

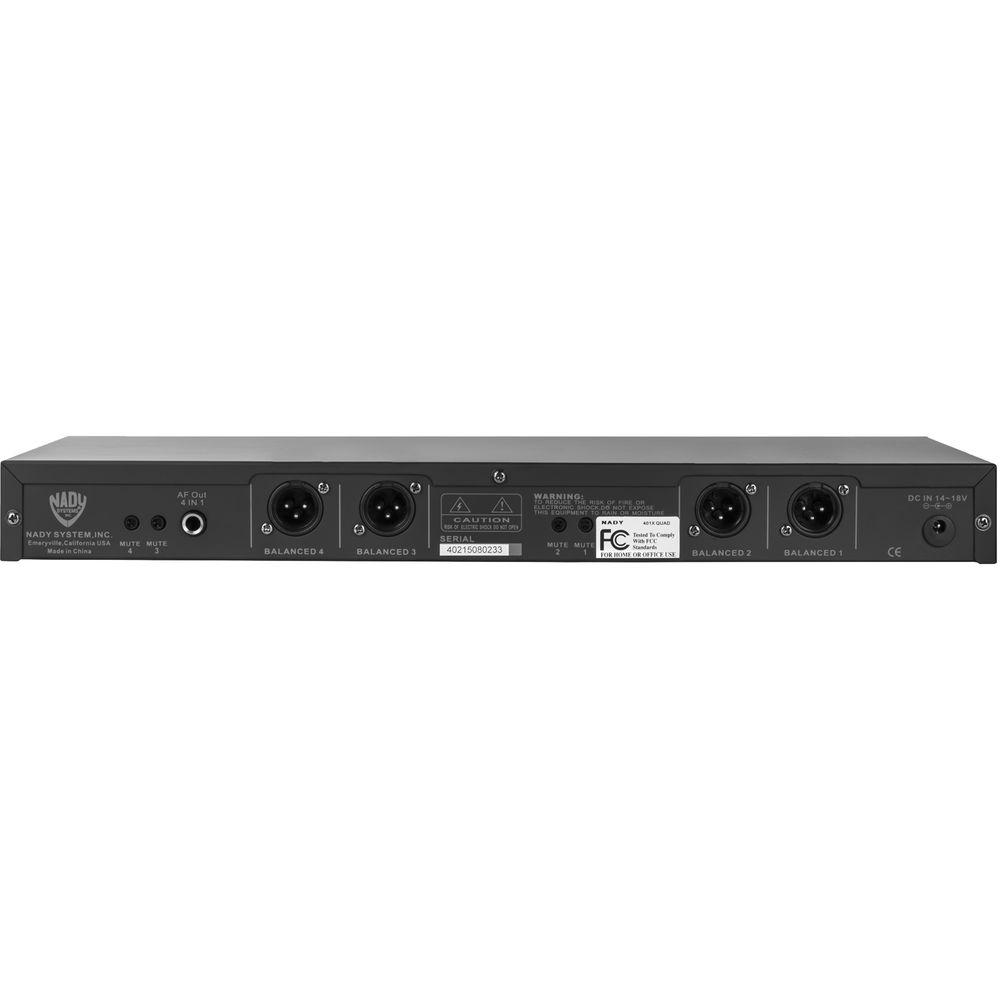

- Rear panel individual XLR output jacks; volume and RF mute controls for each of the four channels; 4-channels-mixed AF out ¼" phone jack
- Noise-free transmitter On/Off operation
- High performance-unmatched transparent audio with 120 dB dynamic range and up to 250+ ft. optimum line-of-sight operation
- Choice of three transmitters: WLT/WGT, WHT, or WPM-1V. Four transmitters (any combination) can be operated simultaneously on the four different channels

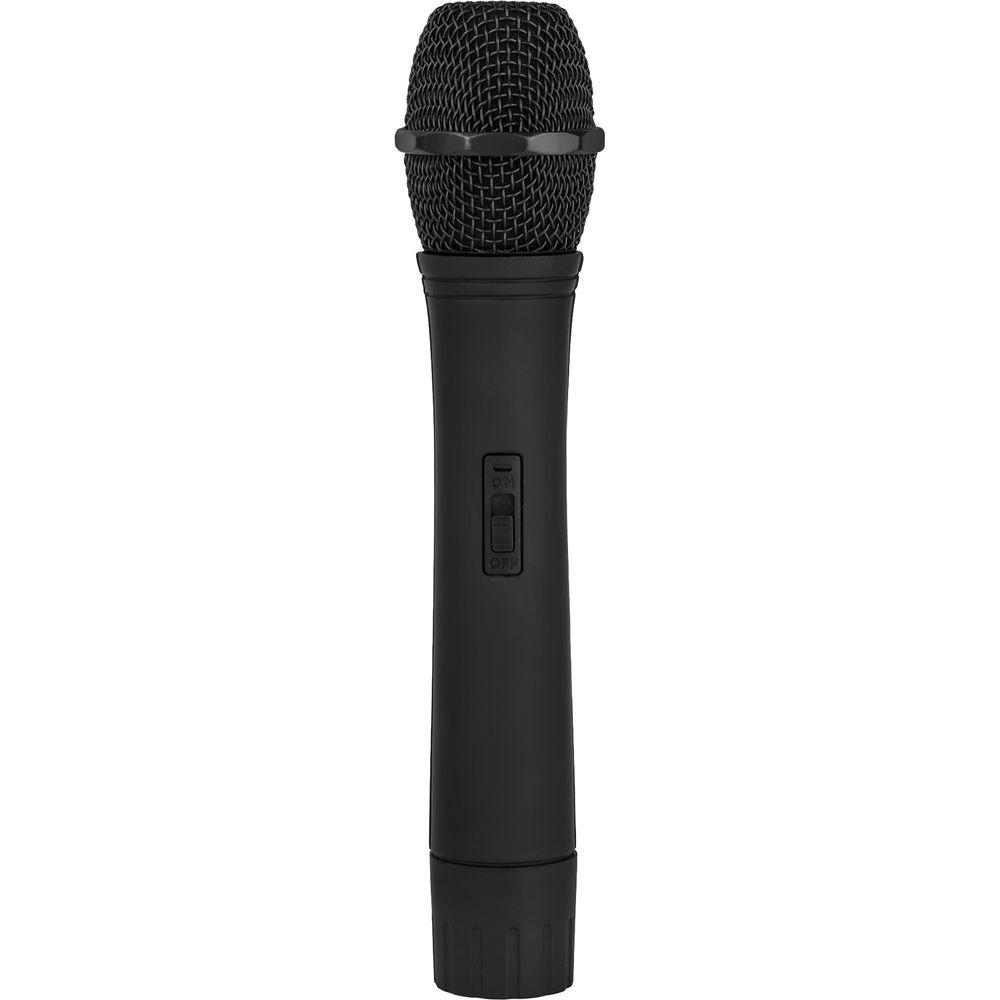

WHT Handheld Microphone Transmitter - Operates on a separate single frequency in the VHF 170-216MHz band
- Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting with transmitter on
- Low-battery LED indicator flashes once for Unit On; lights steady for low-battery alert
- Uses one 9V alkaline battery for 15+ hours operation
UPC: 634343260465 In the Box Nady 401X Quad 4-Channel VHF Wireless Microphone System 4 x WHT Handheld Transmitters 401X Quad Receiver 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 401X Quad 4-Channel VHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 401XQ HT-A/B/D/N Specs | | | Type of System | 4-Channel VHF Handheld | | RF Carrier Frequency Range | 170-230MHz (Factory installed Channels) | | Approx. Working Range | 250 feet typical - up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 30 - 18kHz (-3dB) | | # Of Channels | 4 Discrete
A / 171.905MHz, B / 185.150MHz, D / 209.150MHz, N / 197.150MHz | | | | Type of Receiver | 4-Channel VHF Rackmountable | | Type of Outputs | 4x XLR | | Power Requirements | 16V @ 800mA, nominal, AC/DC adapter supplied | | Display | 1 Power ON LED, 4 AF LED, 4 TX ON LED | | Mounting Options | 19" Rackmountable | | Antenna Type | Dual female BNC connectors | | Dimensions | 1.75 x 7.5 x 16.5" (4.4 x 19 x 42cm) | | Weight | 4.5 lbs (2 kg) | | | | Type of Transmitter | WHT Handheld | | Type of Microphone | Neodymium Dynamic Cartridge | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | 9V Alkaline
Up to 20 hours | | Mute Switch | OFF/STANDBY/ON switch | | RF Output | 50mW (Max. allowed by FCC) | | Display | Unit "ON" (single flash), Low Battery Alert (steady) | | Dimensions | 9.5 X 1.4" (24.1 x 3.5cm) | | Weight | 6.9oz (193g) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.1 x 12.0 x 5.1" |
