User Manual for Nady 4W-1KU Quad UHF Wireless Receiver System with Four HM-3 Head-Worn Microphones Click to enlarge the picture
Contents of the user manual for the Nady 4W-1KU Quad UHF Wireless Receiver
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady 4W-1KU Quad UHF Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

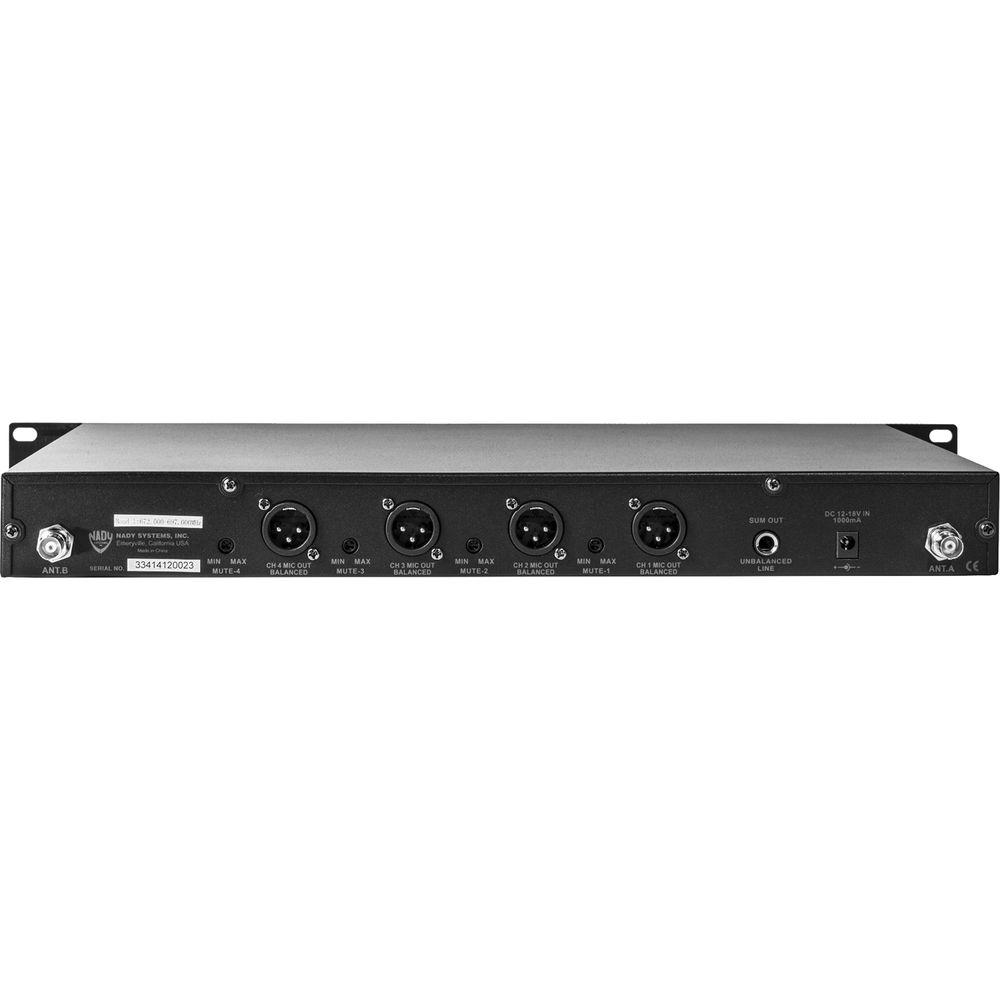

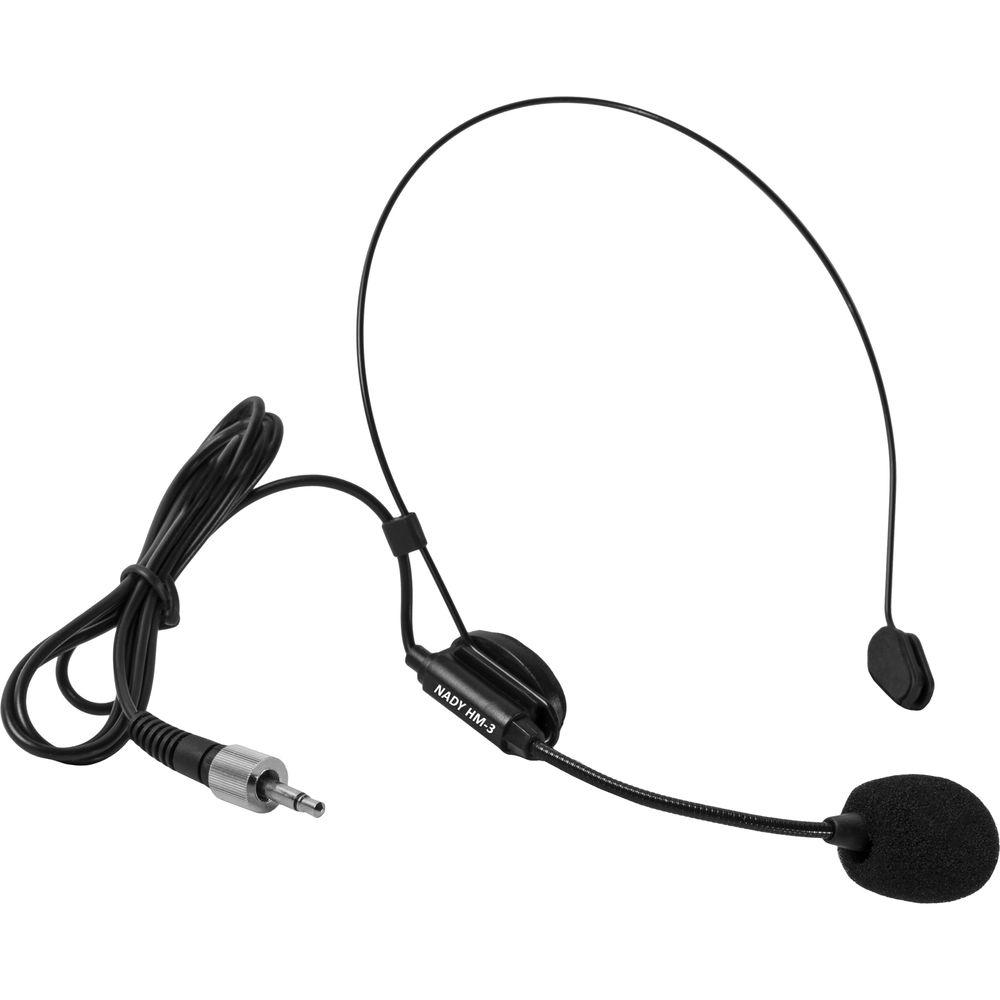

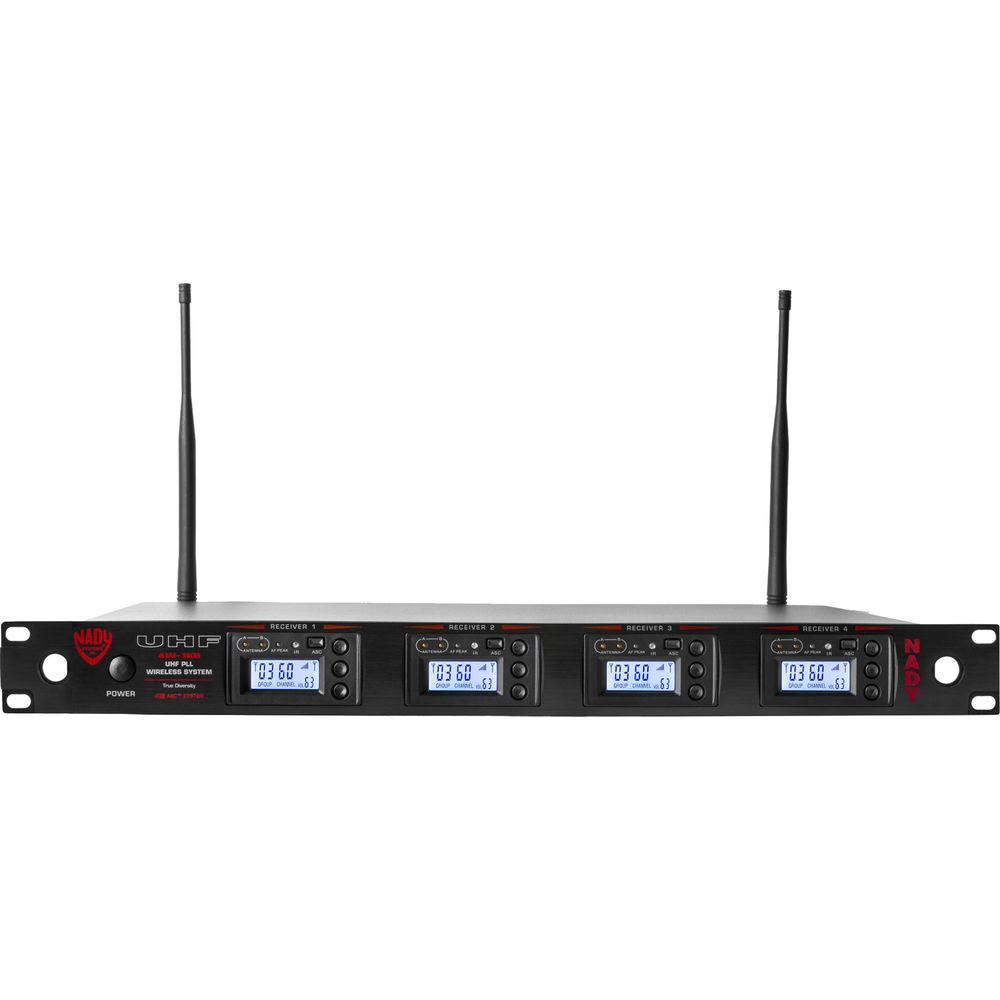

Product description The 4W-1KU Receiver System from Nady features four independent wireless receivers with 1000 user-selectable UHF frequencies for simultaneous operation of four transmitters, with 120 dB dynamic range and operation up to 500' line-of sight. The system comes with four BT-1KU bodypack transmitters and four HM-3 head-worn microphones. - True Diversity circuitry with two complete front ends per receiver for maximizing range and effective elimination of signal dropouts
- AUTO-SCAN for easily locating clear channels and ASC (Auto-Sync Channel) IR download feature which sends selected Group/Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for simultaneous operation of multiple systems in the same location
- Front panel touch control buttons and user-friendly LCD configuration menus
- LCD display indicates selected Group, Channel, RF signal strength meter; Audio output volume level
- Separate audio/peak LED display provides instantaneous audio level status easily seen from a distance
- Balanced XLR mic level and unbalanced 1/4" SUM line level audio output jacks
- Externally powered with included adapter
- Rugged all-metal housing- 1U rack mountable with supplied rack ears

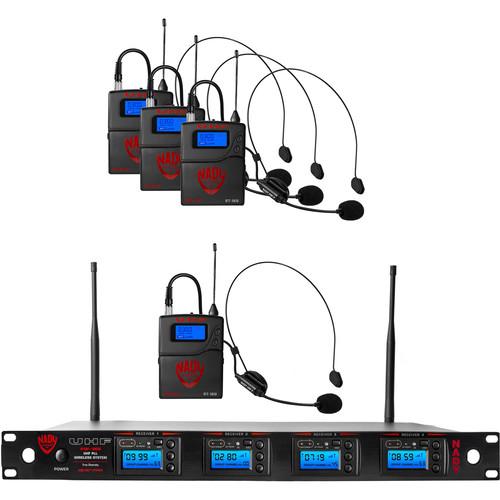

UPC: 634343286878 In the Box Nady 4W-1KU Quad UHF Wireless Receiver System with Four HM-3 Head-Worn Microphones 4W-1KU Receiver 4 x BT-1KU LT/HM Bodypack Transmitters 4 x HM-3 Head-Worn Microphones DC Power Supply 2 x Antennas for Receiver 2 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 4W-1KU Quad UHF Wireless Receiver System with Four HM-3 Head-Worn Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 4W-1KU HM-3 Specs | Frequency Range | 672.000 - 696.975 MHz | | Frequency Synthesizer | 25 kHz/step (1000 channels switchable) | | Frequency Stability | PLL System: <0.005% | | Frequency Response | 30 Hz - 18 kHz @ ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation FM (F3E) | Normal: ±25 kHz
Maximum: ±75 kHz | | Operating Range | Typical: 150 - 250' (46-76 m)
Maximum line-of-sight: 500'+ (152+ m) | | | | System Type | Dual conversion super heterodyne with true diversity | | Selectivity | 60 dB, normal ±75 kHz offset | | Image Rejection | -70 dB, minimum | | Sensitivity | -107 dBm, normal | | Rejection | 65 dB, normal | | Mute Threshold | -65 to -95 dBm (adjustable) | | Connectors | 4 x XLR, balanced mic level output
1 x 1/4" phone jack, summed unbalanced line level output
2 x BNC, RF antenna input
1 x DC power input | | Controls | 4 x Up
4 x Down
4 x Set
2 x IR Sync
1 x power On/Off
4 x Mute level | | LCD Display | Four backlight LCD panels indicating selected Group/Channel, Received RF levels, and unbalanced receiver out volume levels | | LED Display | AF/Peak LED Display, indicating received audio levels from transmitter
IR transmitter, for frequency download
A/B diversity | | Audio Output Level | Unbalanced output: LINE Level output adjustable
Balanced output: MIC level output fixed | | Output Impedance | Balanced and Unbalanced: 600 Ohms | | Power Requirement | 16 VDC / 0.8 A | | Antennas | Dual BNC right angle | | Housing | Metal | | Dimensions | 19.00 x 11.00 x 1.75" (48.26 x 27.94 x 4.44 cm) | | Weight | 6.3 lb (2.86 kg) | | | | RF Output Power | HI: +14 dBm (25 mW typical)
LOW: +4 dBm (2.5 mW typical) | | Harmonic & Spurious Emissions | -50 dBc, normal | | Input Impedance | 6 kOhms | | Controls | 1 x switch, Power Off/Mute/On
1 x switch, RF power Hi/Low
3 x button, Up, Down, Set | | Input Connector | 1/8" (3.5 mm) locking mini phone jack | | LCD Display | Group / Channels / Input Volume / Battery Levels | | Antenna Type | External fixed | | Battery Type | 2 x AA alkaline batteries operation | | Battery Life | 8 - 10 hours typical | | Housing | Metal | | Dimensions | 2.5 x 3.3 x 0.7" (6.4 x 8.3 x 1.8 cm) | | Weight | 3.8 oz (0.108 kg) | | | | Element | Condenser | | Pattern | Cardioid (Unidirectional) | | Frequency Response | 100 Hz to 13 kHz | | Sensitivity | -40 dB ±3dB (at 1 kHz, 74 dB SPL) | | Impedance | 2.2 kOhms: ±30% at 1 kHz | | Cable Length | 43" (1.1 m) | | Dimensions | Headset: 5.66" (144 mm)
Nominal at widest point: 4.50" (114 mm)
Flexible boom: 0.155" (3.9 mm) diameter | | Weight | 1.1 oz (30.8 g) with cable | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 7.0" |
