Product description The 8W-1KU Receiver System from Nady features eight independent wireless receivers with 1000 user-selectable UHF frequencies for simultaneous operation of eight transmitters, with 120 dB dynamic range and operation up to 500' line-of sight. The system comes with eight BT-1KU bodypack transmitters and eight HM-3 head-worn microphones. - True Diversity circuitry with two complete front ends per receiver for maximizing range and effective elimination of signal dropouts
- AUTO-SCAN for easily locating clear channels and ASC (Auto-Sync Channel) IR download feature which sends selected Group/Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for simultaneous operation of multiple systems in the same location

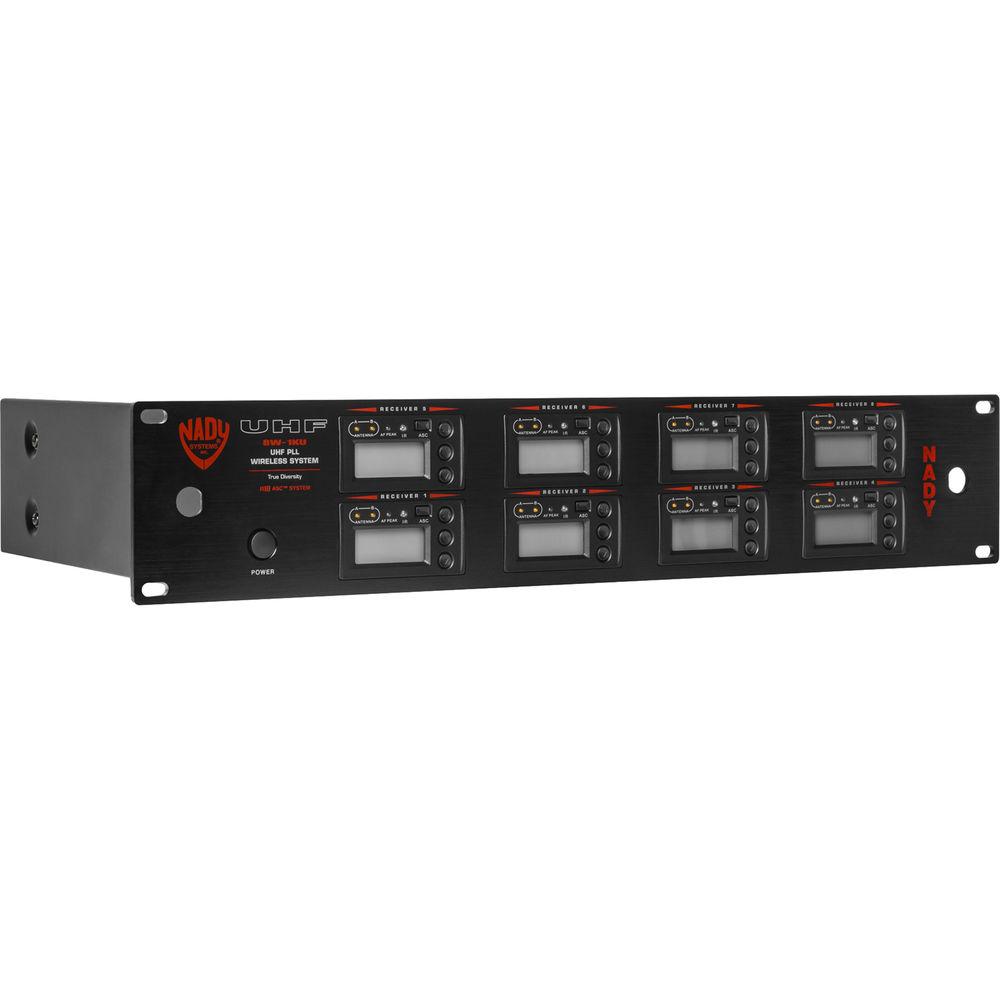

- Front panel touch control buttons and user-friendly LCD configuration menus

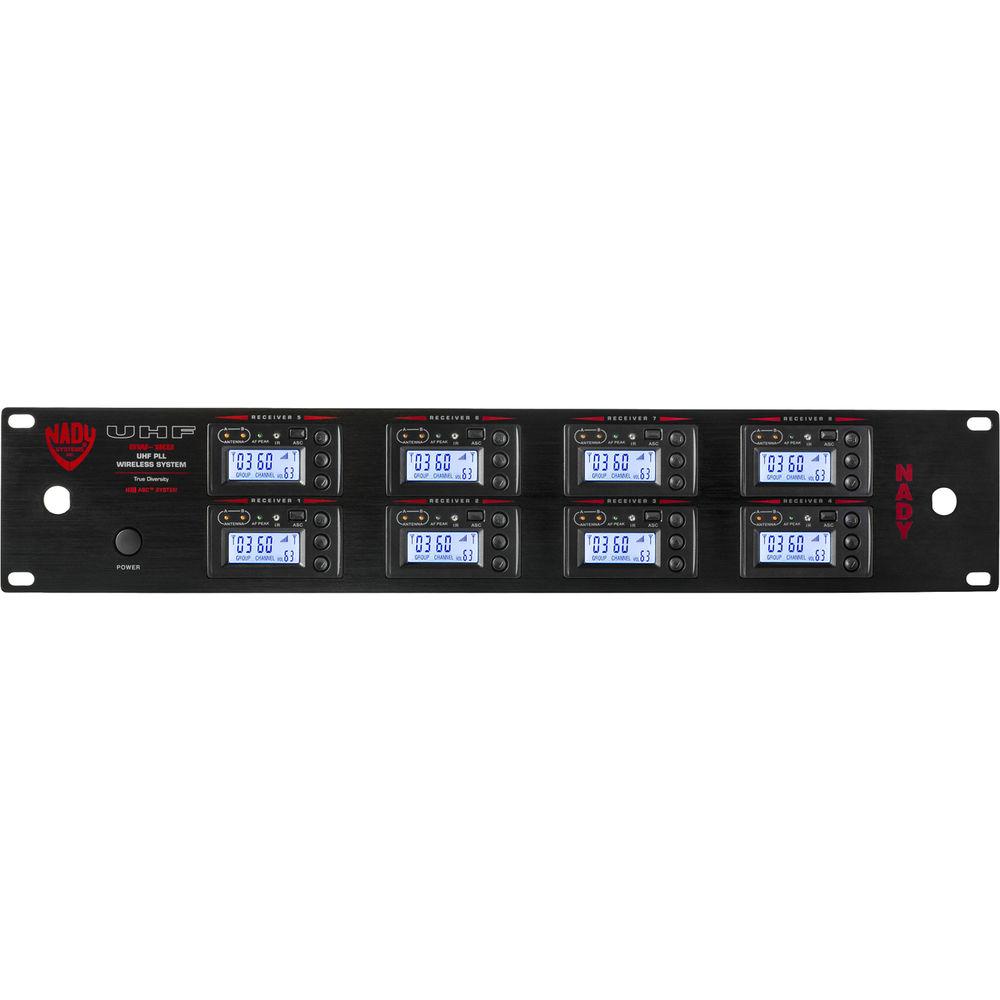

- LCD display indicates selected Group, Channel, RF signal strength meter, and Audio Output Volume level

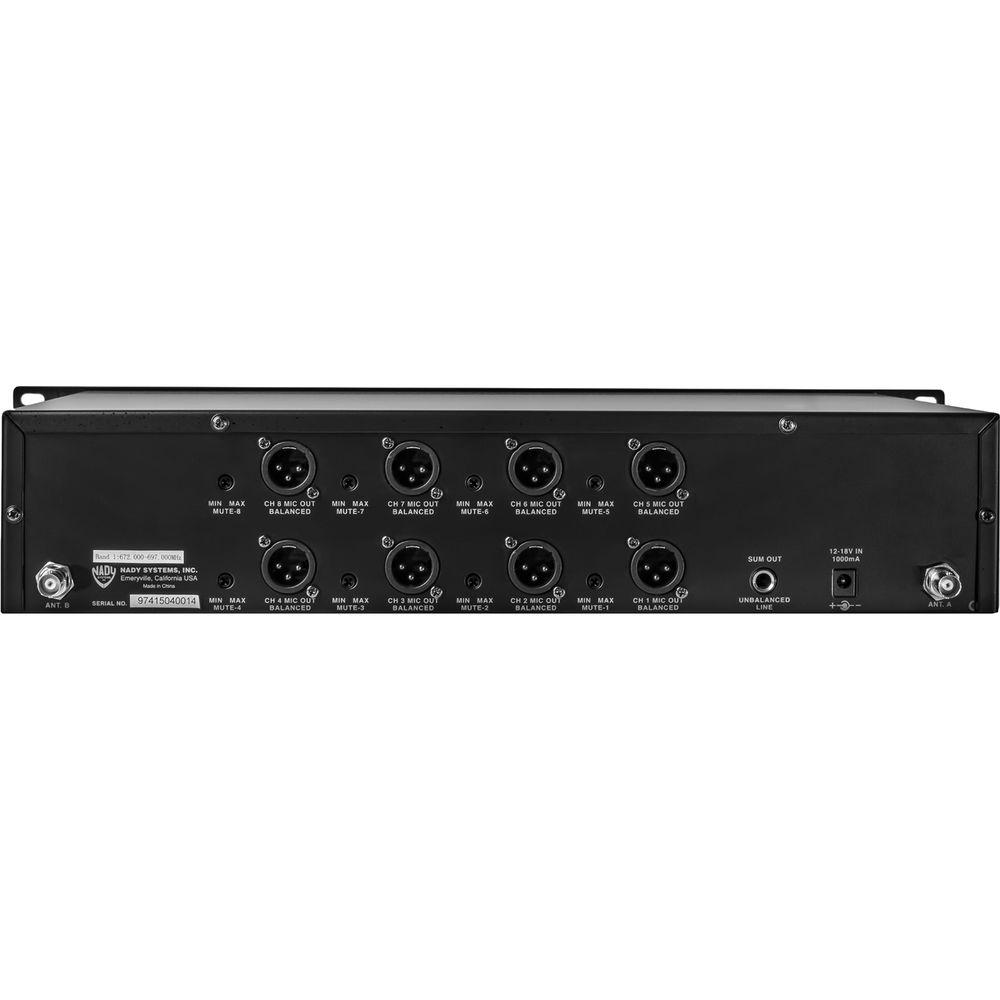

- Balanced XLR mic level and unbalanced 1/4" SUM line level audio output jacks
- Separate A/B Diversity antenna selection and audio peak LED displays provide instantaneous antenna and audio level status, which can easily be seen from a distance
- Externally powered with included adapter
- Rugged all-metal housing- 1U rack mountable with supplied rack ears

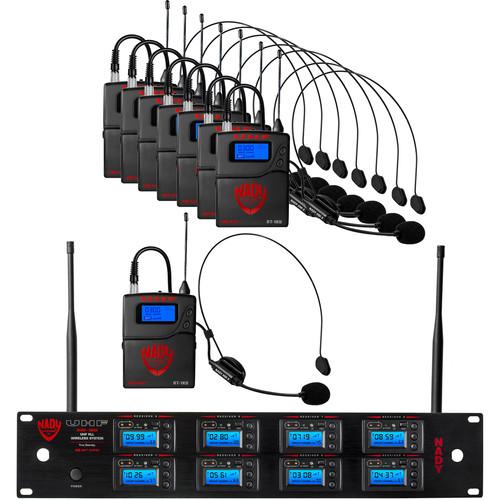

UPC: 634343282375 In the Box Nady 8W-1KU UHF Wireless Receiver System for Eight Simultaneous Transmitters with HM-3 Head-Worn Microphone 8W-1KU Receiver 8 x BT-1KU LT/HM Bodypack Transmitters 8 x HM-3 Head-Worn Microphone DC Power Supply 2 x Antennas for Receiver 2 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady 8W-1KU UHF Wireless Receiver System for Eight Simultaneous Transmitters with HM-3 Head-Worn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady 8W-1KU HM-3 Specs | Frequency Range | 672.000 - 696.975 MHz | | Frequency Synthesizer | 25 kHz/step (1000 channels switchable) | | Frequency Stability | PLL System: <0.005% | | Frequency Response | 30 Hz - 18 kHz @ ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation FM (F3E) | Normal: ±25 kHz
Maximum: ±75 kHz | | Operating Range | Typical: 150 - 250' (46 - 76 m)
Maximum line-of-sight: 500'+ (152+ m) | | | | System Type | Dual conversion super heterodyne with true diversity | | Selectivity | 60 dB, normal ±75 kHz offset | | Image Rejection | -70 dB, minimum | | Sensitivity | -107 dBm, normal | | Rejection | 65 dB, normal | | Mute Threshold | -65 to -95 dBm (adjustable) | | Connectors | 8 x XLR, balanced mic level output
1 x 1/4" phone jack, summed unbalanced line level output
2 x BNC, RF antenna input
1 x DC power input | | Controls | 8 x Up
8 x Down
8 x Set
8 x IR Sync
1 x power On/Off
8 x Mute level | | LCD Display | Eight backlight LCD panels indicating selected Group/Channel, Received RF levels, and unbalanced receiver out volume levels | | LED Display | AF/Peak LED Display, indicating received audio levels from transmitter
IR transmitter, for frequency download
A/B diversity | | Audio Output Level | Unbalanced output: LINE Level output adjustable
Balanced output: MIC level output fixed | | Output Impedance | Balanced: 600 Ohms
Unbalanced: 1 kOhms | | Power Requirement | +12 VDC / 2500 mA | | Antennas | Dual BNC right angle | | Housing | Metal | | Dimensions | 17.0 x 11.5 x 3.8" (43.2 x 29.2 x 9.5 cm) | | Weight | 10.75 lb (4.88 kg) | | | | RF Output Power | HI: +14 dBm (25 mW typical)
LOW: +4 dBm (2.5 mW typical) | | Harmonic & Spurious Emissions | -50 dBc, normal | | Input Impedance | 5 kOhms | | Controls | 1 x switch, Power Off/Mute/On
1 x switch, RF power Hi/Low

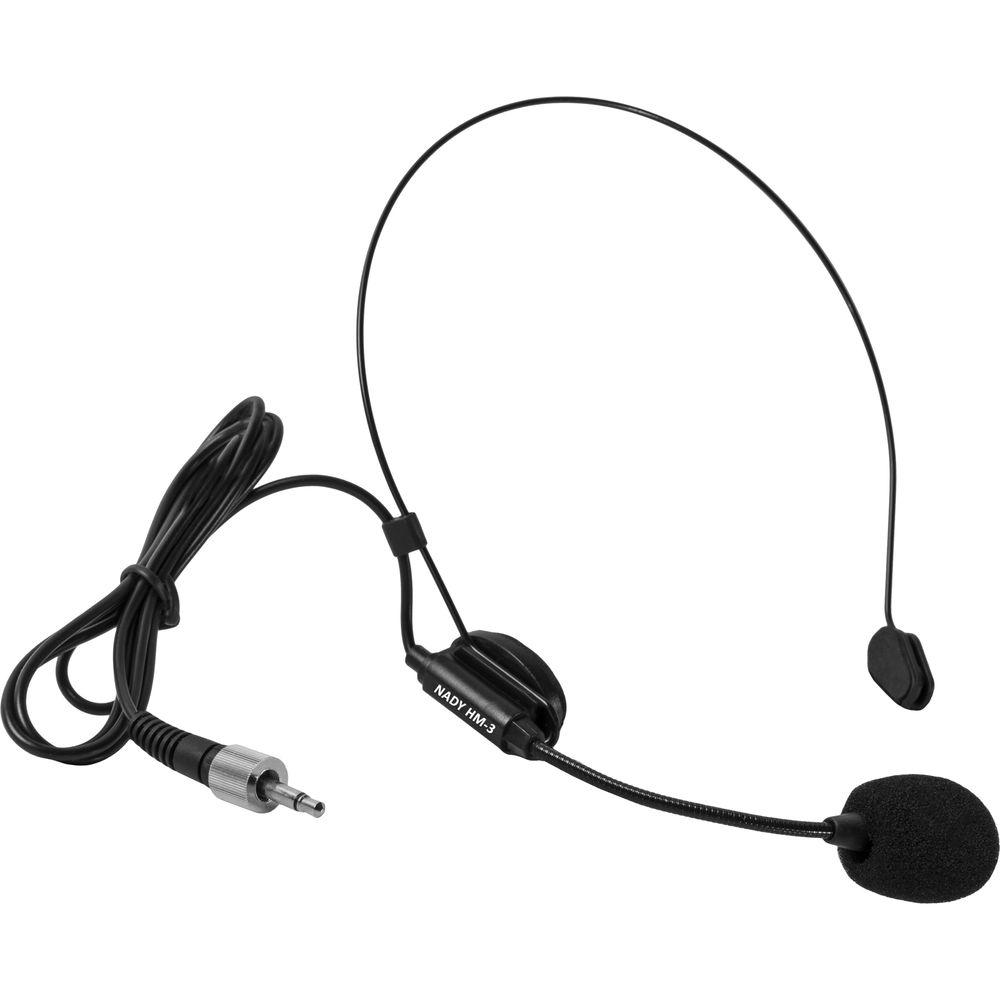

3 x button, Up, Down, Set | | Input Connector | 1/8" (3.5 mm) locking mini phone jack | | LCD Display | Group / Channels / Input Volume / Battery Levels | | Antenna Type | External fixed | | Battery Type | 2 x AA alkaline batteries operation | | Battery Life | 8 - 10 hours typical | | Housing | Metal | | Dimensions | 2.5 x 3.3 x 0.7" (6.4 x 8.3 x 1.8 cm) | | Weight | 3.8 oz (0.108 kg) | | | | Element | Condenser | | Pattern | Cardioid (Unidirectional) | | Frequency Response | 100 Hz to 13 kHz | | Sensitivity | -40 dB ±3 dB (at 1 kHz, 74 dB SPL) | | Impedance | 2.2 kOhms: ±30% at 1 kHz | | Cable Length | 43" (1.1 m) | | Dimensions | Headset: 5.66" (144 mm)
Nominal at widest point: 4.50" (114 mm)
Flexible boom: 0.155" (3.9 mm) diameter | | Weight | 1.1 oz (30.8 g) with cable | | | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 12.0" |
