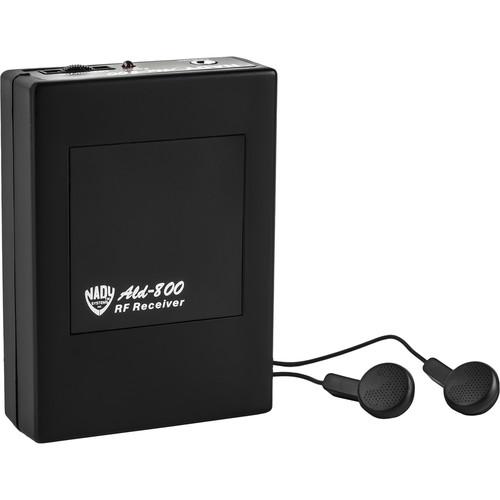

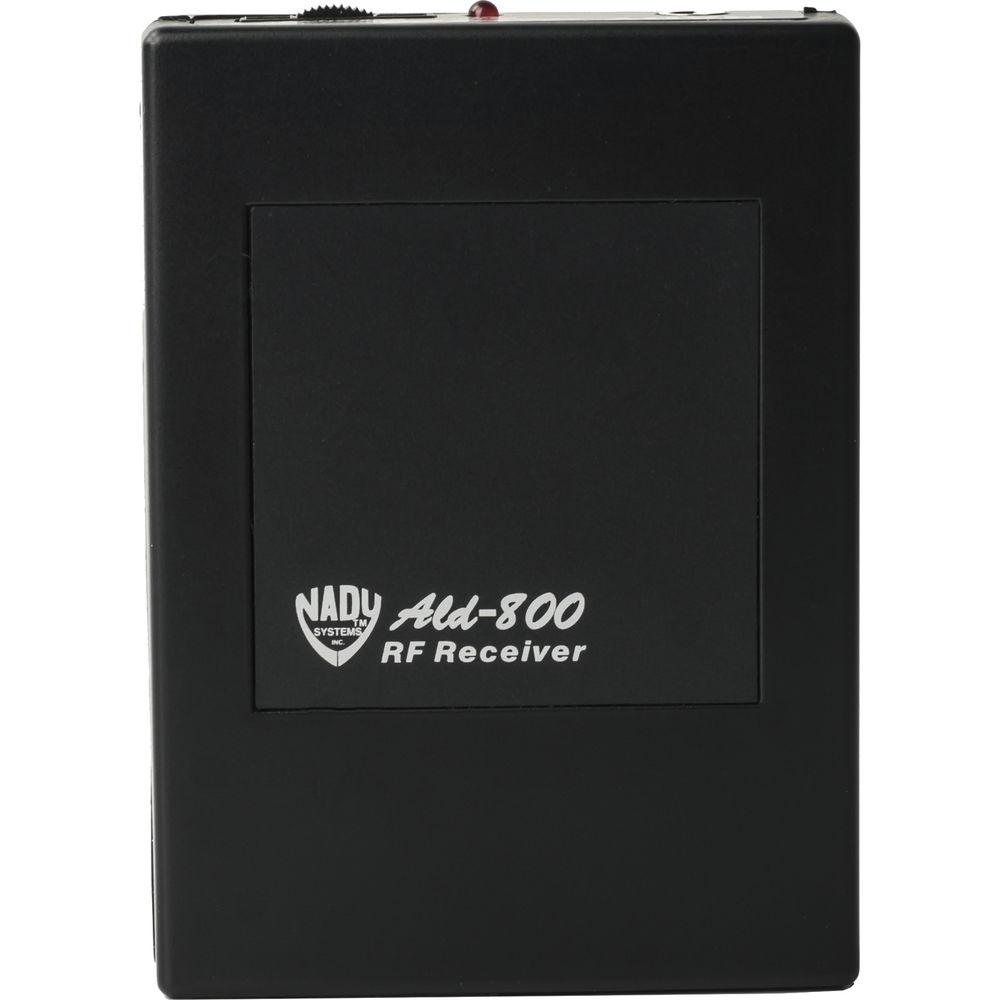

Product description The ALD-800 Assistive Listening Receiver Unit from Nady is a pre-tuned portable wireless receiver that operates on 72.3 MHz in the frequency radio band, with wideband modulation for high quality audio. This receiver can be used both outdoors and indoors in bright light without affecting performance.
Frequency stability is controlled by a phase locked loop synthesizer with crystal reference and accurate within ±.005% over 32 to 122°F. Its de-emphasis is 75 µs. The unit provides a 3.5mm headphone output jack mounted on the top panel.
This pocket-sized Nady receiver works in conjunction with the ALD-800T BB-channel transmitter (sold separately) and has adjustable volume control and comfortable, high performance earphones.

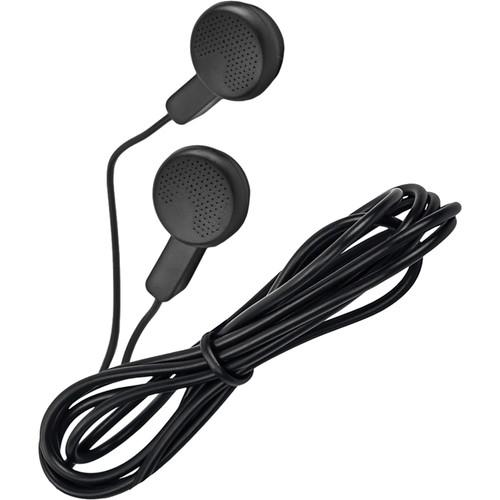

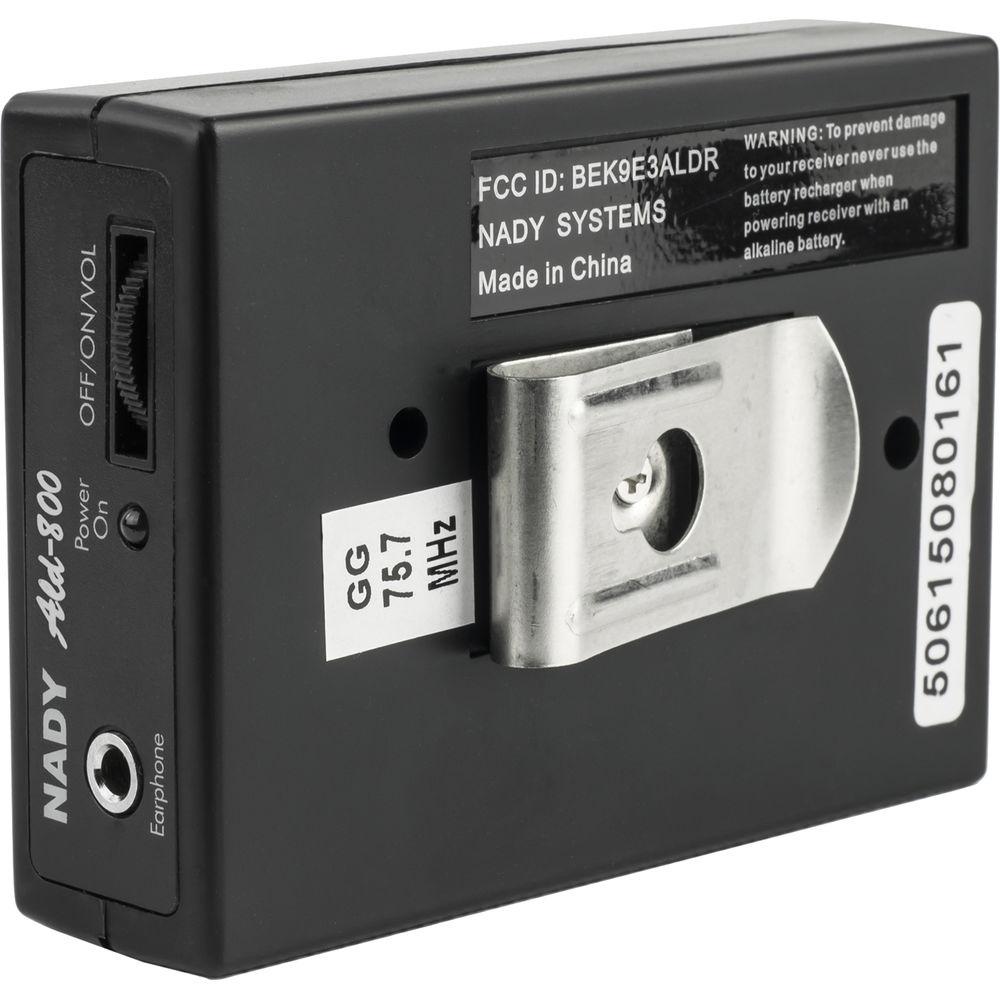

The ALD-800 receiver is powered by a 9V alkaline battery. It has an Off/On/volume control mounted on the top panel LED lamp to indicate battery strength, and an antenna is integral to the earphone cord. Mini binaural EB-800 earbud earphones are included with this unit. - Can be used with a single ALD-800T BB-channel transmitter
- Preset to a 72.3 MHz BB auditory assistance channel
- Provides up to 130 dB SPL for hearing assistance
- Antenna integral with earphone cord
- Accepts standard 9V alkaline battery
UPC: 634343064575 In the Box Nady ALD-800 Assistive Listening Receiver Unit(BB: 72.3) Mini Binaural EB-800 Earbud Earphones Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady ALD-800 Assistive Listening Receiver Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ALD800RBB Specs | | | Frequency Response | 100 Hz to 15 kHz, ±3 dB | | Signal to Noise Ratio | 60 dB | | Total Harmonic Distortion (THD) | < 0.5% | | RF Carrier Frequency | BB: 72.3 MHz | | Frequency Stability | > .005% | | Modulation | FM, ±75 kHz max | | Operating Range | Up to 300' (91.4 m) line-of-sight | | | | Control | Combination volume / On-Off wheel | | Audio Output | 250 mW maximum into 16 Ω | | Connector | 3.5 mm phone jack, earphone output | | Antenna | Integral with earphone cord | | Indicators | LED power on indicator | | Sensitivity | 2 µV for 12 dB Sinad with squelch defeated
Squelches at 10 µV for minimum 50 dB S-N ratio | | Threshold | Mute: 8 to 10 µV | | Power Requirement | 9 V alkaline | | Battery Life | 17 to 20 hours with alkaline battery | | Dimensions (H x W x D) | 3.35 x 2.75 x 0.75" (8.5 x 6.5 x 2.25 cm) | | Weight | 2.65 oz (73 g) without battery | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.2 x 3.2 x 1.7" |
