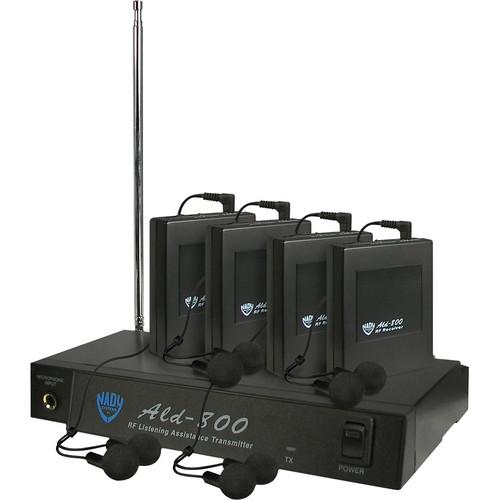

Product description The ALD-800 from Nady is a versatile VHF wireless assistive listening system that allows you to share an audio source with multiple listeners up to 300' away, ideal for museums, theaters, houses of worship, educational facilities, and more. The system includes a base station transmitter and 4 beltpack receivers. The system can support an unlimited number of receivers (sold separately), allowing you to add as many listeners as you like. The system is pre-tuned to 1 of 8 channels designated for listening assistance by the FCC. This provides clear transmission, and also allows you to set up multiple systems for different applications in the same vicinity.
The transmitter has mic and line level 1/4" input connectors with a manual input gain control. It also offers an automatic level control function. It has an extendable and positionable antenna, and LED indicators to show when the unit is turned on and transmitting audio. The transmitter operates on DC power via the included wall adapter.
Each beltpack receiver is compact and lightweight, fitting easily into a pocket or clipping to clothing. The top panel offers a power/volume wheel with a power LED indicator. A standard 3.5mm headphone jack accommodates the included stereo earbuds, or most other consumer headphones. The receiver uses the headphone cable as the antenna to minimize bulk and weight. Each receiver operates on a single 9V battery. Note: Additional systems are available separately in 7 other pre-tuned frequencies from 72-76MHz. System - VHF transmission provides a wireless range of up to 300'
- Includes a base station transmitter and 4 beltpack receivers. The system can support an unlimited number of receivers (sold separately), allowing you to add as many listeners as you like
- Pre-tuned to 1 of 8 channels in the 72-76MHz band designated for listening assistance by the FCC. This provides clear transmission, and also allows you to set up multiple systems for different applications in the same vicinity 1

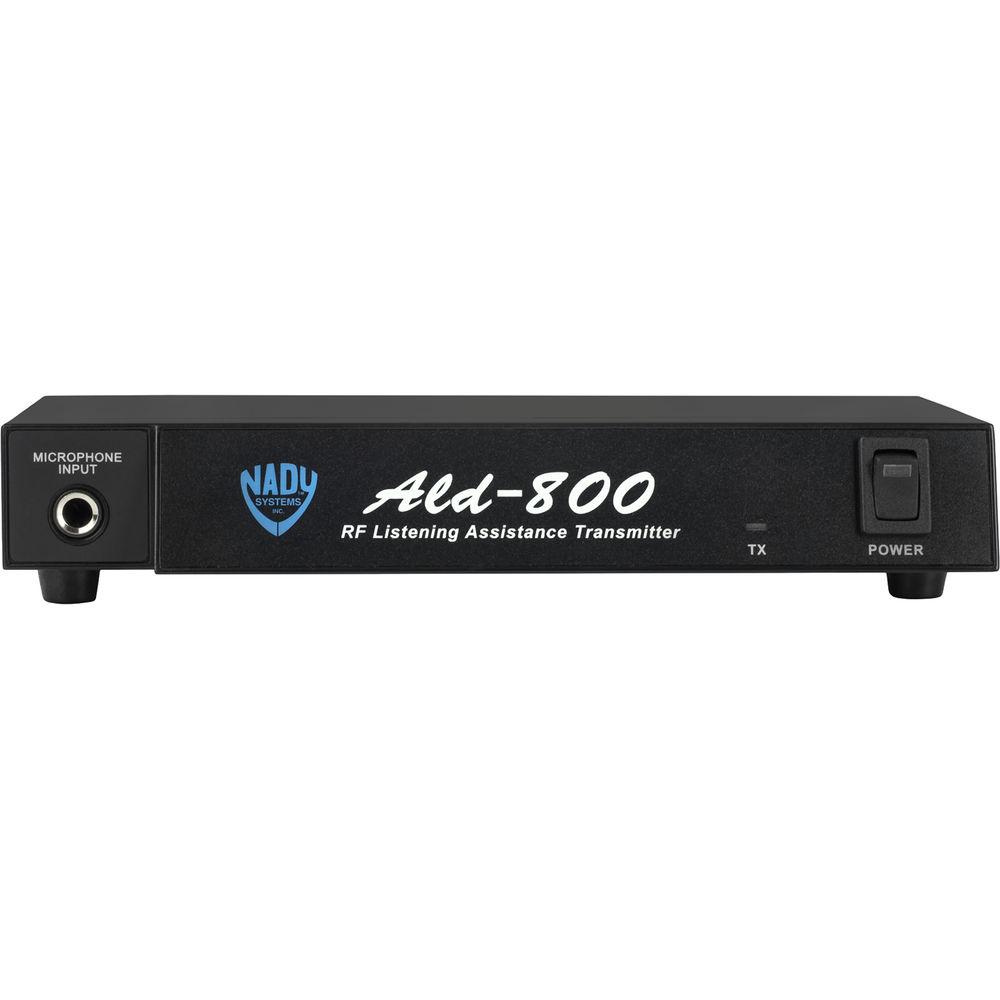

Please Note: Systems are available separately in 7 other pre-tuned channels close Transmitter - Compact base station design

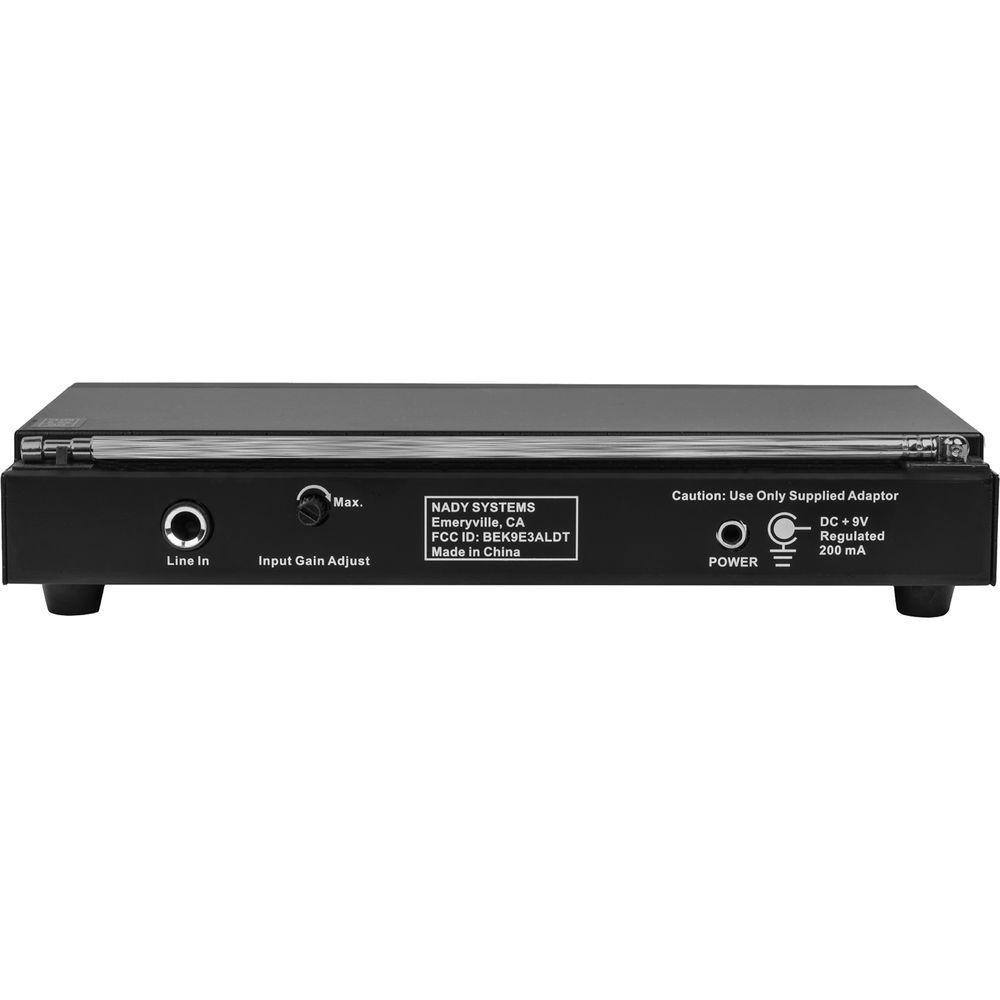

- Mic and line level 1/4" input connectors with a manual input gain control. An automatic level control function is also provided
- Extendable and positionable antenna
- LED indicators show when the unit is turned on and transmitting audio
- Operates on DC power via the included wall adapter

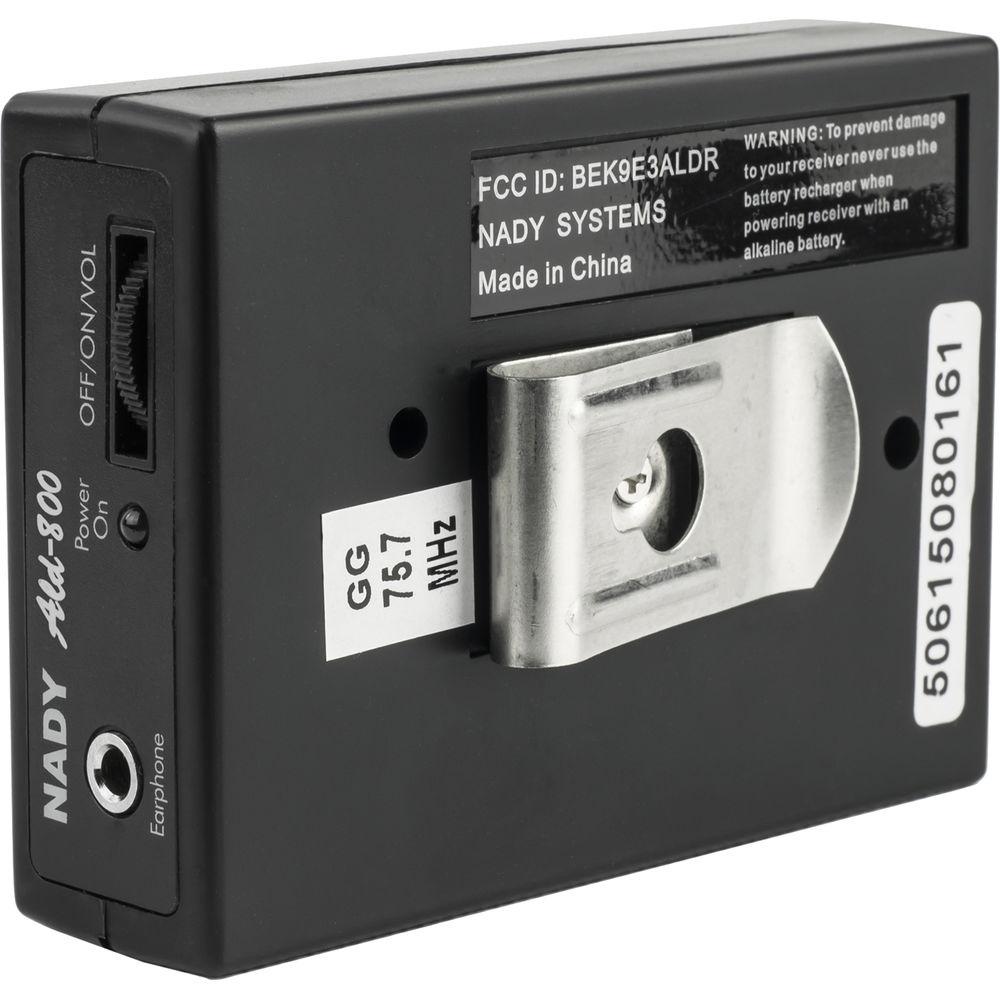

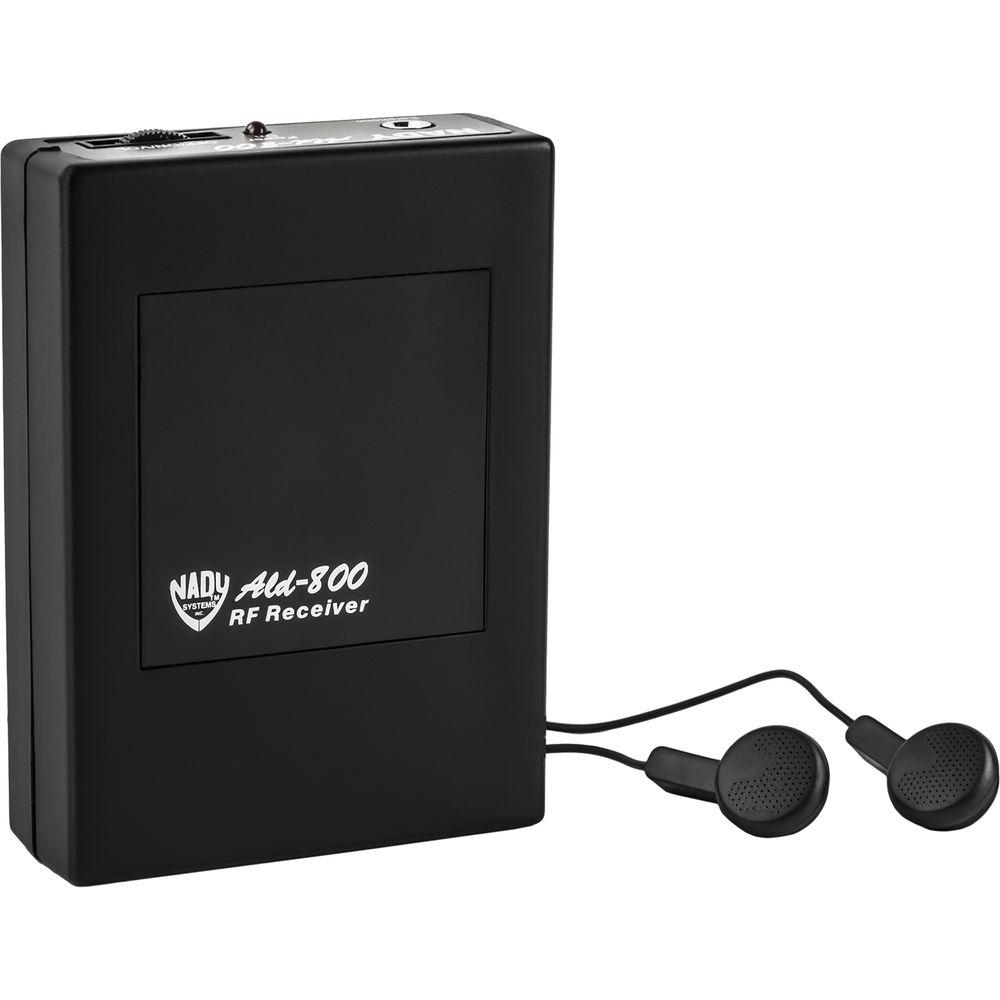

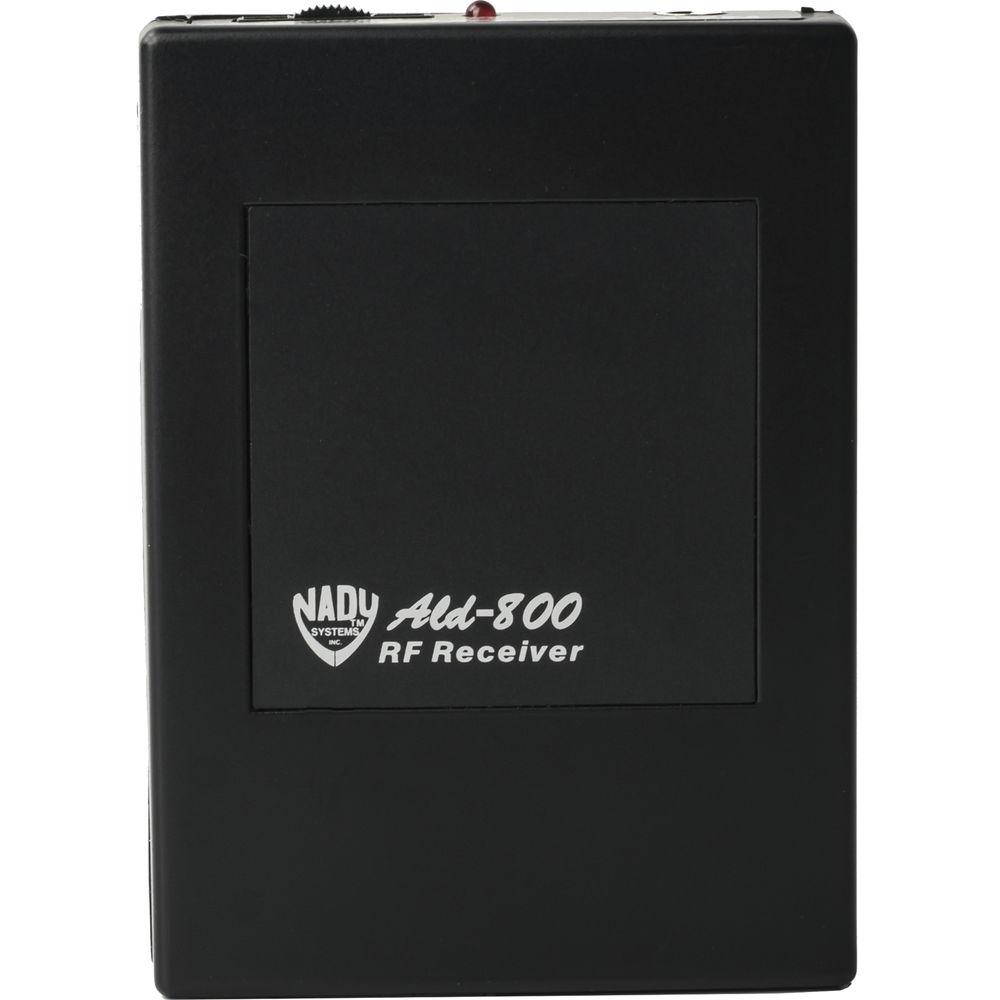

Receiver - Compact and lightweight design fits easily into a pocket or clips to clothing
- Top panel offers an easy-to-use power/volume wheel with a power LED indicator
- The standard 3.5mm headphone jack accommodates the included stereo earbuds, or most other consumer headphones
- The receiver uses the headphone cable as the antenna to minimize bulk and weight
- Operates on a single 9V battery
UPC: 634343272970 In the Box Nady ALD-800 Wireless Assistive Listening System (DD: 72.7MHz) Transmitter DC Adapter 4 x Receivers 4 x Earbuds 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady ALD-800 Wireless Assistive Listening System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ALD-800 Specs | | | Frequency Response | 100Hz - 15kHz ±3dB | | Signal to Noise Ratio | 60dB | | Total Harmonic Distortion (THD) | < 0.5% | | Carrier Frequency | DD: 72.7MHz | | Frequency Stability | > 0.005% | | Modulation | FM, ±75kHz Max | | Wireless Range | Up to 300' (91 m) Line-Of-Sight | | | | Inputs | 1 x 1/4" Mic Input (9VDC @ 1mA for Condenser Mic)
1 x 1/4" Line Input | | Input Impedance | Line: 100 kOhms | | Output Power | 80,000µV @ 3 m | | Controls and Indicators | 1 x Power Switch
1 x Audio Input Gain Knob
1 x Power LED
1 x Audio Modulation LED | | Antenna | Permanently Mounted Telescoping Whip | | Power Requirements | 9VDC, Regulated @ 200mA, Adapter Included | | Dimensions (HxWxD) | 1.25 x 8.25 x 4.25" (32 x 209 x 108mm) | | Weight | 18.2 oz (500g) | | | | Audio Output | 250mW Max into 16 Ohms | | Connectors | 3.5mm Stereo Headphone Jack | | Controls and Indicators | 1 x Power/Volume Wheel | | Antenna | Uses Headphone Cable (Earbuds Included) | | Sensitivity | 2µV for 12dB Sinad with Squelch Defeated, Squelches at 10µV for Minimum 50dB S/N Ratio | | Mute | Mute Threshold: 8-10µV | | Battery Type/Life | 1 x 9V Alkaline, Approx 17-20 Hours | | Dimensions (HxWxD) | 3.35 x 2.75 x 0.75" (85 x 65 x 23mm) | | Weight | 2.65 oz (73g) (Without Battery) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.0 x 9.5 x 5.0" |
