User Manual for Nady ALD-800R Assistive Listening Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Nady ALD-800R Assistive Listening Wireless Receiver
- Product category: Components & Accessories Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Components & Accessories
 |
User manual for the Nady ALD-800R Assistive Listening Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

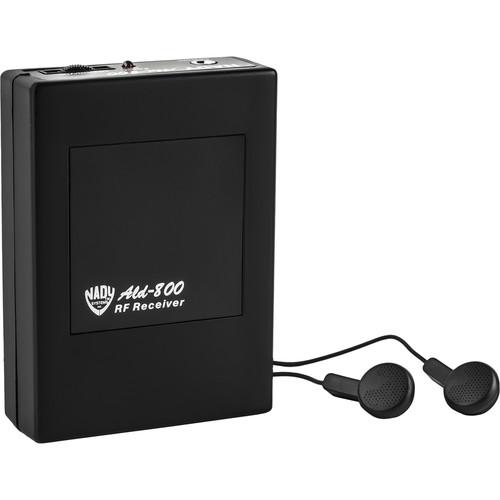

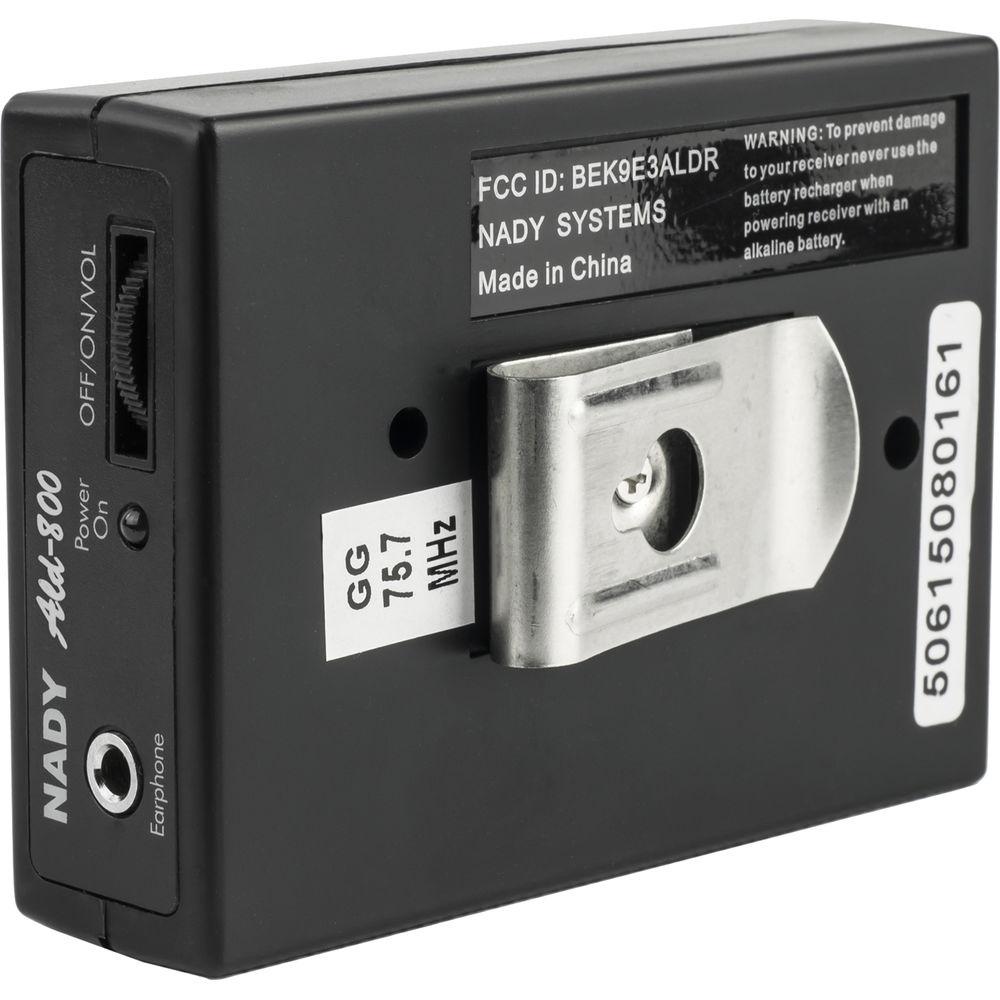

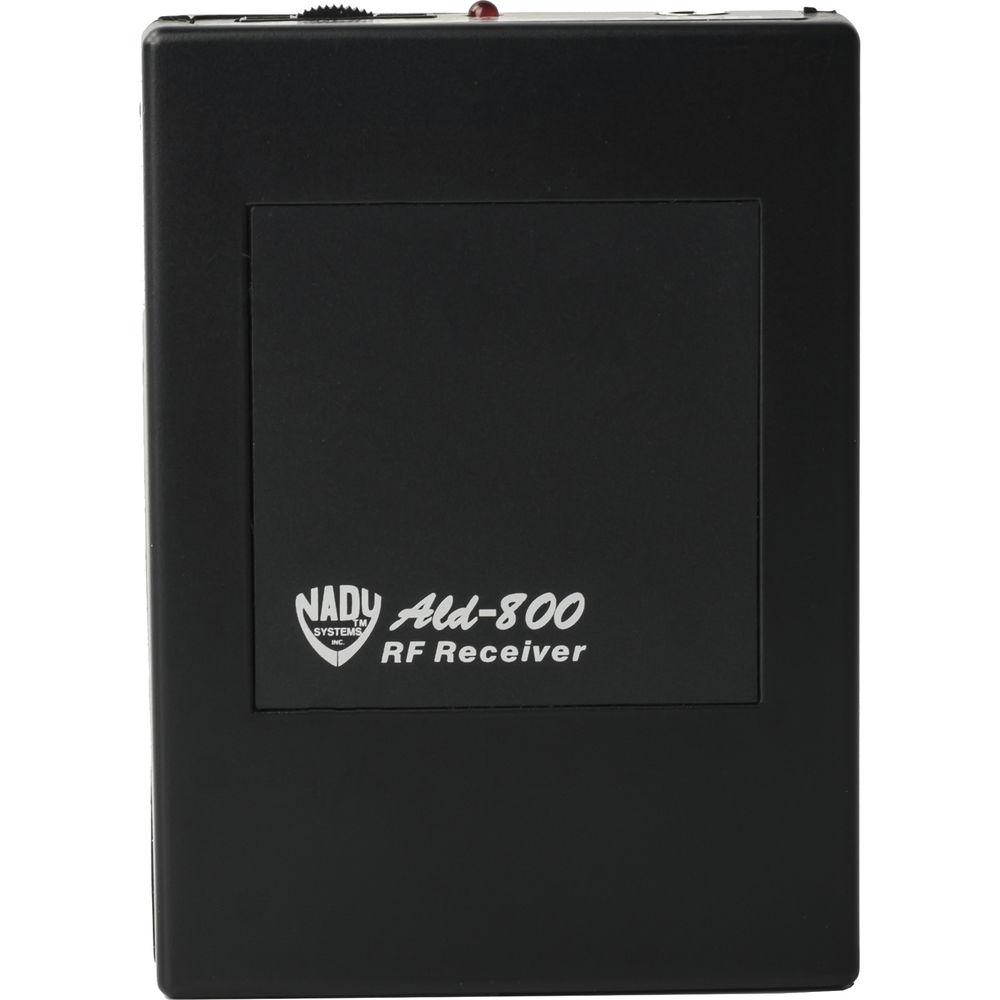

Product description The ALD-800R Assistive Listening Wireless Receiver from Nady is designed for use in the ALD-800 Assistive Listening System. It features 8 channels and can provide up to 130dB SPL of hearing assistance. It functions on CC band at 72.5 MHz. Any number of ALD-800R receivers can be used with a single transmitter (not included). The receivers are powered by a single 9-volt battery (not included) for up to 20 hours of operation. A pair of earbud earphones are included. UPC: 634343064582 In the Box Nady ALD-800R Assistive Listening Wireless Receiver (CC- 72.5 MHz) Set of Mini-Binaural Earphones Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady ALD-800R Assistive Listening Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ALD-800R Specs | Controls | Combination volume on/off wheel | | Audio Output | 250 mW max into 16 Ω | | Connectors | 1x 1/8" (3.5 mm) mini jack earphone output | | Earphone | Mini binaural earbuds | | Antenna | Integral with earphone cord | | Indicators | LED power on | | Sensitivity | 2 μV for 12 dB Sinad with squelch defeated
Squelches at 10 μV for minimum 50 dB S-N ratio | | Mute Threshold | 8-10 μV | | Power Requirements | 9 V alkaline | | Battery Life | 17 to 20 hours with alkaline battery | | Dimensions (HxWxD) | 3.35 x 2.75 x 0.75" (8.5 x 6.5 x 2.25 cm) | | Weight | 2.65 oz (73 g) without battery | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.2 x 3.3 x 1.6" |
