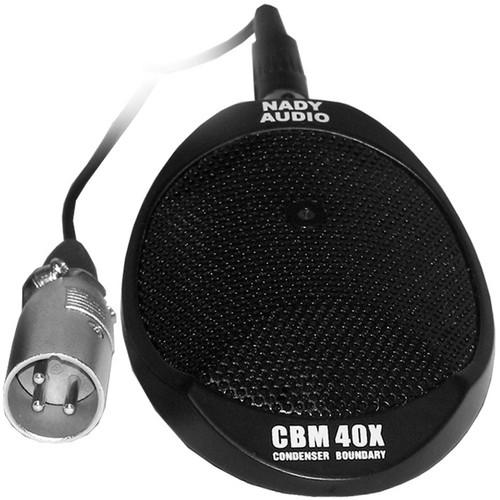

User Manual for Nady CBM 40X Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Nady CBM 40X Boundary Microphone
- Product category: Boundary Microphones Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Boundary Microphones
|
User manual for the Nady CBM 40X Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The CBM 40X Boundary Microphone from Nady features a sensitive condenser element with a cardioid polar pattern and smooth frequency response. The microphone's flat low-profile makes it an ideal choice for capturing speech in interviews, courtroom proceedings, meetings and more.The CBM 40X is also ideal for instrument capturing and is well suited for mounting into kick (bass) drums, capturing live performances and more. Its rugged die-cast construction is made to withstand rigorous use. The condenser element requires external 15-52V phantom power and includes a 16' mini-XLR to XLR cable. - Ideal for a variety of sound reinforcement/recording applications: Choirs, orchestras, theatrical performances, courtrooms/conference rooms, and inside bass/kick drums
- Unidirectional pickup pattern and full frequency response of 30Hz~20KHz produce unparalleled audio at any distance from source with excellent feedback rejection
- Rugged die-cast alloy housing on rubber padding minimizes mechanical coupling of surface vibrations to the microphone
UPC: 634343272307 In the Box Nady CBM 40X Boundary Microphone 16' Mini-XLR to Standard XLR Cable Limited 1-Year Warranty User Manual PDF 341.5kbcsvxqxqbtbbxyszrtbfz Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady CBM 40X Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady CBM 40X Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Maximum SPL | 130 dB SPL | | Impedance | 250 Ohms ± 20% | | Sensitivity | -35 dB
-38 dB
-41 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 15 to 52 V | | Length | 3.7" / 9.40 cm | | Weight | 5 oz / 142 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 5.6 x 4.0 x 1.8" |
