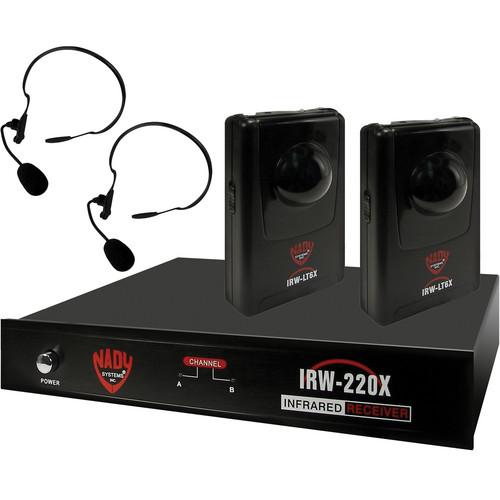

Product description The Nady Combo Infrared Wireless Microphone System with Headworn Microphones is designed for live sound reinforcement applications. This system consists of an IRW-220X dual-channel infrared receiver, two IRW-LT6 bodypack infrared transmitters, two headworn microphones, two IRW-1S infrared sensors with 20' and 35' cables, a 3' RCA to 1/4" audio cable, bodypack lanyards for wearing around the neck, and four AA batteries. Infrared wireless transmission requires a clear line of sight. To improve the efficiency of transmission, both the IR sensors and the IR transmitters utilize an array of multiple infrared LEDs.
Each of the bodypack transmitters includes a power on LED, an audio input volume control, and a switch for selecting either channel A or channel B for transmission. The receiver features two coaxial inputs for the IR sensors, separate volume controls for channel A and B, and an RCA phono jack for mixed output of both channels. - Multiple Infrared LED Emitter Array
- For efficient transmission of the infrared audio signal, the bodypack transmitters feature an array of multiple infrared transmitting LEDs
- Battery Life
- The bodypack transmitters can operate for up to 5 hours on a pair of AA batteries
UPC: 634343272277 In the Box Nady Combo Infrared Wireless Microphone System with Headworn Microphones Dual-Channel Receiver 2 x Bodypack Transmitters 2 x Bodypack Lanyards 2 x Infrared Sensors 2 x Headworn Microphones 20' Cable 35' Cable 3' RCA to 1/4" Audio Cable 2 x Wall Mounts 4 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Combo Infrared Wireless Microphone System with Headworn Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady IRW-220X LT/HM-3 Specs | | | Mode | Infrared frequency modulated | | Receiving Interface | Dual Channels A and B | | Carrier Frequency | Channel A: 2.0 MHz
Channel B: 2.6 MHz | | Audio Frequency Response | 60 to 12,000 Hz | | S/N Ratio | > 90 dB | | Audio Output | 700 mV | | Range | Line of sight: Up to 30' (9 m) | | Controls | Power On/Off (front panel)
A and B volume controls (rear panel) | | Connectors | IR sensor coaxial jacks (rear panel)
Channel A/B audio mix output RCA jack | | Power Requirements | 110 VAC at 50/60 Hz ± 5% | | Power Consumption | 8 W | | Dimensions (LxWxH) | 10.6 x 7.4 x 2" (270 x 188 x 51 mm) | | Weight | 3.3 lb (1.5 kg) | | | | Carrier Frequency | Channel A: 2.0 MHz
Channel B: 2.6 MHz | | Controls | On/Off switch
Volume control
Channel A/B select switch | | Connectors | 3.5 mm locking jack | | Power Requirement | 2 x AA battery (2.4 VDC) | | Battery Life | Up to 5 Hours | | Dimensions (HxDxW) | 3.9 x 1.2 x 2.6" (100 x 30 x 66 mm) | | Weight | 3.60 oz (100 g) | | | | Element | Condenser | | Pattern | Cardioid (Unidirectional) | | Frequency Response | 100 to 13,000 Hz | | Sensitivity | -40 dB ±3dB (At 1 kHz, 74dB SPL) | | Impedance | 2.2 kΩ: ±30% at 1 kHz | | Cable Length | 43" (1.1 m) | | Dimensions | Headset: 5.66" (144 mm)
Nominal at widest point: 4.50" (114 mm)
Flexible boom: 0.155" (3.900 mm) diameter | | Weight | 1.10 oz (30.8 grams) with cable | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 20.0 x 12.5 x 3.0" |
