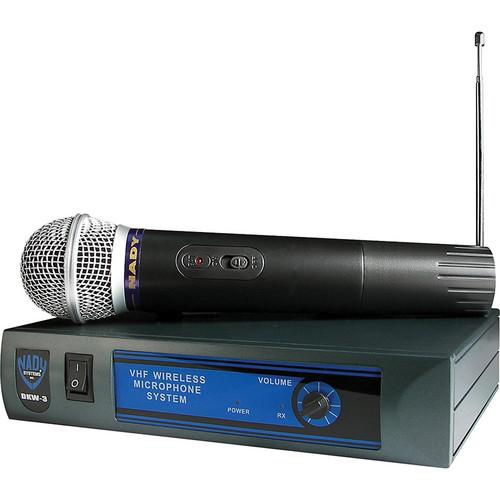

Product description The Nady DKW-3 HT Single VHF Wireless System is a cost effective solution for basic wireless microphone applications during small presentations, speeches, mobile DJ sets and more. The DKW-3 features stable, single channel VHF transmission, and includes the receiver and handheld transmitter. The 1/4" phone output connects the receiver to an amplifier, mixer or powered speaker, and the HT handheld transmitter features a cardioid polar pattern, on/off switch and 9V battery operation. - Ideal entry-level systems - all the advantages and freedom of wireless operation without cumbersome cords
- Excellent high-fidelity audio
- VHF (170-216 MHz) operations for reliable, interference-free performance
- 150+ ft. typical operating range - up to 300+ ft. line-of-sight
- Easy to use - simply plug into your audio mixer or amplifier in place of your wired microphone or instrument
- Advanced audio processing circuitry for a wide dynamic range - no overloading for loud inputs or background hiss during quiet use
- Complete controls and connections for easy operation

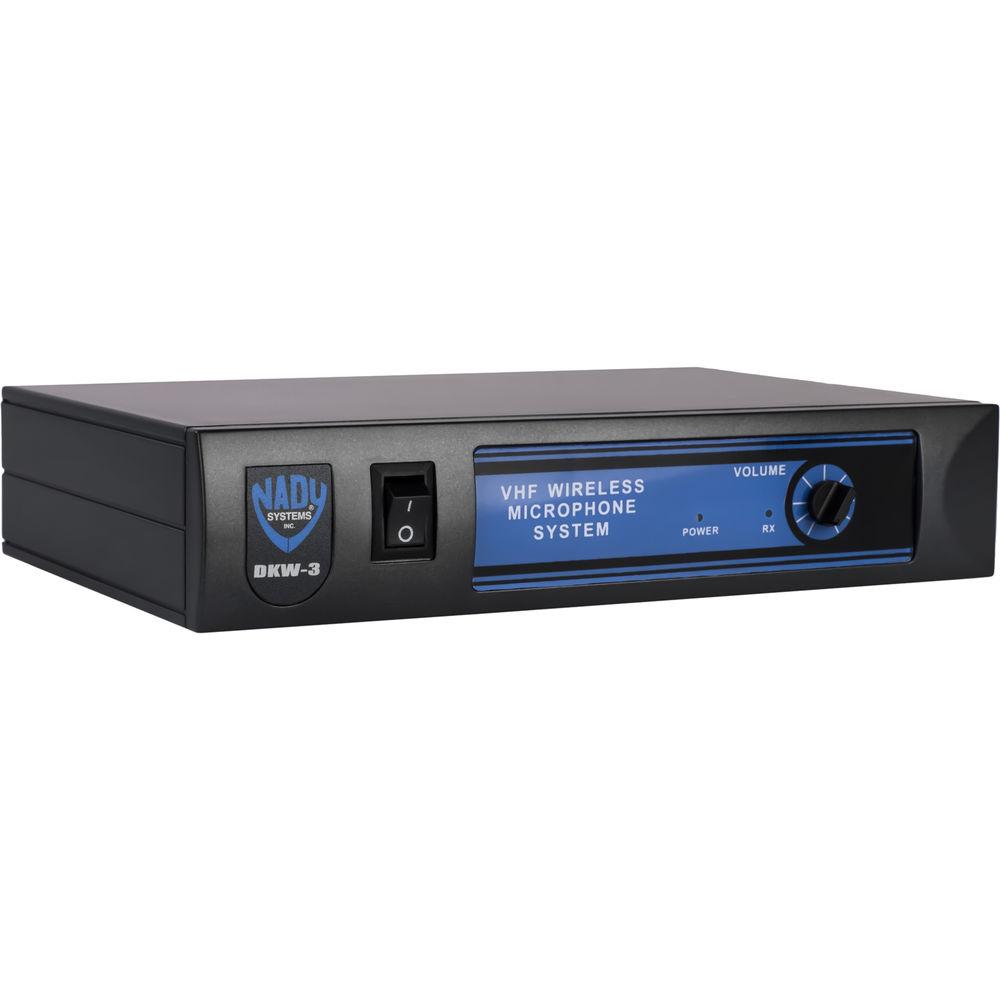

- Front panel Power On/Off switch and Power On LED

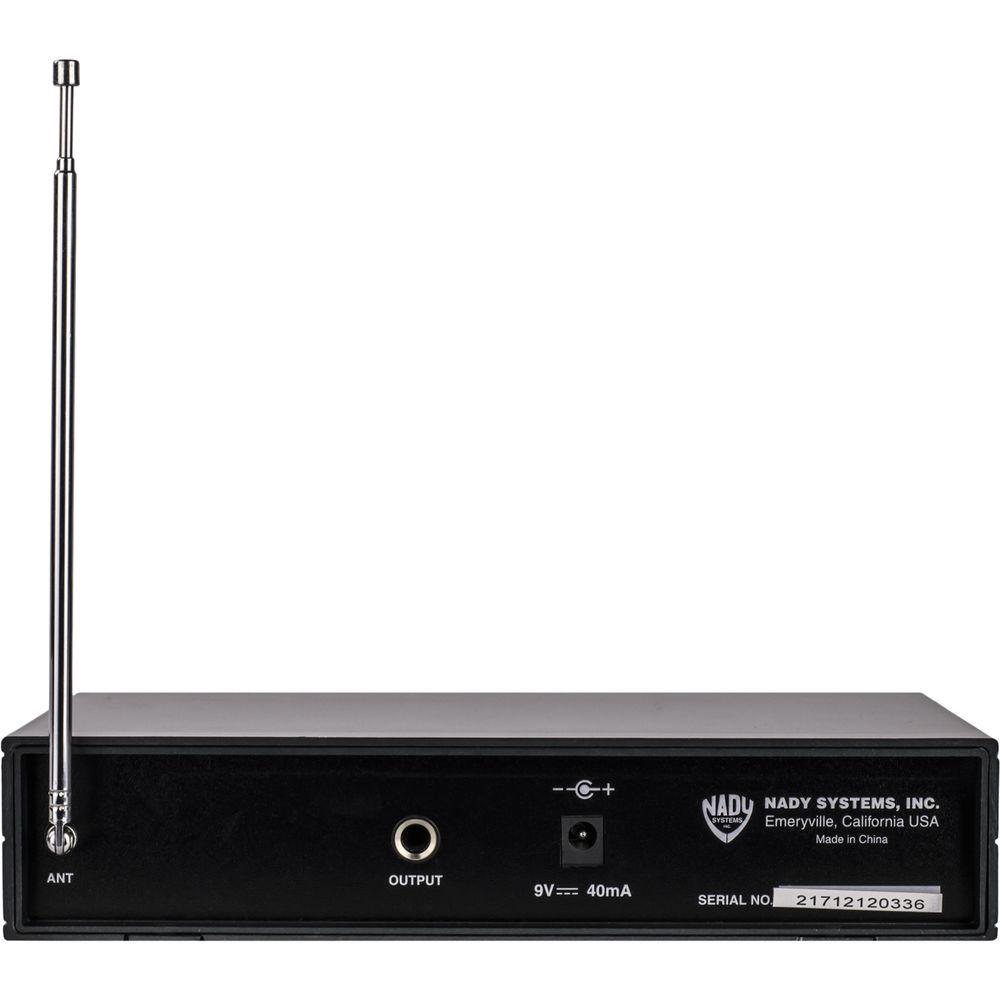

- Back panel ¼" audio output jack and DC power input jack for supplied AC/DC adaptor
- Special circuitry to eliminate transmitter on/off "pop" noise

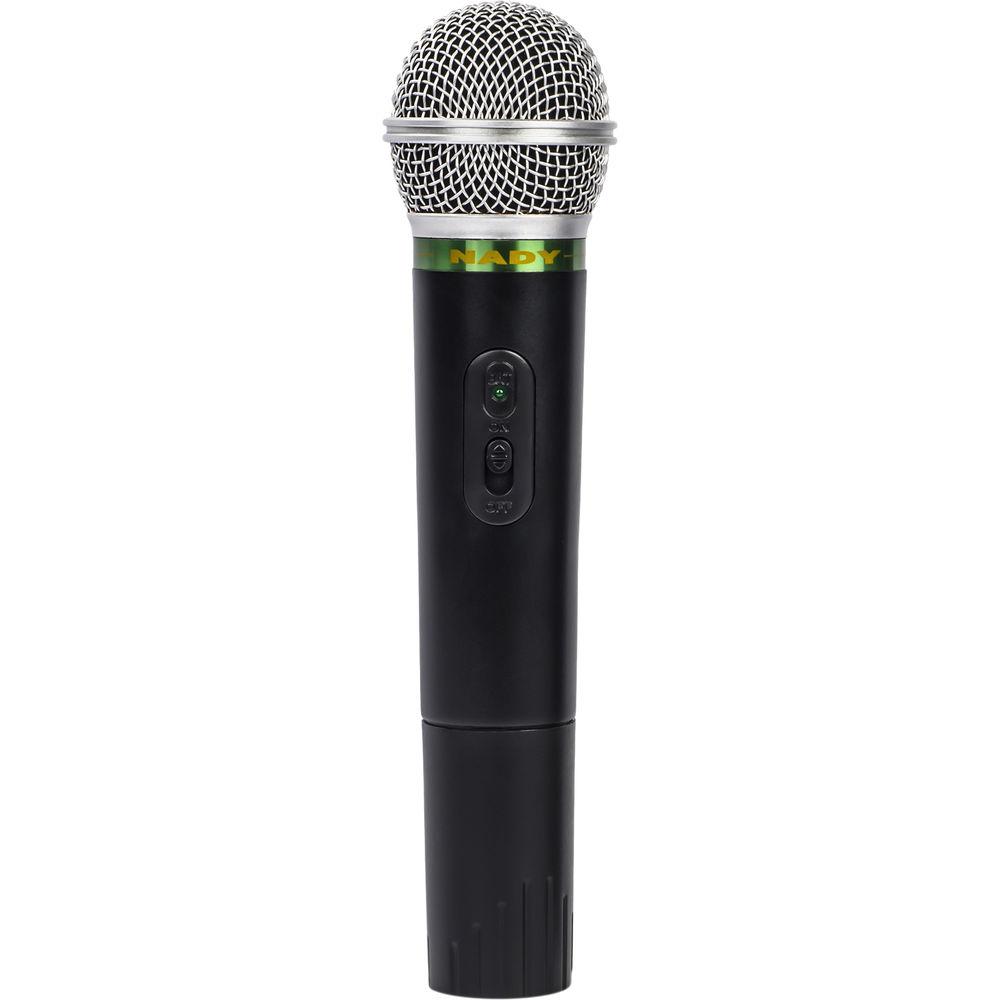

HT-Duo Handheld Microphone Transmitter - Operates on a separate single frequency in the VHF 170-216MHz band
- Easy, convenient operation with On/Off switch and low-battery LED indicator which flashes once for Unit On and lights steady for low-battery alert
- Features the Nady DM-20 unidirectional dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Operates up to 15 hours on a single 9V alkaline battery
UPC: 634343267808 In the Box Nady DKW-3 HT Single VHF Wireless System Handheld Mic Clip 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DKW-3 HT Single VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DKW-3 HT/D Specs | | | Type of System | Single Channel VHF | | RF Carrier Frequency Range | 170 - 216MHz | | Approx. Working Range | 150' typical-up to 300' line-of-sight | | Overall Frequency Response | 80Hz - 14kHz, +/-3dB | | Total Harmonic Distortion (THD) | < 0.7 | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM (F3E), +/-15kHz max | | | | Type of Outputs | 1/4" unbalanced audio out jack, 2.1mm | | Power Requirements | 9V @ 120mA, nominal, AC/DC adapter supplied | | Display | Power On, Transmitter RF (CH A & CH B) | | Antenna Type | Single 15" (38 cm), collapsible | | Dimensions | 8.2 x 5.3 x 1.75" (20.8 x 13.5 x 4.4cm) | | Weight | 16.1 oz (451 g) | | | | Type of Transmitter | HT-Duo Handheld Microphone Transmitter | | Type of Microphone | Dynamic | | Polar Pattern | Unidirectional (Cardioid) | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 8.9 x 1.4" (22.6 x 3.5cm) | | Weight | 5.4 oz (151 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.0 x 7.0 x 4.4" |
