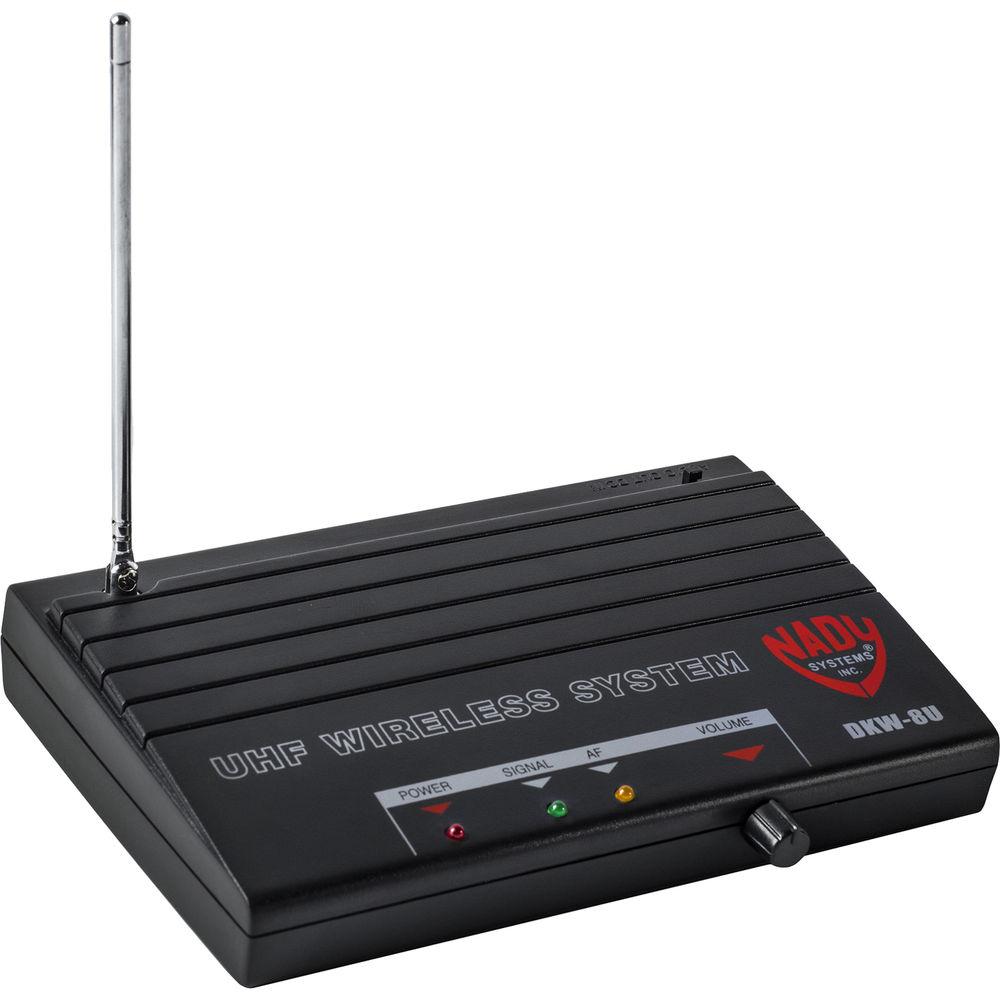

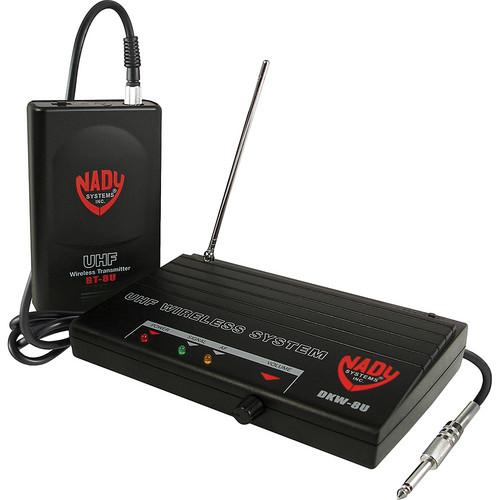

Product description The DKW-8U GT from Nady is the perfect entry-level professional UHF wireless system that delivers clear, transparent audio for a variety of singing and speech and wireless instrument applications. The system consists of a bodypack transmitter and tabletop receiver. The bodypack can accept input from a guitar or bass, a lavaliere microphone or head microphone. Easy to set up, the system provides all the advantages and freedom of wireless operation, without cumbersome cords. Receiver -
- Single-channel UHF wireless microphone/instrument system with interference-free operation on select UHF frequencies
- Compact and easy to operate - simply plug in a wired microphone or instrument cable
- All the advantages and freedom of wireless operation without cumbersome cords
- Excellent audio quality perfect for public speaking, karaoke/recreational singers, guitarists, DJ's, and many other applications
- Proprietary companding circuitry for a 120dB dynamic range
- Over 150 feet typical operating range, up to 300+ feet if in line-of-sight
- Power, signal and AF LED status indicators
- Adjustable audio output level

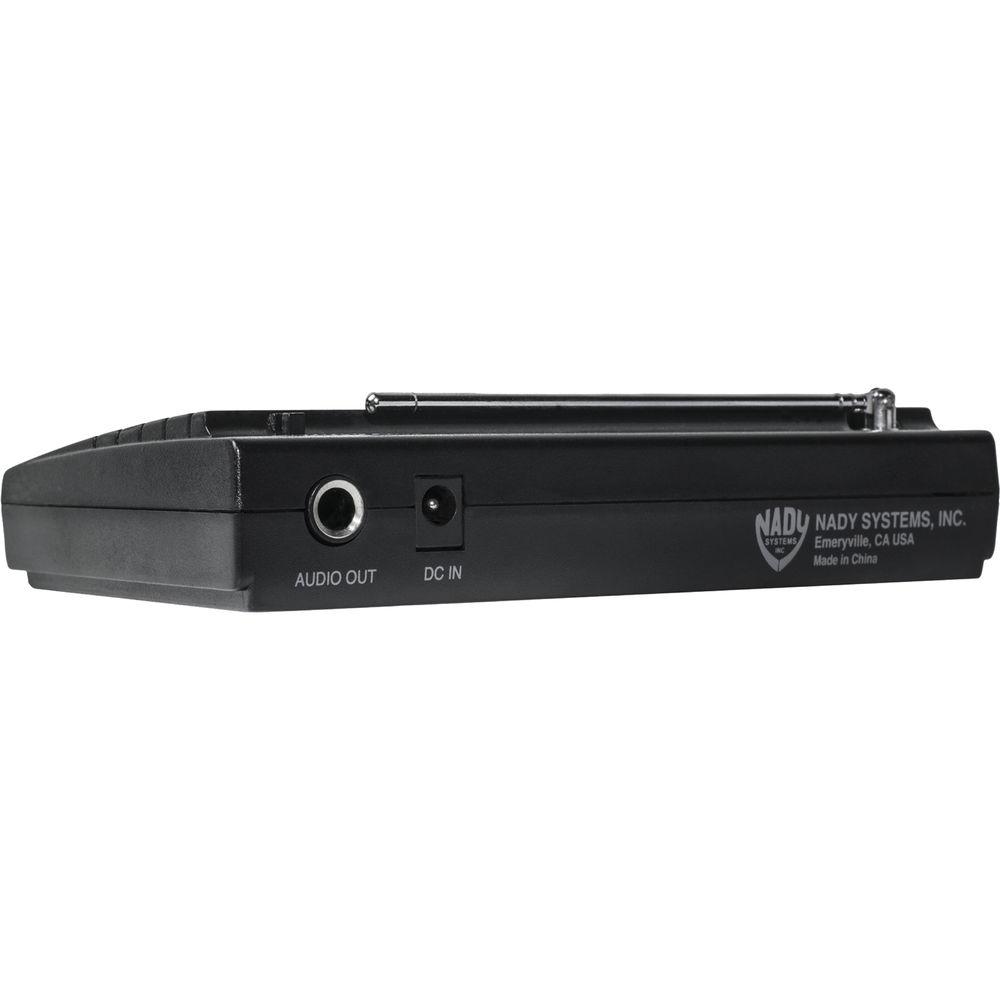

- 1/4" output phone jack for easy connection to a sound system
- Externally powered by (included) DC power adapter

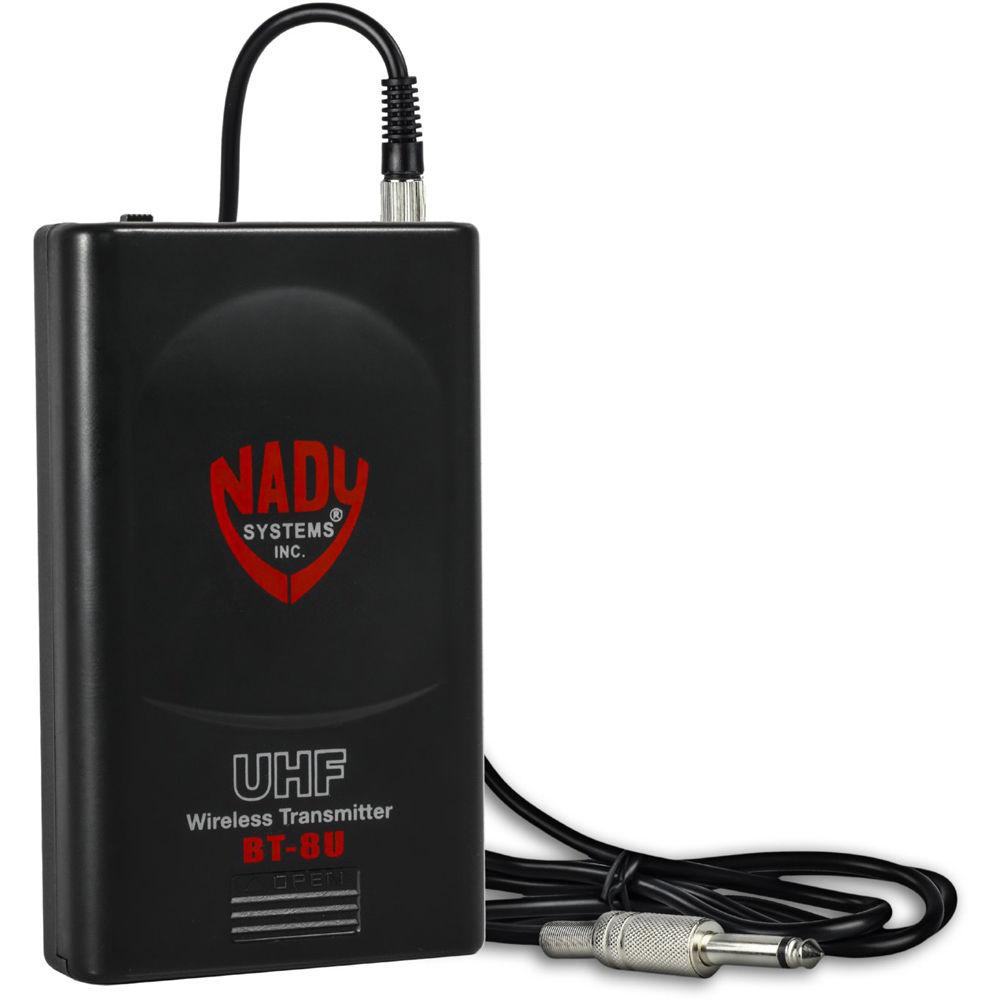

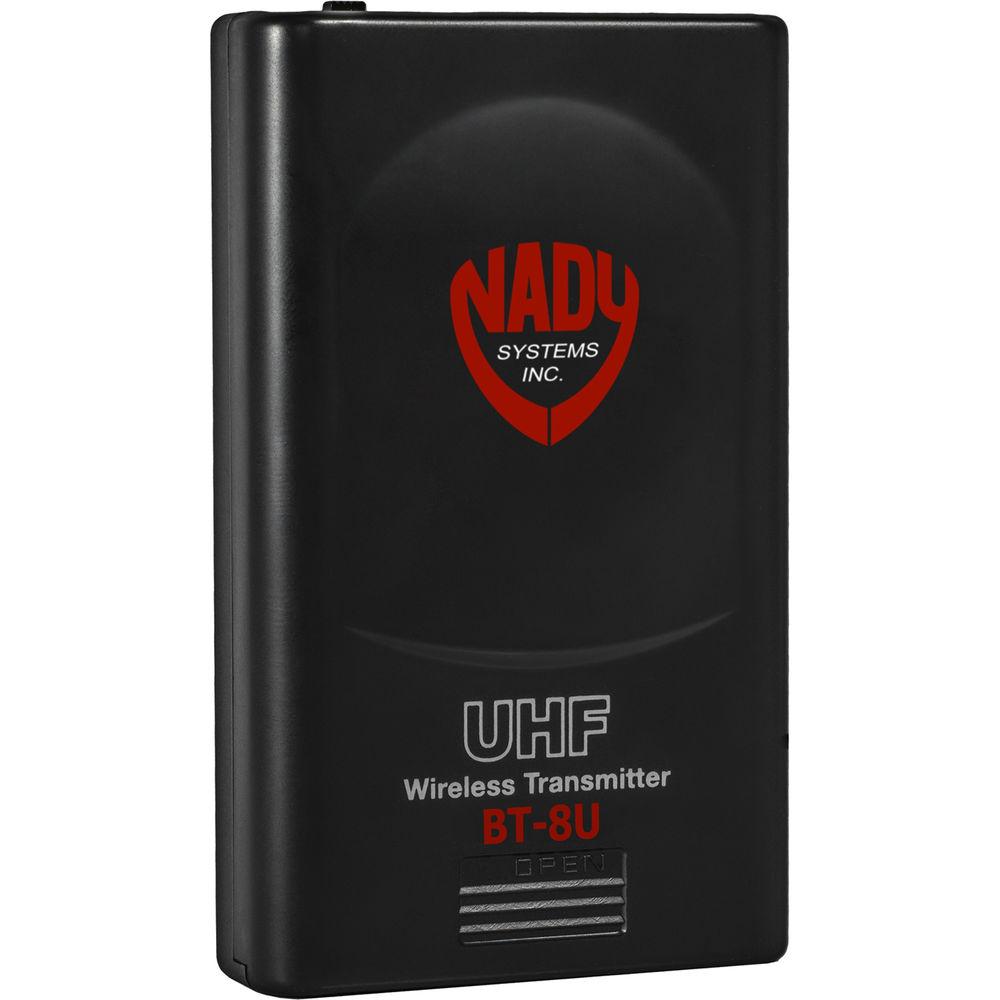

Transmitter -
- Choice of instrument (GT), Headmic (HM), or lapel (LT) microphone operating modes in a single bodypack transmitter
- Off/Standby/On switch allows convenient audio muting while transmitter on
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible input level adjust for optimum sound (HM/LT operating modes only)
- Uses 9V alkaline or NiMH battery
- Status LED indicator flashes once for unit on, lights steady for low-battery alert
- Lightweight, rugged ABS housing with integral antenna
UPC: 634343278316 In the Box Nady DKW-8U GT - UHF Wireless Instrument System (Ch. UA16 911.7MHz) BT-8U Bodypack Transmitter DKW-8U Receiver One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DKW-8U GT - UHF Wireless Instrument System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DKW-8U Specs | | | RF Carrier Frequency Range | UHF 911.7MHz | | Frequency Stability | +/-0.005%, crystal controlled | | Modulation | FM +/-20kHz normal | | Operating Range | Up to 250 feet typical (depending on site conditions)
Up to 500+ feet optimum line-of-sight | | Frequency Response | 50Hz to 16kHz, -3.0dB | | Dynamic Range | 120dB | | THD | <1% | | | | Reception Mode | Mono antenna reception | | Squelch | Fixed | | Controls | Volume control | | Connectors | DC In: 2.1mm barrel
Unbalanced Out: 1/4" (6.3mm) jack | | Display | Power ON
Signal
AF LEDs | | Unwanted Signal Rejection | 60dB image and spurious | | Power Requirements | 12V DC nominal, 500mA | | Antenna Type | 4" (9.5cm), single section telescopic | | Dimensions (WxDxH) | 6.9 x 4 x 1.5" (175 x 102 x 38mm) | | Weight | 7.6 oz (0.2kg) | | | | Audio Inputs | 3.5mm locking mini-jack
Internally switchable inputs - instrument, headworn microphone, or lavaliere microphone | | Controls | On/Standby/Off, Input Level Control
Internal GT/HM/LT switches | | RF Power Output | 20mW normal (50mW Maximum allowed by FCC) | | Harmonic and Spurs | <-50dB | | Antenna Type | Internal antennas | | Display | Single LED, flash once "ON", LOW BAT "Steady ON" | | Battery Type/Approx. Life | 9V Alkaline or NiMH battery
8 to 10 hours (Alkaline) | | Dimensions (WxDxH) | 4.25 x 2.5 x 1" (108 x 64 x 25mm) | | Weight | 3.1 oz (88g) without batteries | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 22.8 x 12.4 x 4.2" |
