User Manual for Nady DKW-8U Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady DKW-8U Wireless Microphone System
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady DKW-8U Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

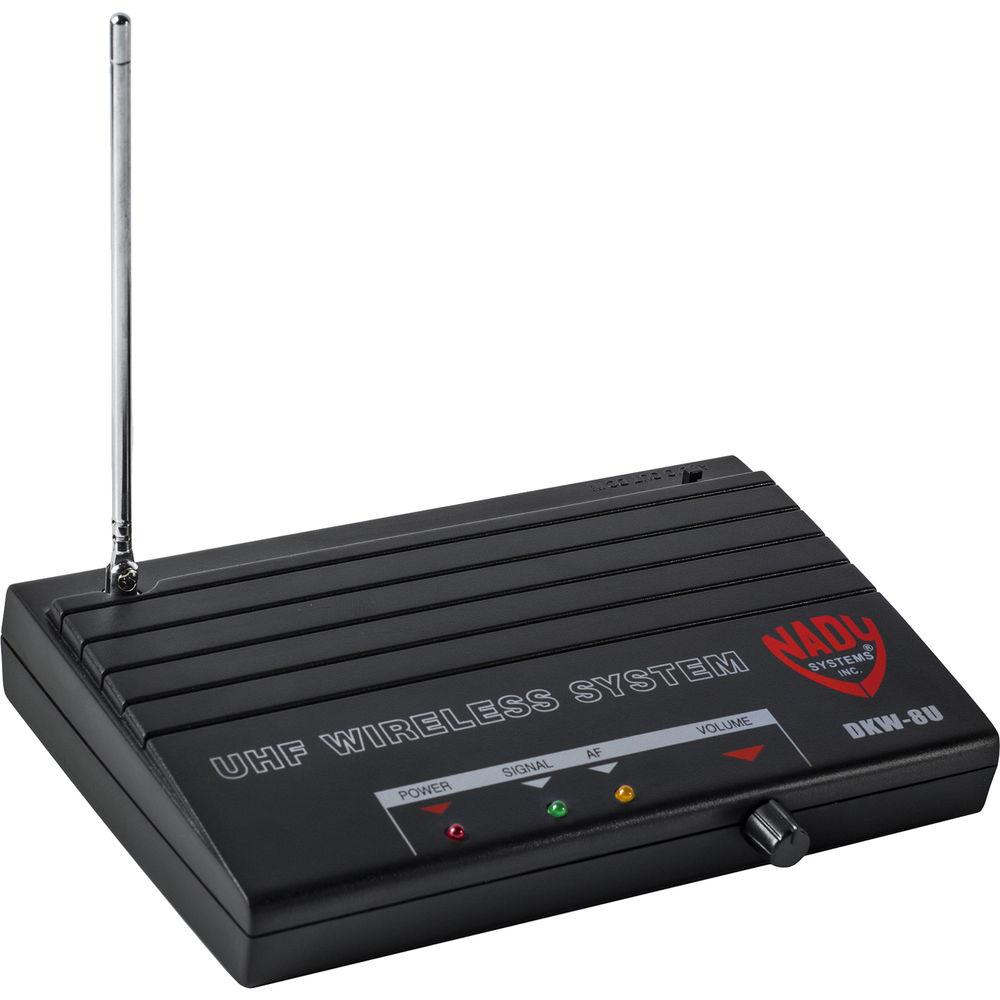

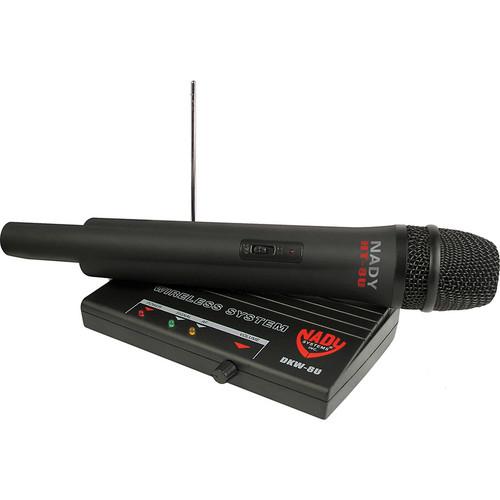

Product description The Nady DKW-8U Wireless Microphone System delivers a low-cost, yet stable UHF wireless microphone solution for small venues, restaurants, bars, presentations, DJs, houses-of-worship and more. The DKW-8U operates on a single channel UHF frequency and avoids the crowded, VHF occupied airspace.The system includes a low-profile receiver with a single antenna, and 1/4" phone audio output, and a handheld transmitter with a cardioid, neodymium element for maximum sensitivity and professional sound. The system is easy to setup and operate, and features up to 150' operating range (typical conditions). - Unprecedented value in a single-channel UHF wireless mic/instrument system with interference-free operation in any application or locale on select UHF frequencies
- Compact and easy to operate-simply plug in place of your wired microphone or instrument cable
- All the advantages and freedom of wireless operation without cumbersome cords
- Excellent high-fidelity audio
- Nady's proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available

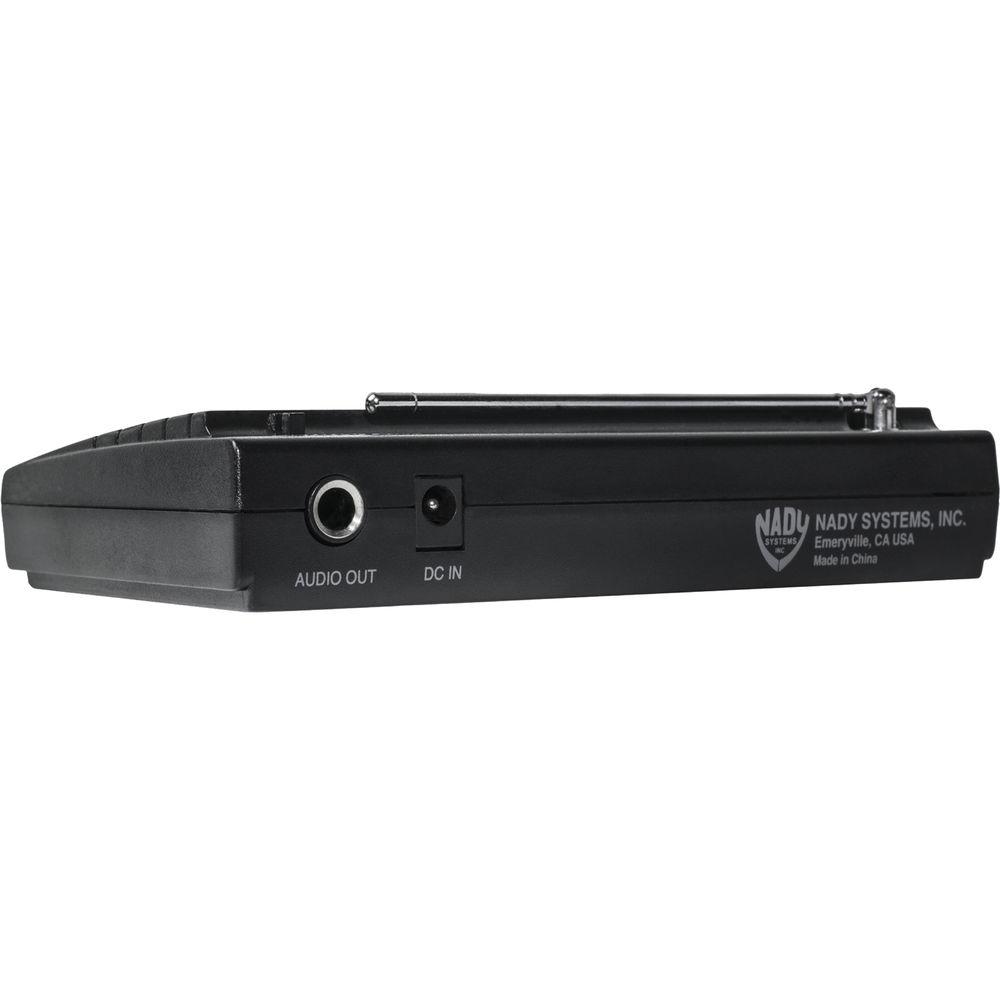

- 150+ ft. typical operating range, up to 300+ ft. line-of-sight; Power, Signal, AF LED status indicators; adjustable Audio Output Level for optimal sound; ¼" phone jack output for easy connection to sound system

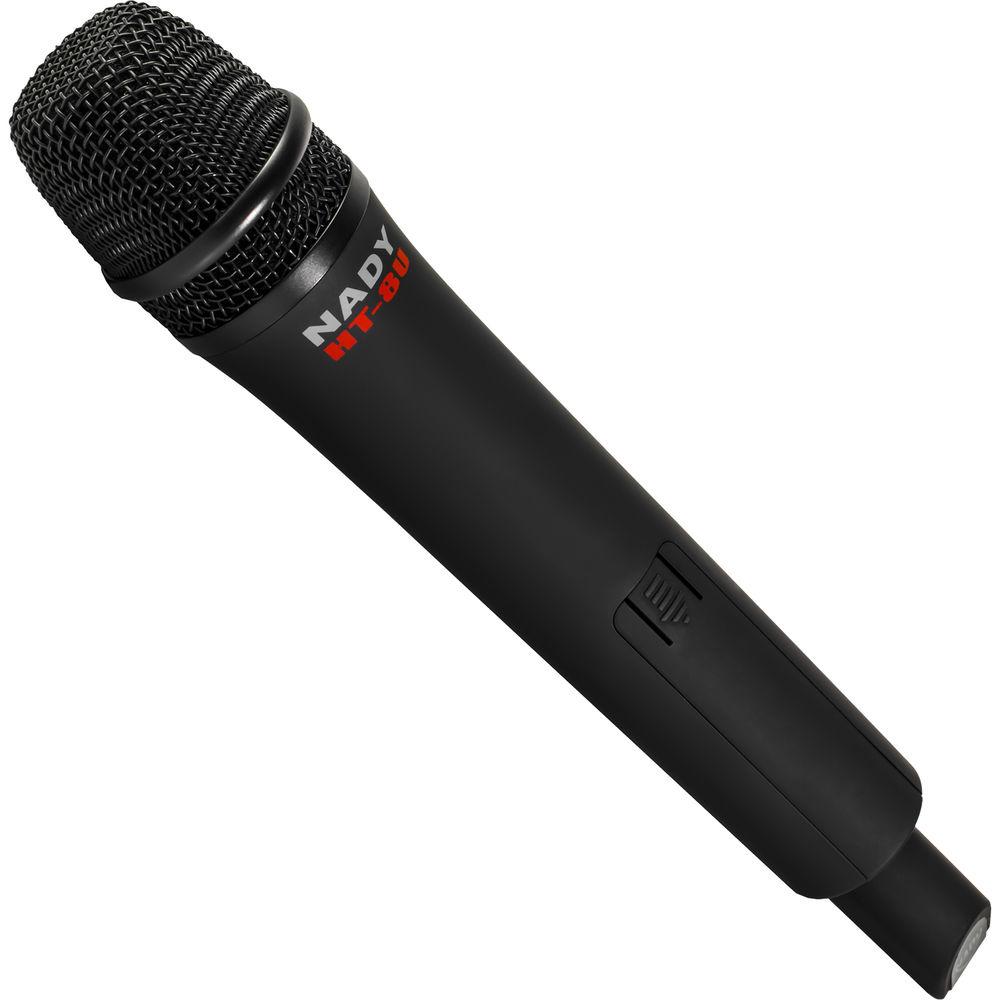

HT-8U Handheld Microphone Transmitter - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting while transmitter on Status LED indicator flashes once for Unit On; lights steady for low-battery alert
- Rugged ABS and rubber-coated, non-slip housing with integral antenna
- Uses two AA alkaline or NiMH batteries
UPC: 634343276923 In the Box Nady DKW-8U Wireless Microphone System Microphone Clip Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DKW-8U Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DKW-8U HT/11 Specs | | | Type of System | Single Channel UHF | | RF Carrier Frequency Range | UHF, choice of single frequencies on separate bands,902-928MHz and 944-952MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions);up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 50Hz - 16kHz, - 3dB | | Total Harmonic Distortion (THD) | < 1% RF Carrier Frequency Range UHF, choice | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM +/-20kHz normal | | | | Type of Outputs | Unbalanced Out: 1/4" (6.3mm) jack | | Power Requirements | DC 14V @ 400 mA, DC adapter included | | Display | Power ON, Signal, AF LEDs | | Antenna Type | 4" (9.5cm), Single section telescopic | | Dimensions | 6.88 x 4.0 x 1.5" (17.5 x 10.2 x 3.8cm) | | Weight | 7.6 oz (0.22kg) | | | | Type of Transmitter | HT-8U Handheld Transmitter | | Type of Microphone | Nady DM-10D Neodymium Dynamic | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | 2x AA Alkaline or NiMH batteries | | Mute Switch | On/Standby/Off | | Display | Low-battery LED | | Dimensions | 10.5 x 1.875" (26.7 x 4.8cm) | | Weight | 7.5 oz (213 g) without battery | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 12.5 x 4.6 x 4.1" |
