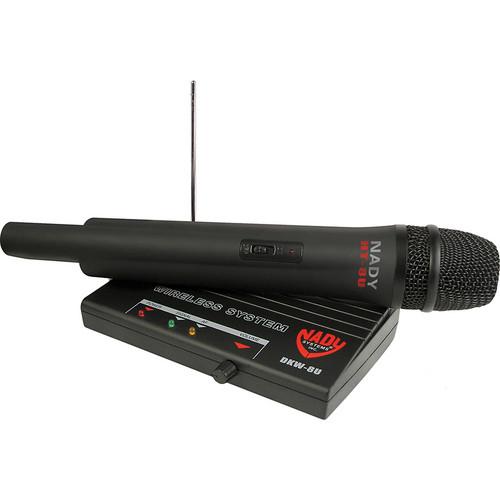

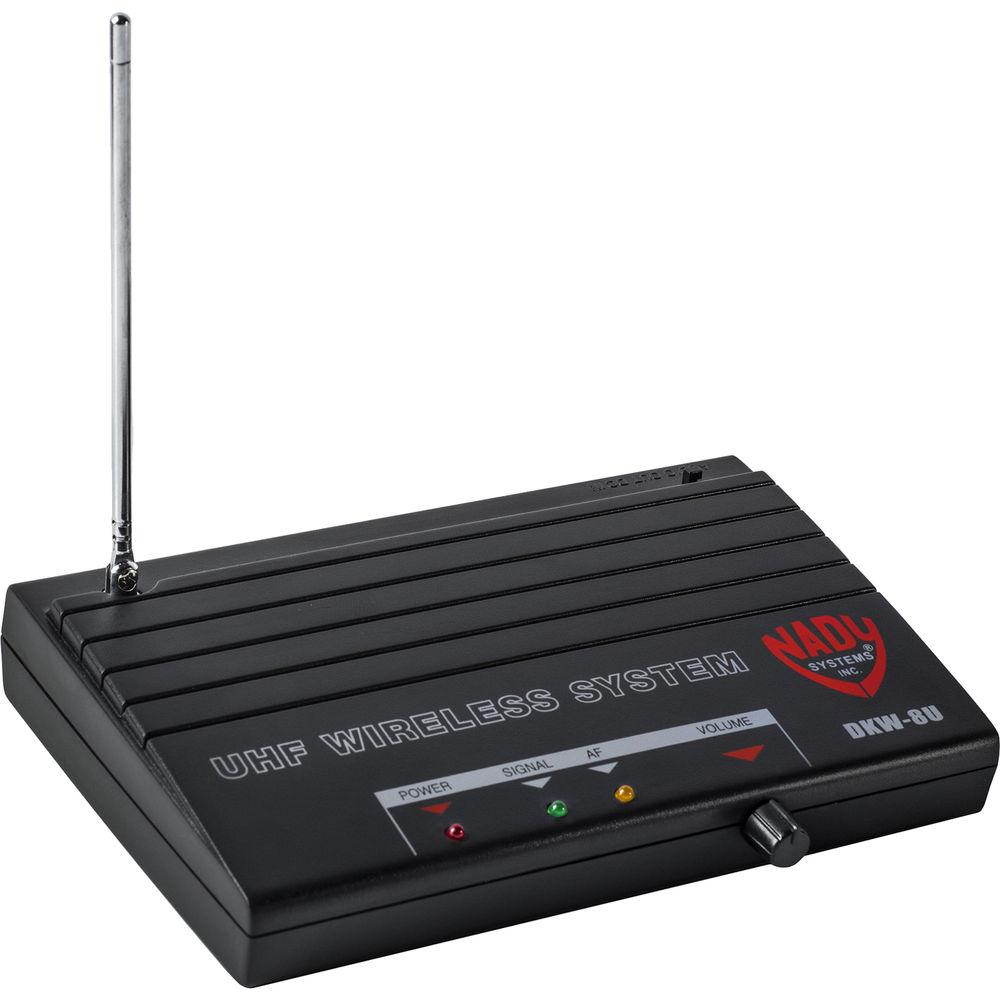

Product description The Nady DKW-8U Wireless Microphone System delivers a low-cost, yet stable UHF wireless microphone solution for small venues, restaurants, bars, presentations, DJs, houses-of-worship and more. The DKW-8U operates on a single channel UHF frequency and avoids the crowded, VHF occupied airspace.The system includes a low-profile receiver with a single antenna, and 1/4" phone audio output, and a handheld transmitter with a cardioid, neodymium element for maximum sensitivity and professional sound. The system is easy to setup and operate, and features up to 150' operating range (typical conditions). - Unprecedented value in a single-channel UHF wireless mic/instrument system with interference-free operation in any application or locale on select UHF frequencies
- Compact and easy to operate-simply plug in place of your wired microphone or instrument cable
- All the advantages and freedom of wireless operation without cumbersome cords
- Excellent high-fidelity audio
- Nady's proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available

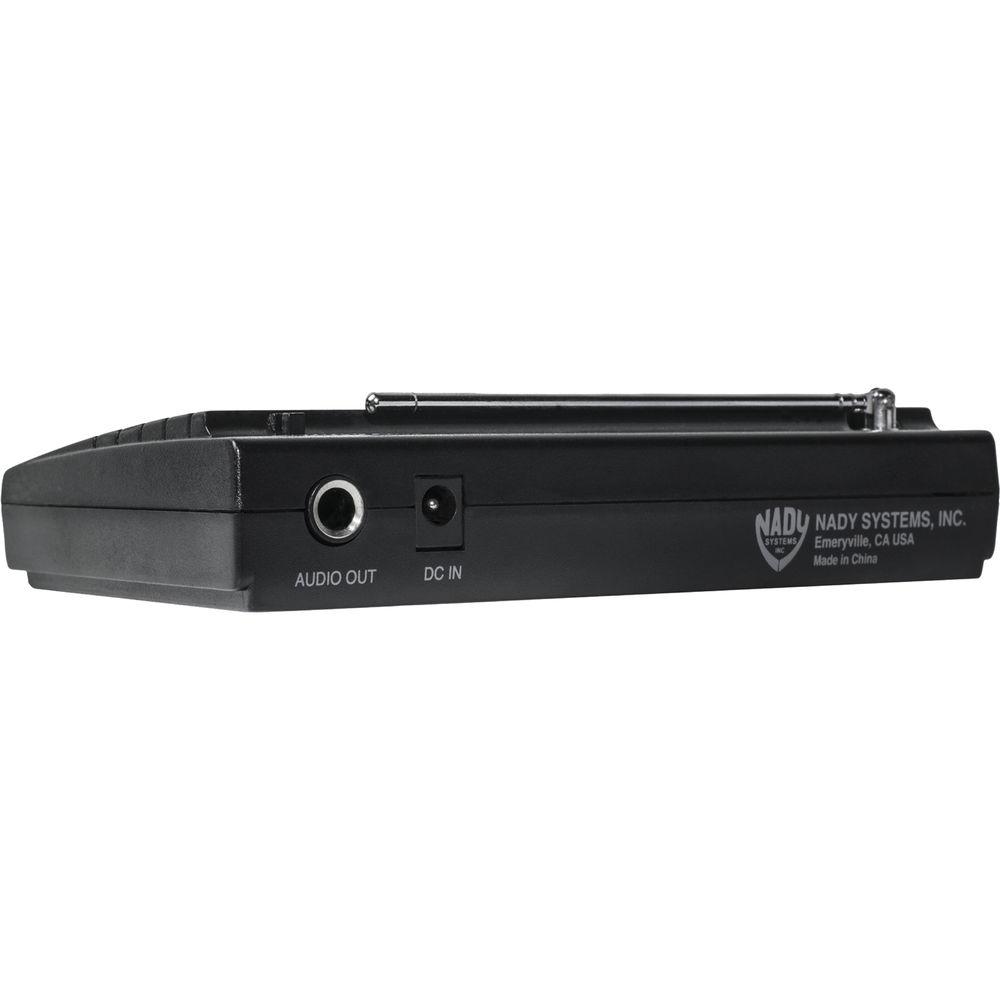

- 150+ ft. typical operating range, up to 300+ ft. line-of-sight; Power, Signal, AF LED status indicators; adjustable Audio Output Level for optimal sound; ¼" phone jack output for easy connection to sound system

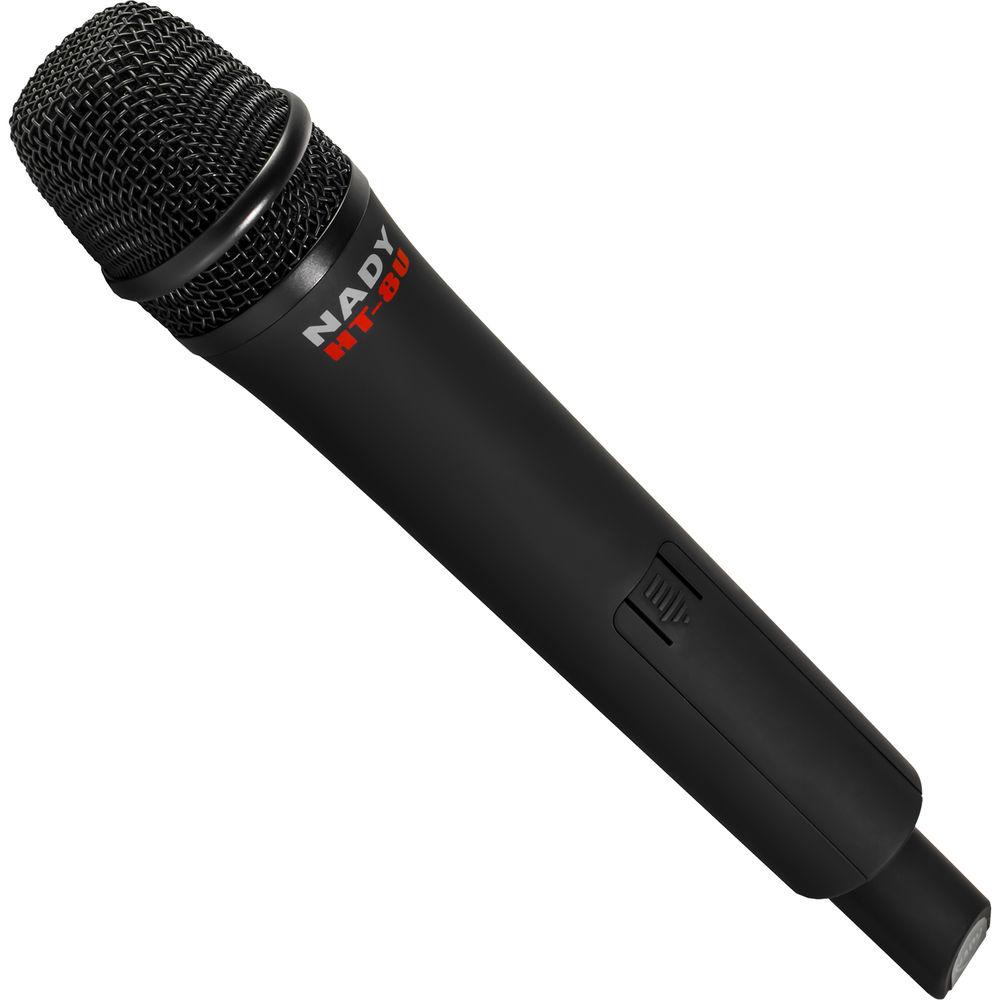

HT-8U Handheld Microphone Transmitter - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting while transmitter on Status LED indicator flashes once for Unit On; lights steady for low-battery alert
- Rugged ABS and rubber-coated, non-slip housing with integral antenna
- Uses two AA alkaline or NiMH batteries
UPC: 634343276909 In the Box Nady DKW-8U Wireless Microphone System Microphone Clip Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DKW-8U Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DKW-8U HT/17 Specs | | | Type of System | Single Channel UHF | | RF Carrier Frequency Range | UHF, choice of single frequencies on separate bands,902-928MHz and 944-952MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions);up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 50Hz - 16kHz, - 3dB | | Total Harmonic Distortion (THD) | < 1% RF Carrier Frequency Range UHF, choice | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM +/-20kHz normal | | | | Type of Outputs | Unbalanced Out: 1/4" (6.3mm) jack | | Power Requirements | DC 14V @ 400 mA, DC adapter included | | Display | Power ON, Signal, AF LEDs | | Antenna Type | 4" (9.5cm), Single section telescopic | | Dimensions | 6.88 x 4.0 x 1.5" (17.5 x 10.2 x 3.8cm) | | Weight | 7.6 oz (0.22kg) | | | | Type of Transmitter | HT-8U Handheld Transmitter | | Type of Microphone | Nady DM-10D Neodymium Dynamic | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | 2x AA Alkaline or NiMH batteries | | Mute Switch | On/Standby/Off | | Display | Low-battery LED | | Dimensions | 10.5 x 1.875" (26.7 x 4.8cm) | | Weight | 7.5 oz (213 g) without battery | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 12.6 x 4.7 x 4.0" |
