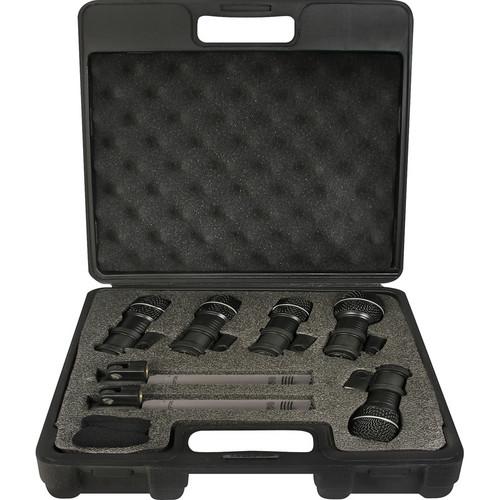

User Manual for Nady DMK-7C Drum Microphone Kit Click to enlarge the picture
Contents of the user manual for the Nady DMK-7C Drum Microphone Kit
- Product category: Instrument Microphones Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Instrument Microphones
|
User manual for the Nady DMK-7C Drum Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Nady DMK-7C Drum Microphone Kit is a complete 7-piece drum microphone kit with four DM70 instrument microphones, two CM90 condenser microphones, a DM80 kick drum microphone, mounting clips, and a foam-lined storage case. The 7-piece set is intended for large drum microphone placement, percussion arrays, amplifier cabinets, and general instrument capturing in live sound and recording applications. The CM90 small diaphragm condenser microphones are ideal for stereo overhead cymbals. Both microphones are flexible and feature a wide frequency response for capturing a wide variety of instruments. DM70 & DM80 Microphones - Cardioid pattern allows close miking without bleed-through from other drum kit pieces
- Neodymium element delivers maximum output
- High SPL handling capacity for distortion free reproduction of even the loudest drums and other instruments
- Transformerless moving-coil dynamic design for enhanced bass and fast transient response
- All metal construction for maximum reliability
- Special rubber shockmount mic holder minimizes floor vibration pick-up
- Incredibly small, low-profile design for minimum visibility and versatile close-miking placement around the drum kit
- Gold-plated XLR for maximum conductivity
- Full frequency response for sonic punch with exceptional clarity
CM90 Microphone - High sensitivity, extended smooth, full frequency response and very high SPL capability
- Transformerless design for minimal self-noise and increased dynamic range
- Rugged, turned-brass housing and internal sub-assembly shockmount for maximum reliability
- Requires 48V phantom power
UPC: 634343124095 In the Box Nady DMK-7C Drum Microphone Kit DM-80 Dynamic Kick Drum Microphone avstufxfsb 4 x DM-70 Dynamic Instrument Microphone 2 x CM 90 Cardioid Condenser Microphone Storage Case 7 x Microphone Shockmount 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DMK-7C Drum Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DMK-7C Specs | Transducer | DM 70 & DM 80: Dynamic, neodymium cartridge
CM90: Condenser | | Polar Pattern | Unidirectional Cardioid | | Frequency Response | DM 70: 70 ~ 16,000Hz
DM 80: 30 ~ 15,000Hz CM90: 40 to 16000Hz | | Sensitivity | DM 70: -73dB, +/- 3dB
DM 80: -72dB, +/- 3dB CM90: -45dB ± 3dB | | Maximum Input Sound Level | DM 70: >130dB
DM 80: >140dB CM90: 131dB | | Power Requirements | DM70 & DM80: None, Dynamic Element CM90: Power Requirement: +48VDC Phantom | | Output Impedance | DM 70: 600 Ohm
DM 80: 250 Ohm CM90: < 200 Ohms | | Output Connectors | 3-pin XLR | | Dimensions | DM 70: 1.65" X 4.5" (42 X 115mm)
DM 80: 2.1" X 4.7" (54 X 120mm) CM90: 5.1 x 0.9" (130 x 22mm) | | Weight | DM 70: 8.5oz (237g)
DM 80: 10.6oz (295g) CM90: 5oz (130g) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.9 x 12.1 x 3.7" |
