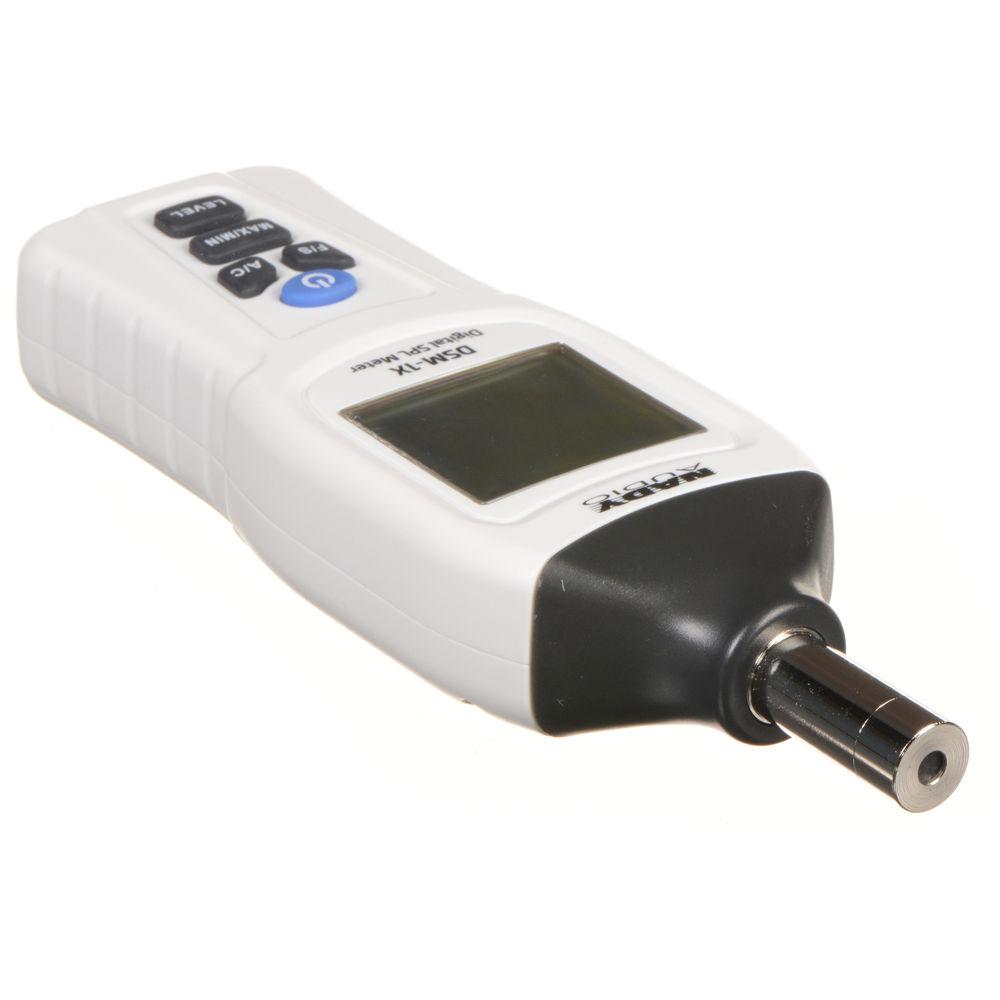

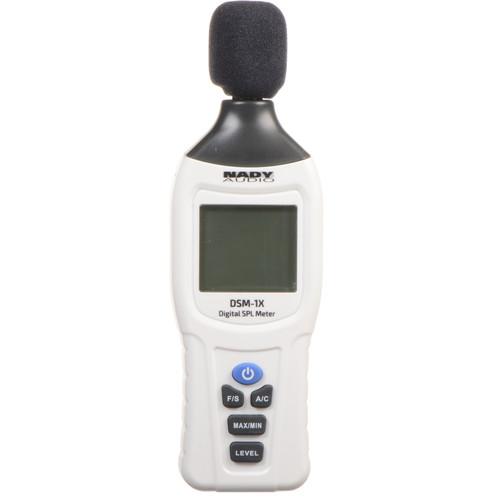

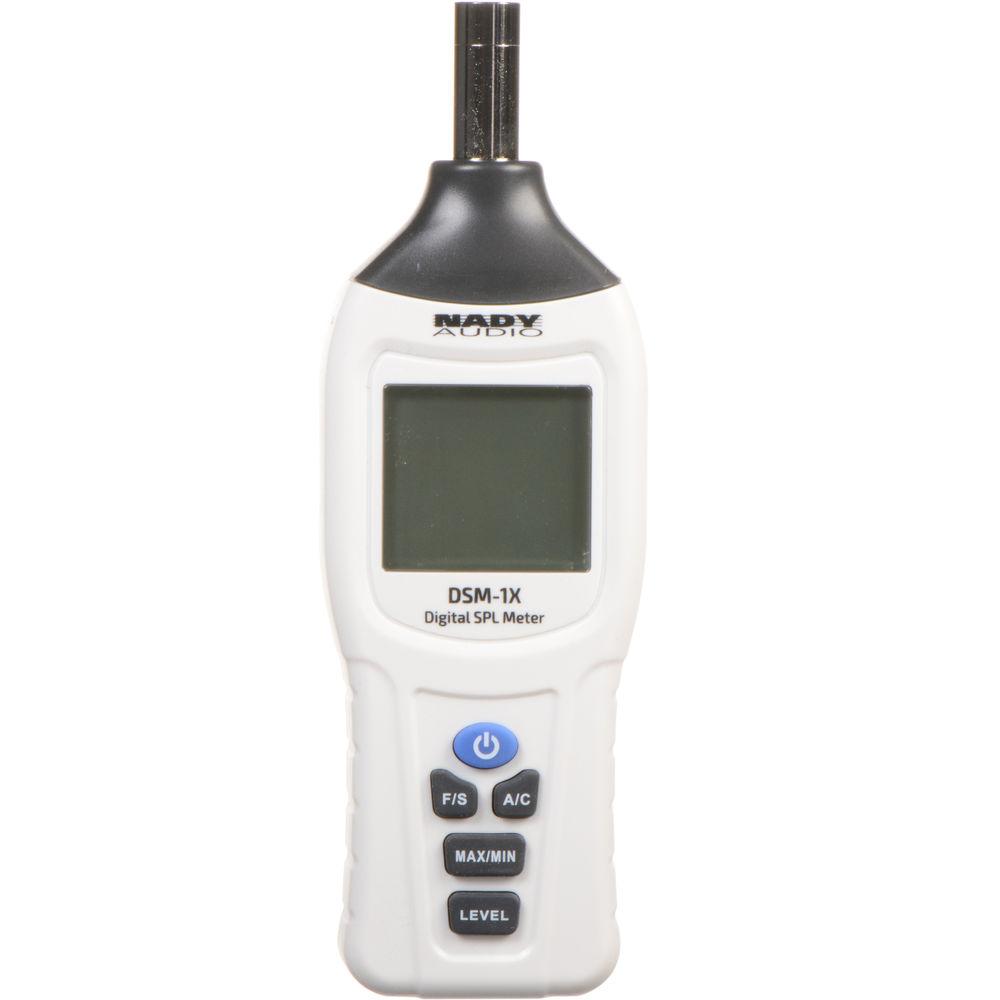

User Manual for Nady DSM-1X Digital SPL Meter Click to enlarge the picture
Contents of the user manual for the Nady DSM-1X Digital SPL Meter
- Product category: Metering Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Metering
 |
User manual for the Nady DSM-1X Digital SPL Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The NADY DSM-1X SPL Meter allows you to measure how loud your sound system or live band is in order to protect both your equipment and hearing, as well as comply with legal regulations.
You can also use the meter to make sure your speakers are at the same level or to match your subwoofer(s) to your speakers.
The device features an easy-to-read 4-digit LCD display with selectable backlight. It includes selectable A/C weighting as well as a selectable fast/slow response for ranges measuring between 30 and 130 dB at 32 to 8000 Hz. A maximum, minimum, and instantaneous data hold selector allows you to capture the input at any time. An automatic out-of-range detector and an internal battery tester help ensure the unit operates as it should. A 9 VDC alkaline battery, a foam windscreen, and a miniature calibration screwdriver are included. UPC: 634343286168 In the Box Nady DSM-1X Digital SPL Meter Windscreen Calibration Screwdriver 9V Battery Carrying Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DSM-1X Digital SPL Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DSM-1X Specs | Standard | IEC61672-1 CLASS2 | | Level Range | 30 to 130 dB (auto)
30 to 80 dB (low)
50 to 100 dB (medium)
80 to 130 dB (high) | | Accuracy | ±1.4 dB | | Frequency Range | 31.5 to 8000 Hz | | Weighting | Frequency: A and C
Time: Fast (125 ms) and slow (1 s) | | Battery Type | 9 VDC | | Battery Life | 30 hours minimum | | Auto Power Off | After 15 minutes of inactivity | | Operating Conditions | Temperature: 68 to 140° F (20 to 60° C)
Relative Humidity: 10 to 90% | | Storage Conditions | Temperature: 68 to 140° F (20 to 60° C)
Relative Humidity: 10 to 75% | | Dimensions | 6.2 x 2.5 x 1.3" (158 x 62 x 32 mm) | | Weight | 6.3 oz (178 g) | | | | Package Weight | 0.77 lb | | Box Dimensions (LxWxH) | 9.25 x 5.35 x 2.5" |
