User Manual for Nady DW-22 HTLT Digital Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady DW-22 HTLT Digital Wireless Microphone
- Product category: Wireless Systems Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Wireless Systems
 |
User manual for the Nady DW-22 HTLT Digital Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

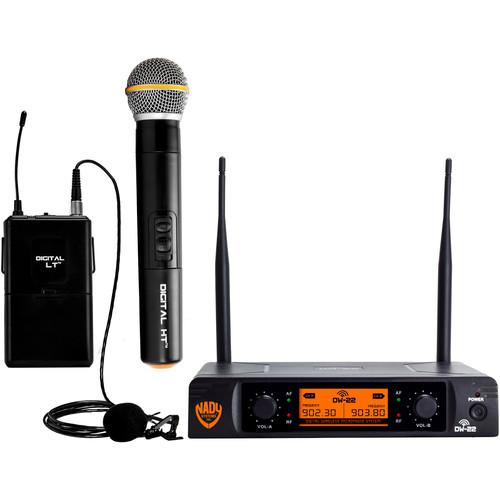

Product description The handheld and lapel mics-equipped DW-22 HTLT Digital Wireless Microphone System from NadySystems is a streamlined wireless system with 24-bit conversion that will be suitable for performances, karaoke, and other public address applications. It provides a 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz).

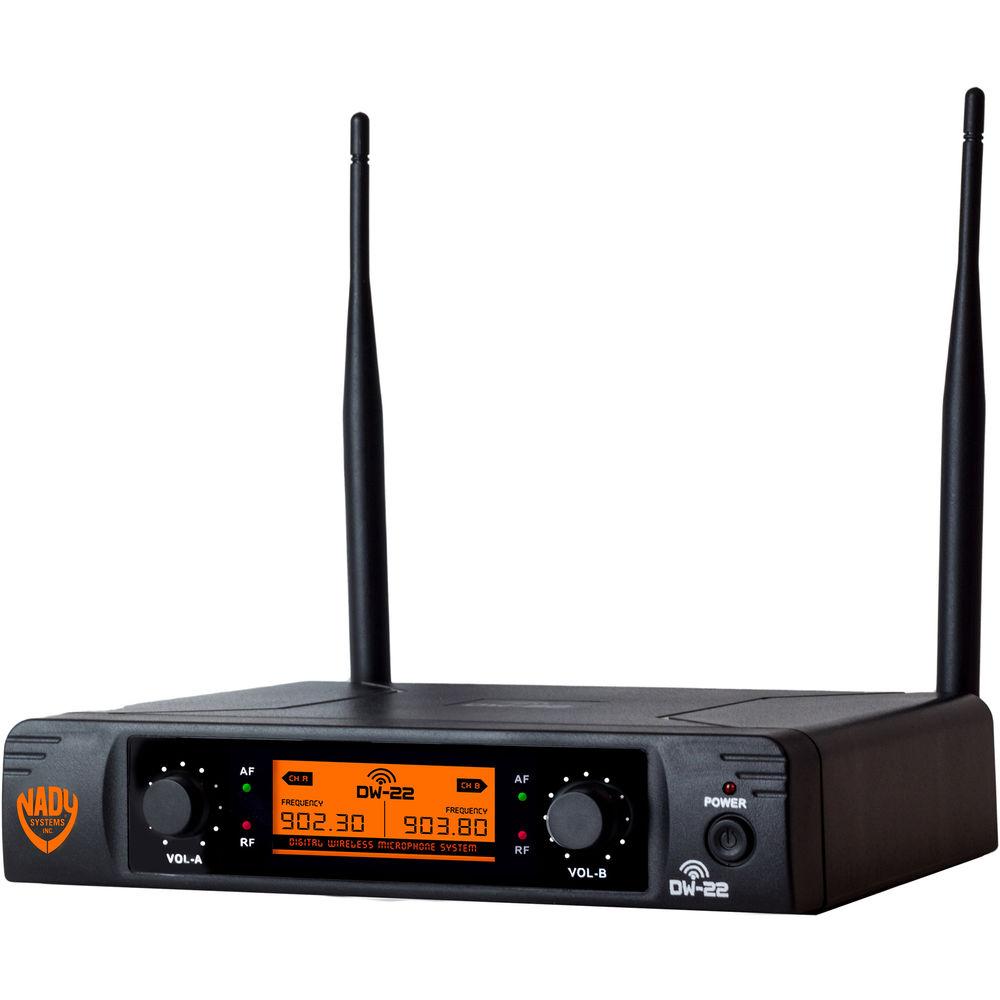

The included handheld transmitter, bodypack and lapel mics provide a line-of-sight operation range of up to 300⿿ and operate in the UHF 900 MHz band. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver. Perfect for stage performance, karaoke, and public address (presentations, classrooms, and conferences) operatio UPC: 634343291629 In the Box Nady DW-22 HTLT Digital Wireless Microphone System (Handheld & Lapel Mics) Handheld & Lapel Mics 1/4" Audio Cable AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady DW-22 HTLT Digital Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady DW-22 Specs | | | Wireless Transmission | Digital UHF (900 MHz) | | Number of RF Channels | 2 | | Included Transmitters | 1 x Handheld

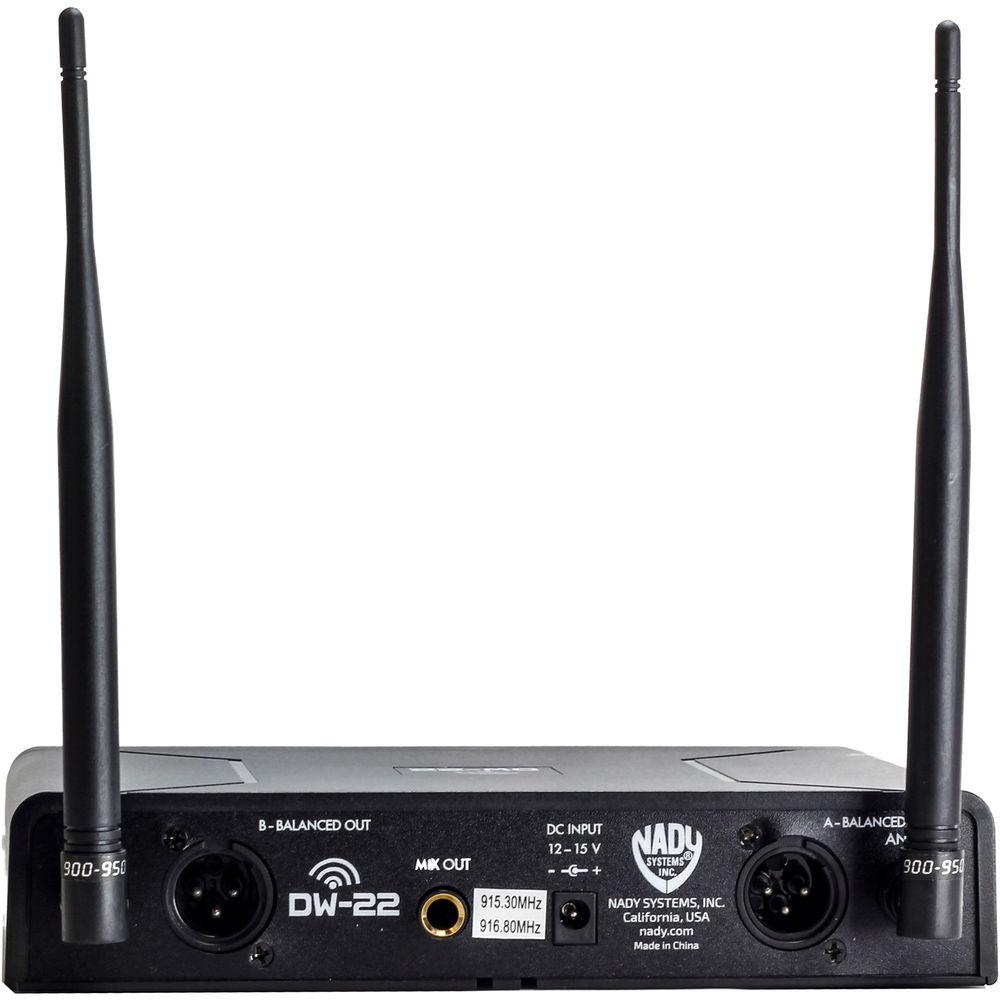

1 x Bodypack with Microphone | | Diversity | Antenna Diversity | | RF Frequency Band | 902 to 951 MHz | | Max Operating Range | 300' / 91.4 m (Line of Sight) | | Sample Rate/Resolution | 48 kHz / 24-Bit | | Latency | <3 ms (Maximum) | | Dynamic Range | 120 dB (Typical) | | Encryption | None | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/4 Wave External, Fixed (Rear-Mount) | | Number of Audio Channels | 1 | | Audio I/O | 1 x 1/4" TS Female Unbalanced Output
2 x XLR 3-Pin Male Balanced Output | | Phantom Power Protection | Not Specified by Manufacturer | | Frequency Response | 20 Hz to 20 kHz
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
