User Manual for Nady Encore Duet Dual Receiver VHF Wireless Guitar System Click to enlarge the picture
Contents of the user manual for the Nady Encore Duet Dual Receiver VHF
- Product category: Guitar Wireless Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Guitar Wireless
 |
User manual for the Nady Encore Duet Dual Receiver VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Encore Duet Dual Receiver VHF Wireless Guitar System by Nady brings you a complete wireless solution for up to two guitars or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4" phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery. - Available on selected frequencies in the VHF high-band (171-216 MHz) for low-interference, long-range performance

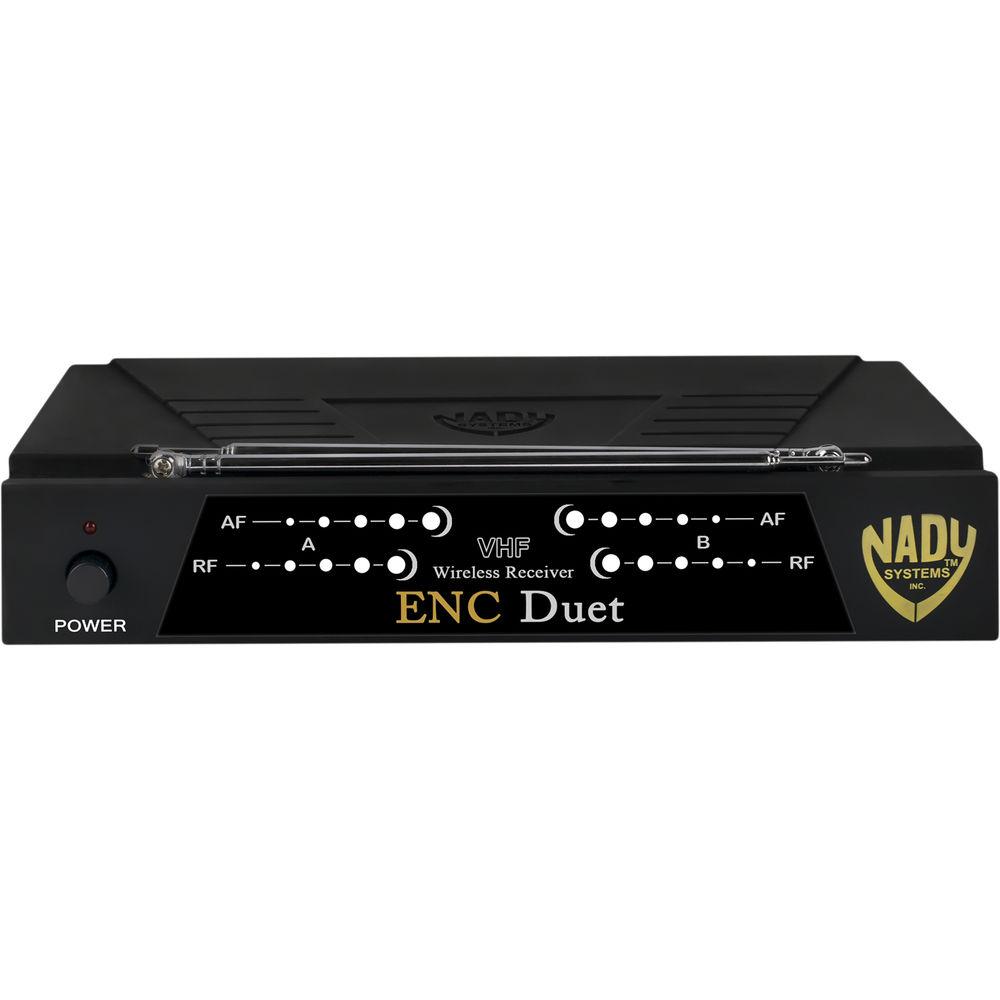

- Half-rack receiver design with retractable front panel antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- RF and AF 5-LED displays for monitoring incoming signal strength and audio level

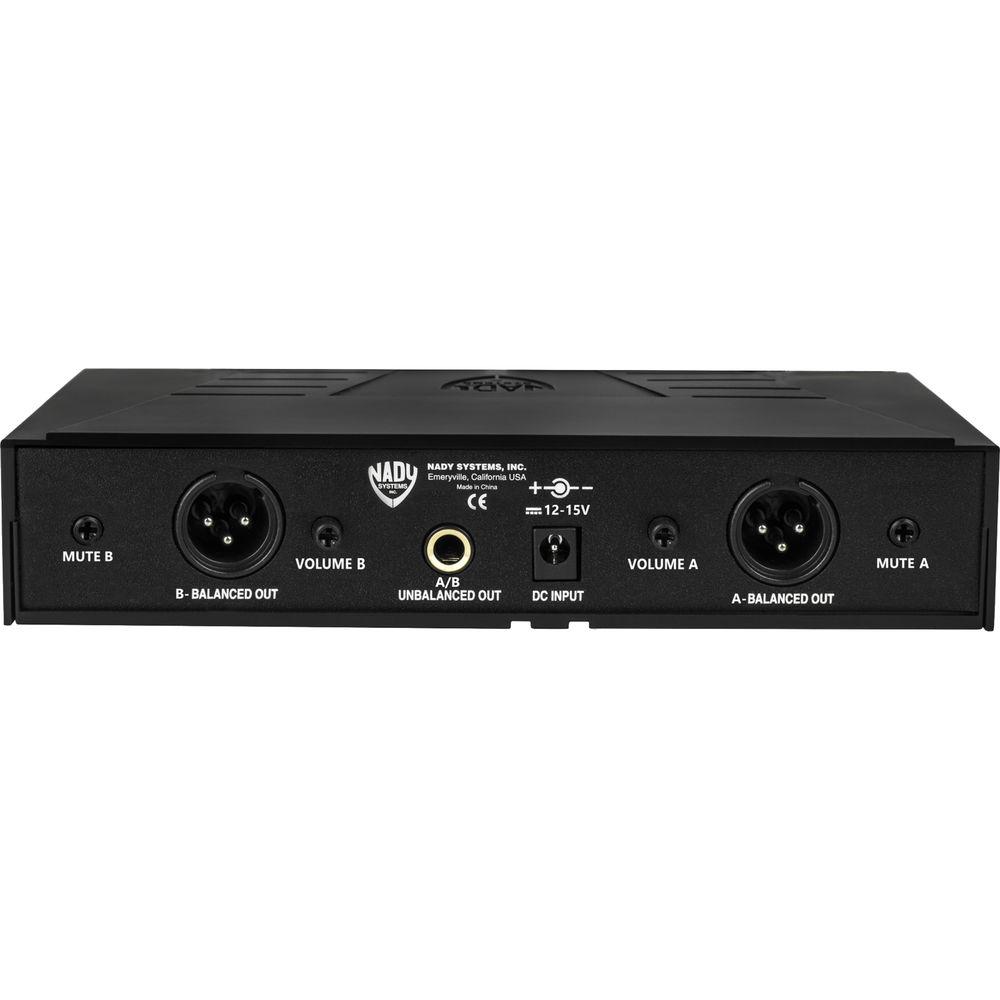

Balanced XLR and unbalanced adjustable ¼" jack output - Noiseless transmitter On/Off switching
- Operates up to 15 hours on a single 9V alkaline battery
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible Input Level Adjust for optimum sound
- This system includes two WGT Instrument Bodypack transmitters
WGT Instrument Bodypack Transmitters - Off/Standby/On switch allows convenient audio muting with the transmitter on
- LED status indicator flashes once for unit on, lights steady for low-battery alert

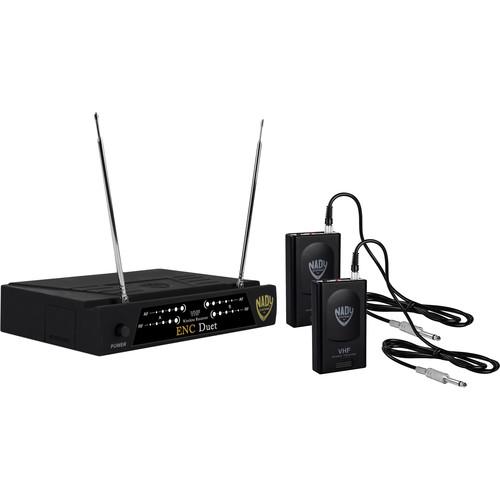

UPC: 634343085570 In the Box Nady Encore Duet Dual Receiver VHF Wireless Guitar System Encore Duet Receiver 2 x WGT Instrument Bodypack Transmitters 2 x Antennas Instrument Cord Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Encore Duet Dual Receiver VHF Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady Encore Duet Specs | | | Type of System | Dual Channel VHF | | RF Carrier Frequency Range | 2 channels between 169-216MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions)
Up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 25Hz - 20kHz, +/-3dB | | Total Harmonic Distortion (THD) | < 0.3 % | | Frequency Stability | +/- 0.005%
crystal controlled | | Modulation | FM (F3E)
+/-20kHz max | | | | Type of Outputs | Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed)
2.1 mm barrel-type DC input jack | | Power Requirements | 12V @ 400mA, nominal
AC/DC adapter supplied | | LED Indicators | Power ON, Dual 5-LED RF and AF level displays(Ch A/B) | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7 cm) | | Weight | 1.6 lb (0.73 kg) | | | | Type of Transmitter | WGT instrument bodypack | | Polar Pattern | Omnidirectional | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0 cm) | | Weight | 3.6 oz (101 g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.1 x 11.4 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
