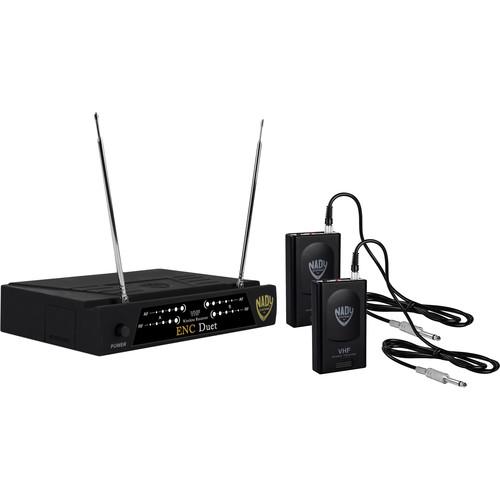

Product description The Encore Duet Dual Receiver VHF Wireless Guitar System by Nady brings you a complete wireless solution for up to two guitars or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4" phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery. - Available on selected frequencies in the VHF high-band (171-216 MHz) for low-interference, long-range performance

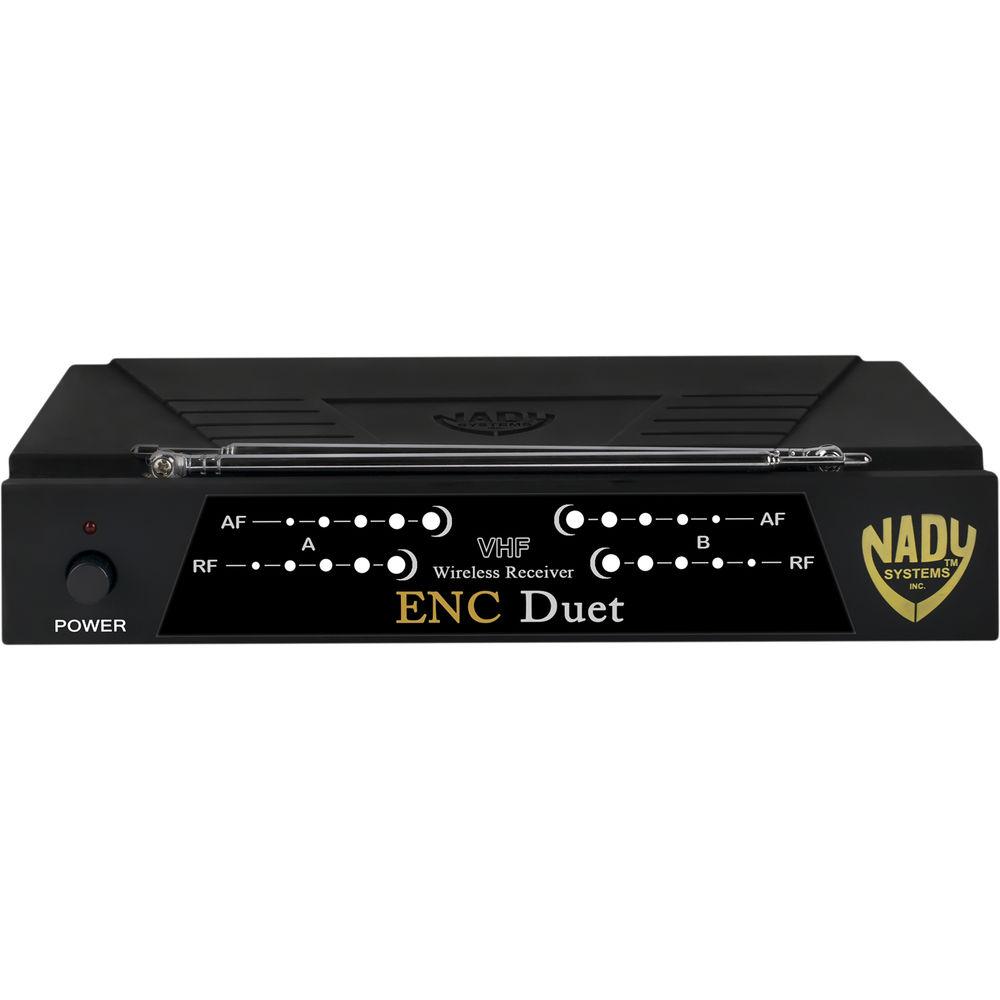

- Half-rack receiver design with retractable front panel antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- RF and AF 5-LED displays for monitoring incoming signal strength and audio level

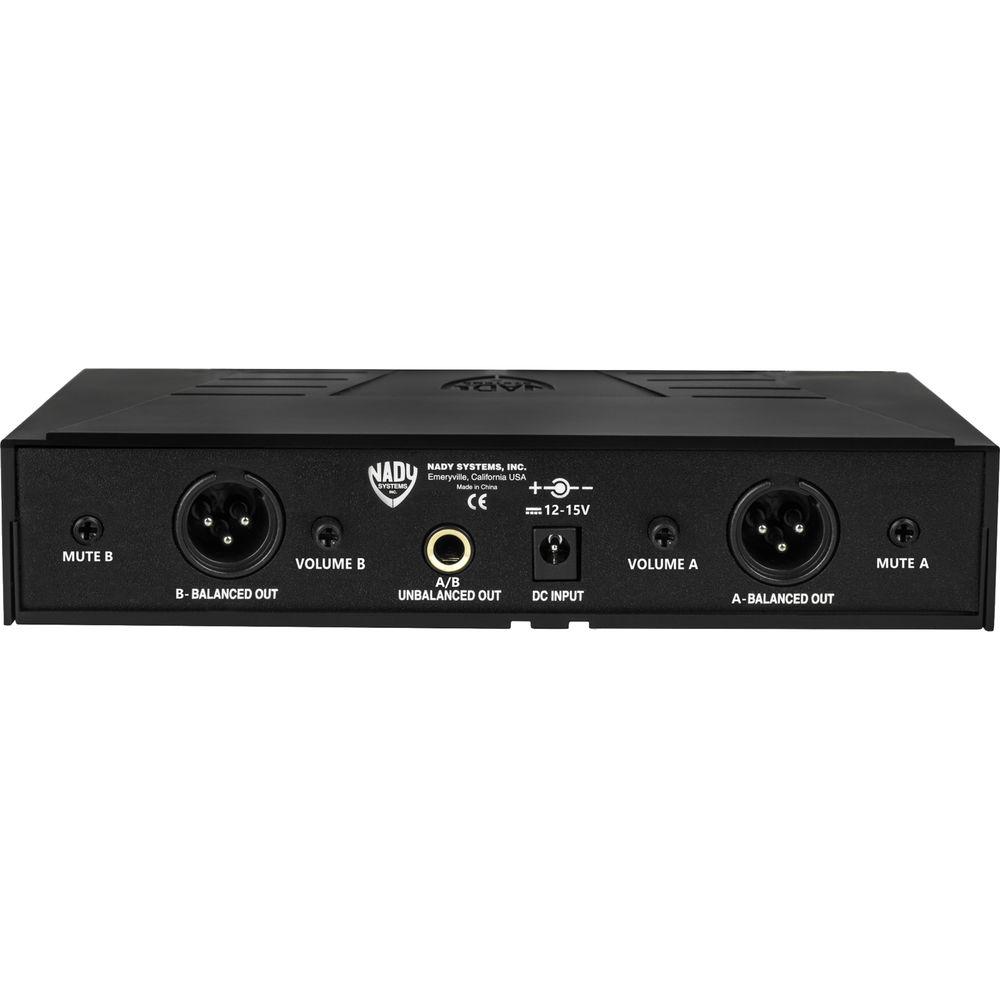

Balanced XLR and unbalanced adjustable ¼" jack output - Noiseless transmitter On/Off switching
- Operates up to 15 hours on a single 9V alkaline battery
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible Input Level Adjust for optimum sound
- This system includes two WGT Instrument Bodypack transmitters
WGT Instrument Bodypack Transmitters - Off/Standby/On switch allows convenient audio muting with the transmitter on
- LED status indicator flashes once for unit on, lights steady for low-battery alert
UPC: 634343286571 In the Box Nady Encore Duet Dual Receiver VHF Wireless Guitar System Encore Duet Receiver 2 x WGT Instrument Bodypack Transmitters 2 x Antennas Instrument Cord Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Encore Duet Dual Receiver VHF Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady Encore Duet Specs | | | Type of System | Dual Channel VHF | | RF Carrier Frequency Range | 2 channels between 169-216MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions)
Up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 25Hz - 20kHz, +/-3dB | | Total Harmonic Distortion (THD) | < 0.3 % | | Frequency Stability | +/- 0.005%
crystal controlled | | Modulation | FM (F3E)
+/-20kHz max | | | | Type of Outputs | Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed)
2.1 mm barrel-type DC input jack | | Power Requirements | 12V @ 400mA, nominal
AC/DC adapter supplied | | LED Indicators | Power ON, Dual 5-LED RF and AF level displays(Ch A/B) | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7 cm) | | Weight | 1.6 lb (0.73 kg) | | | | Type of Transmitter | WGT instrument bodypack | | Polar Pattern | Omnidirectional | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0 cm) | | Weight | 3.6 oz (101 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.0 x 11.4 x 2.3" |
