User Manual for Nady Encore Duet Dual Wireless Handheld System Click to enlarge the picture
Contents of the user manual for the Nady Encore Duet Dual Wireless Handheld
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady Encore Duet Dual Wireless Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

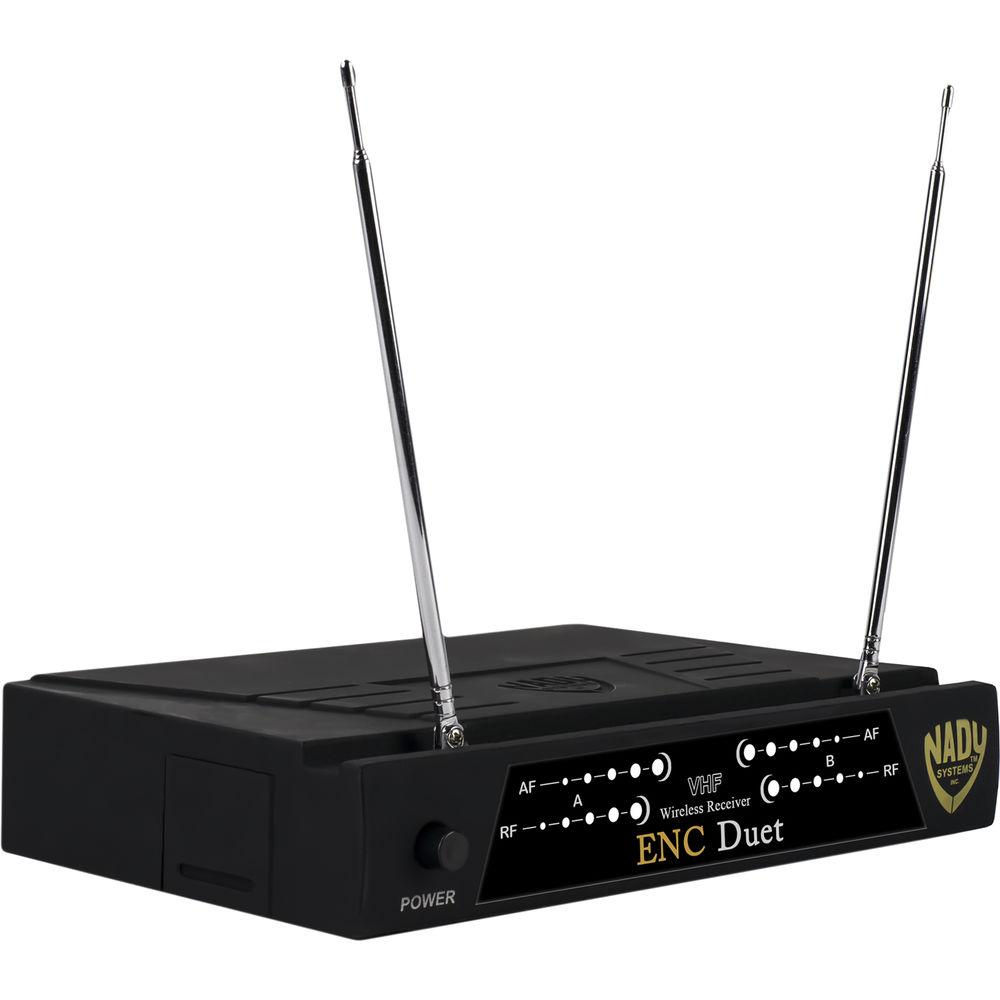

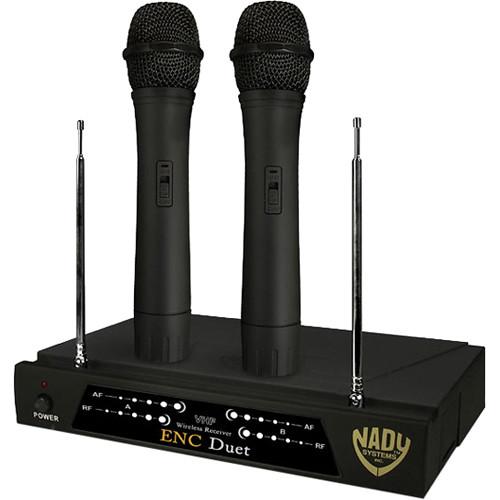

Product description The Nady Encore Duet Dual Wireless Handheld System is a cost effective cable-free solution for karaoke, DJs, houses-of-worship, auditoriums, presentations, small performances and more. The Nady Encore Duet Dual allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, 1/4" phone and XLR outputs for connection to a PA system. The WHT handheld transmitters feature Nady's DM-10D neodymium capsules with cardioid polar patterns. The transmitters operate up to 15 hours on single 9V batteries. - Loaded with top professional operating features
- Available on selected frequencies in the VHF high-band (171.905 - 215.200 MHz) for interference-free, long-range performance
- Half-rack receiver design with retractable front panel antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting

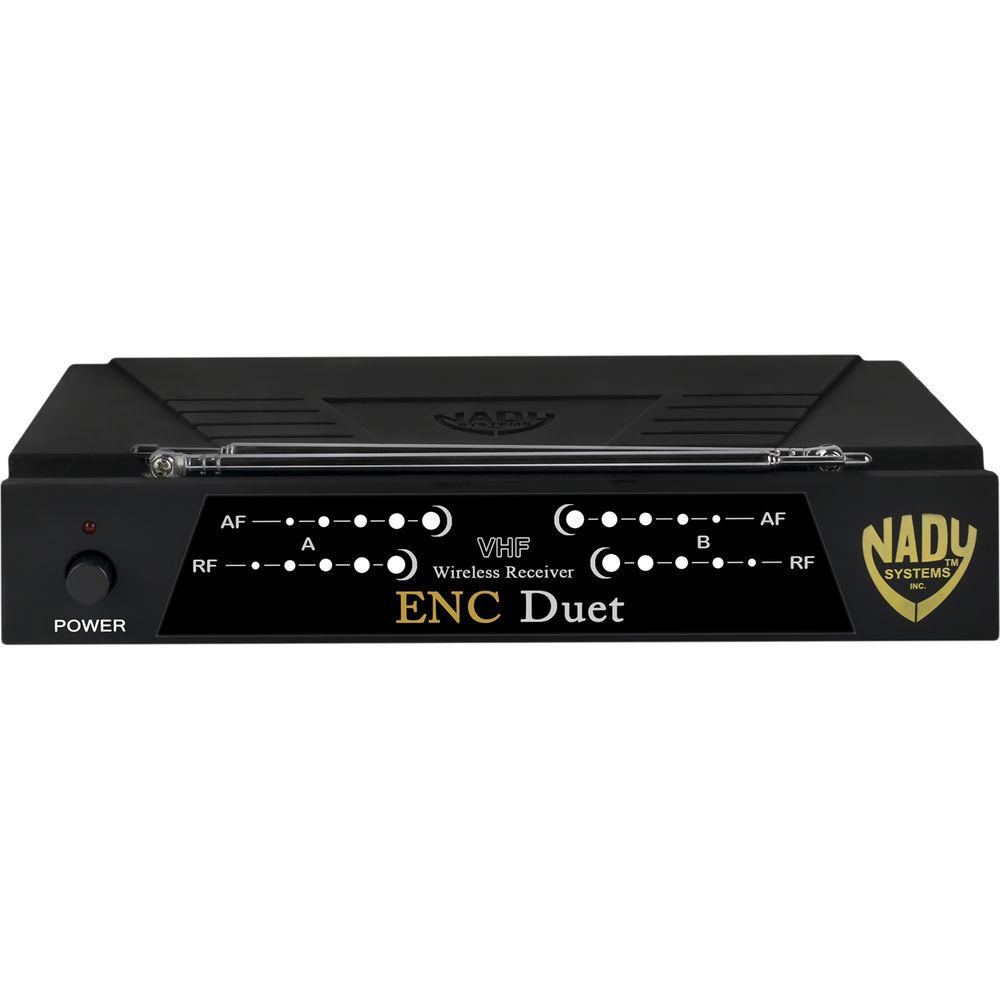

- RF and AF 5-LED displays for monitoring incoming signal strength and audio level; balanced XLR and unbalanced adjustable ¼" jack output
- Noiseless transmitter On/Off switching
- Features the Nady DM-10 unidirectional dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Operates up to 15 hours on a single 9V alkaline battery
- Easily accessible Input Level Adjust for optimum sound

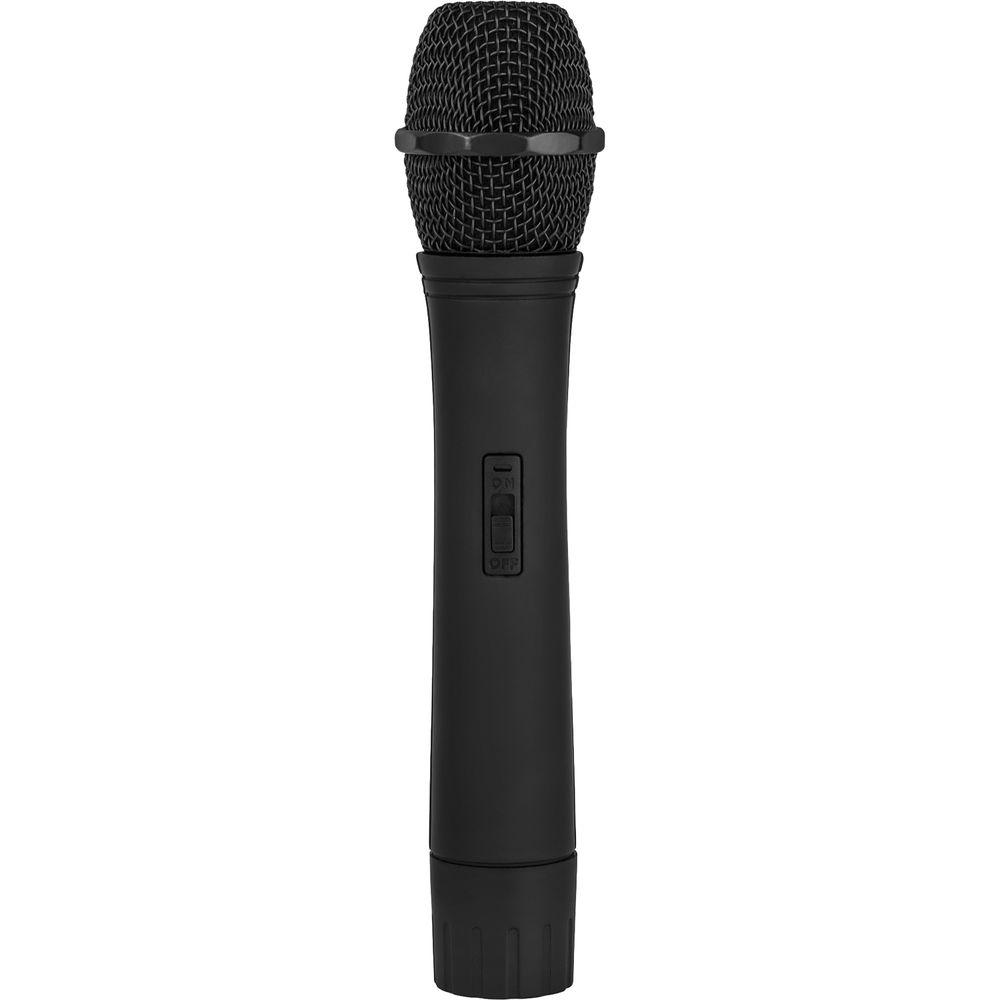

WHT Handheld Microphone Transmitter - Operates on a separate single frequency in the VHF 171.905 - 215.200 MHz band
- Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting with transmitter on
- Low-battery LED indicator flashes once for Unit On; lights steady for low-battery alert
- Uses one 9V alkaline battery for 15+ hours operation
UPC: 634343286519 In the Box Nady Encore Duet Dual Wireless Handheld System 2 x WHT Handheld Transmitter Microphones 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Encore Duet Dual Wireless Handheld System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ENCORE DUET HT/A&F Specs | | | Type of System | Dual Channel VHF | | RF Carrier Frequency Range | 2 channels between 171.905 - 215.200 MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions);

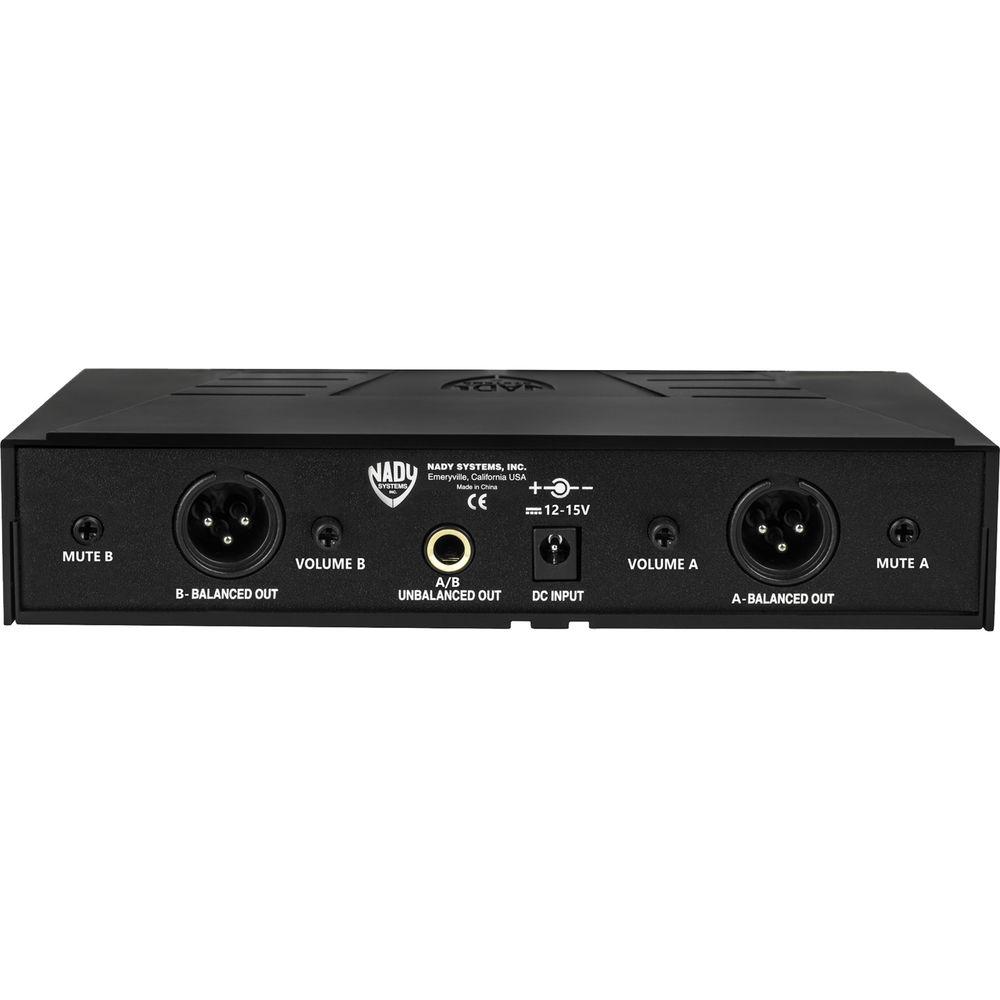

Up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 25Hz - 20kHz, +/-3dB | | Total Harmonic Distortion (THD) | < 0.3 % | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM (F3E), +/-20kHz max | | | | Type of Outputs | Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed), 2.1mm barrel-type DC input jack | | Power Requirements | 12V @ 400mA, nominal, AC/DC adapter supplied | | Display | Power ON, Dual 5-LED RF & AF level displays(Ch A/B) | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) | | Weight | 1.6 lbs (0.73 kg) | | | | Type of Transmitter | Nady WHT Handheld | | Type of Microphone | DM-10D Neodymium | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 9.5 x 1.4" (24.1 X 3.5cm) | | Weight | 6.9 oz (193 g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.0 x 11.5 x 2.4" |
