User Manual for Nady Encore II VHF Wireless Guitar System Click to enlarge the picture
Contents of the user manual for the Nady Encore II VHF Wireless Guitar
- Product category: Guitar Wireless Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Guitar Wireless
 |
User manual for the Nady Encore II VHF Wireless Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

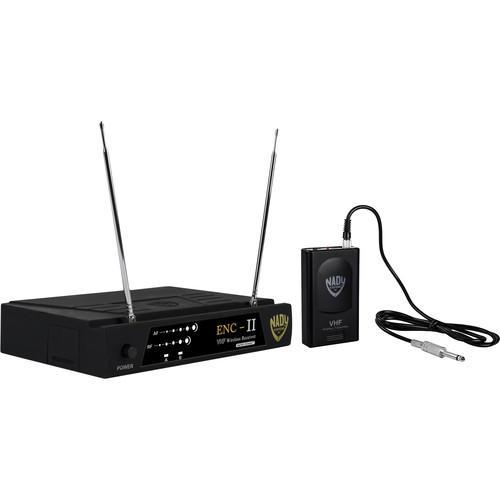

Product description The Encore II VHF Wireless Guitar System by Nady brings you a complete wireless solution for guitar or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.The Encore II allows single channel, wireless operation on selected frequencies in the VHF high-band (171-216 MHz) and provides low interference, long-range performance. The system includes a rugged receiver with dual antennas, a WGT Instrument Bodypack transmitter and 1/4" phone and XLR outputs for connection to PA systems. The transmitter operates up to 500 feet away and lasts up to 15 hours on a single 9V battery. - Available on selected frequencies in the VHF high-band (170.245 - 215.200MHz) for interference-free, long-range performance

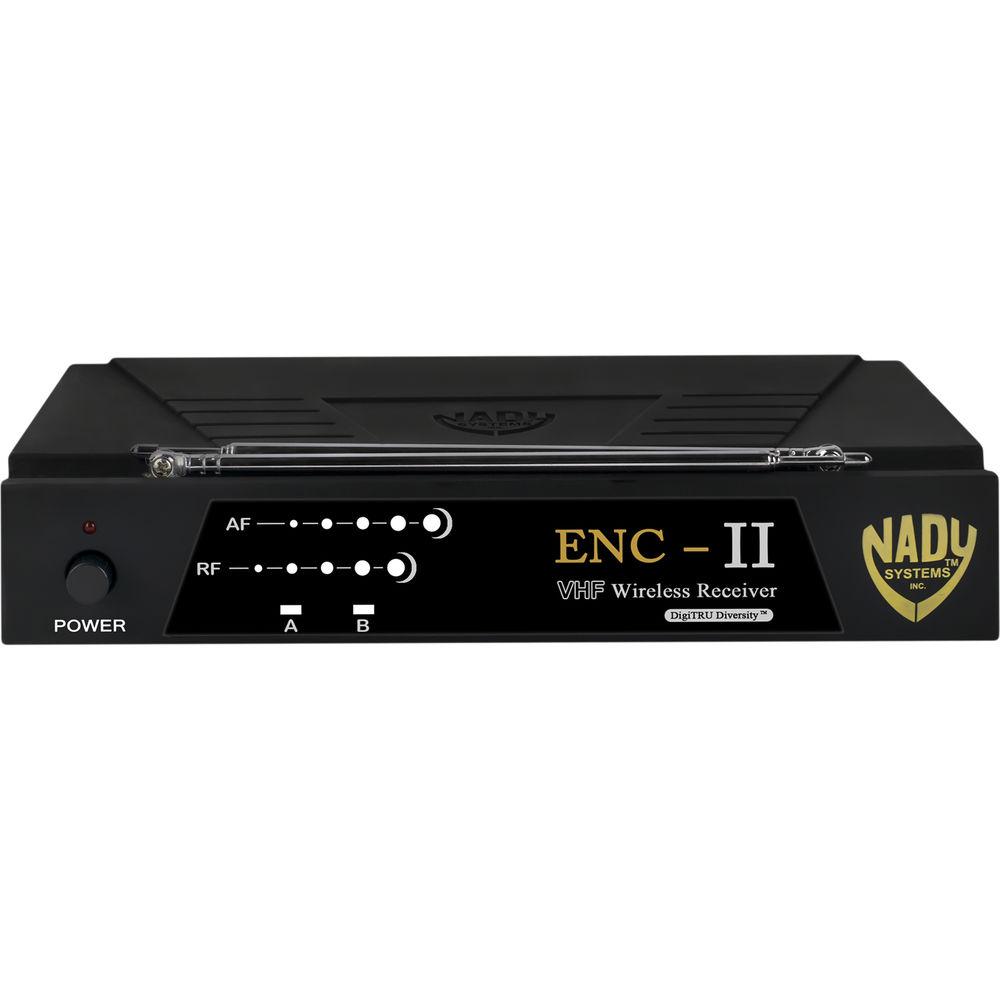

- Half-rack receiver design with retractable front panel antennas
- Unique snap-out panel locking tabs for optional single receiver rack mounting or dual receiver (side-by-side) rack mounting

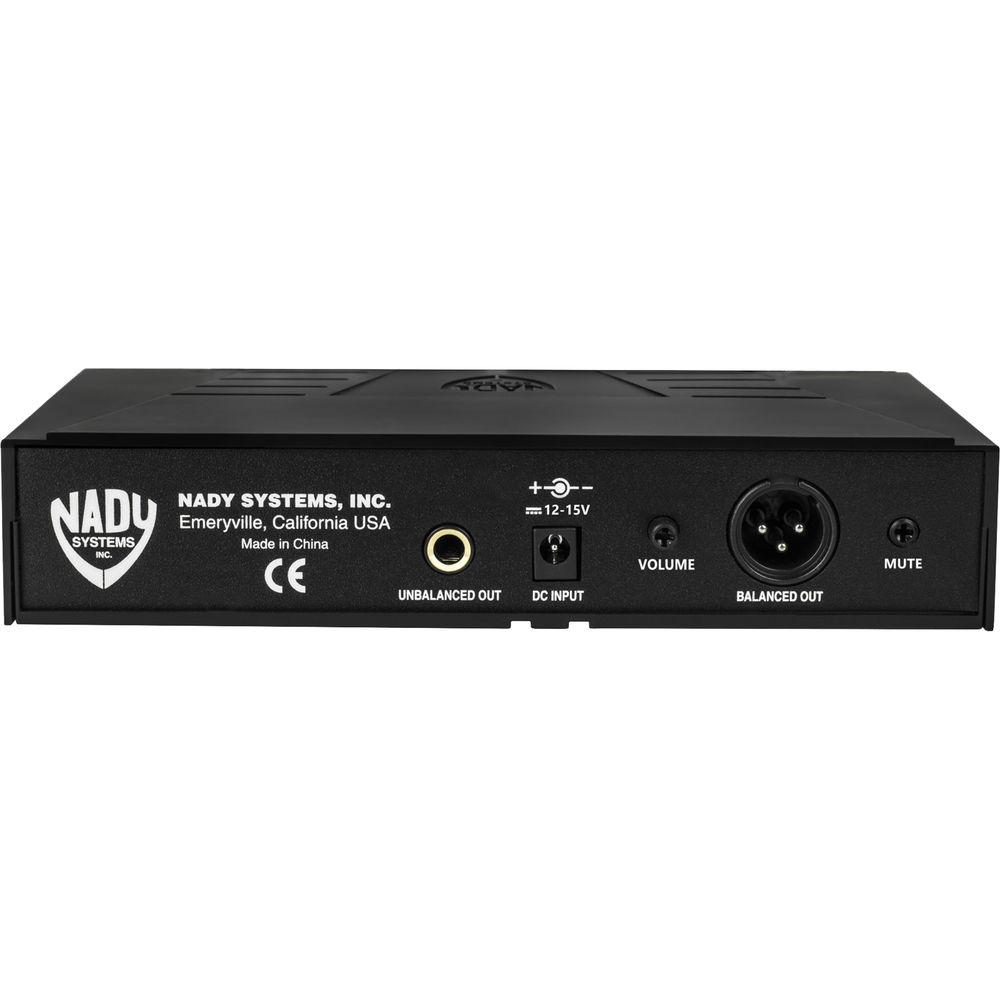

- RF and AF 5-LED displays for monitoring incoming signal strength and audio level; balanced XLR and unbalanced adjustable ¼" jack output
- Noiseless transmitter On/Off switching
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Operates up to 15 hours on a single 9V alkaline battery
- Easily accessible Input Level Adjust for optimum sound
- WGT Instrument Bodypack transmitter included
WGT Bodypack Transmitter - Off/Standby/On switch allows convenient audio muting with the transmitter on
- LED status indicator flashes once for unit on, lights steady for low-battery alert
UPC: 634343084856 In the Box Nady Encore II VHF Wireless Guitar System WGT Instrument Bodypack Transmitter Instrument Cord Power Supply 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Encore II VHF Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady Encore II Specs | | | Type of System | Bodypack VHF with DigiTRU Diver | | | | Type of Outputs | Balanced XLR and unbalanced adjustable 1/4"audio out jacks, 2.1mm barrel-type DC input jack | | Controls | Power ON/OFF, volume control, mute control | | Power Requirements | 12V @ 400mA, nominal, AC/DC adapter supplied | | Display | Power ON, 5-LED RF & AF level displays | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) | | Weight | 1.6 lbs (.73 kg) | | | | Type of Transmitter | WGT instrument bodypack | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0 cm) | | Weight | 3.6 oz (101 g) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.1 x 11.2 x 2.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
