Nady Encore II Wireless Lavalier Microphone

Search your instruction manual in PDF to download

User Manual for Nady Encore II Wireless Lavalier Microphone System

Click to enlarge the picture
Nady Encore II Wireless Lavalier Microphone System Contents of the user manual for the Nady Encore II Wireless Lavalier Microphone
  • Product category: Wireless Systems Nady
  • Brand: Nady
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nady Wireless Systems

Nady Encore II Wireless Lavalier Microphone System Nady Encore II Wireless Lavalier Microphone System
User manual for the Nady Encore II Wireless Lavalier Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nady product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!



Product description

The Nady Encore II Wireless Lavalier Microphone System is a cost effective cable-free solution for houses-of-worship, auditoriums, presentations, conferences, small performances and more. The Encore II features DigiTRU diversity reception for minimal interference, drop-outs and long range wireless operation. The system includes a rugged receiver with dual antennas, 1/4" phone and XLR outputs for connection to a PA system. The WLT bodypack transmitter features the LM-14O lavalier microphone and will operate up to 15 hours on single 9V battery.
  • Loaded with top professional operating features
  • Available on selected frequencies in the VHF high-band (170.245 - 215.200MHz) for interference-free, long-range performance

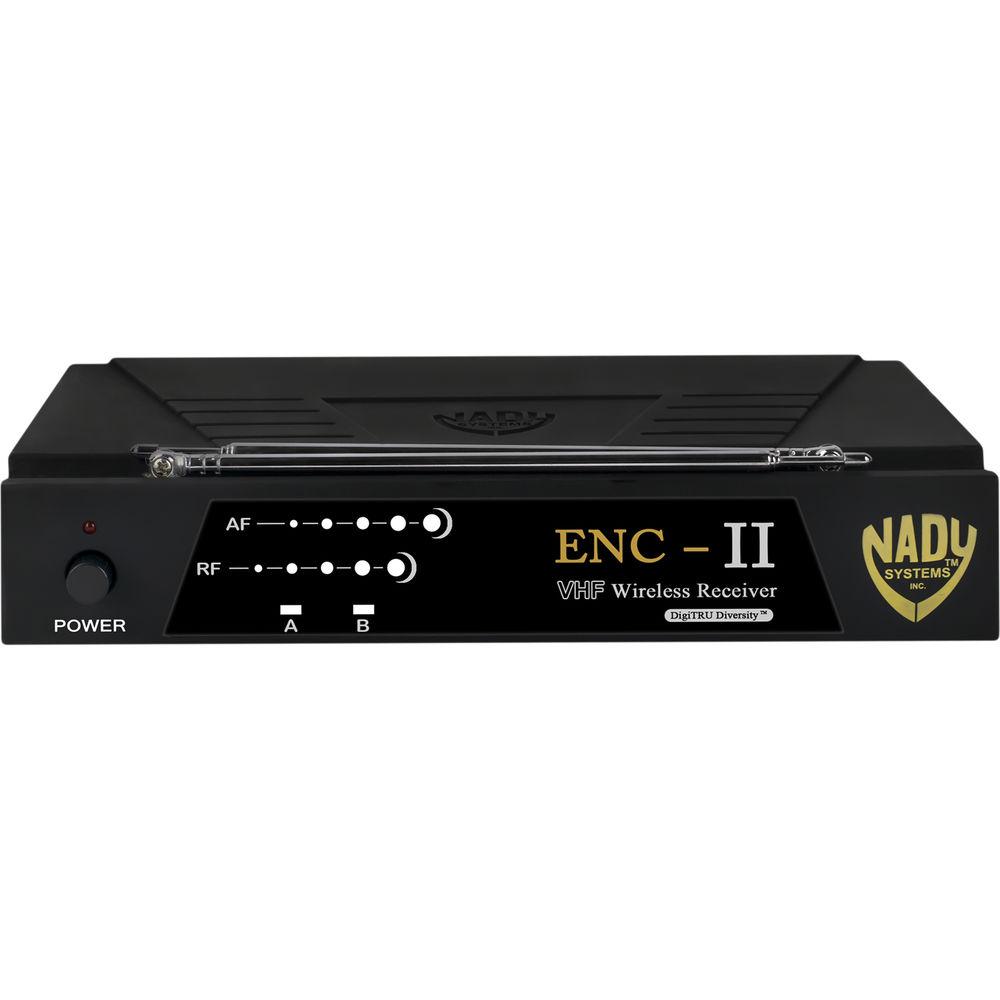

  • Half-rack receiver design with retractable front panel antennas
  • Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
  • RF and AF 5-LED displays for monitoring incoming signal strength and audio level; balanced XLR and unbalanced adjustable ¼" jack output
  • Noiseless transmitter On/Off switching
  • Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
  • Operates up to 15 hours on a single 9V alkaline battery
  • Easily accessible Input Level Adjust for optimum sound

WLT Bodypack Transmitters

  • Includes the LM-14O omnidirectional lavalier microphone. The LM-14U unidirectional lapel microphone and Headmic Series microphones are optional
  • Off/Standby/On switch allows convenient audio muting with the transmitter on
  • Input level adjust
  • Locking 3.5mm jack
  • LED status indicator flashes once for unit on, lights steady for low-battery alert
UPC: 634343085013 In the Box Nady Encore II Wireless Lavalier Microphone System
  • WLT Bodypack Transmitter
  • LM-14O Omnidirectional Lavalier Microphone
  • AC/DC Power Supply
  • 1 Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nady Encore II Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nady ENCORE 2 LT/O/E Specs

    Type of System Bodypack VHF with DigiTRU Diver

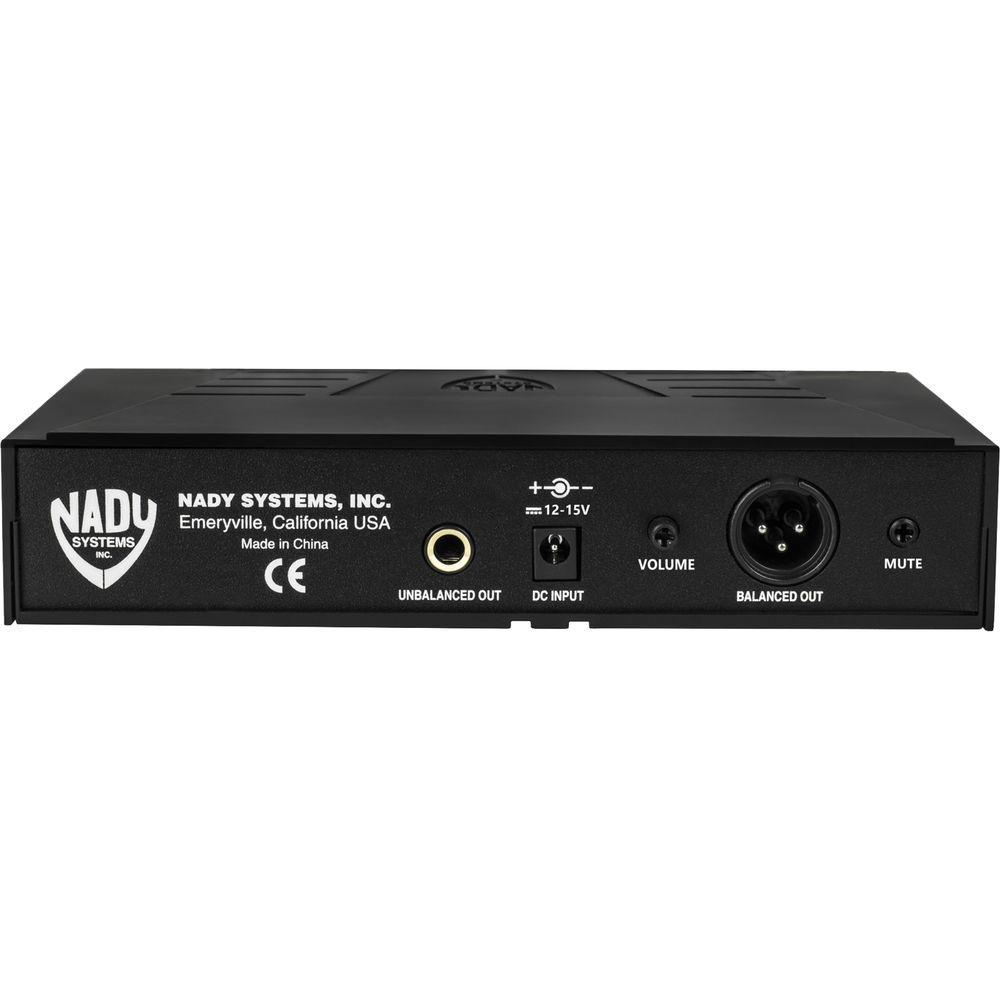

    Type of Outputs Balanced XLR and unbalanced adjustable 1/4"audio out jacks, 2.1mm barrel-type DC input jack
    Controls Power ON/OFF, volume control, mute control
    Power Requirements 12V @ 400mA, nominal, AC/DC adapter supplied
    Display Power ON, 5-LED RF & AF level displays
    Antenna Type 11.2" (28.5 cm), dual telescopic
    Dimensions 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm)
    Weight 1.6 lbs (.73 kg)
    Type of Transmitter Nady WLT Bodypack
    Type of Microphone LM-14O Lavalier
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life Battery: 9V Alkaline
    Battery Life: Up to 15 hours
    Mute Switch Off/On Switch
    Display Low-battery LED
    Dimensions 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0cm)
    Weight 3.6 oz (101 g)
    Package Weight 2.45 lb
    Box Dimensions (LxWxH) 12.1 x 11.5 x 2.2"
