User Manual for Nady Encore II Wireless Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the Nady Encore II Wireless Lavalier Microphone
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady Encore II Wireless Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

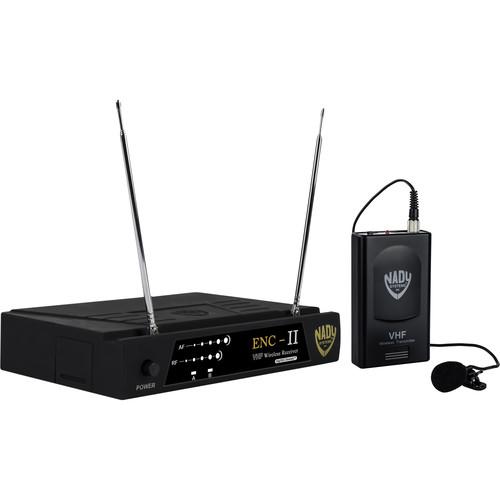

Product description The Nady Encore II Wireless Lavalier Microphone System is a cost effective cable-free solution for houses-of-worship, auditoriums, presentations, conferences, small performances and more. The Encore II features DigiTRU diversity reception for minimal interference, drop-outs and long range wireless operation. The system includes a rugged receiver with dual antennas, 1/4" phone and XLR outputs for connection to a PA system. The WLT bodypack transmitter features the LM-14O lavalier microphone and will operate up to 15 hours on single 9V battery. - Loaded with top professional operating features
- Available on selected frequencies in the VHF high-band (170.245 - 215.200MHz) for interference-free, long-range performance

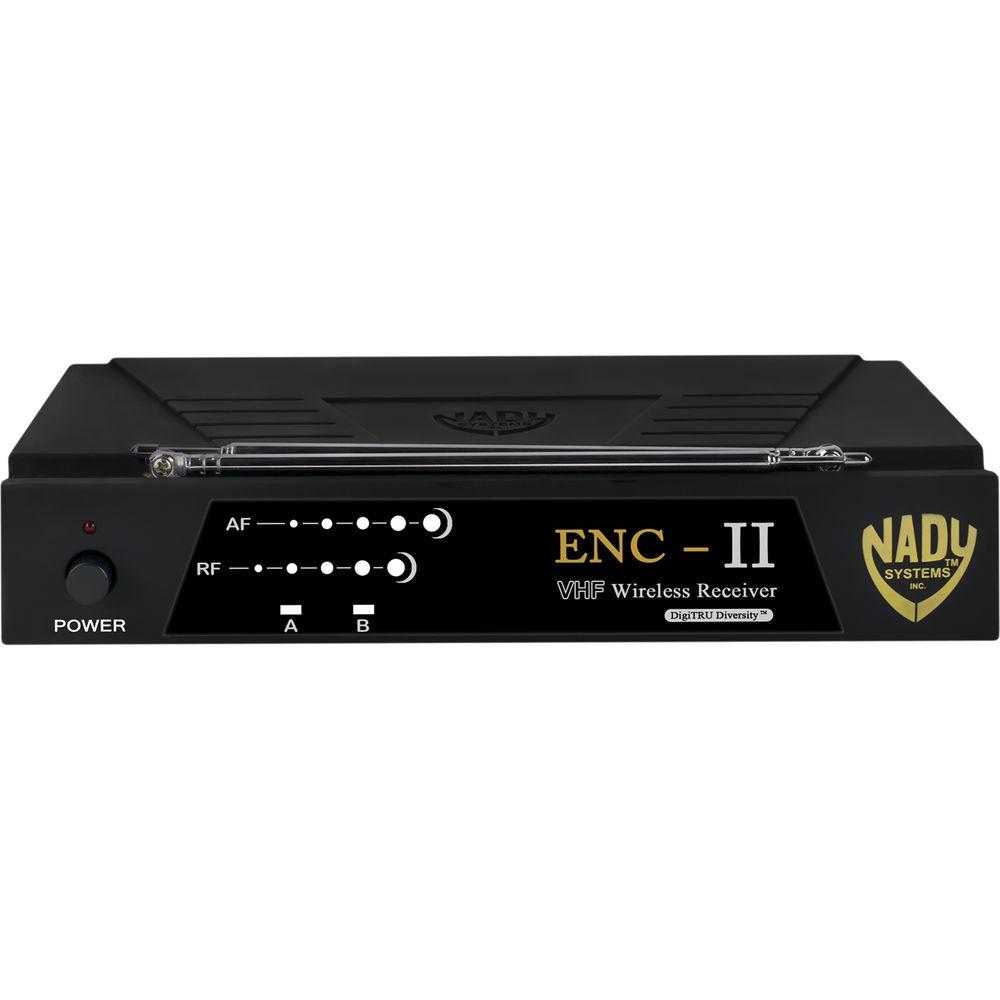

- Half-rack receiver design with retractable front panel antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting

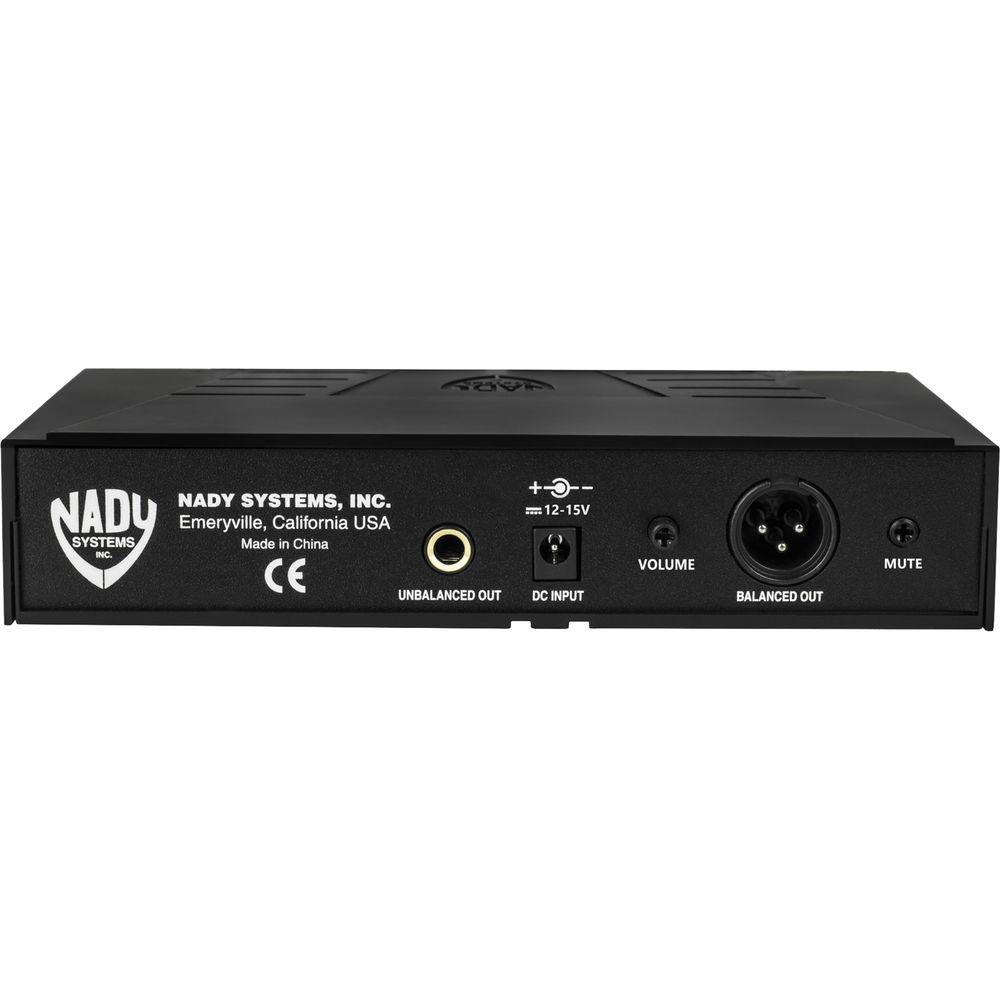

- RF and AF 5-LED displays for monitoring incoming signal strength and audio level; balanced XLR and unbalanced adjustable ¼" jack output
- Noiseless transmitter On/Off switching
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Operates up to 15 hours on a single 9V alkaline battery
- Easily accessible Input Level Adjust for optimum sound
WLT Bodypack Transmitters - Includes the LM-14O omnidirectional lavalier microphone. The LM-14U unidirectional lapel microphone and Headmic Series microphones are optional
- Off/Standby/On switch allows convenient audio muting with the transmitter on
- LED status indicator flashes once for unit on, lights steady for low-battery alert
UPC: 634343085051 In the Box Nady Encore II Wireless Lavalier Microphone System WLT Bodypack Transmitter LM-14O Omnidirectional Lavalier Microphone AC/DC Power Supply 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady Encore II Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ENCORE 2 LT/O/N Specs | | | Type of System | Bodypack VHF with DigiTRU Diver | | | | Type of Outputs | Balanced XLR and unbalanced adjustable 1/4"audio out jacks, 2.1mm barrel-type DC input jack | | Controls | Power ON/OFF, volume control, mute control | | Power Requirements | 12V @ 400mA, nominal, AC/DC adapter supplied | | Display | Power ON, 5-LED RF & AF level displays | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) | | Weight | 1.6 lbs (.73 kg) | | | | Type of Transmitter | Nady WLT Bodypack | | Type of Microphone | LM-14O Lavalier | | Polar Pattern | Omnidirectional | | Battery Type/Approx. Life | Battery: 9V Alkaline
Battery Life: Up to 15 hours | | Mute Switch | Off/On Switch | | Display | Low-battery LED | | Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0cm) | | Weight | 3.6 oz (101 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.1 x 11.3 x 2.4" |
