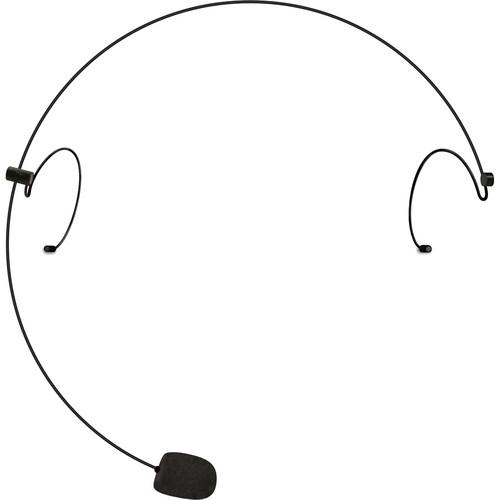

User Manual for Nady HM-20U HEADMIC Series Headworn Condenser Microphone with 3-Pin Mini-XLR Connector Click to enlarge the picture
Contents of the user manual for the Nady HM-20U HEADMIC Series Headworn Condenser
- Product category: Microphones for Wireless Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Microphones for Wireless
|
User manual for the Nady HM-20U HEADMIC Series Headworn Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The beige Nady HM-20U HEADMIC Series Headworn Condenser Microphone is intended for hands-free microphone applications during presentations, performances, fitness instruction and more. The low-profile microphone features a thin, form fitting ergonomic frame. The miniature capsule features a wide frequency response and cardioid polar pattern that maximizes feedback rejection. The HM-20U has a 3-pin mini-XLR connection intended for use with Nady transmitters, however a standard XLR adapter will allow for use with standard microphone preamps. - Full-frequency, uni-directional electret condenser mic
- Warm, transparent audio and maximum feedback rejection
- Durable, thin metal frame easily molded to any user
- Ergonomic design and comfortable fit with or without glasses, hat, or headphones (also no hairstyle hindrance)
- Tiny 5 x 8 mm lightweight capsule for hours of comfortable use
- Two sizes of foam windscreen included to reduce wind/popping noise
- Extendable, fully adjustable boom for optimum mic capsule placement
- Available with mini-XLR, 3.5mm phono plug (fits most standard wireless bodypack transmitters) or with standard XLR adapter for all wired and wireless applications
UPC: 634343272673 In the Box Nady HM-20U HEADMIC Series Headworn Condenser Microphone with 3-Pin Mini-XLR Connector (Beige) Standard Windscreen Small Windscreen Extra Boom Assembly User Guide 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady HM-20U HEADMIC Series Headworn Condenser Microphone with 3-Pin Mini-XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady HM-20U Specs | Transducer | Back electret condenser | | Polar Pattern | Unidirectional Cardioid | | Frequency Response | 20Hz~20KHz | | Sensitivity | -46dB ±3dB | | Maximum Input Sound Level | 135dB | | Power Requirements | 1.5-12V DC | | Output Impedance | 1k Ohms ±5% | | Output Connectors | 3-Pin Mini-XLR | | Dimensions | 0.19 x 0.31"(5 x 8mm) Cable: 1.5mm dia, 40" (1m) | | Weight | 0.6 oz. (18g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.7 x 6.2 x 2.5" |
